a IEEE 802.11s Mesh ID 7.3.287 of 802.11s draft 3.0 More...
#include <ie-dot11s-id.h>
Public Member Functions | |
IeMeshId () | |
IeMeshId (std::string s) | |
bool | IsBroadcast (void) const |
bool | IsEqual (IeMeshId const &o) const |
char * | PeekString (void) const |
Inherited from WifiInformationElement | |
virtual WifiInformationElementId | ElementId () const |
Own unique Element ID. More... | |
virtual void | SerializeInformationField (Buffer::Iterator i) const |
Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More... | |
virtual uint8_t | DeserializeInformationField (Buffer::Iterator start, uint8_t length) |
Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More... | |
virtual void | Print (std::ostream &os) const |
In addition, a subclass may optionally override the following... More... | |
virtual uint8_t | GetInformationFieldSize () const |
Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More... | |
![]() | |
virtual | ~WifiInformationElement () |
Buffer::Iterator | Deserialize (Buffer::Iterator i) |
Deserialize entire IE, which must be present. More... | |
Buffer::Iterator | DeserializeIfPresent (Buffer::Iterator i) |
Deserialize entire IE if it is present. More... | |
uint16_t | GetSerializedSize () const |
Get the size of the serialized IE including Element ID and length fields. More... | |
Buffer::Iterator | Serialize (Buffer::Iterator i) const |
Serialize entire IE including Element ID and length fields. More... | |
virtual bool | operator< (WifiInformationElement const &a) const |
Compare information elements using Element ID. More... | |
virtual bool | operator== (WifiInformationElement const &a) const |
Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More... | |
![]() | |
SimpleRefCount () | |
Constructor. More... | |
SimpleRefCount (const SimpleRefCount &o) | |
Copy constructor. More... | |
uint32_t | GetReferenceCount (void) const |
Get the reference count of the object. More... | |
SimpleRefCount & | operator= (const SimpleRefCount &o) |
Assignment. More... | |
void | Ref (void) const |
Increment the reference count. More... | |
void | Unref (void) const |
Decrement the reference count. More... | |
Private Attributes | |
uint8_t | m_meshId [33] |
Friends | |
bool | operator== (const IeMeshId &a, const IeMeshId &b) |
Additional Inherited Members | |
![]() | |
static void | Cleanup (void) |
Noop. More... | |
a IEEE 802.11s Mesh ID 7.3.287 of 802.11s draft 3.0
Definition at line 34 of file ie-dot11s-id.h.
ns3::dot11s::IeMeshId::IeMeshId | ( | ) |
Definition at line 27 of file ie-dot11s-id.cc.
References m_meshId.
ns3::dot11s::IeMeshId::IeMeshId | ( | std::string | s | ) |
Definition at line 34 of file ie-dot11s-id.cc.
|

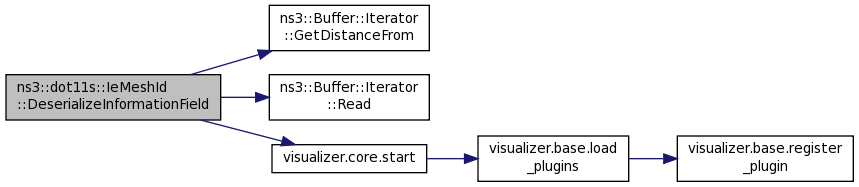

virtual |
Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)
start | an iterator which points to where the information should be written. |
length |
Implements ns3::WifiInformationElement.
Definition at line 107 of file ie-dot11s-id.cc.
References ns3::Buffer::Iterator::GetDistanceFrom(), m_meshId, NS_ASSERT, ns3::Buffer::Iterator::Read(), and visualizer.core::start().
Referenced by ns3::dot11s::PeerLinkFrameStart::Deserialize().
|

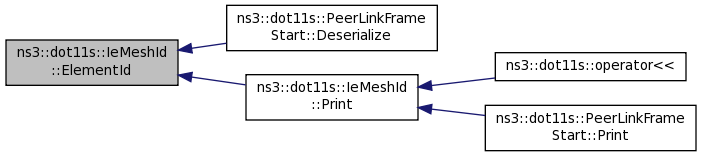

virtual |
Own unique Element ID.
Implements ns3::WifiInformationElement.
Definition at line 53 of file ie-dot11s-id.cc.
References IE11S_MESH_ID.
Referenced by ns3::dot11s::PeerLinkFrameStart::Deserialize(), and Print().
|

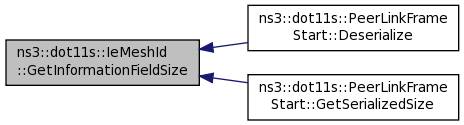

virtual |
Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.
This is the value that will appear in the second octet of the entire IE - the length field)
Implements ns3::WifiInformationElement.
Definition at line 86 of file ie-dot11s-id.cc.
References m_meshId, and NS_ASSERT.
Referenced by ns3::dot11s::PeerLinkFrameStart::Deserialize(), and ns3::dot11s::PeerLinkFrameStart::GetSerializedSize().
bool ns3::dot11s::IeMeshId::IsBroadcast | ( | void | ) | const |
Definition at line 72 of file ie-dot11s-id.cc.
References m_meshId.

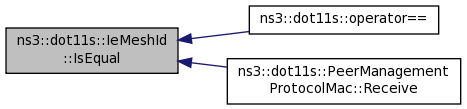

bool ns3::dot11s::IeMeshId::IsEqual | ( | IeMeshId const & | o | ) | const |
Definition at line 58 of file ie-dot11s-id.cc.
References m_meshId.
Referenced by ns3::dot11s::operator==(), and ns3::dot11s::PeerManagementProtocolMac::Receive().

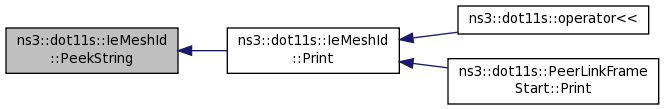

char * ns3::dot11s::IeMeshId::PeekString | ( | void | ) | const |
Definition at line 81 of file ie-dot11s-id.cc.
References m_meshId.
Referenced by Print().
|

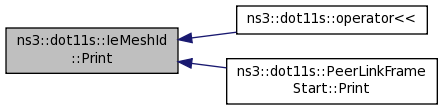

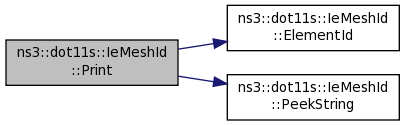

virtual |
In addition, a subclass may optionally override the following...
Generate human-readable form of IE
os | output stream |
Reimplemented from ns3::WifiInformationElement.
Definition at line 116 of file ie-dot11s-id.cc.
References ElementId(), and PeekString().
Referenced by ns3::dot11s::operator<<(), and ns3::dot11s::PeerLinkFrameStart::Print().
|
virtual |
Serialize information (i.e., the body of the IE, not including the Element ID and length octets)
start | an iterator which points to where the information should be written. |
Implements ns3::WifiInformationElement.
Definition at line 97 of file ie-dot11s-id.cc.
References m_meshId, and ns3::Buffer::Iterator::WriteU8().
Definition at line 123 of file ie-dot11s-id.cc.
|
private |
Definition at line 56 of file ie-dot11s-id.h.
Referenced by DeserializeInformationField(), GetInformationFieldSize(), IeMeshId(), IsBroadcast(), IsEqual(), ns3::dot11s::operator==(), PeekString(), and SerializeInformationField().
