See 7.3.2.85 of draft 2.07. More...

#include <ie-dot11s-peer-management.h>

Inheritance diagram for ns3::dot11s::IePeerManagement:

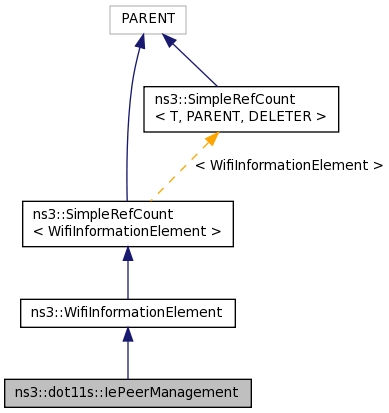

Collaboration diagram for ns3::dot11s::IePeerManagement:

Public Types
enum	Subtype { PEER_OPEN = 0, PEER_CONFIRM, PEER_CLOSE }

Public Member Functions
	IePeerManagement ()

uint16_t	GetLocalLinkId () const

uint16_t	GetPeerLinkId () const

PmpReasonCode	GetReasonCode () const

uint8_t	GetSubtype () const

void	SetPeerClose (uint16_t localLinkID, uint16_t peerLinkId, PmpReasonCode reasonCode)

void	SetPeerConfirm (uint16_t localLinkID, uint16_t peerLinkId)

void	SetPeerOpen (uint16_t localLinkId)

bool	SubtypeIsClose () const

bool	SubtypeIsConfirm () const

bool	SubtypeIsOpen () const

Inherited from WifiInformationElement
virtual WifiInformationElementId	ElementId () const
	Own unique Element ID. More...

virtual uint8_t	GetInformationFieldSize (void) const
	Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

virtual void	SerializeInformationField (Buffer::Iterator i) const
	Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

virtual uint8_t	DeserializeInformationField (Buffer::Iterator i, uint8_t length)
	Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

virtual void	Print (std::ostream &os) const
	In addition, a subclass may optionally override the following... More...

Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()

Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE, which must be present. More...

Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
	Deserialize entire IE if it is present. More...

uint16_t	GetSerializedSize () const
	Get the size of the serialized IE including Element ID and length fields. More...

Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields. More...

virtual bool	operator< (WifiInformationElement const &a) const
	Compare information elements using Element ID. More...

virtual bool	operator== (WifiInformationElement const &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
uint8_t	m_length

uint16_t	m_localLinkId

uint16_t	m_peerLinkId
	Present within confirm and may be present in close. More...

PmpReasonCode	m_reasonCode
	Present only within close frame. More...

uint8_t	m_subtype

Friends
bool	operator== (const IePeerManagement &a, const IePeerManagement &b)

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
static void	Cleanup (void)
	Noop. More...

Detailed Description

See 7.3.2.85 of draft 2.07.

Definition at line 52 of file ie-dot11s-peer-management.h.

Member Enumeration Documentation

enum ns3::dot11s::IePeerManagement::Subtype

Enumerator
PEER_OPEN
PEER_CONFIRM
PEER_CLOSE

Definition at line 56 of file ie-dot11s-peer-management.h.

Constructor & Destructor Documentation

ns3::dot11s::IePeerManagement::IePeerManagement ( )

Definition at line 29 of file ie-dot11s-peer-management.cc.

Member Function Documentation

uint8_t ns3::dot11s::IePeerManagement::DeserializeInformationField	(	Buffer::Iterator	start,
		uint8_t	length
	)

virtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start	an iterator which points to where the information should be written.
length

Returns: the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 123 of file ie-dot11s-peer-management.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_length, m_localLinkId, m_peerLinkId, m_reasonCode, m_subtype, NS_ASSERT, PEER_CLOSE, PEER_CONFIRM, PEER_OPEN, ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

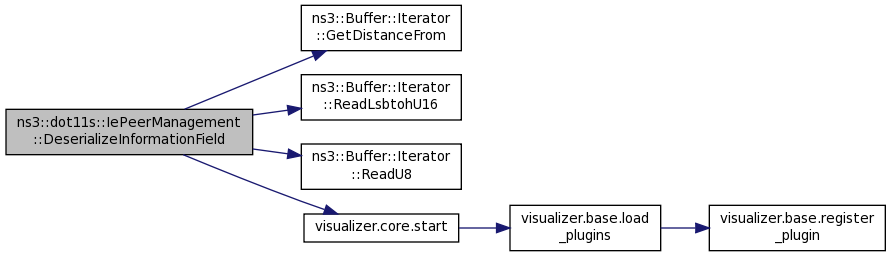

Here is the call graph for this function:

WifiInformationElementId ns3::dot11s::IePeerManagement::ElementId ( ) const

virtual

Own unique Element ID.

Implements ns3::WifiInformationElement.

Definition at line 34 of file ie-dot11s-peer-management.cc.

References IE11S_PEERING_MANAGEMENT.

Referenced by Print().

Here is the caller graph for this function:

uint8_t ns3::dot11s::IePeerManagement::GetInformationFieldSize ( void ) const

virtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field)

Returns: the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 83 of file ie-dot11s-peer-management.cc.

References m_length.

uint16_t ns3::dot11s::IePeerManagement::GetLocalLinkId ( ) const

Definition at line 71 of file ie-dot11s-peer-management.cc.

References m_localLinkId.

Referenced by ns3::dot11s::PeerManagementProtocol::ReceivePeerLinkFrame().

Here is the caller graph for this function:

uint16_t ns3::dot11s::IePeerManagement::GetPeerLinkId ( ) const

Definition at line 77 of file ie-dot11s-peer-management.cc.

References m_peerLinkId.

Referenced by ns3::dot11s::PeerManagementProtocol::ReceivePeerLinkFrame().

Here is the caller graph for this function:

PmpReasonCode ns3::dot11s::IePeerManagement::GetReasonCode ( ) const

Definition at line 65 of file ie-dot11s-peer-management.cc.

References m_reasonCode.

Referenced by ns3::dot11s::PeerManagementProtocol::ReceivePeerLinkFrame(), and ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame().

Here is the caller graph for this function:

uint8_t ns3::dot11s::IePeerManagement::GetSubtype ( ) const

Definition at line 88 of file ie-dot11s-peer-management.cc.

References m_subtype.

void ns3::dot11s::IePeerManagement::Print ( std::ostream & os ) const

virtual

In addition, a subclass may optionally override the following...

Generate human-readable form of IE

Parameters

os	output stream

Reimplemented from ns3::WifiInformationElement.

Definition at line 152 of file ie-dot11s-peer-management.cc.

References ElementId(), m_length, m_localLinkId, m_peerLinkId, m_reasonCode, and m_subtype.

Referenced by ns3::dot11s::operator<<().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dot11s::IePeerManagement::SerializeInformationField ( Buffer::Iterator start ) const

virtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start an iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 109 of file ie-dot11s-peer-management.cc.

References m_length, m_localLinkId, m_peerLinkId, m_reasonCode, m_subtype, ns3::Buffer::Iterator::WriteHtolsbU16(), and ns3::Buffer::Iterator::WriteU8().

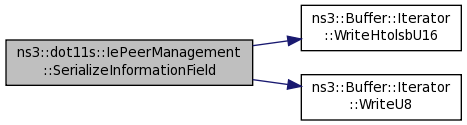

Here is the call graph for this function:

void ns3::dot11s::IePeerManagement::SetPeerClose	(	uint16_t	localLinkID,
		uint16_t	peerLinkId,
		PmpReasonCode	reasonCode
	)

Definition at line 46 of file ie-dot11s-peer-management.cc.

References m_length, m_localLinkId, m_peerLinkId, m_reasonCode, m_subtype, and PEER_CLOSE.

Referenced by ns3::dot11s::PeerLink::SendPeerLinkClose().

Here is the caller graph for this function:

void ns3::dot11s::IePeerManagement::SetPeerConfirm	(	uint16_t	localLinkID,
		uint16_t	peerLinkId
	)

Definition at line 56 of file ie-dot11s-peer-management.cc.

References m_length, m_localLinkId, m_peerLinkId, m_subtype, and PEER_CONFIRM.

Referenced by ns3::dot11s::PeerLink::SendPeerLinkConfirm().

Here is the caller graph for this function:

void ns3::dot11s::IePeerManagement::SetPeerOpen ( uint16_t localLinkId )

Definition at line 39 of file ie-dot11s-peer-management.cc.

References m_length, m_localLinkId, m_subtype, and PEER_OPEN.

Referenced by ns3::dot11s::PeerLink::SendPeerLinkOpen().

Here is the caller graph for this function:

bool ns3::dot11s::IePeerManagement::SubtypeIsClose ( ) const

Definition at line 98 of file ie-dot11s-peer-management.cc.

References m_subtype, and PEER_CLOSE.

Referenced by ns3::dot11s::PeerManagementProtocol::ReceivePeerLinkFrame(), and ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame().

Here is the caller graph for this function:

bool ns3::dot11s::IePeerManagement::SubtypeIsConfirm ( ) const

Definition at line 103 of file ie-dot11s-peer-management.cc.

References m_subtype, and PEER_CONFIRM.

Referenced by ns3::dot11s::PeerManagementProtocol::ReceivePeerLinkFrame(), and ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame().

Here is the caller graph for this function:

bool ns3::dot11s::IePeerManagement::SubtypeIsOpen ( ) const

Definition at line 93 of file ie-dot11s-peer-management.cc.

References m_subtype, and PEER_OPEN.

Referenced by ns3::dot11s::PeerManagementProtocol::ReceivePeerLinkFrame(), and ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame().

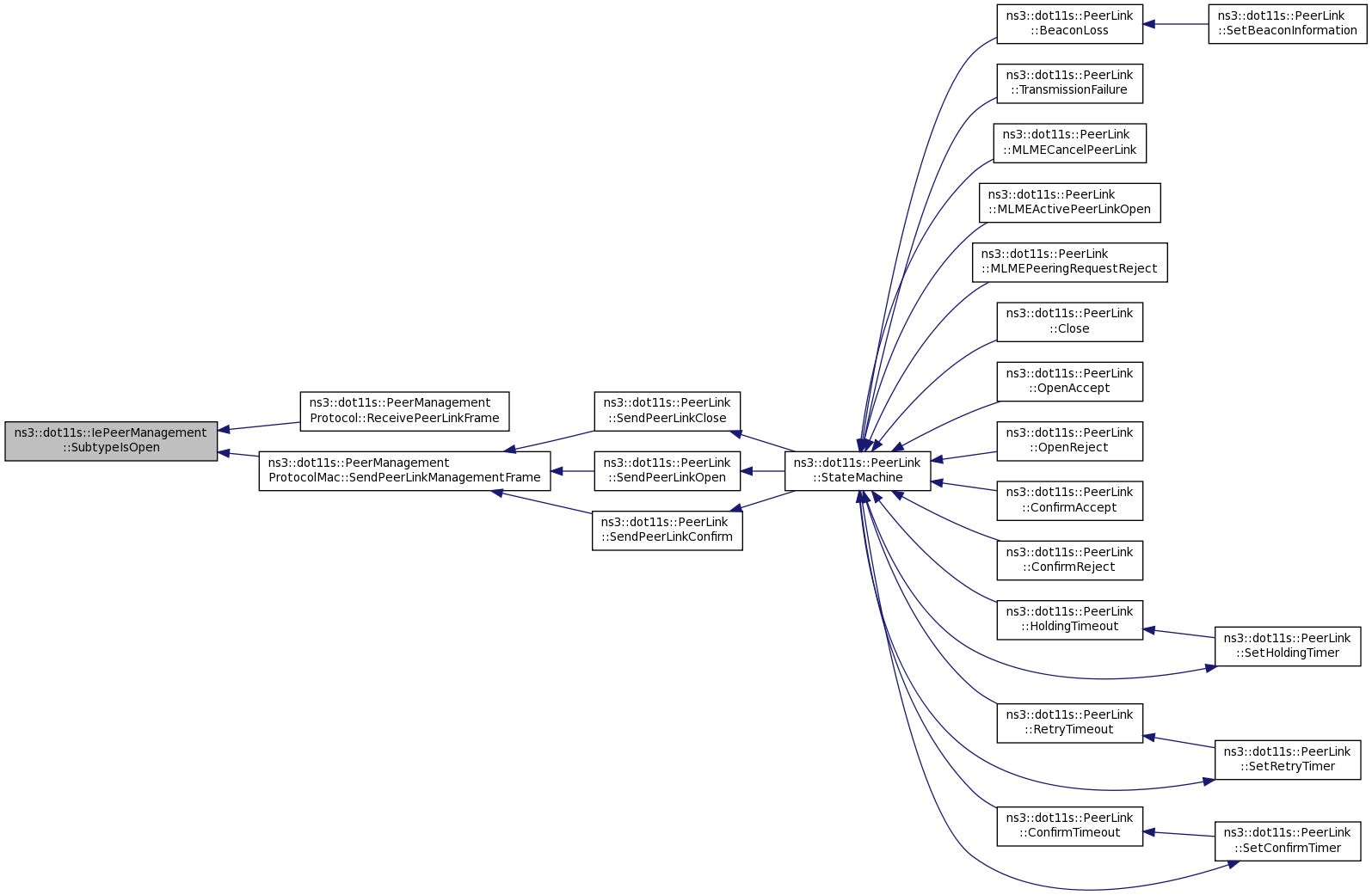

Here is the caller graph for this function:

Friends And Related Function Documentation

bool operator==	(	const IePeerManagement &	a,
		const IePeerManagement &	b
	)

friend

Definition at line 163 of file ie-dot11s-peer-management.cc.

Member Data Documentation

uint8_t ns3::dot11s::IePeerManagement::m_length

private

Definition at line 84 of file ie-dot11s-peer-management.h.

Referenced by DeserializeInformationField(), GetInformationFieldSize(), ns3::dot11s::operator==(), Print(), SerializeInformationField(), SetPeerClose(), SetPeerConfirm(), and SetPeerOpen().

uint16_t ns3::dot11s::IePeerManagement::m_localLinkId

private

Definition at line 86 of file ie-dot11s-peer-management.h.

Referenced by DeserializeInformationField(), GetLocalLinkId(), ns3::dot11s::operator==(), Print(), SerializeInformationField(), SetPeerClose(), SetPeerConfirm(), and SetPeerOpen().

uint16_t ns3::dot11s::IePeerManagement::m_peerLinkId

private

Present within confirm and may be present in close.

Definition at line 90 of file ie-dot11s-peer-management.h.

Referenced by DeserializeInformationField(), GetPeerLinkId(), ns3::dot11s::operator==(), Print(), SerializeInformationField(), SetPeerClose(), and SetPeerConfirm().

PmpReasonCode ns3::dot11s::IePeerManagement::m_reasonCode

private

Present only within close frame.

Definition at line 94 of file ie-dot11s-peer-management.h.

Referenced by DeserializeInformationField(), GetReasonCode(), ns3::dot11s::operator==(), Print(), SerializeInformationField(), and SetPeerClose().

uint8_t ns3::dot11s::IePeerManagement::m_subtype

private

Definition at line 85 of file ie-dot11s-peer-management.h.

Referenced by DeserializeInformationField(), GetSubtype(), ns3::dot11s::operator==(), Print(), SerializeInformationField(), SetPeerClose(), SetPeerConfirm(), SetPeerOpen(), SubtypeIsClose(), SubtypeIsConfirm(), and SubtypeIsOpen().

The documentation for this class was generated from the following files:

src/mesh/model/dot11s/ie-dot11s-peer-management.h
src/mesh/model/dot11s/ie-dot11s-peer-management.cc
