ns3::dot11s::IeRann Class Reference

See 7.3.2.95 of 802.11s draft 2.07. More...

#include <ie-dot11s-rann.h>

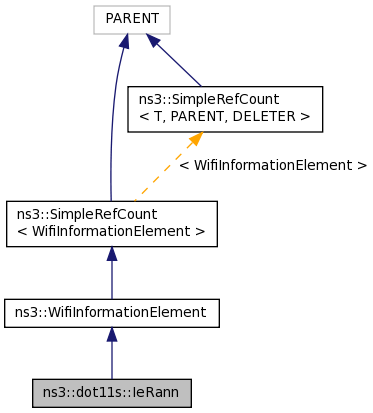

+ Inheritance diagram for ns3::dot11s::IeRann:

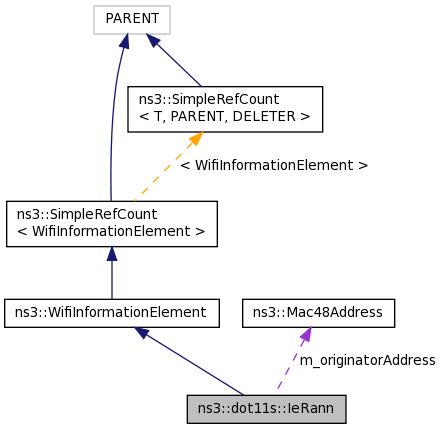

+ Collaboration diagram for ns3::dot11s::IeRann:

Public Member Functions

 IeRann ()

virtual ~IeRann ()

void DecrementTtl ()

uint32_t GetDestSeqNumber ()

uint8_t GetFlags ()

uint8_t GetHopcount ()

uint32_t GetMetric ()

Mac48Address GetOriginatorAddress ()

uint8_t GetTtl ()

void IncrementMetric (uint32_t metric)

void SetDestSeqNumber (uint32_t dest_seq_number)

void SetFlags (uint8_t flags)

void SetHopcount (uint8_t hopcount)

void SetMetric (uint32_t metric)

void SetOriginatorAddress (Mac48Address originator_address)

void SetTTL (uint8_t ttl)

Inherited from WifiInformationElement
virtual WifiInformationElementId ElementId () const
 Own unique Element ID. More...

virtual void SerializeInformationField (Buffer::Iterator i) const
 Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

virtual uint8_t DeserializeInformationField (Buffer::Iterator start, uint8_t length)
 Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

virtual uint8_t GetInformationFieldSize () const
 Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

virtual void Print (std::ostream &os) const
 In addition, a subclass may optionally override the following... More...

- Public Member Functions inherited from ns3::WifiInformationElement
virtual ~WifiInformationElement ()

Buffer::Iterator Deserialize (Buffer::Iterator i)
 Deserialize entire IE, which must be present. More...

Buffer::Iterator DeserializeIfPresent (Buffer::Iterator i)
 Deserialize entire IE if it is present. More...

uint16_t GetSerializedSize () const
 Get the size of the serialized IE including Element ID and length fields. More...

Buffer::Iterator Serialize (Buffer::Iterator i) const
 Serialize entire IE including Element ID and length fields. More...

virtual bool operator< (WifiInformationElement const &a) const
 Compare information elements using Element ID. More...

virtual bool operator== (WifiInformationElement const &a) const
 Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

- Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...


Private Attributes

uint32_t m_destSeqNumber

uint8_t m_flags

uint8_t m_hopcount

uint32_t m_metric

Mac48Address m_originatorAddress

uint8_t m_ttl


Friends

bool operator== (const IeRann &a, const IeRann &b)


Additional Inherited Members

- Static Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
static void Cleanup (void)
 Noop. More...


Detailed Description

See 7.3.2.95 of 802.11s draft 2.07.

Definition at line 33 of file ie-dot11s-rann.h.

Constructor & Destructor Documentation

ns3::dot11s::IeRann::IeRann ( )

Definition at line 32 of file ie-dot11s-rann.cc.

ns3::dot11s::IeRann::~IeRann ( )
virtual

Definition at line 29 of file ie-dot11s-rann.cc.

Member Function Documentation

void ns3::dot11s::IeRann::DecrementTtl ( )

Definition at line 100 of file ie-dot11s-rann.cc.

References m_hopcount, and m_ttl.

uint8_t ns3::dot11s::IeRann::DeserializeInformationField ( Buffer::Iterator  start,
uint8_t  length
)
virtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters
startan iterator which points to where the information should be written.
length
Returns
the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 128 of file ie-dot11s-rann.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_destSeqNumber, m_flags, m_hopcount, m_metric, m_originatorAddress, m_ttl, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadLsbtohU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

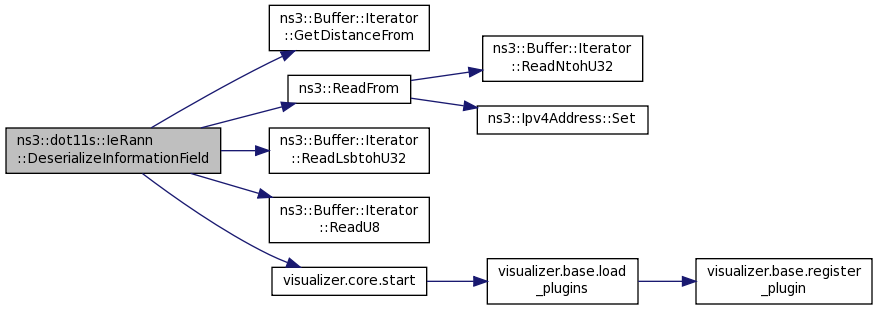

+ Here is the call graph for this function:

WifiInformationElementId ns3::dot11s::IeRann::ElementId ( ) const
virtual

Own unique Element ID.

Implements ns3::WifiInformationElement.

Definition at line 38 of file ie-dot11s-rann.cc.

References IE11S_RANN.

Referenced by Print().

+ Here is the caller graph for this function:

uint32_t ns3::dot11s::IeRann::GetDestSeqNumber ( )

Definition at line 90 of file ie-dot11s-rann.cc.

References m_destSeqNumber.

uint8_t ns3::dot11s::IeRann::GetFlags ( )

Definition at line 75 of file ie-dot11s-rann.cc.

References m_flags.

uint8_t ns3::dot11s::IeRann::GetHopcount ( )

Definition at line 80 of file ie-dot11s-rann.cc.

References m_hopcount.

uint8_t ns3::dot11s::IeRann::GetInformationFieldSize ( ) const
virtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field)

Returns
the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 140 of file ie-dot11s-rann.cc.

uint32_t ns3::dot11s::IeRann::GetMetric ( void  )

Definition at line 95 of file ie-dot11s-rann.cc.

References m_metric.

Mac48Address ns3::dot11s::IeRann::GetOriginatorAddress ( )

Definition at line 113 of file ie-dot11s-rann.cc.

References m_originatorAddress.

uint8_t ns3::dot11s::IeRann::GetTtl ( void  )

Definition at line 85 of file ie-dot11s-rann.cc.

References m_ttl.

void ns3::dot11s::IeRann::IncrementMetric ( uint32_t  metric)

Definition at line 107 of file ie-dot11s-rann.cc.

References m_metric.

void ns3::dot11s::IeRann::Print ( std::ostream &  os) const
virtual

In addition, a subclass may optionally override the following...

Generate human-readable form of IE

Parameters
osoutput stream

Reimplemented from ns3::WifiInformationElement.

Definition at line 152 of file ie-dot11s-rann.cc.

References ElementId(), m_destSeqNumber, m_flags, m_hopcount, m_metric, m_originatorAddress, and m_ttl.

Referenced by ns3::dot11s::operator<<().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::dot11s::IeRann::SerializeInformationField ( Buffer::Iterator  start) const
virtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters
startan iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 118 of file ie-dot11s-rann.cc.

References m_destSeqNumber, m_flags, m_hopcount, m_metric, m_originatorAddress, m_ttl, ns3::Buffer::Iterator::WriteHtolsbU32(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().

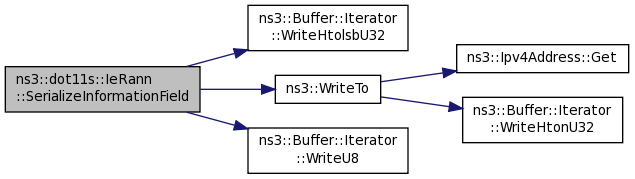

+ Here is the call graph for this function:

void ns3::dot11s::IeRann::SetDestSeqNumber ( uint32_t  dest_seq_number)

Definition at line 59 of file ie-dot11s-rann.cc.

References m_destSeqNumber.

void ns3::dot11s::IeRann::SetFlags ( uint8_t  flags)

Definition at line 44 of file ie-dot11s-rann.cc.

References m_flags.

void ns3::dot11s::IeRann::SetHopcount ( uint8_t  hopcount)

Definition at line 49 of file ie-dot11s-rann.cc.

References m_hopcount.

void ns3::dot11s::IeRann::SetMetric ( uint32_t  metric)

Definition at line 64 of file ie-dot11s-rann.cc.

References m_metric.

void ns3::dot11s::IeRann::SetOriginatorAddress ( Mac48Address  originator_address)

Definition at line 69 of file ie-dot11s-rann.cc.

References m_originatorAddress.

void ns3::dot11s::IeRann::SetTTL ( uint8_t  ttl)

Definition at line 54 of file ie-dot11s-rann.cc.

References m_ttl.

Friends And Related Function Documentation

bool operator== ( const IeRann a,
const IeRann b
)
friend

Definition at line 165 of file ie-dot11s-rann.cc.

Member Data Documentation

uint32_t ns3::dot11s::IeRann::m_destSeqNumber
private
uint8_t ns3::dot11s::IeRann::m_flags
private
uint8_t ns3::dot11s::IeRann::m_hopcount
private
uint32_t ns3::dot11s::IeRann::m_metric
private
Mac48Address ns3::dot11s::IeRann::m_originatorAddress
private
uint8_t ns3::dot11s::IeRann::m_ttl
private

The documentation for this class was generated from the following files:
