object-base.h File Reference

#include "type-id.h"
#include "callback.h"
#include <string>
#include <list>

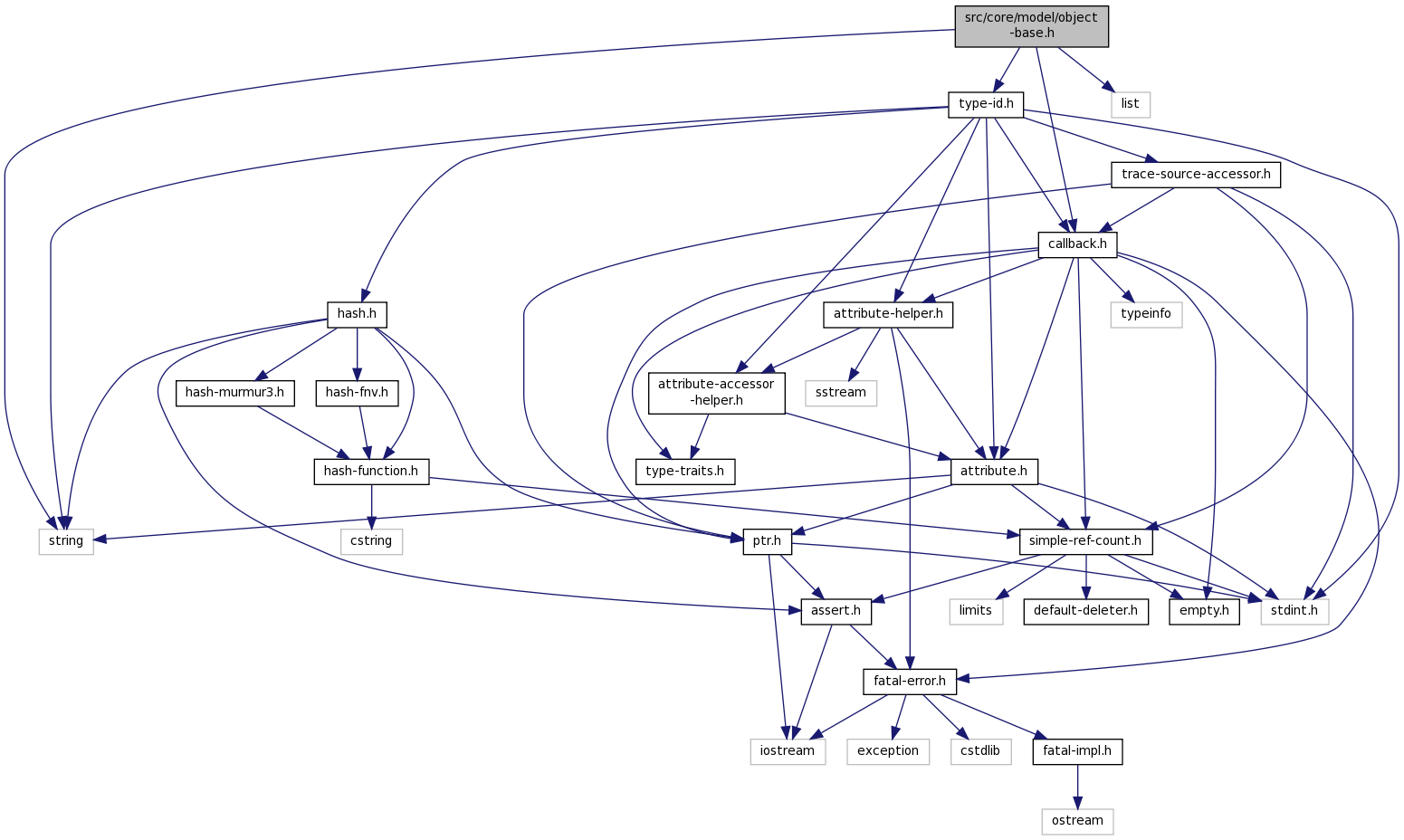

Include dependency graph for object-base.h:

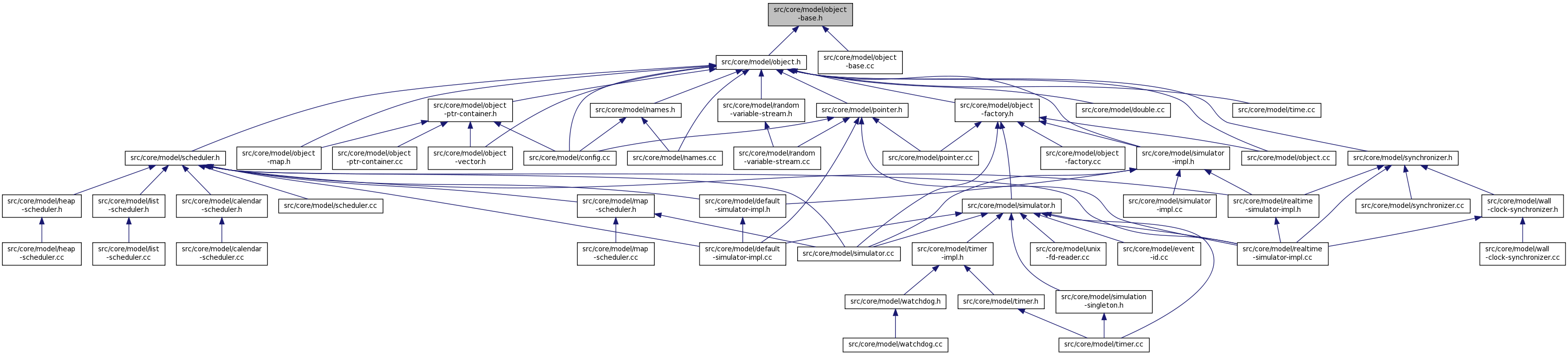

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	ns3::ObjectBase
	implement the ns-3 type and attribute system More...

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Macros
#define	NS_OBJECT_ENSURE_REGISTERED(type)
	Register the class in the ns-3 factory. More...

Macro Definition Documentation

#define NS_OBJECT_ENSURE_REGISTERED

(

type

)

Value:

static struct X ## type ## RegistrationClass      \
  {                                             \
    X ## type ## RegistrationClass () {             \
      ns3::TypeId tid = type::GetTypeId ();     \
      tid.GetParent ();                         \
    }                                           \
  } x_ ## type ## RegistrationVariable

Register the class in the ns-3 factory.

This macro should be invoked once for every class which defines a new GetTypeId method.

Given a class Foo, the .cc implementation should begin

NS_OBJECT_ENSURE_REGISTERED (Foo)
  ;

If the class is in a namespace, then the macro call should also be in the namespace.

Note the closing ';' is not on the same line; this prevents Doxygen from spuriously warning that the macro invocation is undocumented.

Definition at line 47 of file object-base.h.
