ns3::MinstrelWifiRemoteStation Struct Reference

hold per-remote-station state for Minstrel Wifi manager. More...

Inheritance diagram for ns3::MinstrelWifiRemoteStation:

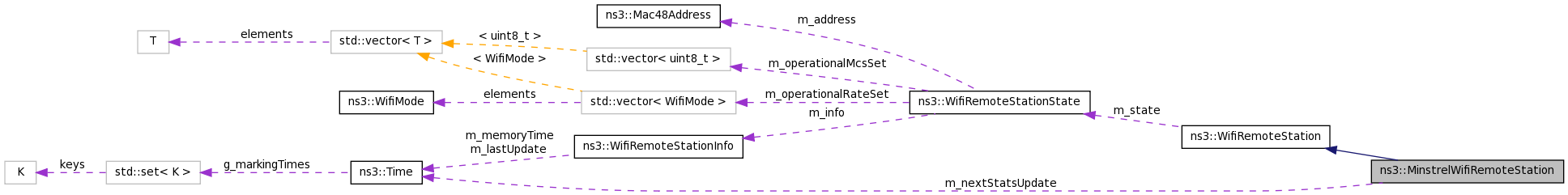

Collaboration diagram for ns3::MinstrelWifiRemoteStation:

Public Attributes
uint32_t	m_col
	To keep track of the current position in the our random sample table going row by row from 1st column until the 10th column(Minstrel defines 10) then we wrap back to the row 1 col 1. More...
uint32_t	m_currentRate
	current rate we are using More...
uint32_t	m_err
	retry errors More...
uint32_t	m_index
bool	m_initialized
	for initializing tables More...
bool	m_isSampling
	a flag to indicate we are currently sampling More...
uint32_t	m_longRetry
	long retries such as data packets More...
uint32_t	m_maxProbRate
	rate with highest prob of success More...
uint32_t	m_maxTpRate
	the current throughput rate More...
uint32_t	m_maxTpRate2
	second highest throughput rate More...
Time	m_nextStatsUpdate
	10 times every second More...
int	m_packetCount
	total number of packets as of now More...
uint32_t	m_retry
	total retries short + long More...
int	m_sampleCount
	how many packets we have sample so far More...
uint32_t	m_sampleRate
	current sample rate More...
bool	m_sampleRateSlower
	a flag to indicate sample rate is slower More...
uint32_t	m_shortRetry
	short retries such as control packts More...
uint32_t	m_txrate
	current transmit rate More...
Public Attributes inherited from ns3::WifiRemoteStation
uint32_t	m_slrc
	STA long retry count. More...
uint32_t	m_ssrc
	STA short retry count. More...
WifiRemoteStationState *	m_state
	Remote station state. More...
uint8_t	m_tid
	traffic ID More...

Detailed Description

hold per-remote-station state for Minstrel Wifi manager.

This struct extends from WifiRemoteStation struct to hold additional information required by the Minstrel Wifi manager

Definition at line 54 of file minstrel-wifi-manager.cc.

Member Data Documentation

uint32_t ns3::MinstrelWifiRemoteStation::m_col

To keep track of the current position in the our random sample table going row by row from 1st column until the 10th column(Minstrel defines 10) then we wrap back to the row 1 col 1.

note: there are many other ways to do this.

Definition at line 64 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::GetNextSample(), and ns3::MinstrelWifiManager::InitSampleTable().

uint32_t ns3::MinstrelWifiRemoteStation::m_currentRate

current rate we are using

Definition at line 75 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), and ns3::MinstrelWifiManager::UpdateStats().

uint32_t ns3::MinstrelWifiRemoteStation::m_err

retry errors

Definition at line 80 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportFinalDataFailed(), and ns3::MinstrelWifiManager::DoReportFinalRtsFailed().

uint32_t ns3::MinstrelWifiRemoteStation::m_index

Definition at line 64 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::GetNextSample(), and ns3::MinstrelWifiManager::InitSampleTable().

bool ns3::MinstrelWifiRemoteStation::m_initialized

for initializing tables

Definition at line 83 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::CheckInit(), ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoGetDataTxVector(), ns3::MinstrelWifiManager::DoReportDataFailed(), ns3::MinstrelWifiManager::DoReportDataOk(), and ns3::MinstrelWifiManager::UpdateStats().

bool ns3::MinstrelWifiRemoteStation::m_isSampling

a flag to indicate we are currently sampling

Definition at line 72 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataFailed(), ns3::MinstrelWifiManager::DoReportDataOk(), ns3::MinstrelWifiManager::DoReportFinalDataFailed(), and ns3::MinstrelWifiManager::FindRate().

uint32_t ns3::MinstrelWifiRemoteStation::m_longRetry

long retries such as data packets

Definition at line 78 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataFailed(), and ns3::MinstrelWifiManager::UpdateRetry().

uint32_t ns3::MinstrelWifiRemoteStation::m_maxProbRate

rate with highest prob of success

Definition at line 67 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataFailed(), and ns3::MinstrelWifiManager::UpdateStats().

uint32_t ns3::MinstrelWifiRemoteStation::m_maxTpRate

the current throughput rate

Definition at line 65 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataFailed(), ns3::MinstrelWifiManager::FindRate(), and ns3::MinstrelWifiManager::UpdateStats().

uint32_t ns3::MinstrelWifiRemoteStation::m_maxTpRate2

second highest throughput rate

Definition at line 66 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataFailed(), ns3::MinstrelWifiManager::FindRate(), and ns3::MinstrelWifiManager::UpdateStats().

Time ns3::MinstrelWifiRemoteStation::m_nextStatsUpdate

10 times every second

Definition at line 56 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), and ns3::MinstrelWifiManager::UpdateStats().

int ns3::MinstrelWifiRemoteStation::m_packetCount

total number of packets as of now

Definition at line 69 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataOk(), and ns3::MinstrelWifiManager::FindRate().

uint32_t ns3::MinstrelWifiRemoteStation::m_retry

total retries short + long

Definition at line 79 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataOk(), ns3::MinstrelWifiManager::DoReportFinalDataFailed(), and ns3::MinstrelWifiManager::UpdateRetry().

int ns3::MinstrelWifiRemoteStation::m_sampleCount

how many packets we have sample so far

Definition at line 70 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), and ns3::MinstrelWifiManager::FindRate().

uint32_t ns3::MinstrelWifiRemoteStation::m_sampleRate

current sample rate

Definition at line 73 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataFailed(), and ns3::MinstrelWifiManager::FindRate().

bool ns3::MinstrelWifiRemoteStation::m_sampleRateSlower

a flag to indicate sample rate is slower

Definition at line 74 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataFailed(), ns3::MinstrelWifiManager::DoReportDataOk(), ns3::MinstrelWifiManager::DoReportFinalDataFailed(), and ns3::MinstrelWifiManager::FindRate().

uint32_t ns3::MinstrelWifiRemoteStation::m_shortRetry

short retries such as control packts

Definition at line 77 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportRtsFailed(), and ns3::MinstrelWifiManager::UpdateRetry().

uint32_t ns3::MinstrelWifiRemoteStation::m_txrate

current transmit rate

Definition at line 81 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoGetDataTxVector(), ns3::MinstrelWifiManager::DoGetRtsTxVector(), ns3::MinstrelWifiManager::DoReportDataFailed(), ns3::MinstrelWifiManager::DoReportDataOk(), ns3::MinstrelWifiManager::DoReportFinalDataFailed(), ns3::MinstrelWifiManager::DoReportRtsFailed(), ns3::MinstrelWifiManager::FindRate(), and ns3::MinstrelWifiManager::UpdateStats().

---

The documentation for this struct was generated from the following file:

• src/wifi/model/minstrel-wifi-manager.cc
