A FIFO packet queue that drops tail-end packets on overflow. More...
#include <drop-tail-queue.h>
Inheritance diagram for ns3::DropTailQueue:

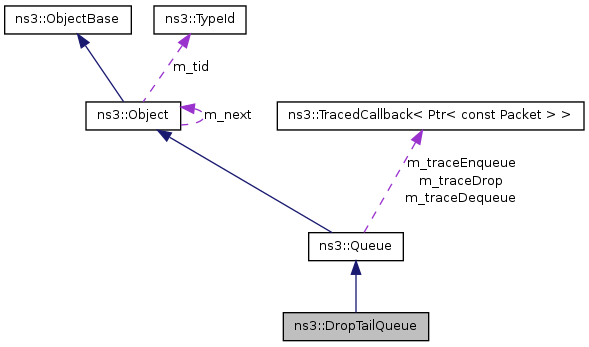

Collaboration diagram for ns3::DropTailQueue:
Public Member Functions | |
| DropTailQueue () | |
| DropTailQueue Constructor. | |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| This method returns the TypeId associated to ns3::DropTailQueue. | |
Detailed Description
A FIFO packet queue that drops tail-end packets on overflow.
Constructor & Destructor Documentation
| ns3::DropTailQueue::DropTailQueue | ( | ) |
DropTailQueue Constructor.
Creates a droptail queue with a maximum size of 100 packets by default
Member Function Documentation
| static TypeId ns3::DropTailQueue::GetTypeId | ( | void | ) | [static] |
This method returns the TypeId associated to ns3::DropTailQueue.
This object is accessible through the following paths with Config::Set and Config::Connect:
- /NodeList/[i]/DeviceList/[i]/$ns3CsmaNetDevice/TxQueue/$ns3DropTailQueue
- /NodeList/[i]/DeviceList/[i]/$ns3PointToPointNetDevice/TxQueue/$ns3DropTailQueue
Attributes defined for this type:
-
MaxPackets: The maximum number of packets accepted by this DropTailQueue.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 100
- Flags: construct write read
No TraceSources defined for this type.
TraceSources defined in parent class ns3::Queue:
- Enqueue: Enqueue a packet in the queue.
- Dequeue: Dequeue a packet from the queue.
- Drop: Drop a packet stored in the queue.
Reimplemented from ns3::Queue.
The documentation for this class was generated from the following files:
- src/node/drop-tail-queue.h
- doc/introspected-doxygen.h
