ns3::EthernetHeader Class Reference [Node]

Packet header for Ethernet. More...

#include <ethernet-header.h>

Inheritance diagram for ns3::EthernetHeader:

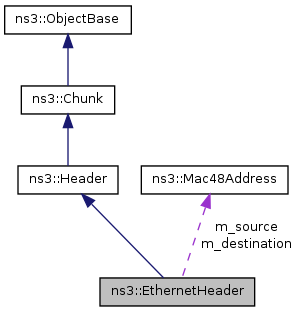

Collaboration diagram for ns3::EthernetHeader:

List of all members.

Public Member Functions
	EthernetHeader (bool hasPreamble)
	Construct a null ethernet header.
	EthernetHeader ()
	Construct a null ethernet header By default, does not add or remove an ethernet preamble.
void	SetLengthType (uint16_t size)
void	SetSource (Mac48Address source)
void	SetDestination (Mac48Address destination)
void	SetPreambleSfd (uint64_t preambleSfd)
uint16_t	GetLengthType (void) const
ethernet_header_t	GetPacketType (void) const
Mac48Address	GetSource (void) const
Mac48Address	GetDestination (void) const
uint64_t	GetPreambleSfd () const
uint32_t	GetHeaderSize () const
virtual TypeId	GetInstanceTypeId (void) const
virtual void	Print (std::ostream &os) const
virtual uint32_t	GetSerializedSize (void) const
virtual void	Serialize (Buffer::Iterator start) const
virtual uint32_t	Deserialize (Buffer::Iterator start)
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::EthernetHeader.
Private Attributes
bool	m_enPreambleSfd
	size of src/dest addr header fields
uint16_t	m_lengthType
	Value of the Preamble/SFD fields.
Mac48Address	m_source
	Length or type of the packet.
Mac48Address	m_destination
	Source address.
Static Private Attributes
static const int	LENGTH_SIZE = 2
	size of the preamble_sfd header field
static const int	MAC_ADDR_SIZE = 6
	size of the length_type header field

---

Detailed Description

Packet header for Ethernet.

This class can be used to add a header to an ethernet packet that will specify the source and destination addresses and the length of the packet. Eventually the class will be improved to also support VLAN tags in packet headers.

---

Constructor & Destructor Documentation

ns3::EthernetHeader::EthernetHeader

(

bool

hasPreamble

)

Construct a null ethernet header.

Parameters:

hasPreamble

if true, insert and remove an ethernet preamble from the packet, if false, does not insert and remove it.

---

Member Function Documentation

virtual uint32_t ns3::EthernetHeader::Deserialize

(

Buffer::Iterator

start

)

[virtual]

Parameters:

start

an iterator which points to where the header should written.

Returns:

the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Mac48Address ns3::EthernetHeader::GetDestination

(

void

)

const

Returns:

The destination address of this packet

uint32_t ns3::EthernetHeader::GetHeaderSize

(

)

const

Returns:

The size of the header

virtual TypeId ns3::EthernetHeader::GetInstanceTypeId

(

void

)

const [virtual]

Returns:

the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

uint16_t ns3::EthernetHeader::GetLengthType

(

void

)

const

Returns:

The size of the payload in bytes

ethernet_header_t ns3::EthernetHeader::GetPacketType

(

void

)

const

Returns:

The type of packet (only basic Ethernet is currently supported)

uint64_t ns3::EthernetHeader::GetPreambleSfd

(

)

const

Returns:

The value of the PreambleSfd field

virtual uint32_t ns3::EthernetHeader::GetSerializedSize

(

void

)

const [virtual]

Returns:

the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Mac48Address ns3::EthernetHeader::GetSource

(

void

)

const

Returns:

The source address of this packet

static TypeId ns3::EthernetHeader::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::EthernetHeader.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

virtual void ns3::EthernetHeader::Print

(

std::ostream &

os

)

const [virtual]

This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

virtual void ns3::EthernetHeader::Serialize

(

Buffer::Iterator

start

)

const [virtual]

Parameters:

start

an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

void ns3::EthernetHeader::SetDestination

(

Mac48Address

destination

)

Parameters:

destination

The destination address of this packet.

void ns3::EthernetHeader::SetLengthType

(

uint16_t

size

)

Parameters:

size

The size of the payload in bytes

void ns3::EthernetHeader::SetPreambleSfd

(

uint64_t

preambleSfd

)

Parameters:

preambleSfd

The value that the preambleSfd field should take

void ns3::EthernetHeader::SetSource

(

Mac48Address

source

)

Parameters:

source

The source address of this packet

---

Member Data Documentation

bool ns3::EthernetHeader::m_enPreambleSfd [private]

size of src/dest addr header fields

If false, the preamble/sfd are not serialised/deserialised.

---

The documentation for this class was generated from the following files:

• src/node/ethernet-header.h
• doc/introspected-doxygen.h
