allocate random positions within a disc according to a pair of random variables. More...
#include <position-allocator.h>
Inheritance diagram for ns3::RandomDiscPositionAllocator:

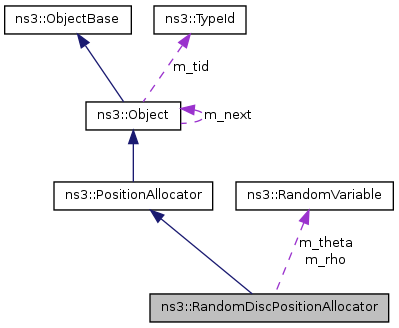

Collaboration diagram for ns3::RandomDiscPositionAllocator:
Public Member Functions | |
| virtual Vector | GetNext (void) const |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| This method returns the TypeId associated to ns3::RandomDiscPositionAllocator. | |
Detailed Description
allocate random positions within a disc according to a pair of random variables.
Member Function Documentation
| virtual Vector ns3::RandomDiscPositionAllocator::GetNext | ( | void | ) | const [virtual] |
- Returns:
- the next chosen position.
This method _must_ be implement in subclasses.
Implements ns3::PositionAllocator.
| static TypeId ns3::RandomDiscPositionAllocator::GetTypeId | ( | void | ) | [static] |
This method returns the TypeId associated to ns3::RandomDiscPositionAllocator.
This object is accessible through the following paths with Config::Set and Config::Connect:
- /NodeList/[i]/$ns3MobilityModel/$ns3RandomWaypointMobilityModel/Position/$ns3RandomDiscPositionAllocator
Attributes defined for this type:
-
Theta: A random variable which represents the angle (gradients) of a position in a random disc.
- Set with class: RandomVariableValue
- Underlying type: RandomVariable
- Initial value: Uniform:0:6.283
- Flags: construct write read
-
Rho: A random variable which represents the radius of a position in a random disc.
- Set with class: RandomVariableValue
- Underlying type: RandomVariable
- Initial value: Uniform:0:200
- Flags: construct write read
-
X: The x coordinate of the center of the random position disc.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
-
Y: The y coordinate of the center of the random position disc.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
No TraceSources defined for this type.
Reimplemented from ns3::PositionAllocator.
The documentation for this class was generated from the following files:
- src/mobility/position-allocator.h
- doc/introspected-doxygen.h
