(abstract) base class of all UdpSockets More...

#include <udp-socket.h>

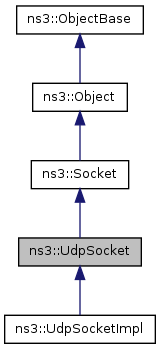

Inheritance diagram for ns3::UdpSocket:

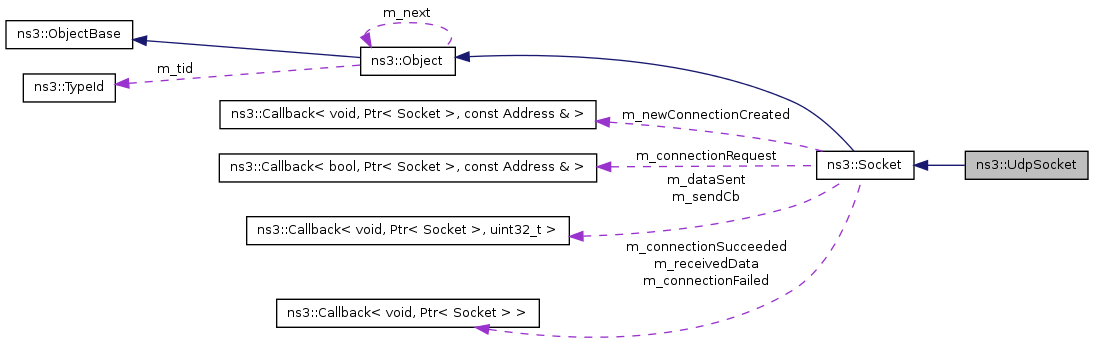

Collaboration diagram for ns3::UdpSocket:

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::UdpSocket.

Detailed Description

(abstract) base class of all UdpSockets

This class exists solely for hosting UdpSocket attributes that can be reused across different implementations.

Member Function Documentation

static TypeId ns3::UdpSocket::GetTypeId ( void ) [static]

This method returns the TypeId associated to ns3::UdpSocket.

Attributes defined for this type:

RcvBufSize: UdpSocket maximum receive buffer size (bytes)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 4294967295
- Flags: construct write read
IpTtl: socket-specific TTL for unicast IP packets (if non-zero)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 0
- Flags: construct write read
IpMulticastTtl: socket-specific TTL for multicast IP packets (if non-zero)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 0
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

The documentation for this class was generated from the following files:
