ns3::WifiRemoteStationManager Class Reference

hold a list of per-remote-station state. More...

#include <wifi-remote-station-manager.h>

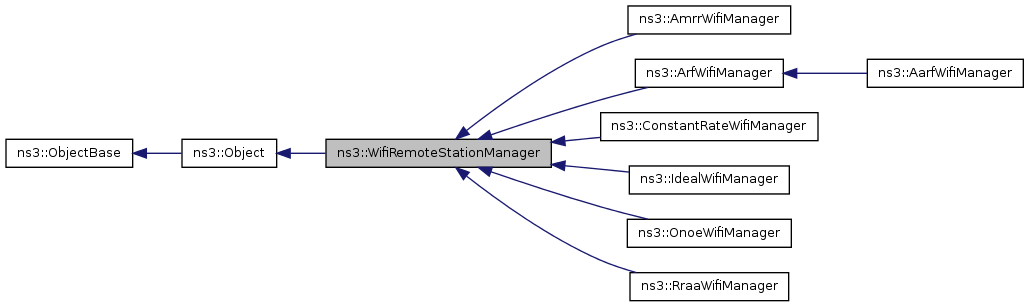

Inheritance diagram for ns3::WifiRemoteStationManager:

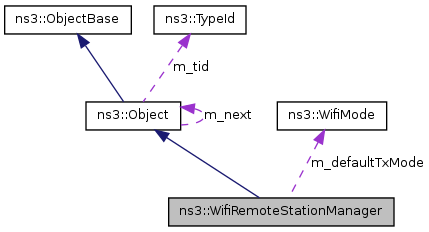

Collaboration diagram for ns3::WifiRemoteStationManager:

List of all members.

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::WifiRemoteStationManager.
Protected Member Functions
virtual void	DoDispose (void)

---

Detailed Description

hold a list of per-remote-station state.

See also:

ns3::WifiRemoteStation.

---

Member Function Documentation

virtual void ns3::WifiRemoteStationManager::DoDispose

(

void

)

[protected, virtual]

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

Reimplemented from ns3::Object.

static TypeId ns3::WifiRemoteStationManager::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::WifiRemoteStationManager.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3WifiNetDevice/RemoteStationManager

Attributes defined for this type:

• IsLowLatency: If true, we attempt to modelize a so-called low-latency device: a device where decisions about tx parameters can be made on a per-packet basis and feedback about the transmission of each packet is obtained before sending the next. Otherwise, we modelize a high-latency device, that is a device where we cannot update our decision about tx parameters after every packet transmission.
  • Set with class: BooleanValue
  • Underlying type: bool
  • Initial value: true
  • Flags: construct write read
• MaxSsrc: The maximum number of retransmission attempts for an RTS. This value will not have any effect on some rate control algorithms.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 7
  • Flags: construct write read
• MaxSlrc: The maximum number of retransmission attempts for a DATA packet. This value will not have any effect on some rate control algorithms.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 7
  • Flags: construct write read
• RtsCtsThreshold: If a data packet is bigger than this value, we use an RTS/CTS handshake before sending the data. This value will not have any effect on some rate control algorithms.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 1500
  • Flags: construct write read
• FragmentationThreshold: If a data packet is bigger than this value, we fragment it such that the size of the fragments are equal or smaller than this value. This value will not have any effect on some rate control algorithms.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 1500
  • Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

Reimplemented in ns3::AarfWifiManager, ns3::AmrrWifiManager, ns3::ArfWifiManager, ns3::ConstantRateWifiManager, ns3::IdealWifiManager, ns3::OnoeWifiManager, and ns3::RraaWifiManager.

---

The documentation for this class was generated from the following files:

• src/devices/wifi/wifi-remote-station-manager.h
• doc/introspected-doxygen.h
