Bug772ChainTest Class Reference

AODV deferred route lookup test case (see Bug 772) More...

#include <bug-772.h>

Inheritance diagram for Bug772ChainTest:

Collaboration diagram for Bug772ChainTest:

Public Member Functions
	Bug772ChainTest (const char *const prefix, const char *const proto, Time time, uint32_t size)
	Create test case. More...
	~Bug772ChainTest ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
void	CheckResults ()
	Compare traces with reference ones. More...
void	CreateDevices ()
	Create devices, install TCP/IP stack and applications. More...
void	CreateNodes ()
	Create test topology. More...
void	DoRun ()
	Go. More...

Private Attributes
NodeContainer *	m_nodes
const std::string	m_prefix
	PCAP file names prefix. More...
const std::string	m_proto
	Socket factory TID. More...
const uint32_t	m_size
	Chain size. More...
const double	m_step
	Chain step, meters. More...
const Time	m_time
	Total simulation time. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
void	AddTestCase (TestCase *testCase) NS_DEPRECATED
	Add an individual child TestCase case to this TestCase. More...
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
bool	GetErrorStatus (void) const NS_DEPRECATED
TestCase *	GetParent () const
bool	IsStatusFailure (void) const
bool	IsStatusSuccess (void) const
void	SetDataDir (std::string directory)
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
bool	MustContinueOnFailure (void) const
std::string	CreateDataDirFilename (std::string filename)
std::string	CreateTempDirFilename (std::string filename)

Detailed Description

AODV deferred route lookup test case (see Bug 772)

Todo:

describe expected packet trace

Definition at line 37 of file bug-772.h.

Constructor & Destructor Documentation

Bug772ChainTest::Bug772ChainTest	(	const char *const	prefix,
		const char *const	proto,
		Time	time,
		uint32_t	size
	)

Create test case.

Parameters

prefix	Unique file names prefix
proto	ns3::UdpSocketFactory or ns3::TcpSocketFactory
size	Number of nodes in the chain
time	Simulation time

Definition at line 56 of file bug-772.cc.

Bug772ChainTest::~Bug772ChainTest

(

)

Definition at line 67 of file bug-772.cc.

References m_nodes.

Member Function Documentation

void Bug772ChainTest::CheckResults ( )

private

Compare traces with reference ones.

Definition at line 162 of file bug-772.cc.

References m_prefix, m_size, and NS_PCAP_TEST_EXPECT_EQ.

Referenced by DoRun().

Here is the caller graph for this function:

void Bug772ChainTest::CreateDevices ( )

private

Create devices, install TCP/IP stack and applications.

Definition at line 108 of file bug-772.cc.

References first::address, ns3::AodvHelper::AssignStreams(), ns3::YansWifiChannelHelper::AssignStreams(), ns3::WifiHelper::AssignStreams(), ns3::YansWifiChannelHelper::Create(), ns3::TestCase::CreateTempDirFilename(), first::devices, ns3::PcapHelperForDevice::EnablePcap(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::NetDeviceContainer::GetN(), ns3::PacketSinkHelper::Install(), ns3::InternetStackHelper::Install(), ns3::WifiHelper::Install(), first::interfaces, m_nodes, m_prefix, m_proto, m_size, m_time, NS_TEST_ASSERT_MSG_EQ, port, ns3::YansWifiPhyHelper::SetChannel(), ns3::OnOffHelper::SetConstantRate(), ns3::YansWifiPhyHelper::SetErrorRateModel(), ns3::WifiHelper::SetRemoteStationManager(), ns3::InternetStackHelper::SetRoutingHelper(), ns3::NqosWifiMacHelper::SetType(), ns3::ApplicationContainer::Start(), and ns3::ApplicationContainer::Stop().

Referenced by DoRun().

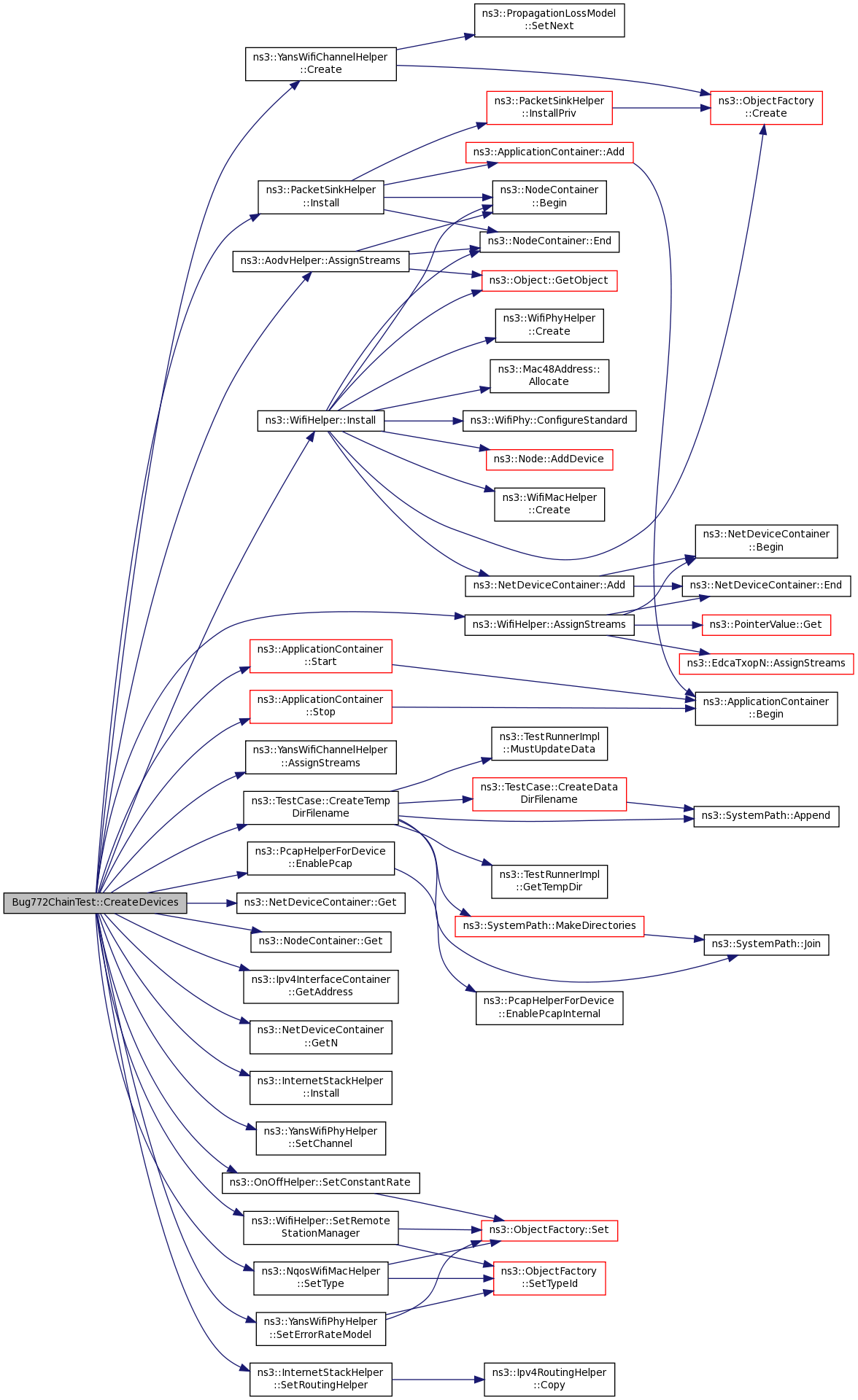

Here is the call graph for this function:

Here is the caller graph for this function:

void Bug772ChainTest::CreateNodes ( )

private

Create test topology.

Definition at line 91 of file bug-772.cc.

References ns3::NodeContainer::Create(), ns3::MobilityHelper::Install(), m_nodes, m_size, m_step, ns3::MobilityHelper::SetMobilityModel(), and ns3::MobilityHelper::SetPositionAllocator().

Referenced by DoRun().

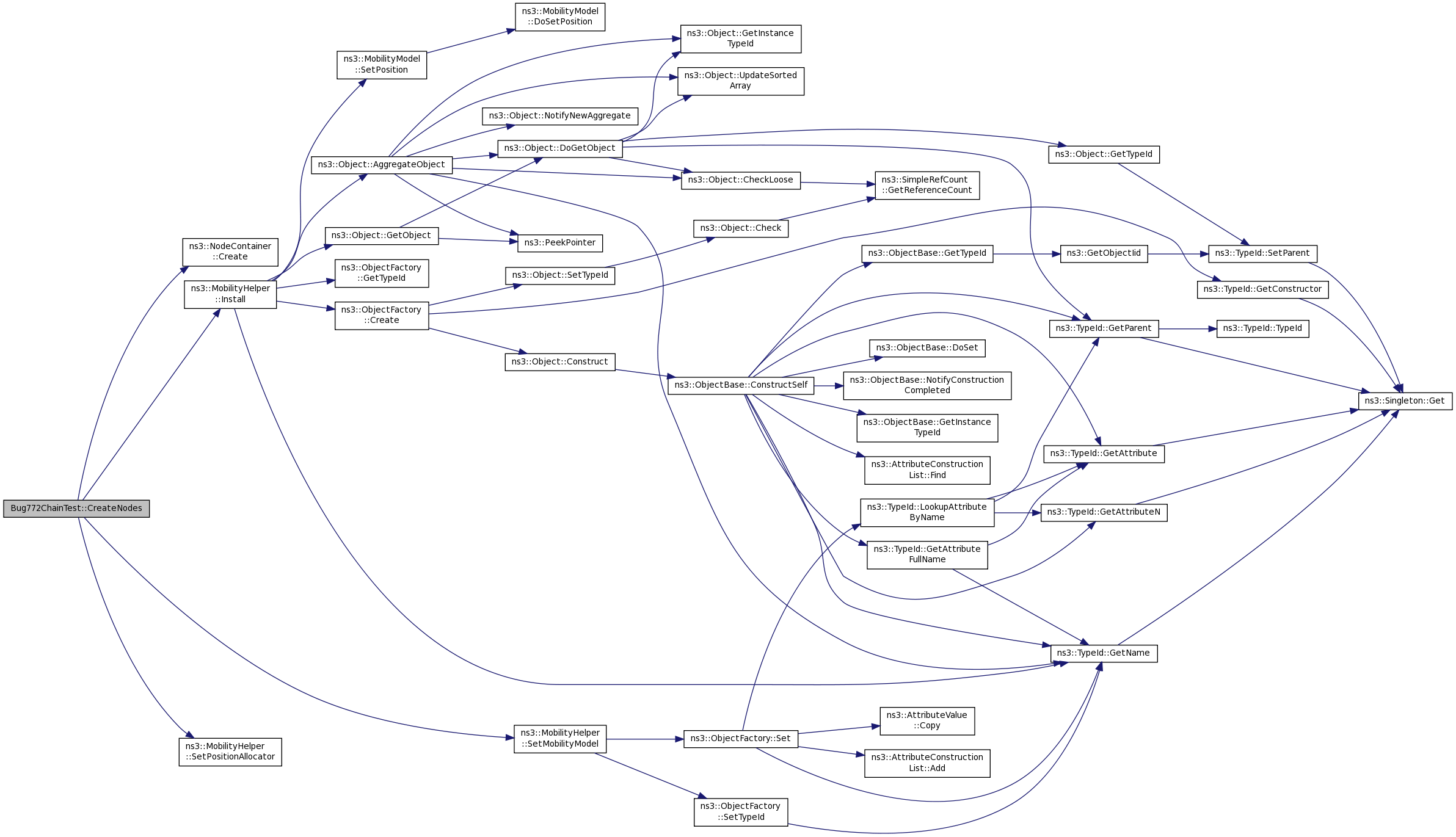

Here is the call graph for this function:

Here is the caller graph for this function:

void Bug772ChainTest::DoRun ( void  )

privatevirtual

Go.

Implements ns3::TestCase.

Definition at line 73 of file bug-772.cc.

References CheckResults(), CreateDevices(), CreateNodes(), m_nodes, and m_time.

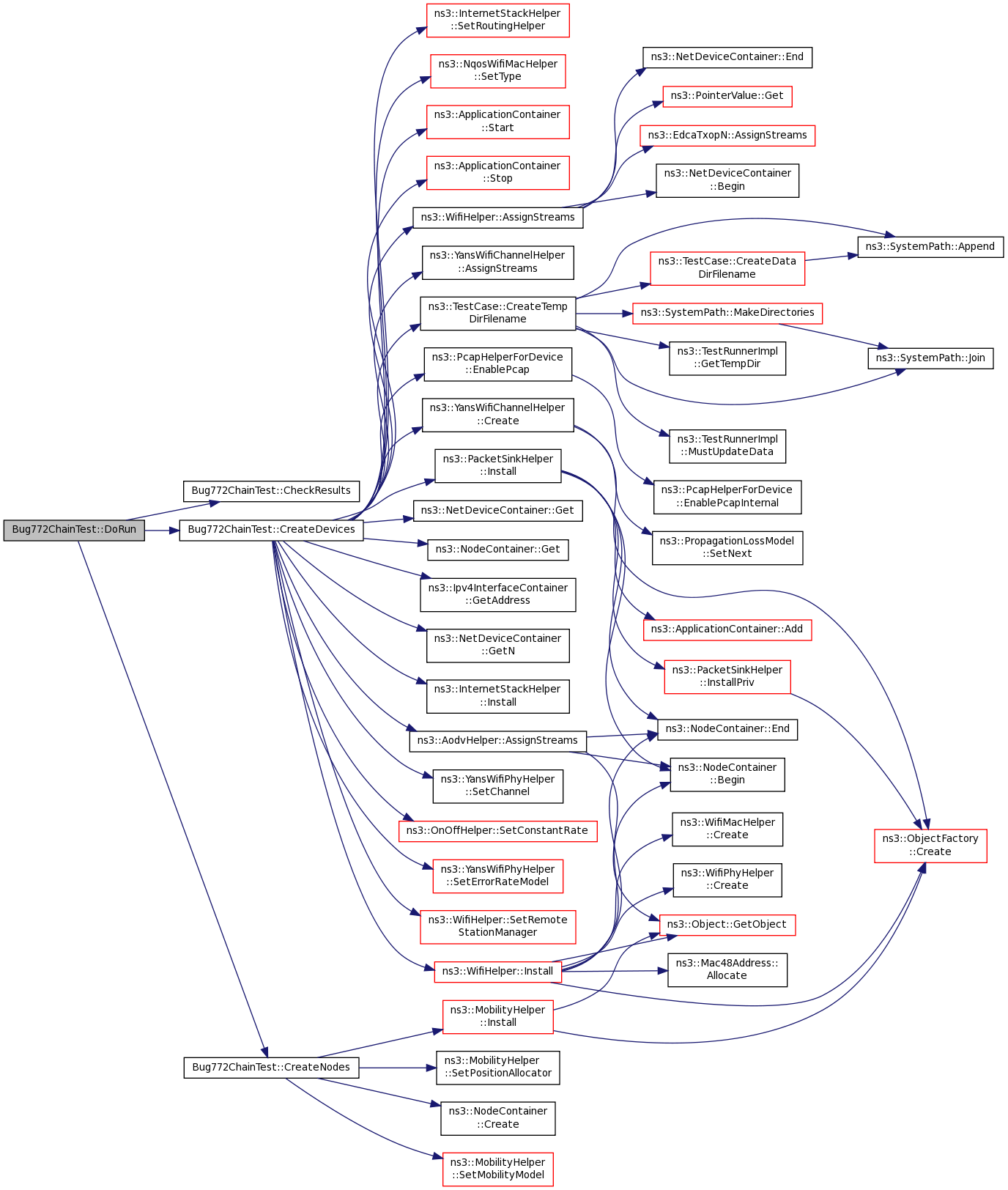

Here is the call graph for this function:

Member Data Documentation

NodeContainer* Bug772ChainTest::m_nodes

private

Internal: It is important to have pointers here

Definition at line 53 of file bug-772.h.

Referenced by CreateDevices(), CreateNodes(), DoRun(), and ~Bug772ChainTest().

const std::string Bug772ChainTest::m_prefix

private

PCAP file names prefix.

Definition at line 56 of file bug-772.h.

Referenced by CheckResults(), and CreateDevices().

const std::string Bug772ChainTest::m_proto

private

Socket factory TID.

Definition at line 58 of file bug-772.h.

Referenced by CreateDevices().

const uint32_t Bug772ChainTest::m_size

private

Chain size.

Definition at line 62 of file bug-772.h.

Referenced by CheckResults(), CreateDevices(), and CreateNodes().

const double Bug772ChainTest::m_step

private

Chain step, meters.

Definition at line 64 of file bug-772.h.

Referenced by CreateNodes().

const Time Bug772ChainTest::m_time

private

Total simulation time.

Definition at line 60 of file bug-772.h.

Referenced by CreateDevices(), and DoRun().

---

The documentation for this class was generated from the following files:

• src/aodv/test/bug-772.h
• src/aodv/test/bug-772.cc
