AODV chain regression test. More...
#include <aodv-regression.h>
Inheritance diagram for ChainRegressionTest: Collaboration diagram for ChainRegressionTest:Public Member Functions | |
| ChainRegressionTest (const char *const prefix, Time time=Seconds(10), uint32_t size=5, Time arpAliveTimeout=Seconds(120)) | |
| Create test case. More... | |
| ~ChainRegressionTest () | |
| Public Member Functions inherited from ns3::TestCase | |
| virtual | ~TestCase () |
| Destructor. More... | |
| std::string | GetName (void) const |
Private Member Functions | |
| void | CheckResults () |
| Compare traces with reference ones. More... | |
| void | CreateDevices () |
| Create devices, install TCP/IP stack and applications. More... | |
| void | CreateNodes () |
| Create test topology. More... | |
| void | DoRun () |
| Go. More... | |
Private Attributes | |
| const Time | m_arpAliveTimeout |
| ARP alive timeout. More... | |
| NodeContainer * | m_nodes |
| const std::string | m_prefix |
| PCAP file names prefix. More... | |
| const uint32_t | m_size |
| Chain size. More... | |
| const double | m_step |
| Chain step, meters. More... | |
| const Time | m_time |
| Total simulation time. More... | |
Additional Inherited Members | |
| Public Types inherited from ns3::TestCase | |
| enum | TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 } |
| How long the test takes to execute. More... | |
| Protected Member Functions inherited from ns3::TestCase | |
| TestCase (std::string name) | |
| void | AddTestCase (TestCase *testCase) NS_DEPRECATED |
| Add an individual child TestCase case to this TestCase. More... | |
| void | AddTestCase (TestCase *testCase, enum TestDuration duration) |
| Add an individual child TestCase to this test suite. More... | |
| bool | GetErrorStatus (void) const NS_DEPRECATED |
| TestCase * | GetParent () const |
| bool | IsStatusFailure (void) const |
| bool | IsStatusSuccess (void) const |
| void | SetDataDir (std::string directory) |
| void | ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line) |
| Log the failure of this TestCase. More... | |
| bool | MustAssertOnFailure (void) const |
| bool | MustContinueOnFailure (void) const |
| std::string | CreateDataDirFilename (std::string filename) |
| std::string | CreateTempDirFilename (std::string filename) |
AODV chain regression test.
This script creates 1-dimensional grid topology and then ping last node from the first one:
[10.1.1.1] <– step –> [10.1.1.2] <– step –> [10.1.1.3] <– step –> [10.1.1.4] <– step –> [10.1.1.5]
Each node can hear only his right and his left neighbor, if they exist. When one third of total time expired, central node moves away. After this, node 3 doesn't hear any packets from other nodes and nobody hears his packets. We want to demonstrate in this script 1) route establishing 2) broken link detection both from layer 2 information and hello messages.
Expected packets time diagram.
1 2 3 4 5
<------|------>| | | | RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, U=1, hop=0, ID=1, org_seqno=1) src = 10.1.1.1
|<------|------>| | | RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, U=1, hop=1, ID=1, org_seqno=1) src = 10.1.1.2
| |<------|------>| | RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, U=1, hop=2, ID=1, org_seqno=1) src = 10.1.1.3
| | |<------|------>| RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, U=1, hop=3, ID=1, org_seqno=1) src = 10.1.1.4
| | | |<------|------> ARP request. Who has 10.1.1.4? Tell 10.1.1.5
| | | |======>| ARP reply
| | | |<======| RREP (orig 10.1.1.1, dst 10.1.1.5, hop=0, dst_seqno=0) src=10.1.1.5
| | |<------|------>| ARP request. Who has 10.1.1.3? Tell 10.1.1.4
| | |======>| | ARP reply
| | |<======| | RREP (orig 10.1.1.1, dst 10.1.1.5, hop=1, dst_seqno=0) src=10.1.1.4
| |<------|------>| | ARP request. Who has 10.1.1.2? Tell 10.1.1.3
| |======>| | | ARP reply
| |<======| | | RREP (orig 10.1.1.1, dst 10.1.1.5, hop=2, dst_seqno=0) src=10.1.1.3
|<------|------>| | | ARP request. Who has 10.1.1.1? Tell 10.1.1.2
|======>| | | | ARP reply
|<======| | | | RREP (orig 10.1.1.1, dst 10.1.1.5, hop=3, dst_seqno=0) src=10.1.1.2
<-------|------>| | | | ARP request. Who has 10.1.1.2? Tell 10.1.1.1
|<======| | | |
|======>| | | | ICMP (ping) request 0 from 10.1.1.1 to 10.1.1.5; src=10.1.1.1 next_hop=10.1.1.2
|<------|------>| | | ARP request. Who has 10.1.1.3? Tell 10.1.1.2
| |<======| | | ARP reply
| |======>| | | ICMP (ping) request 0 from 10.1.1.1 to 10.1.1.5; src=10.1.1.2 next_hop=10.1.1.3
| |<------|------>| | ARP request. Who has 10.1.1.4? Tell 10.1.1.3
| | |<======| | ARP reply
| | |======>| | ICMP (ping) request 0 from 10.1.1.1 to 10.1.1.5; src=10.1.1.3 next_hop=10.1.1.4
| | |<------|------>| ARP request. Who has 10.1.1.5? Tell 10.1.1.4
| | | |<======| ARP reply
| | | |======>| ICMP (ping) request 0; src=10.1.1.4 next_hop=10.1.1.5
| | | |<======| ICMP (ping) reply 0; src=10.1.1.5 next_hop=10.1.1.4
| | |<======| | ICMP (ping) reply 0; src=10.1.1.4 next_hop=10.1.1.3
| |<======| | | ICMP (ping) reply 0; src=10.1.1.3 next_hop=10.1.1.2
|<======| | | | ICMP (ping) reply 0; src=10.1.1.2 next_hop=10.1.1.1
| | | |<------|------> Hello
|<------|------>| | | Hello
<------|------>| | | | Hello
| |<------|------>| | Hello
|======>| | | | ICMP (ping) request 1; src=10.1.1.1 next_hop=10.1.1.2
| | |<------|------>| Hello
| |======>| | | ICMP (ping) request 1; src=10.1.1.2 next_hop=10.1.1.3
| | |======>| | ICMP (ping) request 1; src=10.1.1.3 next_hop=10.1.1.4
| | | |======>| ICMP (ping) request 1; src=10.1.1.4 next_hop=10.1.1.5
| | | |<======| ICMP (ping) reply 1; src=10.1.1.5 next_hop=10.1.1.4
| | |<======| | ICMP (ping) reply 1; src=10.1.1.4 next_hop=10.1.1.3
| |<======| | | ICMP (ping) reply 11; src=10.1.1.3 next_hop=10.1.1.2
|<======| | | | ICMP (ping) reply 1; src=10.1.1.2 next_hop=10.1.1.1
| | | |<------|------> Hello
|<------|------>| | | Hello
<------|------>| | | | Hello
| | |<------|------>| Hello
| |<------|------>| | Hello
|======>| | | | ICMP (ping) request 2; src=10.1.1.1 next_hop=10.1.1.2
| |======>| | | ICMP (ping) request 2; src=10.1.1.2 next_hop=10.1.1.3
| | |======>| | ICMP (ping) request 2; src=10.1.1.3 next_hop=10.1.1.4
| | | |======>| ICMP (ping) request 2; src=10.1.1.4 next_hop=10.1.1.5
| | | |<======| ICMP (ping) reply 2; src=10.1.1.5 next_hop=10.1.1.4
| | |<======| | ICMP (ping) reply 2; src=10.1.1.4 next_hop=10.1.1.3
| |<======| | | ICMP (ping) reply 2; src=10.1.1.3 next_hop=10.1.1.2
|<======| | | | ICMP (ping) reply 2; src=10.1.1.2 next_hop=10.1.1.1
| | | |<------|------> Hello
<------|------>| | | | Hello
| |<------|------>| | Hello
|<------|------>| | | Hello
| | |<------|------>| Hello
|======>| | | | ICMP (ping) request 3; src=10.1.1.1 next_hop=10.1.1.2
| |======>| | | ICMP (ping) request 3; src=10.1.1.2 next_hop=10.1.1.3
| | |======>| | ICMP (ping) request 3; src=10.1.1.3 next_hop=10.1.1.4
| | | |======>| ICMP (ping) request 3; src=10.1.1.4 next_hop=10.1.1.5
| | | |<======| ICMP (ping) reply 3; src=10.1.1.5 next_hop=10.1.1.4
| | |<======| | ICMP (ping) reply 3; src=10.1.1.4 next_hop=10.1.1.3
| |<======| | | ICMP (ping) reply 3; src=10.1.1.3 next_hop=10.1.1.2
|<======| | | | ICMP (ping) reply 3; src=10.1.1.2 next_hop=10.1.1.1
| | | |<------|------> Hello
<------|------>| | | | Hello
|<------|--> | | | Hello |
| | <--|--> | | Hello |Node 3 move away => nobody hear his packets and node 3 doesn't hear anything !
| | | <--|------>| Hello |
|======>| | | | ICMP (ping) request 4; src=10.1.1.1 next_hop=10.1.1.2
| |==> | | | ICMP (ping) request 4; src=10.1.1.2 next_hop=10.1.1.3. 7 retries.
|<======| | | | RERR (unreachable dst 10.1.1.3 & 10.1.1.5) src=10.1.1.2
| | | |<------|------> Hello
<------|------>| | | | Hello
|<------|--> | | | Hello
| | <--|--> | | Hello
| | | <--|------>| Hello
<------|------>| | | | RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, hop=0, ID=2, org_seqno=2) src = 10.1.1.1
|<------|--> | | | RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, hop=1, ID=2, org_seqno=2) src = 10.1.1.2
| | | |<------|------> Hello
| | | <--|------>| Hello
| | <--|--> | | Hello
|<------|--> | | | Hello
<------|------>| | | | Hello
| | | |======>| RERR (unreachable dst 10.1.1.1 & 10.1.1.3) src=10.1.1.4
| | | |<------|------> Hello
| | | <--|------>| Hello
| | <--|--> | | Hello
|<------|--> | | | Hello
<------|------>| | | | Hello
| | | |<------|------> Hello
<------|------>| | | | RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, hop=0, ID=4, org_seqno=3) src = 10.1.1.1
|<------|--> | | | RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, hop=1, ID=4, org_seqno=3) src = 10.1.1.2
..................................................................
*
Definition at line 152 of file aodv-regression.h.
| ChainRegressionTest::ChainRegressionTest | ( | const char *const | prefix, |
| Time | time = Seconds (10), |
||
| uint32_t | size = 5, |
||
| Time | arpAliveTimeout = Seconds (120) |
||
| ) |
Create test case.
| prefix | Unique file names prefix |
| size | Number of nodes in the chain |
| time | Simulation time |
| arpAliveTimeout | ARP alive timeout, this is used to check that ARP and routing do not interfere |
Definition at line 78 of file aodv-regression.cc.
| ChainRegressionTest::~ChainRegressionTest | ( | ) |
Definition at line 89 of file aodv-regression.cc.
References m_nodes.
|
private |
Compare traces with reference ones.
Definition at line 188 of file aodv-regression.cc.
References m_prefix, m_size, and NS_PCAP_TEST_EXPECT_EQ.
Referenced by DoRun().
Here is the caller graph for this function:
|
private |
Create devices, install TCP/IP stack and applications.
Definition at line 136 of file aodv-regression.cc.
References first::address, ns3::Ipv4AddressHelper::Assign(), ns3::AodvHelper::AssignStreams(), ns3::YansWifiChannelHelper::AssignStreams(), ns3::WifiHelper::AssignStreams(), ns3::InternetStackHelper::AssignStreams(), ns3::YansWifiChannelHelper::Create(), ns3::TestCase::CreateTempDirFilename(), first::devices, ns3::PcapHelperForDevice::EnablePcapAll(), ns3::NodeContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::NetDeviceContainer::GetN(), ns3::InternetStackHelper::Install(), ns3::WifiHelper::Install(), first::interfaces, m_nodes, m_prefix, m_size, m_time, NS_TEST_ASSERT_MSG_EQ, ns3::V4PingHelper::SetAttribute(), ns3::Ipv4AddressHelper::SetBase(), ns3::YansWifiPhyHelper::SetChannel(), ns3::YansWifiPhyHelper::SetErrorRateModel(), ns3::WifiHelper::SetRemoteStationManager(), ns3::InternetStackHelper::SetRoutingHelper(), ns3::NqosWifiMacHelper::SetType(), ns3::ApplicationContainer::Start(), and ns3::ApplicationContainer::Stop().
Referenced by DoRun().

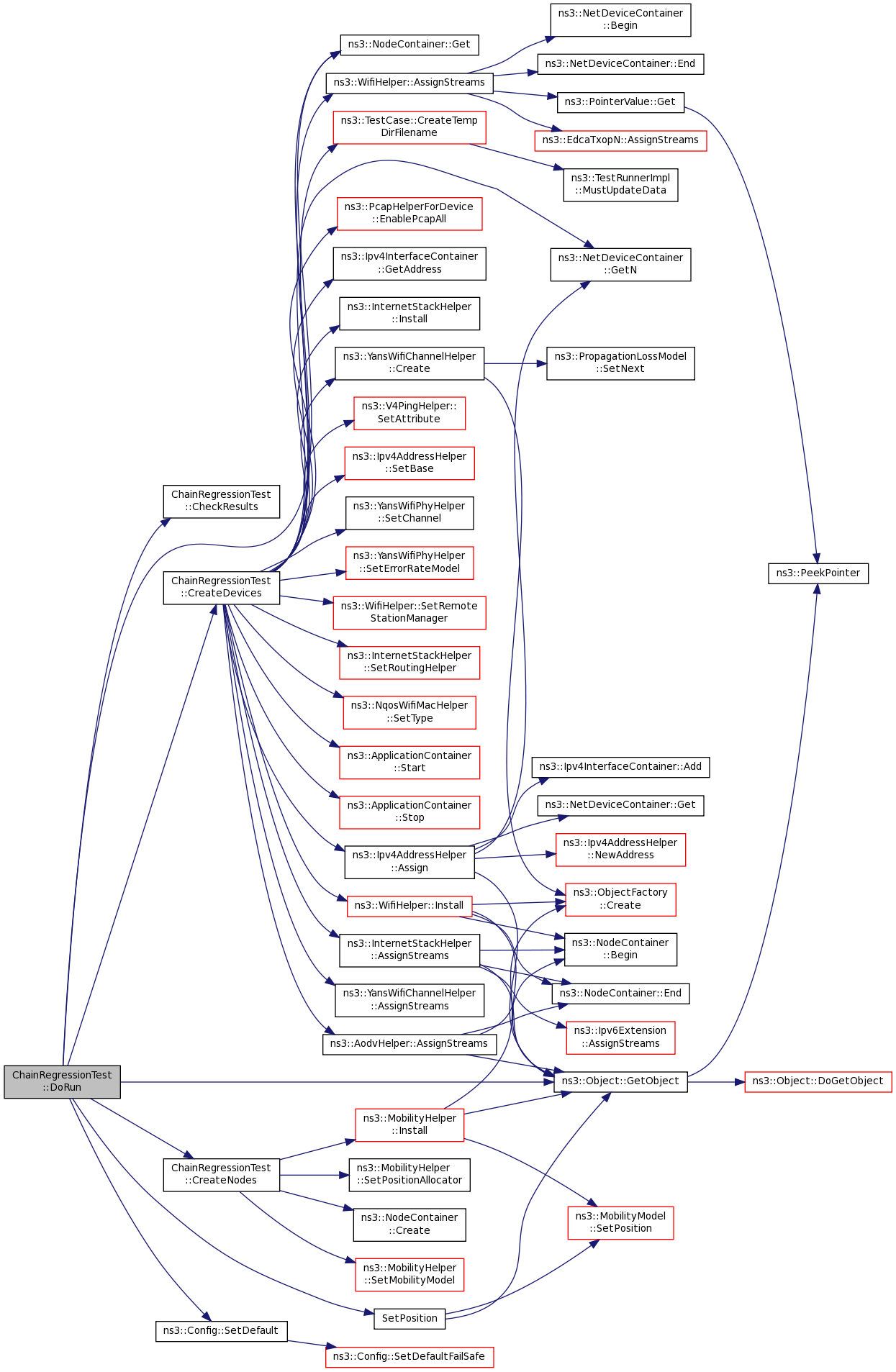

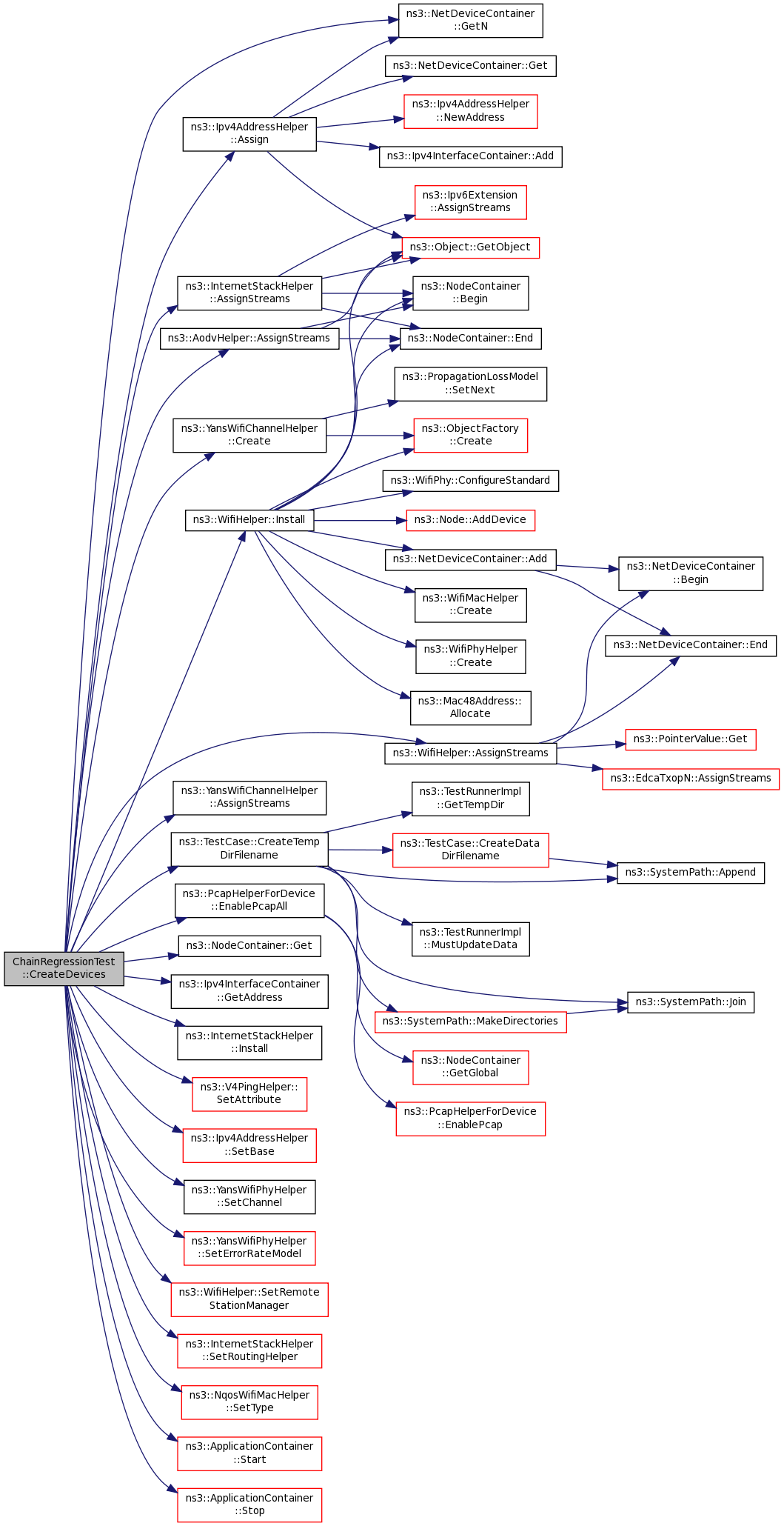

Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Create test topology.
Definition at line 119 of file aodv-regression.cc.
References ns3::NodeContainer::Create(), ns3::MobilityHelper::Install(), m_nodes, m_size, m_step, ns3::MobilityHelper::SetMobilityModel(), and ns3::MobilityHelper::SetPositionAllocator().
Referenced by DoRun().
Here is the call graph for this function: Here is the caller graph for this function:
|
privatevirtual |
Go.
Implements ns3::TestCase.
Definition at line 95 of file aodv-regression.cc.
References CheckResults(), CreateDevices(), CreateNodes(), ns3::NodeContainer::Get(), ns3::Object::GetObject(), m_arpAliveTimeout, m_nodes, m_size, m_time, ns3::Config::SetDefault(), and SetPosition().
Here is the call graph for this function:
|
private |
|
private |
Definition at line 168 of file aodv-regression.h.
Referenced by CreateDevices(), CreateNodes(), DoRun(), and ~ChainRegressionTest().
|
private |
PCAP file names prefix.
Definition at line 171 of file aodv-regression.h.
Referenced by CheckResults(), and CreateDevices().
|
private |
Chain size.
Definition at line 175 of file aodv-regression.h.
Referenced by CheckResults(), CreateDevices(), CreateNodes(), and DoRun().
|
private |
|
private |
Total simulation time.
Definition at line 173 of file aodv-regression.h.
Referenced by CreateDevices(), and DoRun().
