test for multihop path establishing and path error procedures Initiate scenario with 6 stations. More...

#include <hwmp-reactive-regression.h>

Inheritance diagram for HwmpReactiveRegressionTest:

Collaboration diagram for HwmpReactiveRegressionTest:

Public Member Functions
	HwmpReactiveRegressionTest ()

virtual	~HwmpReactiveRegressionTest ()

void	CheckResults ()

virtual void	DoRun ()
	Implementation to actually run this TestCase. More...

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Private Member Functions

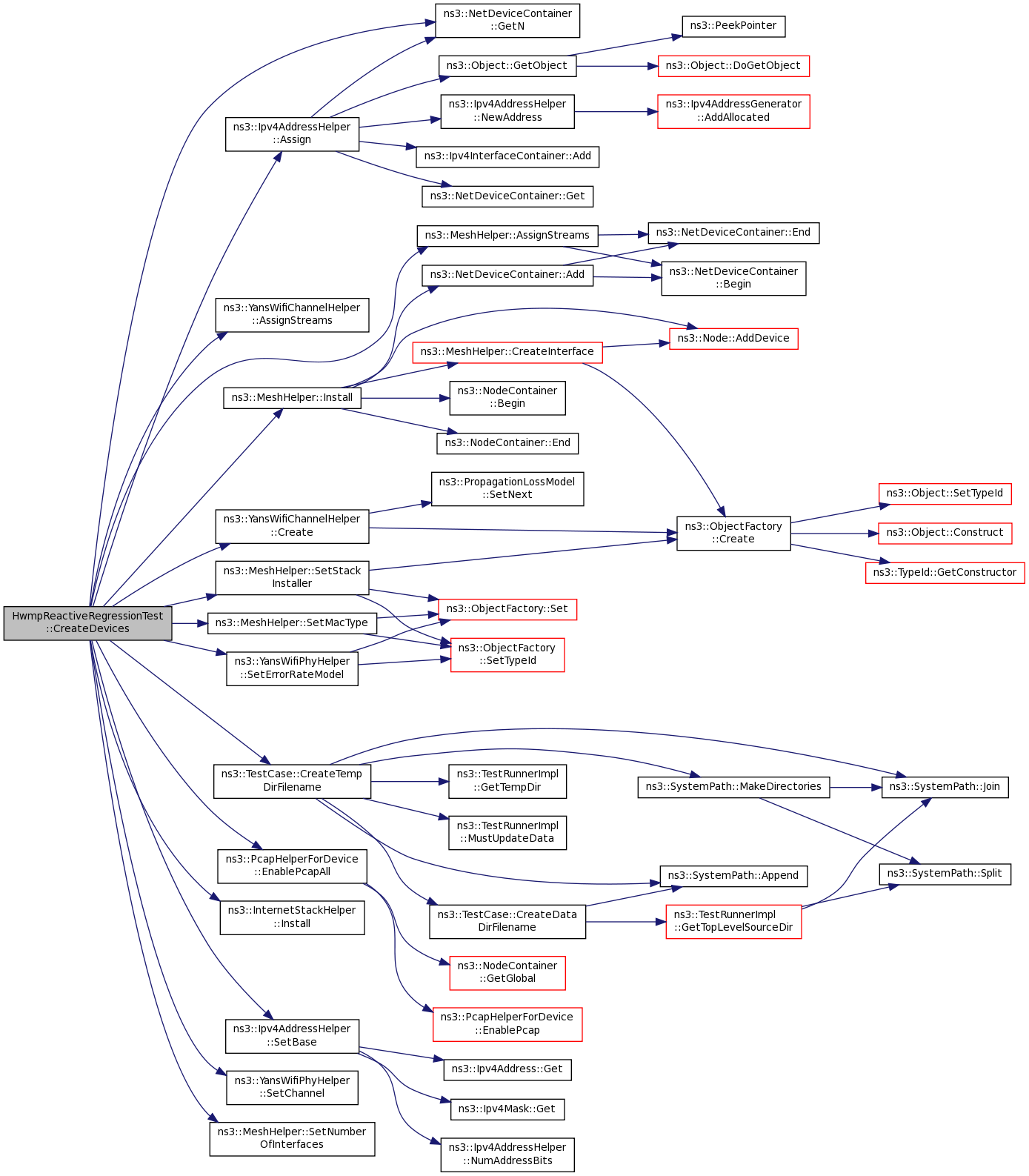

void	CreateDevices ()

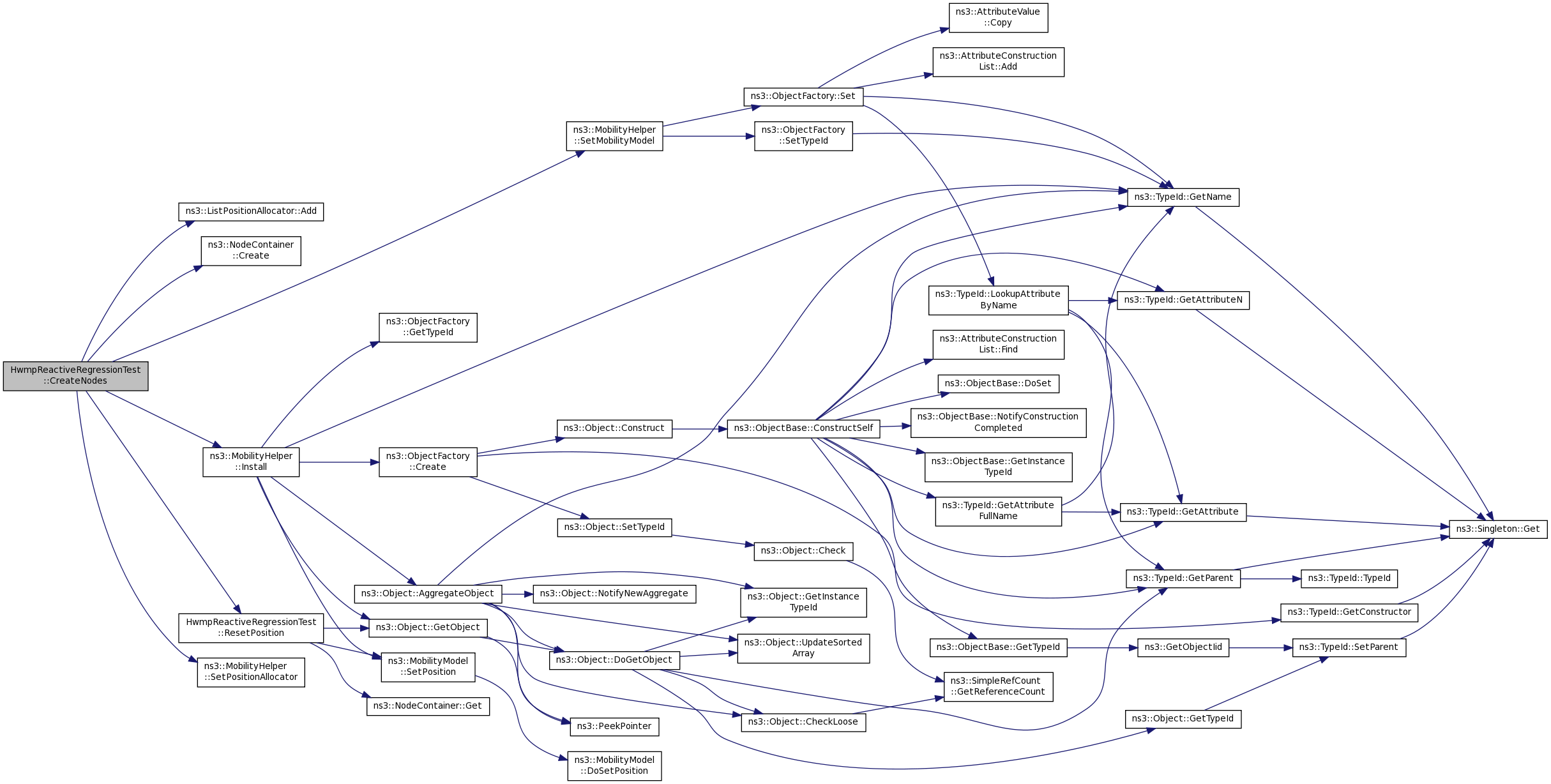

void	CreateNodes ()

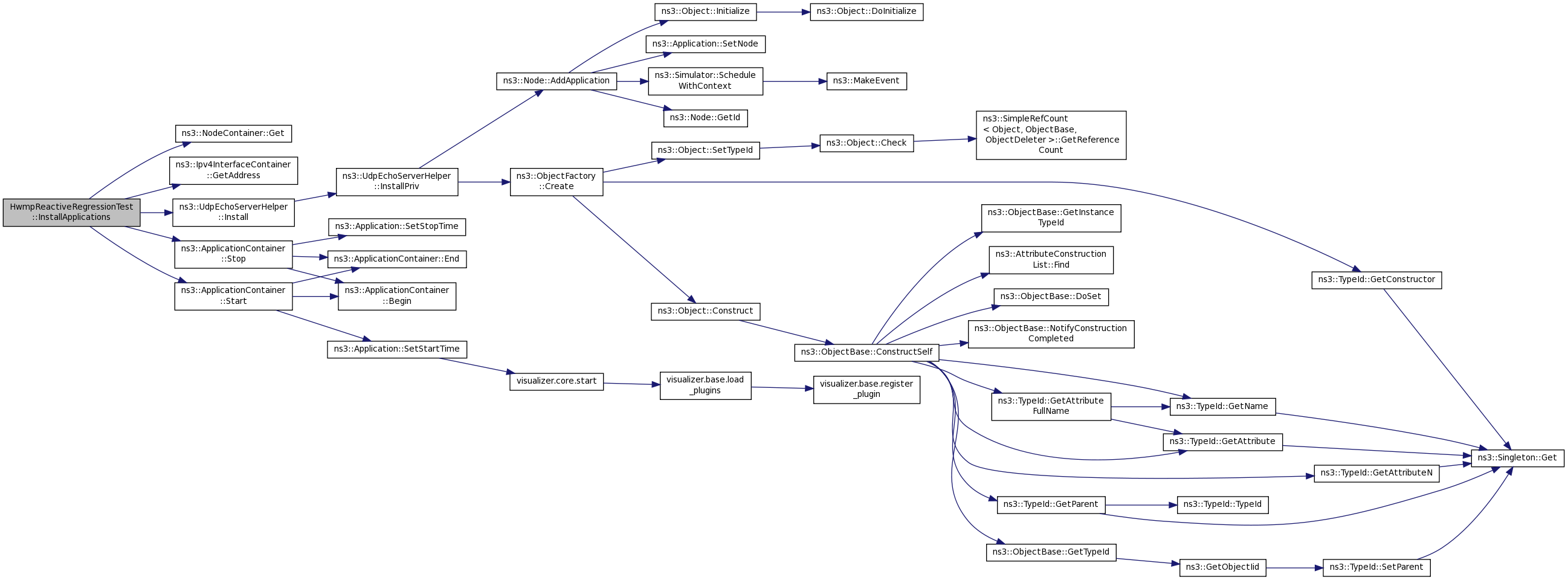

void	InstallApplications ()

void	ResetPosition ()

Private Attributes
Ipv4InterfaceContainer	m_interfaces

NodeContainer *	m_nodes

Time	m_time
	Simulation time. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)

void	AddTestCase (TestCase *testCase) NS_DEPRECATED
	Add an individual child TestCase case to this TestCase. More...

void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...

bool	GetErrorStatus (void) const NS_DEPRECATED

TestCase *	GetParent () const

bool	IsStatusFailure (void) const

bool	IsStatusSuccess (void) const

void	SetDataDir (std::string directory)

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const

bool	MustContinueOnFailure (void) const

std::string	CreateDataDirFilename (std::string filename)

std::string	CreateTempDirFilename (std::string filename)

Detailed Description

test for multihop path establishing and path error procedures Initiate scenario with 6 stations.

Procedure of opening peer link is the following: (PMP routines are not shown)

*      1    2    3    4    5    6
*      |    |    |    |    |<---|--->  ARP request (first attempt has failed!)
*      |....|....|....|....|....|      ARP request
*      |<---|--->|    |    |    |      ARP request
*  <---|--->|    |    |    |    |      PREQ       } This order is broken
*  <---|--->|    |    |    |    |      ARP request} due to BroadcastDca
*      |<---|--->|    |    |    |      PREQ
*      |....|....|....|....|....|      ARP request
*      |    |    |    |<---|--->|      PREQ
*      |    |    |    |    |<---|      PREP
*      |....|....|....|....|....|      PREP
*      |<---|    |    |    |    |      PREP
*      |--->|    |    |    |    |      ARP response
*      |....|....|....|....|....|      ARP response
*      |    |    |    |    |--->|      ARP response
*      |    |    |    |    |<---|      Data
*      |....|....|....|....|....|      Data
*      |<---|    |    |    |    |      Data
*  <---|--->|    |    |    |    |      ARP request
*      |....|....|....|....|....|      ARP request
*      |    |    |    |    |<---|--->  ARP request
*      |    |    |    |    |<---|      ARP response
*      |....|....|....|....|....|      ARP response
*      |<---|    |    |    |    |      ARP response
*      |--->|    |    |    |    |      Data
* At 5 station number 4 disappears, and PERR is forwarded from 3 to 1
* and from 5 to 6, and station 6 starts path discovery procedure
* again:
*      |    |<---|         |--->|      PERR (one due to beacon loss and one due to TX error)
*      |<---|    |         |    |      PERR
*      |    |    |         |<---|--->  PREQ
*      |    |    |     <---|--->|      PREQ
*      |....|....|.........|....|      Repeated attempts of PREQ
*

Definition at line 71 of file hwmp-reactive-regression.h.
