This system test program creates different test cases with a single eNB... More...

#include <lte-test-mimo.h>

Inheritance diagram for LenaMimoTestCase:

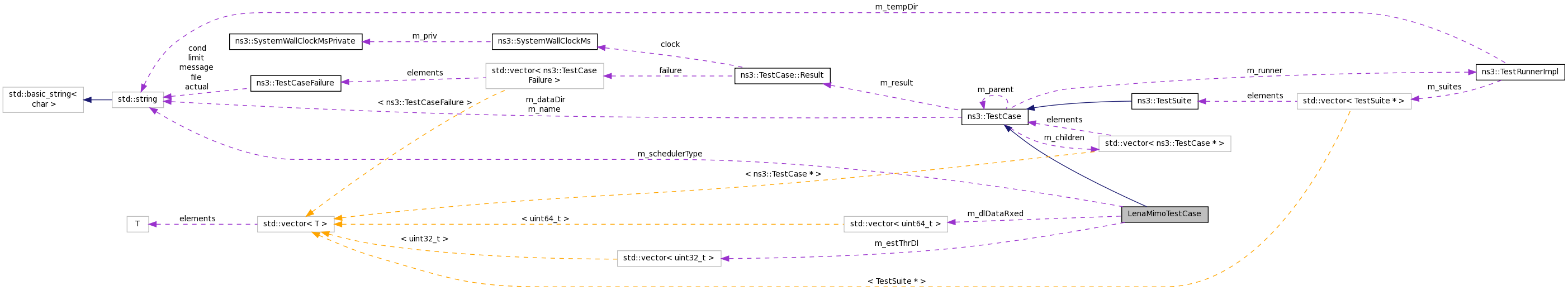

Collaboration diagram for LenaMimoTestCase:

Public Member Functions
	LenaMimoTestCase (uint16_t dist, std::vector< uint32_t > estThrDl, std::string schedulerType, bool useIdealRrc)

virtual	~LenaMimoTestCase ()

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

void	GetRlcBufferSample (Ptr< RadioBearerStatsCalculator > rlcStats, uint64_t imsi, uint8_t rnti)

Static Private Member Functions
static std::string	BuildNameString (uint16_t dist, std::string schedulerType, bool useIdealRrc)

Private Attributes
uint16_t	m_dist

std::vector< uint64_t >	m_dlDataRxed

std::vector< uint32_t >	m_estThrDl

std::string	m_schedulerType

bool	m_useIdealRrc

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)

void	AddTestCase (TestCase *testCase) NS_DEPRECATED
	Add an individual child TestCase case to this TestCase. More...

void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...

bool	GetErrorStatus (void) const NS_DEPRECATED

TestCase *	GetParent () const

bool	IsStatusFailure (void) const

bool	IsStatusSuccess (void) const

void	SetDataDir (std::string directory)

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const

bool	MustContinueOnFailure (void) const

std::string	CreateDataDirFilename (std::string filename)

std::string	CreateTempDirFilename (std::string filename)

Detailed Description

This system test program creates different test cases with a single eNB...

Definition at line 34 of file lte-test-mimo.h.

Constructor & Destructor Documentation

LenaMimoTestCase::LenaMimoTestCase	(	uint16_t	dist,
		std::vector< uint32_t >	estThrDl,
		std::string	schedulerType,
		bool	useIdealRrc
	)

Definition at line 103 of file lte-test-mimo.cc.

LenaMimoTestCase::~LenaMimoTestCase ( )

virtual

Definition at line 112 of file lte-test-mimo.cc.

Member Function Documentation

std::string LenaMimoTestCase::BuildNameString	(	uint16_t	dist,
		std::string	schedulerType,
		bool	useIdealRrc
	)

staticprivate

Definition at line 88 of file lte-test-mimo.cc.

void LenaMimoTestCase::DoRun ( void )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Initialize Simulation Scenario: 1 eNB and m_nUser UEs

Implements ns3::TestCase.

Definition at line 117 of file lte-test-mimo.cc.

References ns3::LteHelper::ActivateDataRadioBearer(), ns3::LteHelper::Attach(), ns3::NodeContainer::Create(), ns3::LteHelper::EnableMacTraces(), ns3::LteHelper::EnableRlcTraces(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::ObjectBase::GetAttribute(), ns3::TestCase::GetName(), ns3::Object::GetObject(), ns3::LteUeNetDevice::GetPhy(), ns3::LteEnbNetDevice::GetPhy(), GetRlcBufferSample(), ns3::LteHelper::GetRlcStats(), ns3::MobilityHelper::Install(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), m_dist, m_dlDataRxed, m_estThrDl, m_schedulerType, m_useIdealRrc, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::ObjectBase::SetAttribute(), ns3::Config::SetDefault(), ns3::MobilityHelper::SetMobilityModel(), ns3::LteHelper::SetPathlossModelAttribute(), ns3::MobilityModel::SetPosition(), and ns3::LteHelper::SetSchedulerType().

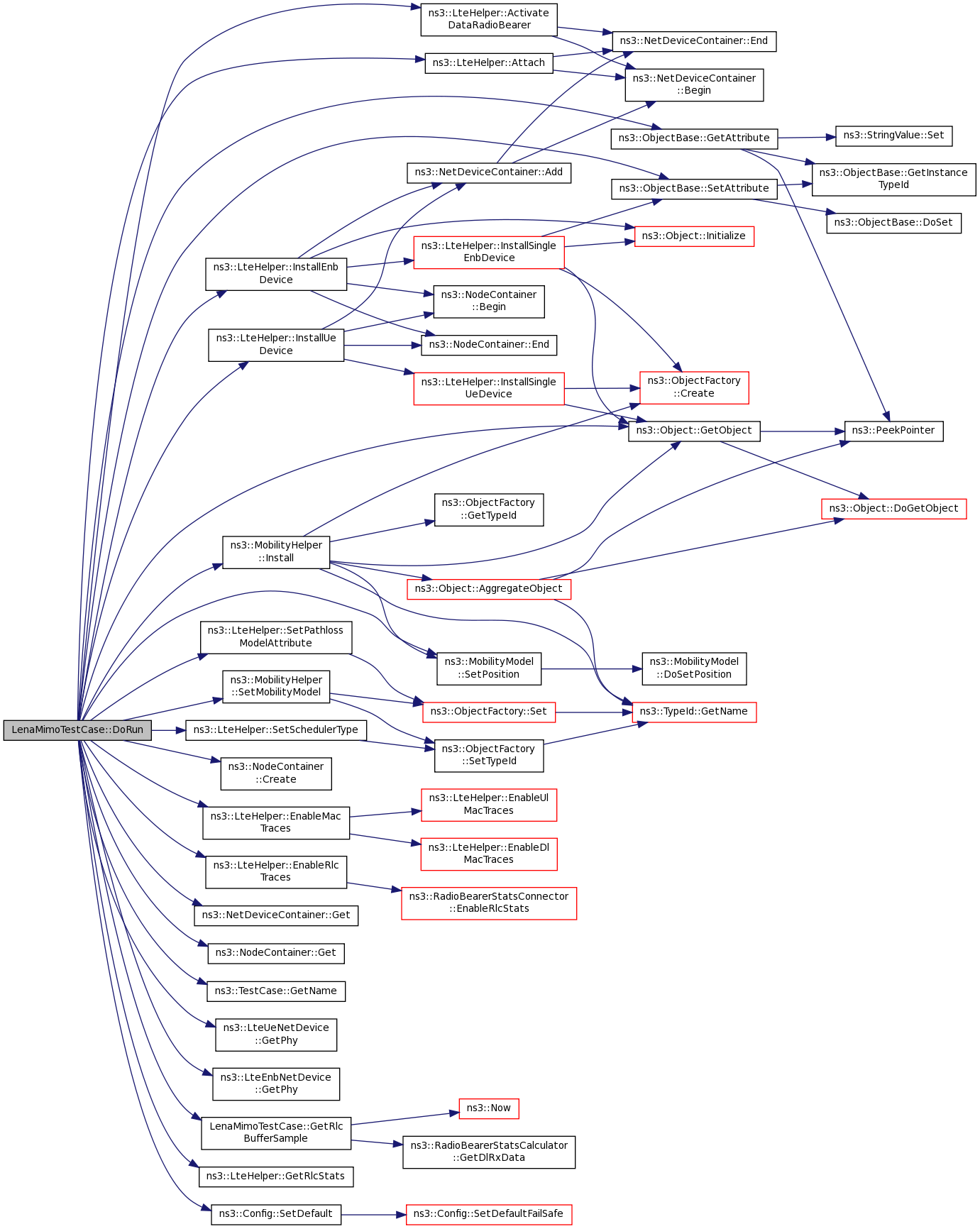

Here is the call graph for this function:

void LenaMimoTestCase::GetRlcBufferSample	(	Ptr< RadioBearerStatsCalculator >	rlcStats,
		uint64_t	imsi,
		uint8_t	rnti
	)

private

Definition at line 259 of file lte-test-mimo.cc.

References ns3::RadioBearerStatsCalculator::GetDlRxData(), m_dlDataRxed, ns3::Now(), and NS_LOG_INFO.

Referenced by DoRun().

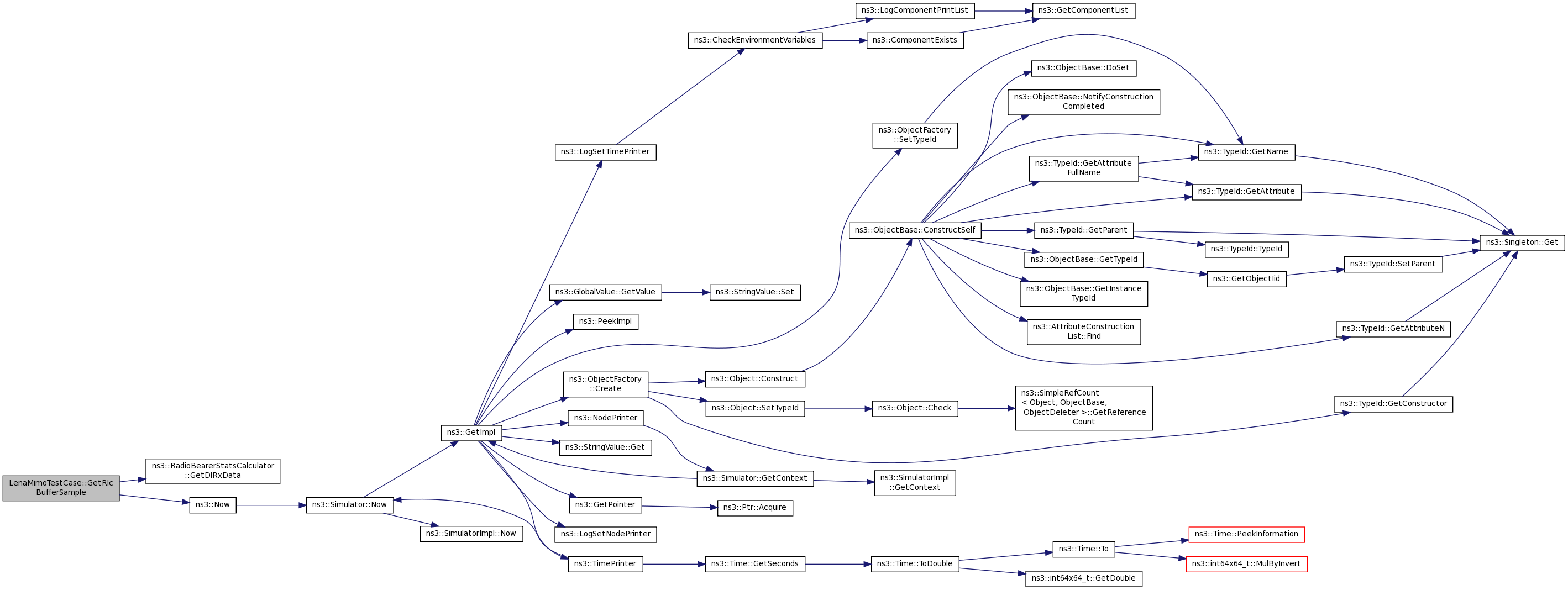

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

uint16_t LenaMimoTestCase::m_dist

private

Definition at line 46 of file lte-test-mimo.h.

Referenced by DoRun().

std::vector<uint64_t> LenaMimoTestCase::m_dlDataRxed

private

Definition at line 51 of file lte-test-mimo.h.

Referenced by DoRun(), and GetRlcBufferSample().

std::vector<uint32_t> LenaMimoTestCase::m_estThrDl

private

Definition at line 47 of file lte-test-mimo.h.

Referenced by DoRun().

std::string LenaMimoTestCase::m_schedulerType

private

Definition at line 48 of file lte-test-mimo.h.

Referenced by DoRun().

bool LenaMimoTestCase::m_useIdealRrc

private

Definition at line 49 of file lte-test-mimo.h.

Referenced by DoRun().

The documentation for this class was generated from the following files:

src/lte/test/lte-test-mimo.h
src/lte/test/lte-test-mimo.cc
