LenaTdTbfqFfMacSchedulerTestCase1 Class Reference

This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. More...

#include <lte-test-tdtbfq-ff-mac-scheduler.h>

Inheritance diagram for LenaTdTbfqFfMacSchedulerTestCase1:

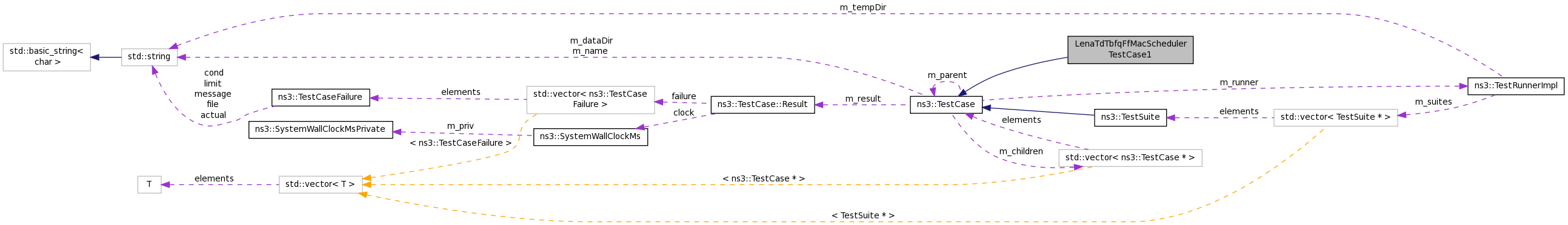

Collaboration diagram for LenaTdTbfqFfMacSchedulerTestCase1:

Public Member Functions
	LenaTdTbfqFfMacSchedulerTestCase1 (uint16_t nUser, uint16_t dist, double thrRefDl, double thrRefUl, uint16_t packetSize, uint16_t interval, bool errorModelEnabled)
virtual	~LenaTdTbfqFfMacSchedulerTestCase1 ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Static Private Member Functions
static std::string	BuildNameString (uint16_t nUser, uint16_t dist)

Private Attributes
uint16_t	m_dist
bool	m_errorModelEnabled
uint16_t	m_interval
uint16_t	m_nUser
uint16_t	m_packetSize
double	m_thrRefDl
double	m_thrRefUl

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
void	AddTestCase (TestCase *testCase) NS_DEPRECATED
	Add an individual child TestCase case to this TestCase. More...
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
bool	GetErrorStatus (void) const NS_DEPRECATED
TestCase *	GetParent () const
bool	IsStatusFailure (void) const
bool	IsStatusSuccess (void) const
void	SetDataDir (std::string directory)
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
bool	MustContinueOnFailure (void) const
std::string	CreateDataDirFilename (std::string filename)
std::string	CreateTempDirFilename (std::string filename)

Detailed Description

This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification.

In each test case, the UEs see the same SINR from the eNB; different test cases are implemented obtained by using different SINR values and different numbers of UEs. The test consists on checking that the obtained throughput performance is equal among users is consistent with the definition of token bank fair queue scheduling

Definition at line 42 of file lte-test-tdtbfq-ff-mac-scheduler.h.

Constructor & Destructor Documentation

LenaTdTbfqFfMacSchedulerTestCase1::LenaTdTbfqFfMacSchedulerTestCase1	(	uint16_t	nUser,
		uint16_t	dist,
		double	thrRefDl,
		double	thrRefUl,
		uint16_t	packetSize,
		uint16_t	interval,
		bool	errorModelEnabled
	)

Definition at line 240 of file lte-test-tdtbfq-ff-mac-scheduler.cc.

LenaTdTbfqFfMacSchedulerTestCase1::~LenaTdTbfqFfMacSchedulerTestCase1 ( )

virtual

Definition at line 252 of file lte-test-tdtbfq-ff-mac-scheduler.cc.

Member Function Documentation

std::string LenaTdTbfqFfMacSchedulerTestCase1::BuildNameString ( uint16_t  nUser, uint16_t  dist  )

staticprivate

Definition at line 232 of file lte-test-tdtbfq-ff-mac-scheduler.cc.

void LenaTdTbfqFfMacSchedulerTestCase1::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Check that the downlink assignation is done in a "token bank fair queue" manner

Check that the uplink assignation is done in a "round robin" manner

Implements ns3::TestCase.

Definition at line 257 of file lte-test-tdtbfq-ff-mac-scheduler.cc.

References ns3::LteHelper::ActivateDedicatedEpsBearer(), ns3::ApplicationContainer::Add(), ns3::Ipv4StaticRouting::AddNetworkRouteTo(), ns3::Ipv4AddressHelper::Assign(), ns3::LteHelper::Attach(), first::clientApps, ns3::NodeContainer::Create(), data, ns3::LteHelper::EnableMacTraces(), ns3::LteHelper::EnableRlcTraces(), ns3::GbrQosInformation::gbrDl, ns3::GbrQosInformation::gbrUl, ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::RadioBearerStatsCalculator::GetDlRxData(), ns3::NodeContainer::GetN(), ns3::TestCase::GetName(), ns3::Object::GetObject(), ns3::LteUeNetDevice::GetPhy(), ns3::LteEnbNetDevice::GetPhy(), ns3::LteHelper::GetRlcStats(), ns3::Ipv4StaticRoutingHelper::GetStaticRouting(), ns3::RadioBearerStatsCalculator::GetUlRxData(), ns3::PacketSinkHelper::Install(), ns3::PointToPointHelper::Install(), ns3::InternetStackHelper::Install(), ns3::UdpClientHelper::Install(), ns3::MobilityHelper::Install(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), m_dist, m_errorModelEnabled, m_interval, m_nUser, m_packetSize, m_thrRefDl, m_thrRefUl, ns3::GbrQosInformation::mbrDl, ns3::GbrQosInformation::mbrUl, NS_LOG_FUNCTION, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, first::serverApps, ns3::ObjectBase::SetAttribute(), ns3::UdpClientHelper::SetAttribute(), ns3::Ipv4AddressHelper::SetBase(), ns3::PointToPointHelper::SetChannelAttribute(), ns3::Config::SetDefault(), ns3::Ipv4StaticRouting::SetDefaultRoute(), ns3::PointToPointHelper::SetDeviceAttribute(), ns3::LteHelper::SetEpcHelper(), ns3::MobilityHelper::SetMobilityModel(), ns3::MobilityModel::SetPosition(), ns3::LteHelper::SetSchedulerType(), and ns3::ApplicationContainer::Start().

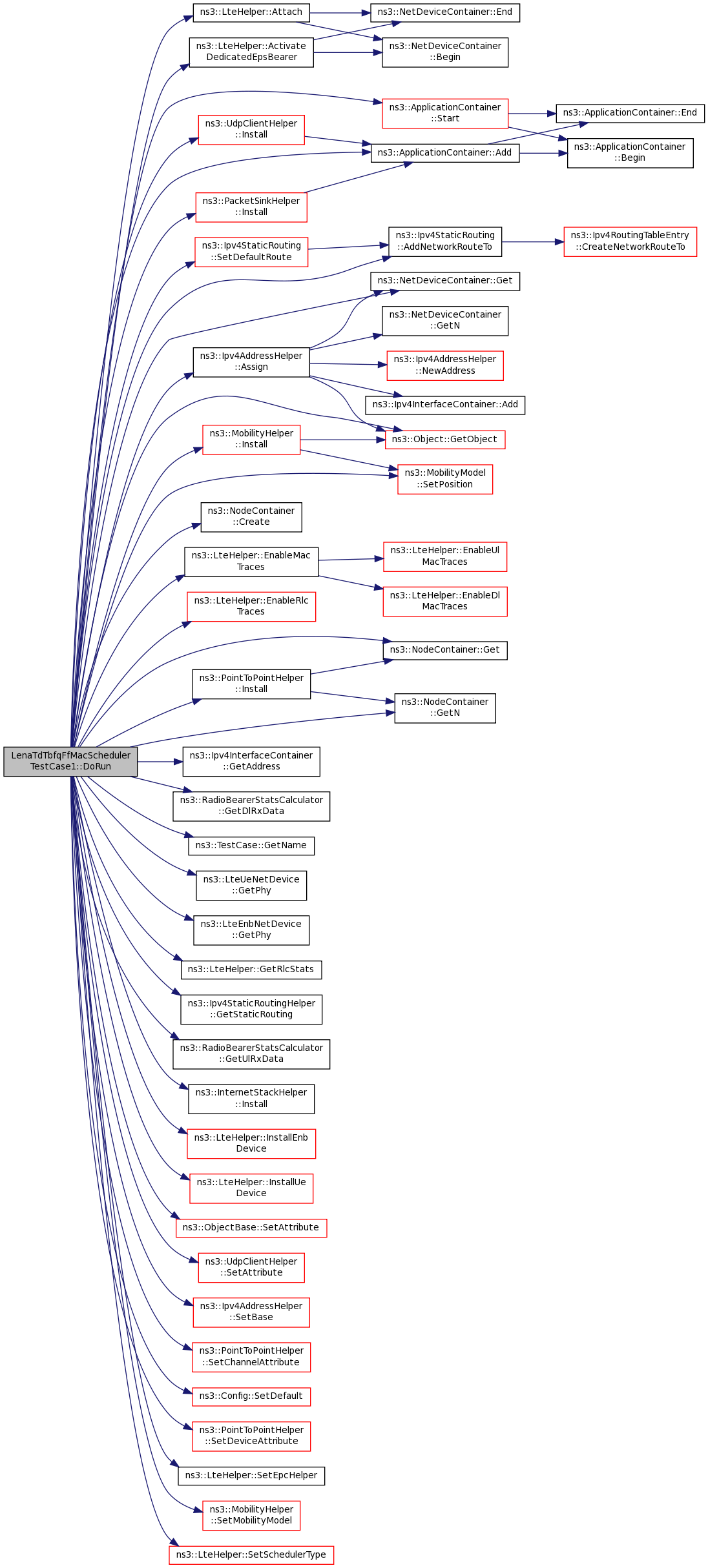

Here is the call graph for this function:

Member Data Documentation

uint16_t LenaTdTbfqFfMacSchedulerTestCase1::m_dist

private

Definition at line 52 of file lte-test-tdtbfq-ff-mac-scheduler.h.

Referenced by DoRun().

bool LenaTdTbfqFfMacSchedulerTestCase1::m_errorModelEnabled

private

Definition at line 57 of file lte-test-tdtbfq-ff-mac-scheduler.h.

Referenced by DoRun().

uint16_t LenaTdTbfqFfMacSchedulerTestCase1::m_interval

private

Definition at line 54 of file lte-test-tdtbfq-ff-mac-scheduler.h.

Referenced by DoRun().

uint16_t LenaTdTbfqFfMacSchedulerTestCase1::m_nUser

private

Definition at line 51 of file lte-test-tdtbfq-ff-mac-scheduler.h.

Referenced by DoRun().

uint16_t LenaTdTbfqFfMacSchedulerTestCase1::m_packetSize

private

Definition at line 53 of file lte-test-tdtbfq-ff-mac-scheduler.h.

Referenced by DoRun().

double LenaTdTbfqFfMacSchedulerTestCase1::m_thrRefDl

private

Definition at line 55 of file lte-test-tdtbfq-ff-mac-scheduler.h.

Referenced by DoRun().

double LenaTdTbfqFfMacSchedulerTestCase1::m_thrRefUl

private

Definition at line 56 of file lte-test-tdtbfq-ff-mac-scheduler.h.

Referenced by DoRun().

---

The documentation for this class was generated from the following files:

• src/lte/test/lte-test-tdtbfq-ff-mac-scheduler.h
• src/lte/test/lte-test-tdtbfq-ff-mac-scheduler.cc
