LteDownlinkCtrlSinrTestCase Class Reference

#include <lte-test-downlink-sinr.h>

+ Inheritance diagram for LteDownlinkCtrlSinrTestCase:
+ Collaboration diagram for LteDownlinkCtrlSinrTestCase:

Public Member Functions

 LteDownlinkCtrlSinrTestCase (Ptr< SpectrumValue > sv, Ptr< SpectrumValue > sinr, std::string name)
 TestCase CTRL. More...

virtual ~LteDownlinkCtrlSinrTestCase ()

- Public Member Functions inherited from ns3::TestCase
virtual ~TestCase ()
 Destructor. More...

std::string GetName (void) const


Private Member Functions

virtual void DoRun (void)
 Implementation to actually run this TestCase. More...


Private Attributes

Ptr< SpectrumValuem_sinr

Ptr< const SpectrumModelm_sm

Ptr< SpectrumValuem_sv


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)

void AddTestCase (TestCase *testCase) NS_DEPRECATED
 Add an individual child TestCase case to this TestCase. More...

void AddTestCase (TestCase *testCase, enum TestDuration duration)
 Add an individual child TestCase to this test suite. More...

bool GetErrorStatus (void) const NS_DEPRECATED

TestCaseGetParent () const

bool IsStatusFailure (void) const

bool IsStatusSuccess (void) const

void SetDataDir (std::string directory)

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...

bool MustAssertOnFailure (void) const

bool MustContinueOnFailure (void) const

std::string CreateDataDirFilename (std::string filename)

std::string CreateTempDirFilename (std::string filename)


Detailed Description

Definition at line 57 of file lte-test-downlink-sinr.h.

Constructor & Destructor Documentation

LteDownlinkCtrlSinrTestCase::LteDownlinkCtrlSinrTestCase ( Ptr< SpectrumValue sv,
Ptr< SpectrumValue sinr,
std::string  name
)

TestCase CTRL.

Definition at line 283 of file lte-test-downlink-sinr.cc.

References NS_LOG_INFO.

LteDownlinkCtrlSinrTestCase::~LteDownlinkCtrlSinrTestCase ( )
virtual

Definition at line 292 of file lte-test-downlink-sinr.cc.

Member Function Documentation

void LteDownlinkCtrlSinrTestCase::DoRun ( void  )
privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Instantiate a single receiving LteSpectrumPhy

Generate several calls to LteSpectrumPhy::StartRx corresponding to several signals. One will be the signal of interest, i.e., the LteSpectrumSignalParametersDlCtrlFrame of the first signal will have the same CellId of the receiving PHY; the others will have a different CellId and hence will be the interfering signals

Build ctrl msg lists

Schedule the reception of the data signal plus the interference signals

Check that the values passed to LteSinrChunkProcessor::EvaluateSinrChunk () correspond to known values which have been calculated offline (with octave) for the generated signals

Implements ns3::TestCase.

Definition at line 297 of file lte-test-downlink-sinr.cc.

References ns3::LteSpectrumSignalParametersDlCtrlFrame::cellId, ns3::LteSpectrumSignalParametersDlCtrlFrame::ctrlMsgList, ns3::SpectrumSignalParameters::duration, ns3::LteTestSinrChunkProcessor::GetSinr(), m_sinr, m_sm, m_sv, NS_LOG_INFO, NS_TEST_ASSERT_MSG_SPECTRUM_VALUE_EQ_TOL, ns3::SpectrumSignalParameters::psd, ns3::LteSpectrumSignalParametersDlCtrlFrame::pss, ns3::DlDciLteControlMessage::SetDci(), ns3::Config::SetDefault(), and ns3::SpectrumSignalParameters::txPhy.

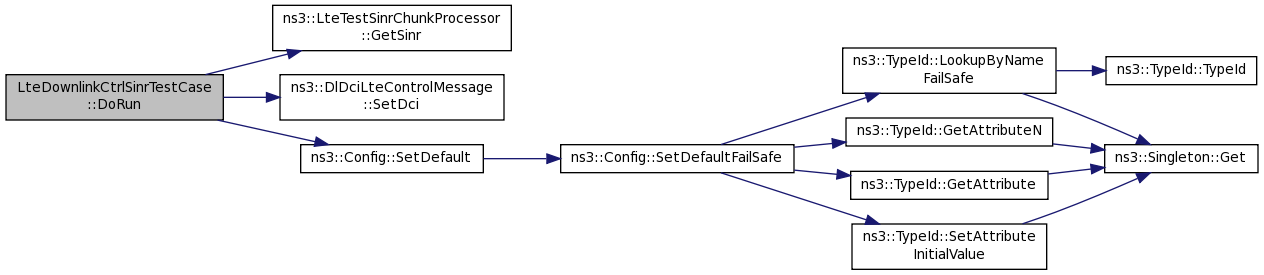

+ Here is the call graph for this function:

Member Data Documentation

Ptr<SpectrumValue> LteDownlinkCtrlSinrTestCase::m_sinr
private

Definition at line 68 of file lte-test-downlink-sinr.h.

Referenced by DoRun().

Ptr<const SpectrumModel> LteDownlinkCtrlSinrTestCase::m_sm
private

Definition at line 67 of file lte-test-downlink-sinr.h.

Referenced by DoRun().

Ptr<SpectrumValue> LteDownlinkCtrlSinrTestCase::m_sv
private

Definition at line 66 of file lte-test-downlink-sinr.h.

Referenced by DoRun().


The documentation for this class was generated from the following files:
