LteDownlinkDataSinrTestCase Class Reference

#include <lte-test-downlink-sinr.h>

+ Inheritance diagram for LteDownlinkDataSinrTestCase:
+ Collaboration diagram for LteDownlinkDataSinrTestCase:

Public Member Functions

 LteDownlinkDataSinrTestCase (Ptr< SpectrumValue > sv, Ptr< SpectrumValue > sinr, std::string name)
 TestCase Data. More...
virtual ~LteDownlinkDataSinrTestCase ()
- Public Member Functions inherited from ns3::TestCase
virtual ~TestCase ()
 Destructor. More...
std::string GetName (void) const

Private Member Functions

virtual void DoRun (void)
 Implementation to actually run this TestCase. More...

Private Attributes

Ptr< SpectrumValuem_sinr
Ptr< const SpectrumModelm_sm
Ptr< SpectrumValuem_sv

Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
 How long the test takes to execute. More...
- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
void AddTestCase (TestCase *testCase) NS_DEPRECATED
 Add an individual child TestCase case to this TestCase. More...
void AddTestCase (TestCase *testCase, enum TestDuration duration)
 Add an individual child TestCase to this test suite. More...
bool GetErrorStatus (void) const NS_DEPRECATED
TestCaseGetParent () const
bool IsStatusFailure (void) const
bool IsStatusSuccess (void) const
void SetDataDir (std::string directory)
void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...
bool MustAssertOnFailure (void) const
bool MustContinueOnFailure (void) const
std::string CreateDataDirFilename (std::string filename)
std::string CreateTempDirFilename (std::string filename)

Detailed Description

Definition at line 42 of file lte-test-downlink-sinr.h.

Constructor & Destructor Documentation

LteDownlinkDataSinrTestCase::LteDownlinkDataSinrTestCase ( Ptr< SpectrumValue sv,
Ptr< SpectrumValue sinr,
std::string  name

TestCase Data.

Definition at line 111 of file lte-test-downlink-sinr.cc.

References NS_LOG_INFO.

LteDownlinkDataSinrTestCase::~LteDownlinkDataSinrTestCase ( )

Definition at line 120 of file lte-test-downlink-sinr.cc.

Member Function Documentation

void LteDownlinkDataSinrTestCase::DoRun ( void  )

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Instantiate a single receiving LteSpectrumPhy

Generate several calls to LteSpectrumPhy::StartRx corresponding to several signals. One will be the signal of interest, i.e., the LteSpectrumSignalParametersDataFrame of the Packet burst will have the same CellId of the receiving PHY; the others will have a different CellId and hence will be the interfering signals

Build packet burst

Schedule the reception of the data signal plus the interference signals

Check that the values passed to LteSinrChunkProcessor::EvaluateSinrChunk () correspond to known values which have been calculated offline (with octave) for the generated signals

Implements ns3::TestCase.

Definition at line 125 of file lte-test-downlink-sinr.cc.

References ns3::PacketBurst::AddPacket(), ns3::LteSpectrumSignalParametersDataFrame::cellId, ns3::SpectrumSignalParameters::duration, ns3::LteTestSinrChunkProcessor::GetSinr(), m_sinr, m_sm, m_sv, NS_LOG_INFO, NS_TEST_ASSERT_MSG_SPECTRUM_VALUE_EQ_TOL, ns3::LteSpectrumSignalParametersDataFrame::packetBurst, ns3::SpectrumSignalParameters::psd, ns3::Config::SetDefault(), and ns3::SpectrumSignalParameters::txPhy.

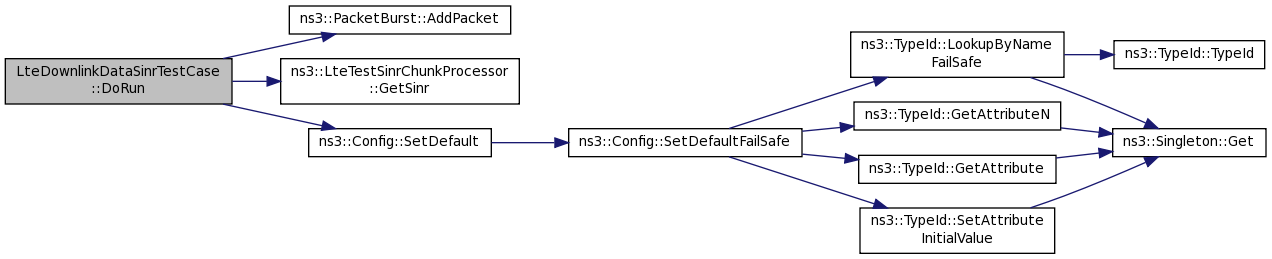

+ Here is the call graph for this function:

Member Data Documentation

Ptr<SpectrumValue> LteDownlinkDataSinrTestCase::m_sinr

Definition at line 53 of file lte-test-downlink-sinr.h.

Referenced by DoRun().

Ptr<const SpectrumModel> LteDownlinkDataSinrTestCase::m_sm

Definition at line 52 of file lte-test-downlink-sinr.h.

Referenced by DoRun().

Ptr<SpectrumValue> LteDownlinkDataSinrTestCase::m_sv

Definition at line 51 of file lte-test-downlink-sinr.h.

Referenced by DoRun().

The documentation for this class was generated from the following files:
