PeerManagementProtocolRegressionTest Class Reference

Peering Management Protocol regression test. More...

#include <pmp-regression.h>

Inheritance diagram for PeerManagementProtocolRegressionTest:

Collaboration diagram for PeerManagementProtocolRegressionTest:

Public Member Functions
	PeerManagementProtocolRegressionTest ()
	~PeerManagementProtocolRegressionTest ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
void	CheckResults ()
void	CreateDevices ()
void	CreateNodes ()
void	DoRun ()
	Implementation to actually run this TestCase. More...

Private Attributes
NodeContainer *	m_nodes
Time	m_time
	Simulation time. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
void	AddTestCase (TestCase *testCase) NS_DEPRECATED
	Add an individual child TestCase case to this TestCase. More...
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
bool	GetErrorStatus (void) const NS_DEPRECATED
TestCase *	GetParent () const
bool	IsStatusFailure (void) const
bool	IsStatusSuccess (void) const
void	SetDataDir (std::string directory)
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
bool	MustContinueOnFailure (void) const
std::string	CreateDataDirFilename (std::string filename)
std::string	CreateTempDirFilename (std::string filename)

Detailed Description

Peering Management Protocol regression test.

Initiate scenario with 2 stations. Procedure of opening peer link is the following:

* |----------->|  Beacon
* |<-----------|  Peer Link Open frame
* |----------->|  Peer Link Open frame
* |----------->|  Peer Link Confirm frame
* |<-----------|  Peer Link Confirm frame
* |............|
* |<---------->|  Other beacons
*

Definition at line 45 of file pmp-regression.h.

Constructor & Destructor Documentation

PeerManagementProtocolRegressionTest::PeerManagementProtocolRegressionTest

(

)

Definition at line 42 of file pmp-regression.cc.

PeerManagementProtocolRegressionTest::~PeerManagementProtocolRegressionTest

(

)

Definition at line 48 of file pmp-regression.cc.

References m_nodes.

Member Function Documentation

void PeerManagementProtocolRegressionTest::CheckResults ( )

private

Definition at line 112 of file pmp-regression.cc.

References NS_PCAP_TEST_EXPECT_EQ, and PREFIX.

Referenced by DoRun().

Here is the caller graph for this function:

void PeerManagementProtocolRegressionTest::CreateDevices ( )

private

Definition at line 88 of file pmp-regression.cc.

References ns3::YansWifiChannelHelper::AssignStreams(), ns3::MeshHelper::AssignStreams(), ns3::YansWifiChannelHelper::Create(), ns3::TestCase::CreateTempDirFilename(), ns3::PcapHelperForDevice::EnablePcapAll(), ns3::NetDeviceContainer::GetN(), ns3::MeshHelper::Install(), m_nodes, NS_TEST_ASSERT_MSG_EQ, PREFIX, ns3::YansWifiPhyHelper::SetChannel(), ns3::MeshHelper::SetMacType(), ns3::MeshHelper::SetNumberOfInterfaces(), and ns3::MeshHelper::SetStackInstaller().

Referenced by DoRun().

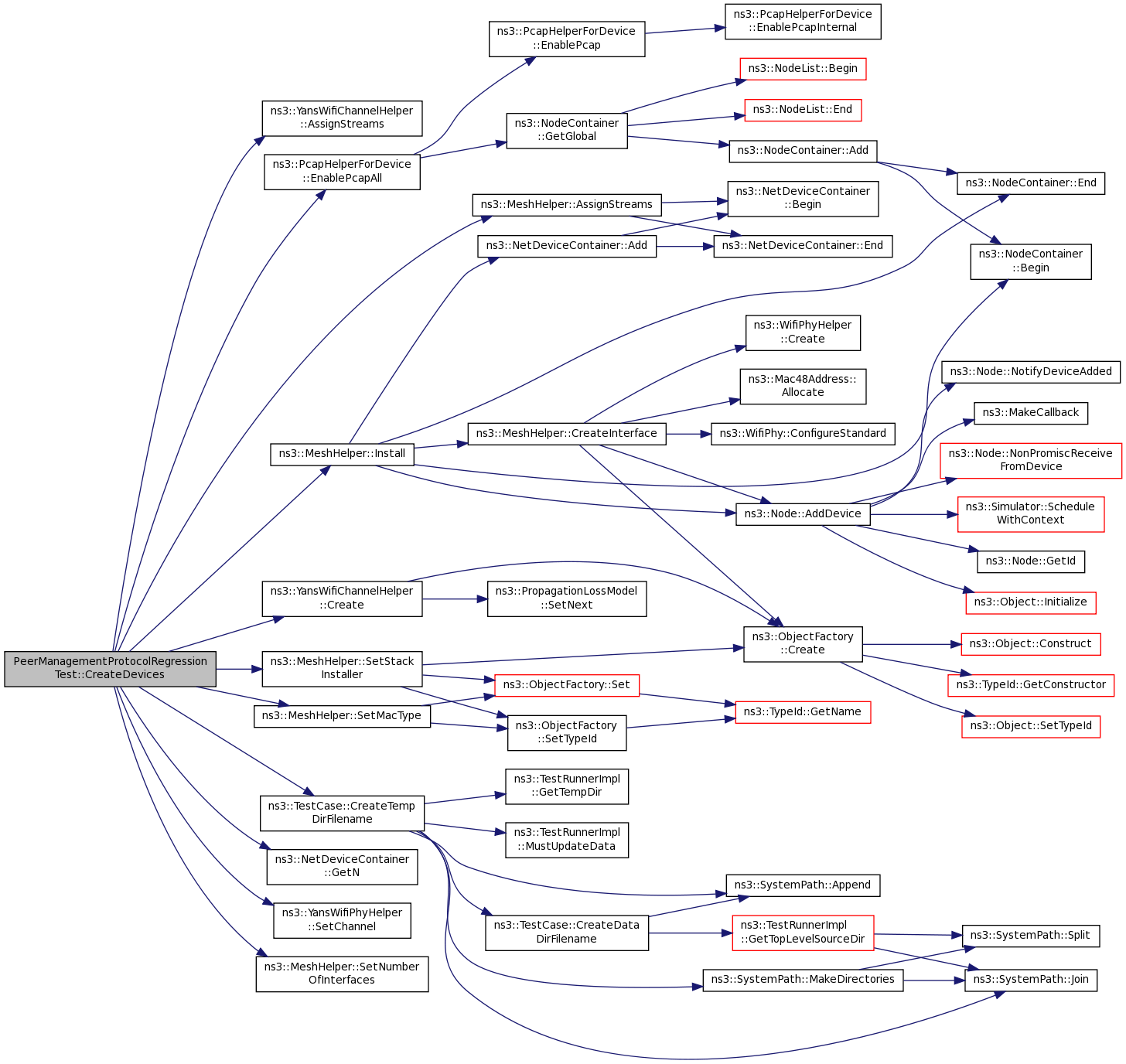

Here is the call graph for this function:

Here is the caller graph for this function:

void PeerManagementProtocolRegressionTest::CreateNodes ( )

private

Definition at line 71 of file pmp-regression.cc.

References ns3::NodeContainer::Create(), ns3::MobilityHelper::Install(), m_nodes, ns3::MobilityHelper::SetMobilityModel(), and ns3::MobilityHelper::SetPositionAllocator().

Referenced by DoRun().

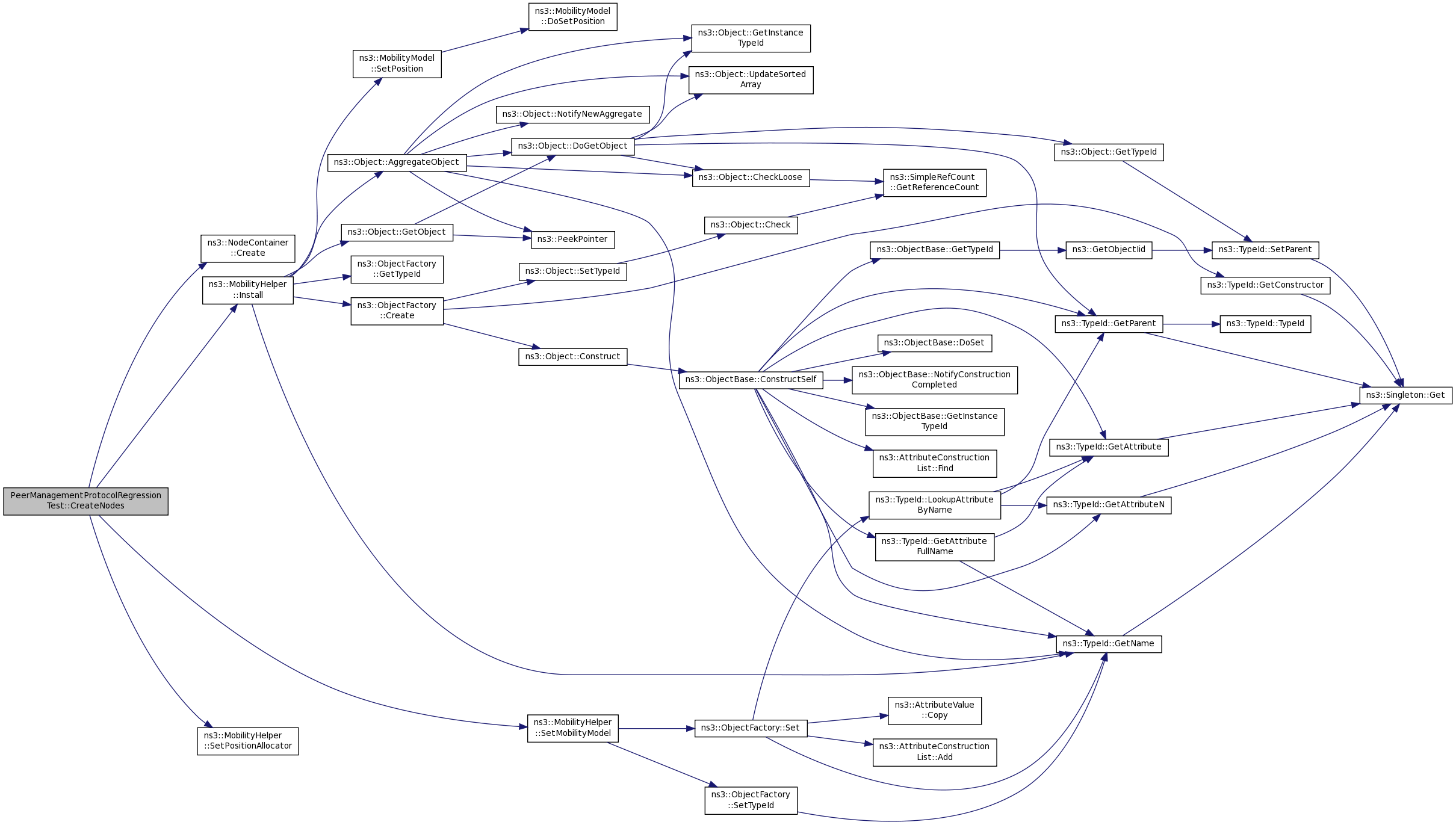

Here is the call graph for this function:

Here is the caller graph for this function:

void PeerManagementProtocolRegressionTest::DoRun ( )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 54 of file pmp-regression.cc.

References CheckResults(), CreateDevices(), CreateNodes(), m_nodes, and m_time.

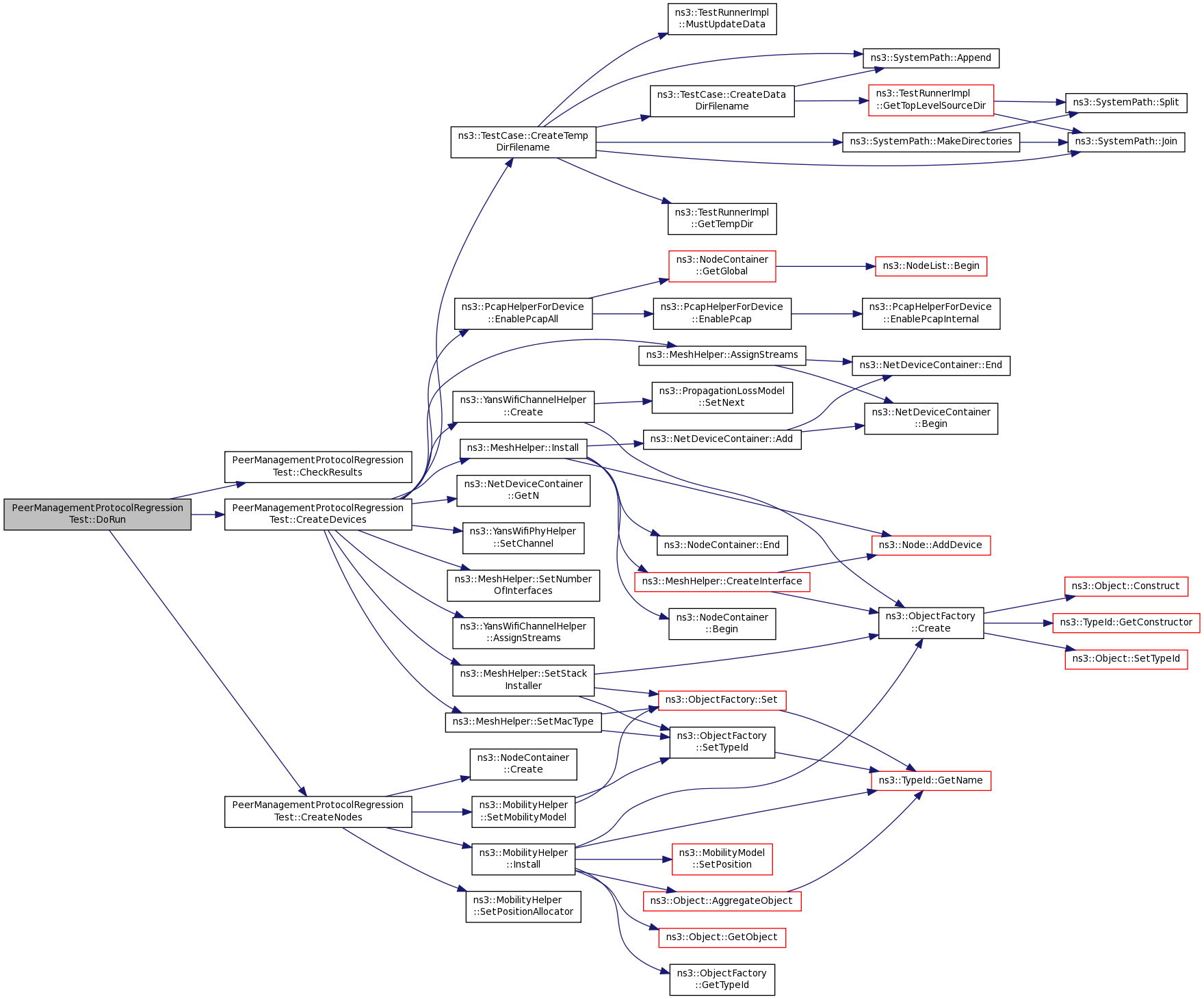

Here is the call graph for this function:

Member Data Documentation

NodeContainer* PeerManagementProtocolRegressionTest::m_nodes

private

Internal: It is important to have pointers here

Definition at line 53 of file pmp-regression.h.

Referenced by CreateDevices(), CreateNodes(), DoRun(), and ~PeerManagementProtocolRegressionTest().

Time PeerManagementProtocolRegressionTest::m_time

private

Simulation time.

Definition at line 55 of file pmp-regression.h.

Referenced by DoRun().

---

The documentation for this class was generated from the following files:

• src/mesh/test/dot11s/pmp-regression.h
• src/mesh/test/dot11s/pmp-regression.cc
