StaticInformation Class Reference

Gather aggregation and configuration path information from registered types. More...

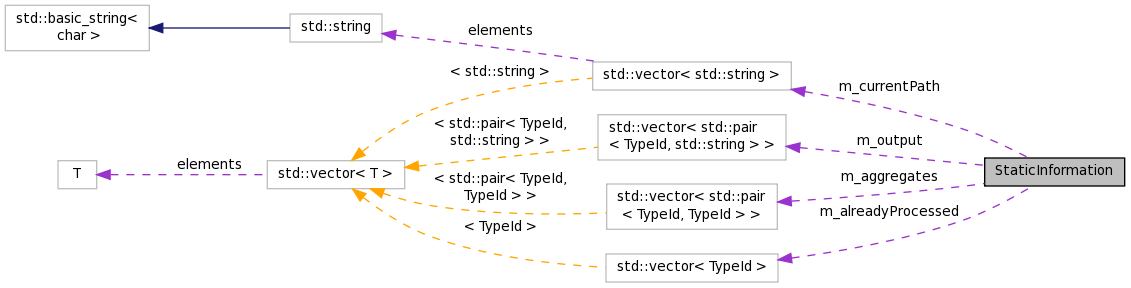

+ Collaboration diagram for StaticInformation:

Public Member Functions

void Gather (TypeId tid)
 Gather aggregation and configuration path information for tid. More...

std::vector< std::string > Get (TypeId tid)

void Print (void) const
 Print output in "a -> b" form on std::cout. More...

void RecordAggregationInfo (std::string a, std::string b)
 Record the a -> b aggregation relation. More...


Private Member Functions

void DoGather (TypeId tid)
 Gather attribute, configuration path information for tid. More...

void find_and_replace (std::string &source, const std::string find, std::string replace)
 (Inplace) find and replace all instances of string More...

std::string GetCurrentPath (void) const

bool HasAlreadyBeenProcessed (TypeId tid) const

void RecordOutput (TypeId tid)
 Record the current config path for tid. More...


Private Attributes

std::vector< std::pair< TypeId,
TypeId > >
m_aggregates
 List of aggregation relationships. More...

std::vector< TypeIdm_alreadyProcessed
 List of TypeIds we've already processed. More...

std::vector< std::string > m_currentPath
 Current configuration path. More...

std::vector< std::pair< TypeId,
std::string > >
m_output
 Configuration path for each TypeId. More...


Detailed Description

Gather aggregation and configuration path information from registered types.

Definition at line 142 of file print-introspected-doxygen.cc.

Member Function Documentation

void StaticInformation::DoGather ( TypeId  tid)
private

Gather attribute, configuration path information for tid.

Parameters
tid[in] the TypeId to gather information from

Note: for the Doxygen version only, we insert a % in the path below to ensure that doxygen does not attempt to resolve the typeid names included in the string. if the name contains ::, using the % sign will remove that sign resulting for instance in $ns3MobilityModel instead of $ns3::MobilityModel hence the output must be in the form $ns3::MobilityModel in order to show correctly $ns3::MobilityModel We add at the beginning of the name $% and we replace all the :: in the string by ::%.

Definition at line 291 of file print-introspected-doxygen.cc.

References ns3::TypeId::AttributeInformation::checker, ns3::TypeId::GetAttribute(), ns3::TypeId::GetAttributeN(), ns3::ObjectPtrContainerChecker::GetItemTypeId(), ns3::TypeId::GetName(), ns3::PointerChecker::GetPointeeTypeId(), ns3::TypeId::GetRegistered(), ns3::TypeId::GetRegisteredN(), ns3::TypeId::IsChildOf(), ns3::TypeId::AttributeInformation::name, NS_LOG_FUNCTION, ns3::PeekPointer(), and anonymous_namespace{print-introspected-doxygen.cc}::temporaryCharacter.

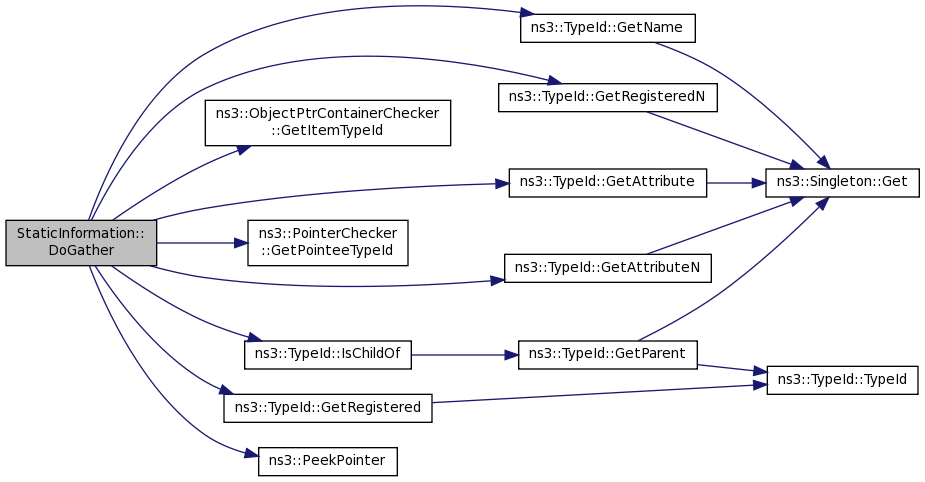

+ Here is the call graph for this function:

void StaticInformation::find_and_replace ( std::string &  source,
const std::string  find,
std::string  replace
)
private

(Inplace) find and replace all instances of string

Parameters
source[inout] string to search and replace in
find[in] string to search for
replace[in] string to insert in place of find

Definition at line 394 of file print-introspected-doxygen.cc.

void StaticInformation::Gather ( TypeId  tid)

Gather aggregation and configuration path information for tid.

Parameters
tid[in] the TypeId to gather information from

Definition at line 282 of file print-introspected-doxygen.cc.

Referenced by main().

+ Here is the caller graph for this function:

std::vector< std::string > StaticInformation::Get ( TypeId  tid)
Returns
the configuration paths for tid
Parameters
tid[in] the TypeId to return information for

Definition at line 267 of file print-introspected-doxygen.cc.

Referenced by main().

+ Here is the caller graph for this function:

std::string StaticInformation::GetCurrentPath ( void  ) const
private
Returns
the current configuration path

Definition at line 236 of file print-introspected-doxygen.cc.

bool StaticInformation::HasAlreadyBeenProcessed ( TypeId  tid) const
private
Returns
whether the tid has already been processed
Parameters
tid[in] the TypeId to check.

Definition at line 254 of file print-introspected-doxygen.cc.

void StaticInformation::Print ( void  ) const

Print output in "a -> b" form on std::cout.

Definition at line 226 of file print-introspected-doxygen.cc.

void StaticInformation::RecordAggregationInfo ( std::string  a,
std::string  b
)

Record the a -> b aggregation relation.

Parameters
a[in] the source(?) TypeId name
b[in] the destination(?) TypeId name

Definition at line 220 of file print-introspected-doxygen.cc.

References ns3::TypeId::LookupByName().

Referenced by main().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void StaticInformation::RecordOutput ( TypeId  tid)
private

Record the current config path for tid.

Parameters
tid[in] the TypeId to record.

Definition at line 248 of file print-introspected-doxygen.cc.

Member Data Documentation

std::vector<std::pair<TypeId,TypeId> > StaticInformation::m_aggregates
private

List of aggregation relationships.

Definition at line 216 of file print-introspected-doxygen.cc.

std::vector<TypeId> StaticInformation::m_alreadyProcessed
private

List of TypeIds we've already processed.

Definition at line 212 of file print-introspected-doxygen.cc.

std::vector<std::string> StaticInformation::m_currentPath
private

Current configuration path.

Definition at line 208 of file print-introspected-doxygen.cc.

std::vector<std::pair<TypeId,std::string> > StaticInformation::m_output
private

Configuration path for each TypeId.

Definition at line 204 of file print-introspected-doxygen.cc.


The documentation for this class was generated from the following file:
