anonymous_namespace{packet-test-suite.cc}::ATestTag< N > Class Template Reference

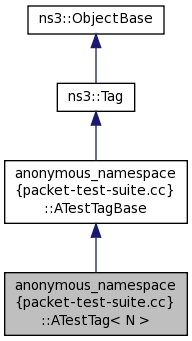

Inheritance diagram for anonymous_namespace{packet-test-suite.cc}::ATestTag< N >:

Collaboration diagram for anonymous_namespace{packet-test-suite.cc}::ATestTag< N >:

Public Member Functions
	ATestTag ()
	ATestTag (uint8_t data)
virtual void	Deserialize (TagBuffer buf)
virtual TypeId	GetInstanceTypeId (void) const
virtual uint32_t	GetSerializedSize (void) const
virtual void	Print (std::ostream &os) const
virtual void	Serialize (TagBuffer buf) const
Public Member Functions inherited from anonymous_namespace{packet-test-suite.cc}::ATestTagBase
	ATestTagBase ()
	ATestTagBase (uint8_t data)
virtual int	GetData () const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::Tag
static TypeId	GetTypeId (void)
	Get the type ID. More...
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Additional Inherited Members
Public Attributes inherited from anonymous_namespace{packet-test-suite.cc}::ATestTagBase
uint8_t	m_data
bool	m_error
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

template<int N>
class anonymous_namespace{packet-test-suite.cc}::ATestTag< N >

Definition at line 52 of file packet-test-suite.cc.

Constructor & Destructor Documentation

template<int N>

anonymous_namespace{packet-test-suite.cc}::ATestTag< N >::ATestTag ( )

inline

Definition at line 92 of file packet-test-suite.cc.

template<int N>

anonymous_namespace{packet-test-suite.cc}::ATestTag< N >::ATestTag ( uint8_t  data )

inline

Definition at line 94 of file packet-test-suite.cc.

Member Function Documentation

template<int N>

virtual void anonymous_namespace{packet-test-suite.cc}::ATestTag< N >::Deserialize ( TagBuffer  i )

inlinevirtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 78 of file packet-test-suite.cc.

References ns3::TagBuffer::ReadU8().

Here is the call graph for this function:

template<int N>

virtual TypeId anonymous_namespace{packet-test-suite.cc}::ATestTag< N >::GetInstanceTypeId ( void  ) const

inlinevirtual

Returns

the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 65 of file packet-test-suite.cc.

template<int N>

virtual uint32_t anonymous_namespace{packet-test-suite.cc}::ATestTag< N >::GetSerializedSize ( void  ) const

inlinevirtual

Returns

the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 68 of file packet-test-suite.cc.

template<int N>

static TypeId anonymous_namespace{packet-test-suite.cc}::ATestTag< N >::GetTypeId ( void  )

inlinestatic

Definition at line 55 of file packet-test-suite.cc.

References ns3::TypeId::AddConstructor().

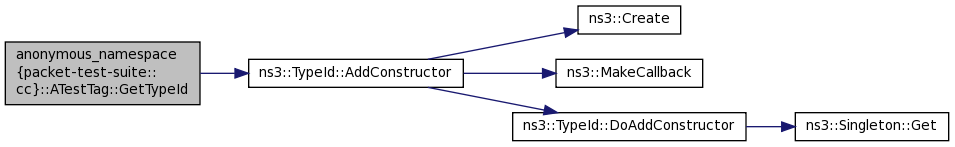

Here is the call graph for this function:

template<int N>

virtual void anonymous_namespace{packet-test-suite.cc}::ATestTag< N >::Print ( std::ostream &  os ) const

inlinevirtual

Parameters

os	the stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 89 of file packet-test-suite.cc.

template<int N>

virtual void anonymous_namespace{packet-test-suite.cc}::ATestTag< N >::Serialize ( TagBuffer  i ) const

inlinevirtual

Parameters

i	the buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 71 of file packet-test-suite.cc.

References ns3::TagBuffer::WriteU8().

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• src/network/test/packet-test-suite.cc
