Public Member Functions | |
TcpHeaderGetSetTestCase (uint16_t sourcePort, uint16_t destinationPort, SequenceNumber32 sequenceNumber, SequenceNumber32 ackNumber, uint8_t flags, uint16_t m_windowSize, uint16_t m_urgentPointer, std::string name) | |
![]() | |
virtual | ~TestCase () |
Destructor. More... | |
std::string | GetName (void) const |
Protected Attributes | |
SequenceNumber32 | m_ackNumber |
ACK number. More... | |
uint16_t | m_destinationPort |
Destination port. More... | |
uint8_t | m_flags |
Flags (really a uint6_t) More... | |
SequenceNumber32 | m_sequenceNumber |
Sequence number. More... | |
uint16_t | m_sourcePort |
Source port. More... | |
uint16_t | m_urgentPointer |
Urgent pointer. More... | |
uint16_t | m_windowSize |
Window size. More... | |
Private Member Functions | |
virtual void | DoRun (void) |
Implementation to actually run this TestCase. More... | |
virtual void | DoTeardown (void) |
Implementation to do any local setup required for this TestCase. More... | |
Private Attributes | |
Buffer | m_buffer |
TcpHeader | m_header |
Additional Inherited Members | |
![]() | |
enum | TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 } |
How long the test takes to execute. More... | |
![]() | |
TestCase (std::string name) | |
void | AddTestCase (TestCase *testCase) NS_DEPRECATED |
Add an individual child TestCase case to this TestCase. More... | |
void | AddTestCase (TestCase *testCase, enum TestDuration duration) |
Add an individual child TestCase to this test suite. More... | |
bool | GetErrorStatus (void) const NS_DEPRECATED |
TestCase * | GetParent () const |
bool | IsStatusFailure (void) const |
bool | IsStatusSuccess (void) const |
void | SetDataDir (std::string directory) |
void | ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line) |
Log the failure of this TestCase. More... | |
bool | MustAssertOnFailure (void) const |
bool | MustContinueOnFailure (void) const |
std::string | CreateDataDirFilename (std::string filename) |
std::string | CreateTempDirFilename (std::string filename) |
Definition at line 31 of file tcp-header-test.cc.

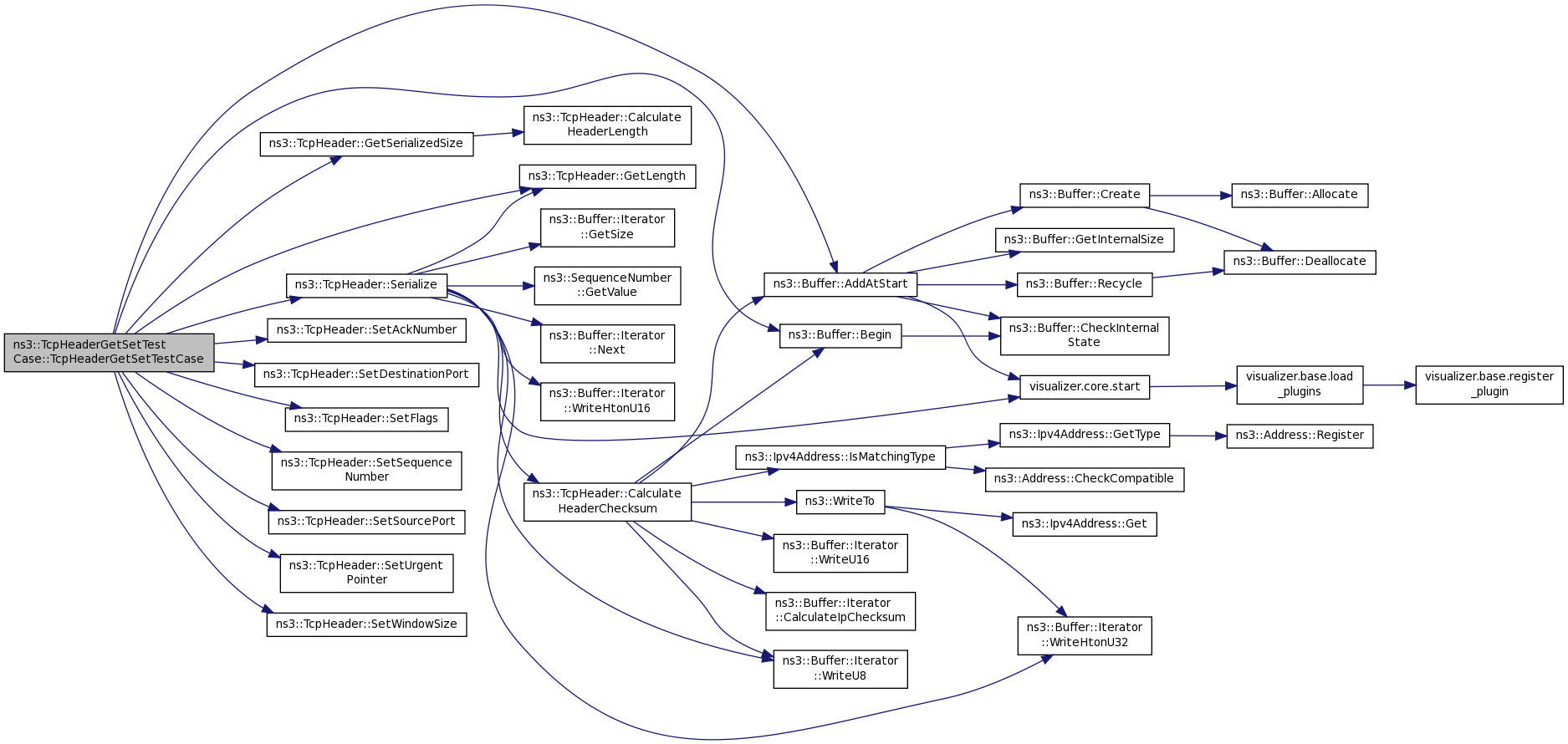

ns3::TcpHeaderGetSetTestCase::TcpHeaderGetSetTestCase | ( | uint16_t | sourcePort, |
uint16_t | destinationPort, | ||
SequenceNumber32 | sequenceNumber, | ||
SequenceNumber32 | ackNumber, | ||
uint8_t | flags, | ||
uint16_t | m_windowSize, | ||
uint16_t | m_urgentPointer, | ||
std::string | name | ||
) |
Definition at line 55 of file tcp-header-test.cc.
References ns3::Buffer::AddAtStart(), ns3::Buffer::Begin(), ns3::TcpHeader::GetLength(), ns3::TcpHeader::GetSerializedSize(), m_ackNumber, m_buffer, m_destinationPort, m_flags, m_header, m_sequenceNumber, m_sourcePort, m_urgentPointer, m_windowSize, NS_TEST_ASSERT_MSG_EQ, ns3::TcpHeader::Serialize(), ns3::TcpHeader::SetAckNumber(), ns3::TcpHeader::SetDestinationPort(), ns3::TcpHeader::SetFlags(), ns3::TcpHeader::SetSequenceNumber(), ns3::TcpHeader::SetSourcePort(), ns3::TcpHeader::SetUrgentPointer(), and ns3::TcpHeader::SetWindowSize().
|
privatevirtual |

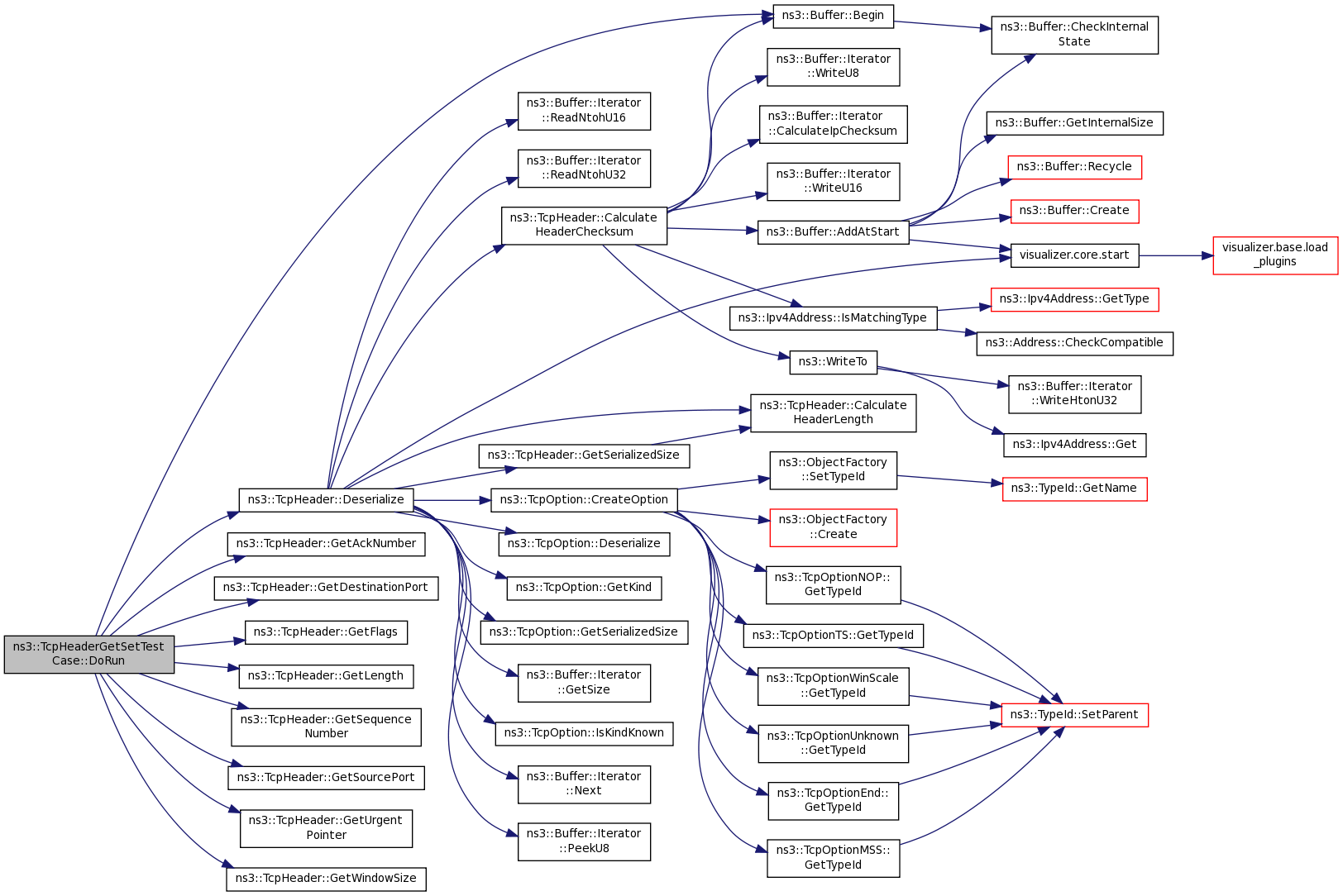

Implementation to actually run this TestCase.
Subclasses should override this method to conduct their tests.
Implements ns3::TestCase.
Definition at line 84 of file tcp-header-test.cc.
References ns3::Buffer::Begin(), ns3::TcpHeader::Deserialize(), ns3::TcpHeader::GetAckNumber(), ns3::TcpHeader::GetDestinationPort(), ns3::TcpHeader::GetFlags(), ns3::TcpHeader::GetLength(), ns3::TcpHeader::GetSequenceNumber(), ns3::TcpHeader::GetSourcePort(), ns3::TcpHeader::GetUrgentPointer(), ns3::TcpHeader::GetWindowSize(), m_ackNumber, m_buffer, m_destinationPort, m_flags, m_header, m_sequenceNumber, m_sourcePort, m_urgentPointer, m_windowSize, and NS_TEST_ASSERT_MSG_EQ.
|
privatevirtual |
Implementation to do any local setup required for this TestCase.
Subclasses should override this method to perform any costly per-test teardown
Reimplemented from ns3::TestCase.
Definition at line 124 of file tcp-header-test.cc.
|
protected |
ACK number.
Definition at line 42 of file tcp-header-test.cc.
Referenced by DoRun(), and TcpHeaderGetSetTestCase().
|
private |
Definition at line 52 of file tcp-header-test.cc.
Referenced by DoRun(), and TcpHeaderGetSetTestCase().
|
protected |
Destination port.
Definition at line 40 of file tcp-header-test.cc.
Referenced by DoRun(), and TcpHeaderGetSetTestCase().
|
protected |
Flags (really a uint6_t)
Definition at line 43 of file tcp-header-test.cc.
Referenced by DoRun(), and TcpHeaderGetSetTestCase().
|
private |
Definition at line 51 of file tcp-header-test.cc.
Referenced by DoRun(), and TcpHeaderGetSetTestCase().
|
protected |
Sequence number.
Definition at line 41 of file tcp-header-test.cc.
Referenced by DoRun(), and TcpHeaderGetSetTestCase().
|
protected |
Source port.
Definition at line 39 of file tcp-header-test.cc.
Referenced by DoRun(), and TcpHeaderGetSetTestCase().
|
protected |
Urgent pointer.
Definition at line 45 of file tcp-header-test.cc.
Referenced by DoRun(), and TcpHeaderGetSetTestCase().
|
protected |
Window size.
Definition at line 44 of file tcp-header-test.cc.
Referenced by DoRun(), and TcpHeaderGetSetTestCase().
