Ipv4HeaderTest Class Reference

Inheritance diagram for Ipv4HeaderTest:

Collaboration diagram for Ipv4HeaderTest:

Public Member Functions
	Ipv4HeaderTest ()
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
void	ReceivePacket (Ptr< Socket > socket, Ptr< Packet > packet, const Address &from)
void	ReceivePkt (Ptr< Socket > socket)
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
void	DoSendData_IpHdr_Dscp (Ptr< Socket > socket, std::string to, Ipv4Header::DscpType dscp, Ipv4Header::EcnType)
void	SendData_IpHdr_Dscp (Ptr< Socket > socket, std::string to, Ipv4Header::DscpType dscp, Ipv4Header::EcnType)

Private Attributes
Ipv4Header	m_receivedHeader
Ptr< Packet >	m_receivedPacket

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
void	AddTestCase (TestCase *testCase) NS_DEPRECATED
	Add an individual child TestCase case to this TestCase. More...
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
bool	GetErrorStatus (void) const NS_DEPRECATED
TestCase *	GetParent () const
bool	IsStatusFailure (void) const
bool	IsStatusSuccess (void) const
void	SetDataDir (std::string directory)
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
bool	MustContinueOnFailure (void) const
std::string	CreateDataDirFilename (std::string filename)
std::string	CreateTempDirFilename (std::string filename)

Detailed Description

Definition at line 74 of file ipv4-header-test.cc.

Constructor & Destructor Documentation

Ipv4HeaderTest::Ipv4HeaderTest

(

)

Definition at line 90 of file ipv4-header-test.cc.

Member Function Documentation

void Ipv4HeaderTest::DoRun ( void  )

virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 145 of file ipv4-header-test.cc.

References ns3::Ipv4::AddAddress(), ns3::Node::AddDevice(), ns3::Ipv4::AddInterface(), AddInternetStack(), ns3::SocketFactory::CreateSocket(), ns3::Ipv4Header::GetDscp(), ns3::Ipv4Header::GetEcn(), ns3::Object::GetObject(), ns3::Packet::GetSize(), m_receivedHeader, m_receivedPacket, ns3::MakeCallback(), NS_TEST_EXPECT_MSG_EQ, ns3::Ipv4Header::Print(), ReceivePkt(), ns3::Packet::RemoveAllByteTags(), SendData_IpHdr_Dscp(), ns3::SimpleNetDevice::SetAddress(), ns3::SimpleNetDevice::SetChannel(), and ns3::Ipv4::SetUp().

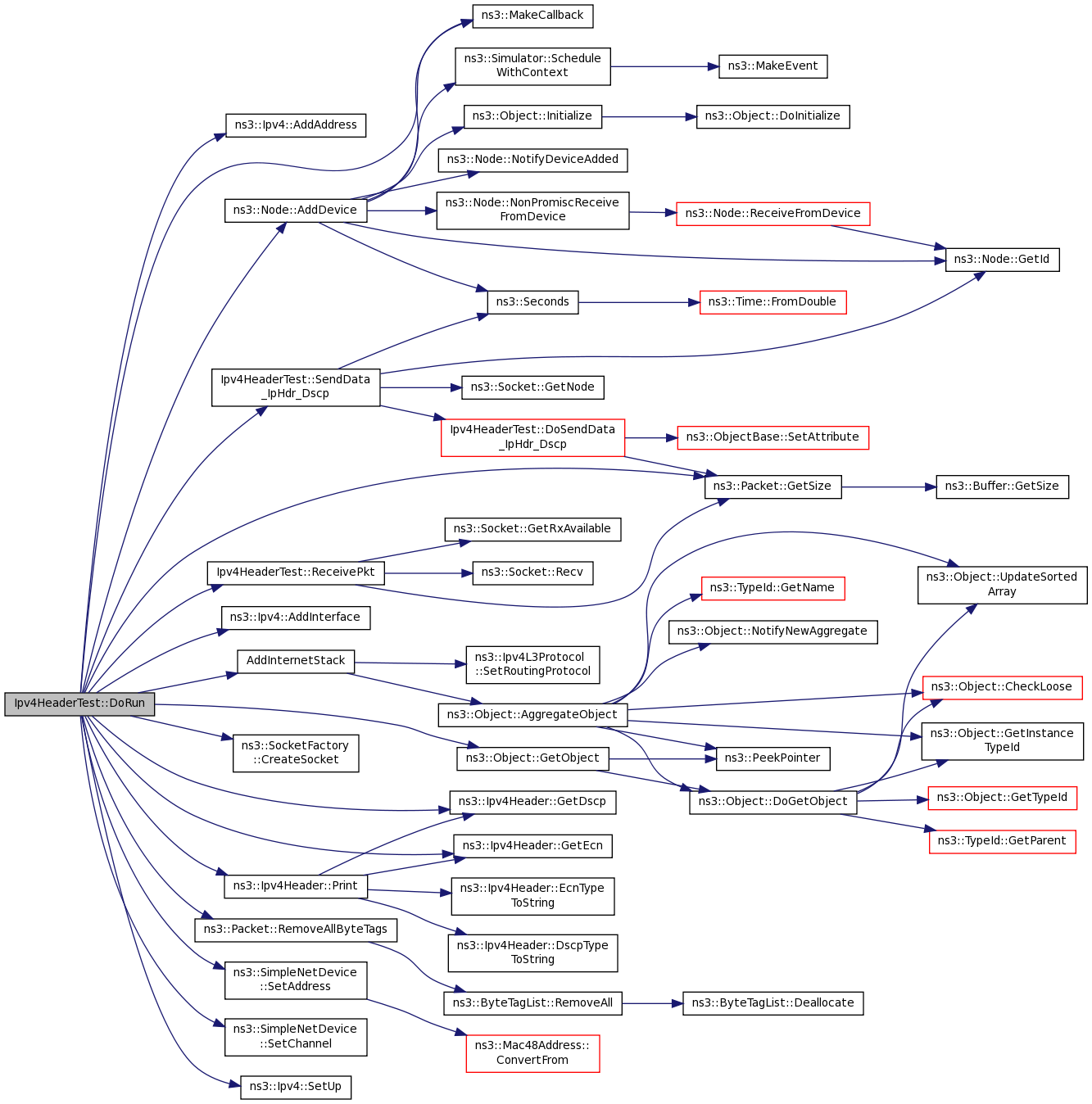

Here is the call graph for this function:

void Ipv4HeaderTest::DoSendData_IpHdr_Dscp ( Ptr< Socket >  socket, std::string  to, Ipv4Header::DscpType  dscp, Ipv4Header::EcnType  ecn  )

private

Definition at line 115 of file ipv4-header-test.cc.

References ns3::Packet::AddHeader(), ns3::Packet::GetSize(), NS_TEST_EXPECT_MSG_EQ, ns3::Socket::SendTo(), ns3::ObjectBase::SetAttribute(), and ns3::Ipv4Header::SetSource().

Referenced by SendData_IpHdr_Dscp().

Here is the call graph for this function:

Here is the caller graph for this function:

void Ipv4HeaderTest::ReceivePacket	(	Ptr< Socket >	socket,
		Ptr< Packet >	packet,
		const Address &	from
	)

Definition at line 95 of file ipv4-header-test.cc.

References m_receivedPacket.

void Ipv4HeaderTest::ReceivePkt

(

Ptr< Socket >

socket

)

Definition at line 101 of file ipv4-header-test.cc.

References ns3::Socket::GetRxAvailable(), ns3::Packet::GetSize(), m_receivedHeader, m_receivedPacket, NS_ASSERT, and ns3::Socket::Recv().

Referenced by DoRun().

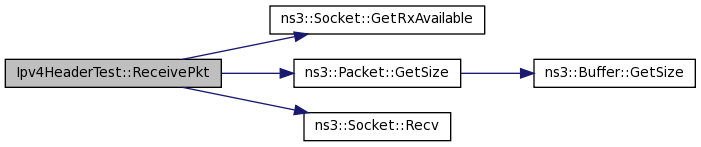

Here is the call graph for this function:

Here is the caller graph for this function:

void Ipv4HeaderTest::SendData_IpHdr_Dscp ( Ptr< Socket >  socket, std::string  to, Ipv4Header::DscpType  dscp, Ipv4Header::EcnType  ecn  )

private

Definition at line 136 of file ipv4-header-test.cc.

References DoSendData_IpHdr_Dscp(), ns3::Node::GetId(), ns3::Socket::GetNode(), m_receivedPacket, and ns3::Seconds().

Referenced by DoRun().

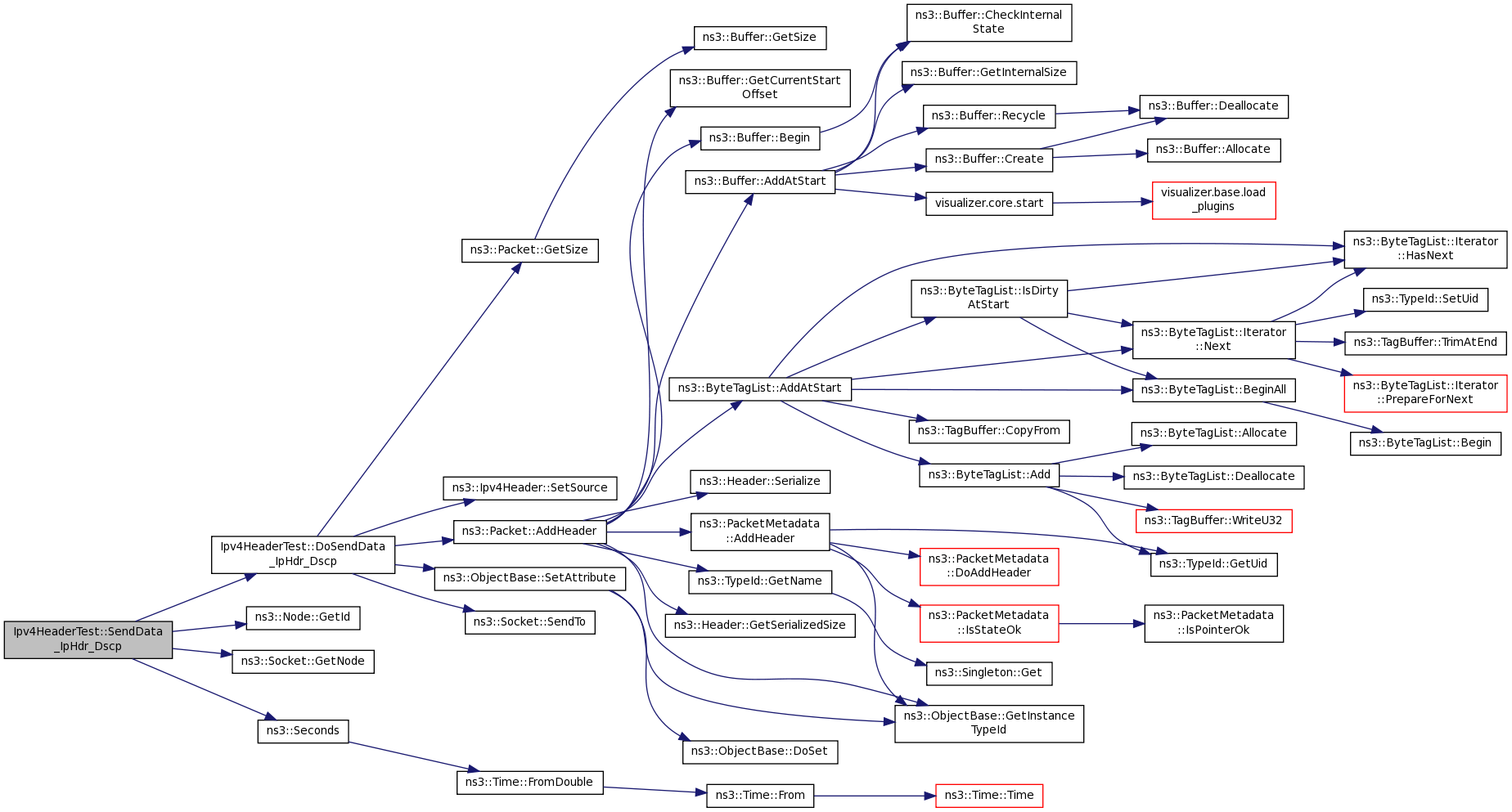

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

Ipv4Header Ipv4HeaderTest::m_receivedHeader

private

Definition at line 77 of file ipv4-header-test.cc.

Referenced by DoRun(), and ReceivePkt().

Ptr<Packet> Ipv4HeaderTest::m_receivedPacket

private

Definition at line 76 of file ipv4-header-test.cc.

Referenced by DoRun(), ReceivePacket(), ReceivePkt(), and SendData_IpHdr_Dscp().

---

The documentation for this class was generated from the following file:

• src/internet/test/ipv4-header-test.cc
