LenaDataPhyErrorModelTestCase Class Reference

This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. More...

#include <lte-test-phy-error-model.h>

Inheritance diagram for LenaDataPhyErrorModelTestCase:

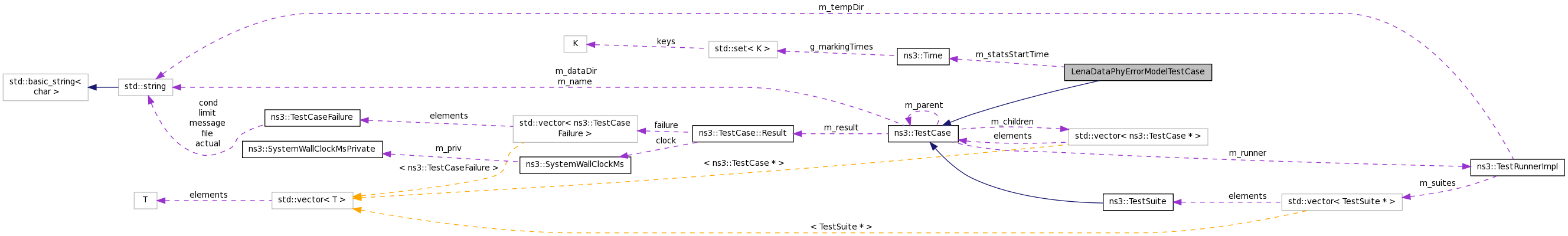

Collaboration diagram for LenaDataPhyErrorModelTestCase:

Public Member Functions
	LenaDataPhyErrorModelTestCase (uint16_t nUser, uint16_t dist, double blerRef, uint16_t toleranceRxPackets, Time statsStartTime, uint32_t rngRun)
virtual	~LenaDataPhyErrorModelTestCase ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Static Private Member Functions
static std::string	BuildNameString (uint16_t nUser, uint16_t dist, uint32_t rngRun)

Private Attributes
double	m_blerRef
uint16_t	m_dist
uint16_t	m_nUser
uint32_t	m_rngRun
Time	m_statsStartTime
	Extra time in the beginning of simulation to allow RRC connection establishment + SRS. More...
uint16_t	m_toleranceRxPackets

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
void	AddTestCase (TestCase *testCase) NS_DEPRECATED
	Add an individual child TestCase case to this TestCase. More...
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
bool	GetErrorStatus (void) const NS_DEPRECATED
TestCase *	GetParent () const
bool	IsStatusFailure (void) const
bool	IsStatusSuccess (void) const
void	SetDataDir (std::string directory)
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
bool	MustContinueOnFailure (void) const
std::string	CreateDataDirFilename (std::string filename)
std::string	CreateTempDirFilename (std::string filename)

Detailed Description

This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification.

In each test case, the UEs see the same SINR from the eNB; different test cases are implemented obtained by using different SINR values and different numbers of UEs. The test consists on ...

Definition at line 39 of file lte-test-phy-error-model.h.

Constructor & Destructor Documentation

LenaDataPhyErrorModelTestCase::LenaDataPhyErrorModelTestCase	(	uint16_t	nUser,
		uint16_t	dist,
		double	blerRef,
		uint16_t	toleranceRxPackets,
		Time	statsStartTime,
		uint32_t	rngRun
	)

Definition at line 143 of file lte-test-phy-error-model.cc.

LenaDataPhyErrorModelTestCase::~LenaDataPhyErrorModelTestCase ( )

virtual

Definition at line 156 of file lte-test-phy-error-model.cc.

Member Function Documentation

std::string LenaDataPhyErrorModelTestCase::BuildNameString ( uint16_t  nUser, uint16_t  dist, uint32_t  rngRun  )

staticprivate

Definition at line 136 of file lte-test-phy-error-model.cc.

void LenaDataPhyErrorModelTestCase::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 161 of file lte-test-phy-error-model.cc.

References ns3::LteHelper::ActivateDataRadioBearer(), ns3::LteHelper::AssignStreams(), ns3::LteHelper::Attach(), ns3::NodeContainer::Create(), ns3::LteHelper::EnableRlcTraces(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::RadioBearerStatsCalculator::GetDlRxPackets(), ns3::RadioBearerStatsCalculator::GetDlTxPackets(), ns3::Time::GetMilliSeconds(), ns3::Object::GetObject(), ns3::LteUeNetDevice::GetPhy(), ns3::LteEnbNetDevice::GetPhy(), ns3::LteHelper::GetRlcStats(), ns3::MobilityHelper::Install(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), m_blerRef, m_dist, m_nUser, m_rngRun, m_statsStartTime, m_toleranceRxPackets, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, NS_UNUSED, ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::Config::SetDefault(), ns3::Config::SetGlobal(), ns3::MobilityHelper::SetMobilityModel(), ns3::LteHelper::SetPathlossModelAttribute(), ns3::MobilityModel::SetPosition(), ns3::LteHelper::SetSchedulerAttribute(), and ns3::LteHelper::SetSchedulerType().

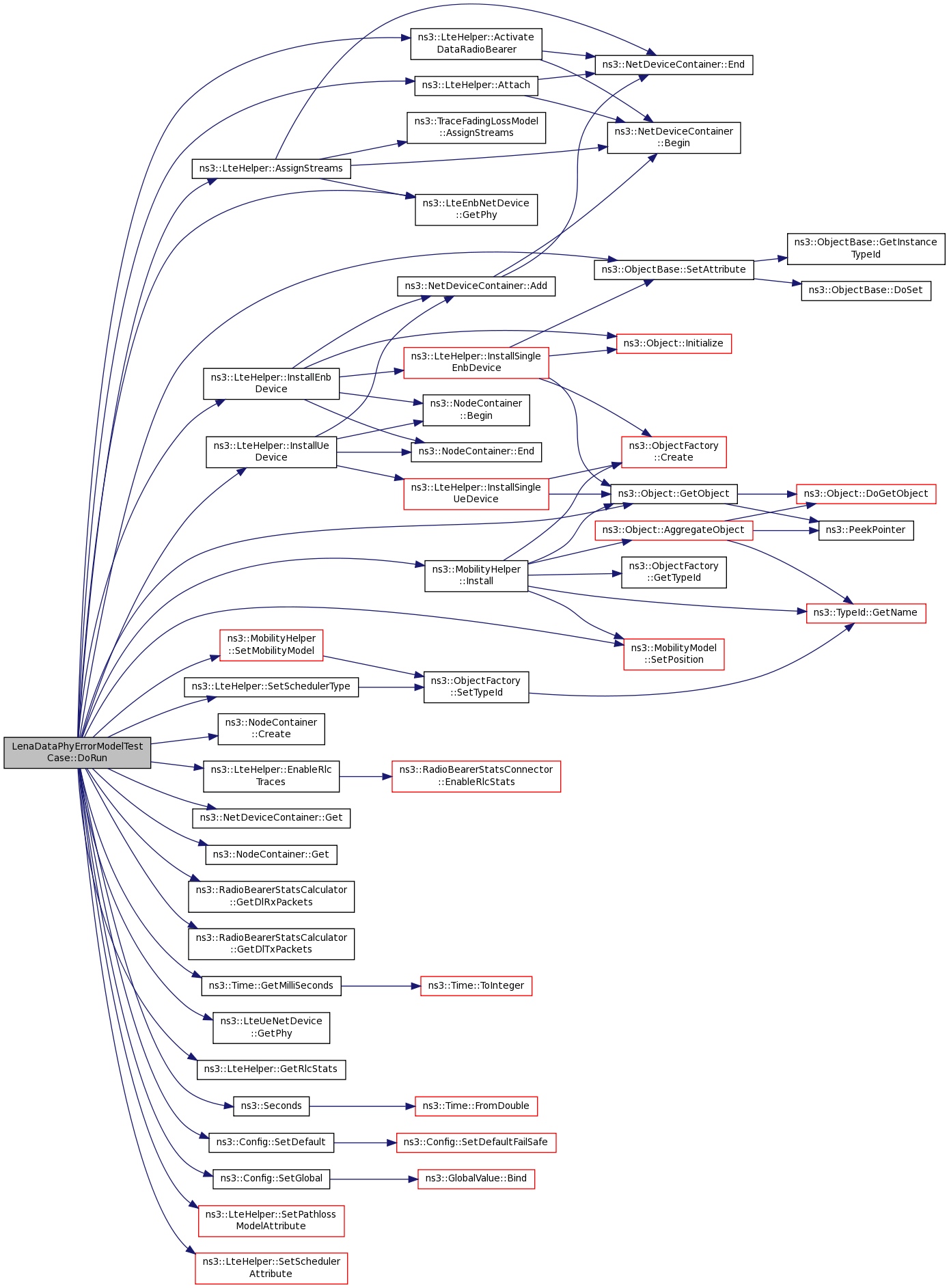

Here is the call graph for this function:

Member Data Documentation

double LenaDataPhyErrorModelTestCase::m_blerRef

private

Definition at line 52 of file lte-test-phy-error-model.h.

Referenced by DoRun().

uint16_t LenaDataPhyErrorModelTestCase::m_dist

private

Definition at line 51 of file lte-test-phy-error-model.h.

Referenced by DoRun().

uint16_t LenaDataPhyErrorModelTestCase::m_nUser

private

Definition at line 50 of file lte-test-phy-error-model.h.

Referenced by DoRun().

uint32_t LenaDataPhyErrorModelTestCase::m_rngRun

private

Definition at line 55 of file lte-test-phy-error-model.h.

Referenced by DoRun().

Time LenaDataPhyErrorModelTestCase::m_statsStartTime

private

Extra time in the beginning of simulation to allow RRC connection establishment + SRS.

Definition at line 54 of file lte-test-phy-error-model.h.

Referenced by DoRun().

uint16_t LenaDataPhyErrorModelTestCase::m_toleranceRxPackets

private

Definition at line 53 of file lte-test-phy-error-model.h.

Referenced by DoRun().

---

The documentation for this class was generated from the following files:

• src/lte/test/lte-test-phy-error-model.h
• src/lte/test/lte-test-phy-error-model.cc
