LteCqiGenerationTestCase Class Reference

#include <lte-test-cqi-generation.h>

Inheritance diagram for LteCqiGenerationTestCase:

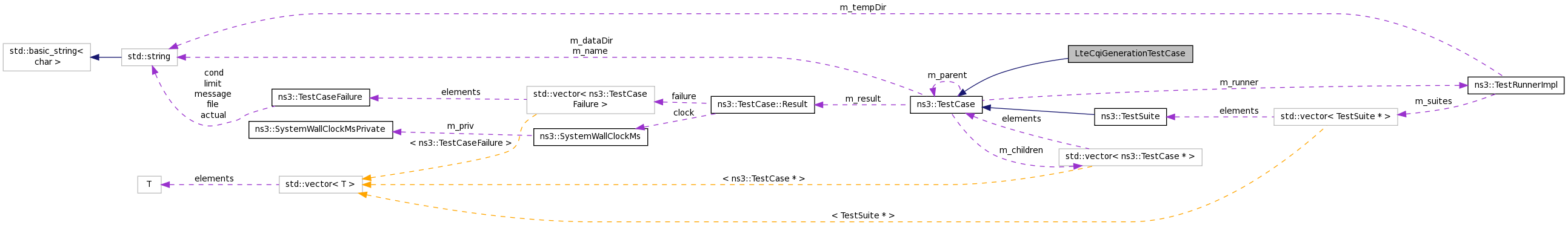

Collaboration diagram for LteCqiGenerationTestCase:

Public Member Functions
	LteCqiGenerationTestCase (std::string name, bool usePdcchForCqiGeneration, uint16_t dlMcs, uint16_t ulMcs)
virtual	~LteCqiGenerationTestCase ()
void	DlScheduling (uint32_t frameNo, uint32_t subframeNo, uint16_t rnti, uint8_t mcsTb1, uint16_t sizeTb1, uint8_t mcsTb2, uint16_t sizeTb2)
void	UlScheduling (uint32_t frameNo, uint32_t subframeNo, uint16_t rnti, uint8_t mcs, uint16_t sizeTb)
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Private Attributes
uint16_t	m_dlMcs
uint16_t	m_ulMcs
bool	m_usePdcchForCqiGeneration

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
void	AddTestCase (TestCase *testCase) NS_DEPRECATED
	Add an individual child TestCase case to this TestCase. More...
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
bool	GetErrorStatus (void) const NS_DEPRECATED
TestCase *	GetParent () const
bool	IsStatusFailure (void) const
bool	IsStatusSuccess (void) const
void	SetDataDir (std::string directory)
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
bool	MustContinueOnFailure (void) const
std::string	CreateDataDirFilename (std::string filename)
std::string	CreateTempDirFilename (std::string filename)

Detailed Description

Definition at line 35 of file lte-test-cqi-generation.h.

Constructor & Destructor Documentation

LteCqiGenerationTestCase::LteCqiGenerationTestCase	(	std::string	name,
		bool	usePdcchForCqiGeneration,
		uint16_t	dlMcs,
		uint16_t	ulMcs
	)

Definition at line 77 of file lte-test-cqi-generation.cc.

References m_usePdcchForCqiGeneration, and NS_LOG_INFO.

LteCqiGenerationTestCase::~LteCqiGenerationTestCase ( )

virtual

Definition at line 87 of file lte-test-cqi-generation.cc.

Member Function Documentation

void LteCqiGenerationTestCase::DlScheduling	(	uint32_t	frameNo,
		uint32_t	subframeNo,
		uint16_t	rnti,
		uint8_t	mcsTb1,
		uint16_t	sizeTb1,
		uint8_t	mcsTb2,
		uint16_t	sizeTb2
	)

Definition at line 92 of file lte-test-cqi-generation.cc.

References m_dlMcs, ns3::MilliSeconds(), ns3::Now(), and NS_TEST_ASSERT_MSG_EQ.

Referenced by LteTestDlSchedulingCallback().

Here is the call graph for this function:

Here is the caller graph for this function:

void LteCqiGenerationTestCase::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 116 of file lte-test-cqi-generation.cc.

References ns3::LteHelper::ActivateDataRadioBearer(), ns3::ListPositionAllocator::Add(), ns3::NetDeviceContainer::Add(), ns3::LteHelper::Attach(), ns3::Config::Connect(), ns3::NodeContainer::Create(), ns3::NetDeviceContainer::Get(), ns3::MobilityHelper::Install(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), LteTestDlSchedulingCallback(), LteTestUlSchedulingCallback(), m_usePdcchForCqiGeneration, ns3::MakeBoundCallback(), NS_LOG_DEBUG, ns3::Config::Reset(), ns3::Seconds(), ns3::Config::SetDefault(), ns3::LteHelper::SetFfrAlgorithmAttribute(), ns3::LteHelper::SetFfrAlgorithmType(), ns3::MobilityHelper::SetMobilityModel(), ns3::MobilityHelper::SetPositionAllocator(), ns3::LteHelper::SetSchedulerAttribute(), and ns3::LteHelper::SetSchedulerType().

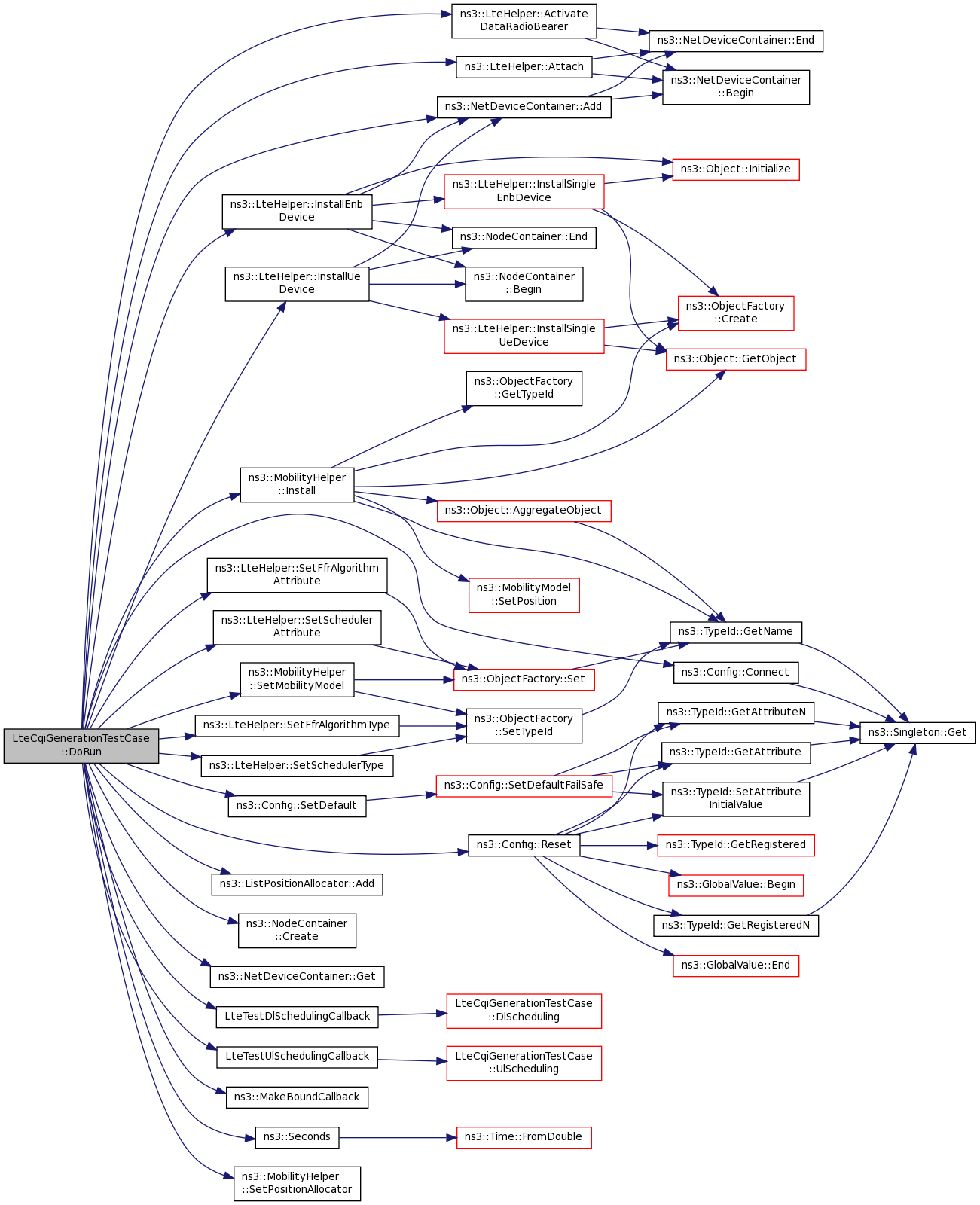

Here is the call graph for this function:

void LteCqiGenerationTestCase::UlScheduling	(	uint32_t	frameNo,
		uint32_t	subframeNo,
		uint16_t	rnti,
		uint8_t	mcs,
		uint16_t	sizeTb
	)

Definition at line 104 of file lte-test-cqi-generation.cc.

References m_ulMcs, ns3::MilliSeconds(), ns3::Now(), and NS_TEST_ASSERT_MSG_EQ.

Referenced by LteTestUlSchedulingCallback().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

uint16_t LteCqiGenerationTestCase::m_dlMcs

private

Definition at line 52 of file lte-test-cqi-generation.h.

Referenced by DlScheduling().

uint16_t LteCqiGenerationTestCase::m_ulMcs

private

Definition at line 53 of file lte-test-cqi-generation.h.

Referenced by UlScheduling().

bool LteCqiGenerationTestCase::m_usePdcchForCqiGeneration

private

Definition at line 51 of file lte-test-cqi-generation.h.

Referenced by DoRun(), and LteCqiGenerationTestCase().

---

The documentation for this class was generated from the following files:

• src/lte/test/lte-test-cqi-generation.h
• src/lte/test/lte-test-cqi-generation.cc
