BasicEnergySource decreases/increases remaining energy stored in itself in linearly. More...

#include <basic-energy-source.h>

Inheritance diagram for ns3::BasicEnergySource:

Collaboration diagram for ns3::BasicEnergySource:

Public Member Functions
	BasicEnergySource ()

virtual	~BasicEnergySource ()

virtual double	GetEnergyFraction (void)

Time	GetEnergyUpdateInterval (void) const

virtual double	GetInitialEnergy (void) const

virtual double	GetRemainingEnergy (void)

virtual double	GetSupplyVoltage (void) const

void	SetEnergyUpdateInterval (Time interval)

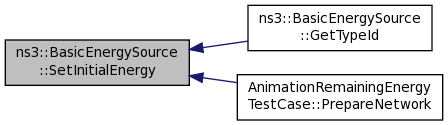

void	SetInitialEnergy (double initialEnergyJ)

void	SetSupplyVoltage (double supplyVoltageV)

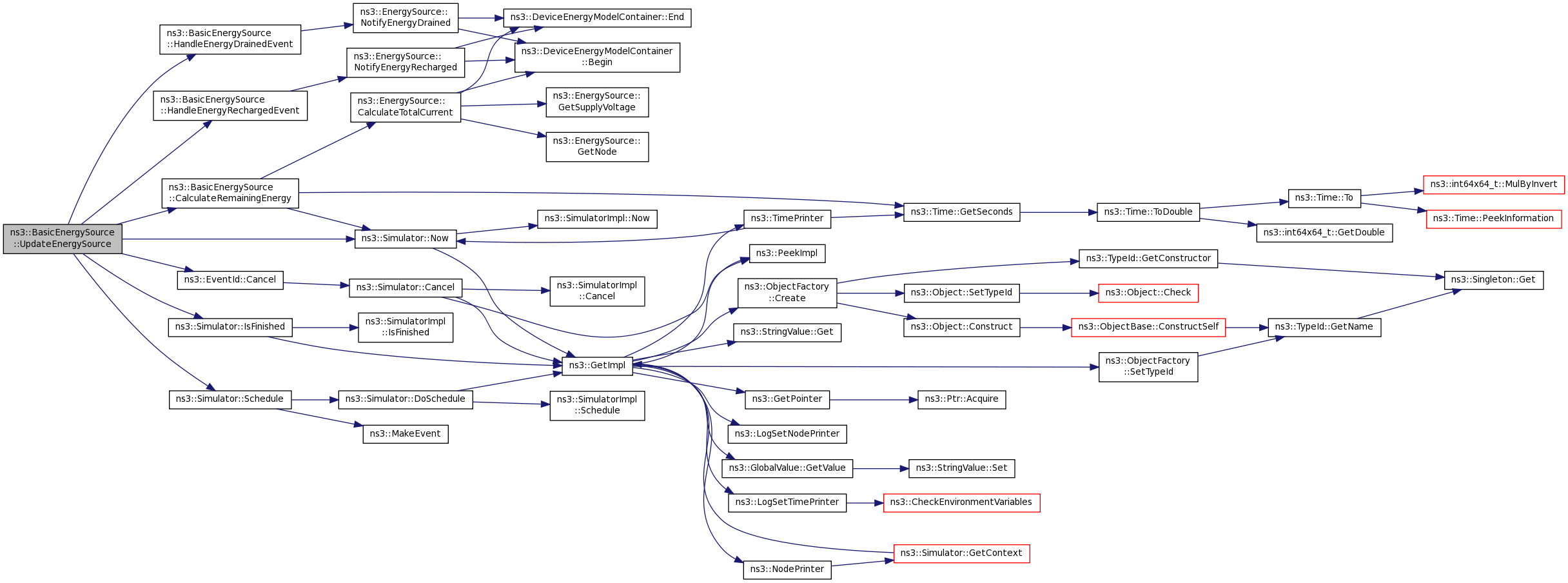

virtual void	UpdateEnergySource (void)
	Implements UpdateEnergySource. More...

Public Member Functions inherited from ns3::EnergySource
	EnergySource ()

virtual	~EnergySource ()

void	AppendDeviceEnergyModel (Ptr< DeviceEnergyModel > deviceEnergyModelPtr)

void	ConnectEnergyHarvester (Ptr< EnergyHarvester > energyHarvesterPtr)

void	DisposeDeviceModels (void)
	Calls Dispose () method of the device energy models. More...

DeviceEnergyModelContainer	FindDeviceEnergyModels (TypeId tid)

DeviceEnergyModelContainer	FindDeviceEnergyModels (std::string name)

Ptr< Node >	GetNode (void) const

void	InitializeDeviceModels (void)
	Calls Start () method of the device energy models. More...

void	SetNode (Ptr< Node > node)
	Sets pointer to node containing this EnergySource. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::EnergySource
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	CalculateRemainingEnergy (void)
	Calculates remaining energy. More...

void	DoDispose (void)
	Defined in ns3::Object. More...

void	DoInitialize (void)
	Defined in ns3::Object. More...

void	HandleEnergyDrainedEvent (void)
	Handles the remaining energy going to zero event. More...

void	HandleEnergyRechargedEvent (void)
	Handles the remaining energy exceeding the high threshold after it went below the low threshold. More...

Private Attributes
bool	m_depleted

EventId	m_energyUpdateEvent

Time	m_energyUpdateInterval

double	m_highBatteryTh

double	m_initialEnergyJ

Time	m_lastUpdateTime

double	m_lowBatteryTh

TracedValue< double >	m_remainingEnergyJ

double	m_supplyVoltageV

Additional Inherited Members
Protected Member Functions inherited from ns3::EnergySource
void	BreakDeviceEnergyModelRefCycle (void)
	This function is called to break reference cycle between EnergySource and DeviceEnergyModel. More...

double	CalculateTotalCurrent (void)

void	NotifyEnergyDrained (void)
	This function notifies all DeviceEnergyModel of energy depletion event. More...

void	NotifyEnergyRecharged (void)
	This function notifies all DeviceEnergyModel of energy recharged event. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

BasicEnergySource decreases/increases remaining energy stored in itself in linearly.

Doxygen introspection did not find any typical Config paths.

Attributes

BasicEnergySourceInitialEnergyJ: Initial energy stored in basic energy source.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 10
- Flags: construct write read
BasicEnergySupplyVoltageV: Initial supply voltage for basic energy source.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 3
- Flags: construct write read
BasicEnergyLowBatteryThreshold: Low battery threshold for basic energy source.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.1
- Flags: construct write read
BasicEnergyHighBatteryThreshold: High battery threshold for basic energy source.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.15
- Flags: construct write read
PeriodicEnergyUpdateInterval: Time between two consecutive periodic energy updates.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +1000000000.0ns
- Flags: construct write read

TraceSources

RemainingEnergy: Remaining energy at BasicEnergySource.

Definition at line 37 of file basic-energy-source.h.

Constructor & Destructor Documentation

ns3::BasicEnergySource::BasicEnergySource ( )

Definition at line 75 of file basic-energy-source.cc.

References m_depleted, m_lastUpdateTime, NS_LOG_FUNCTION, and ns3::Seconds().

Here is the call graph for this function:

ns3::BasicEnergySource::~BasicEnergySource ( )

virtual

Definition at line 82 of file basic-energy-source.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

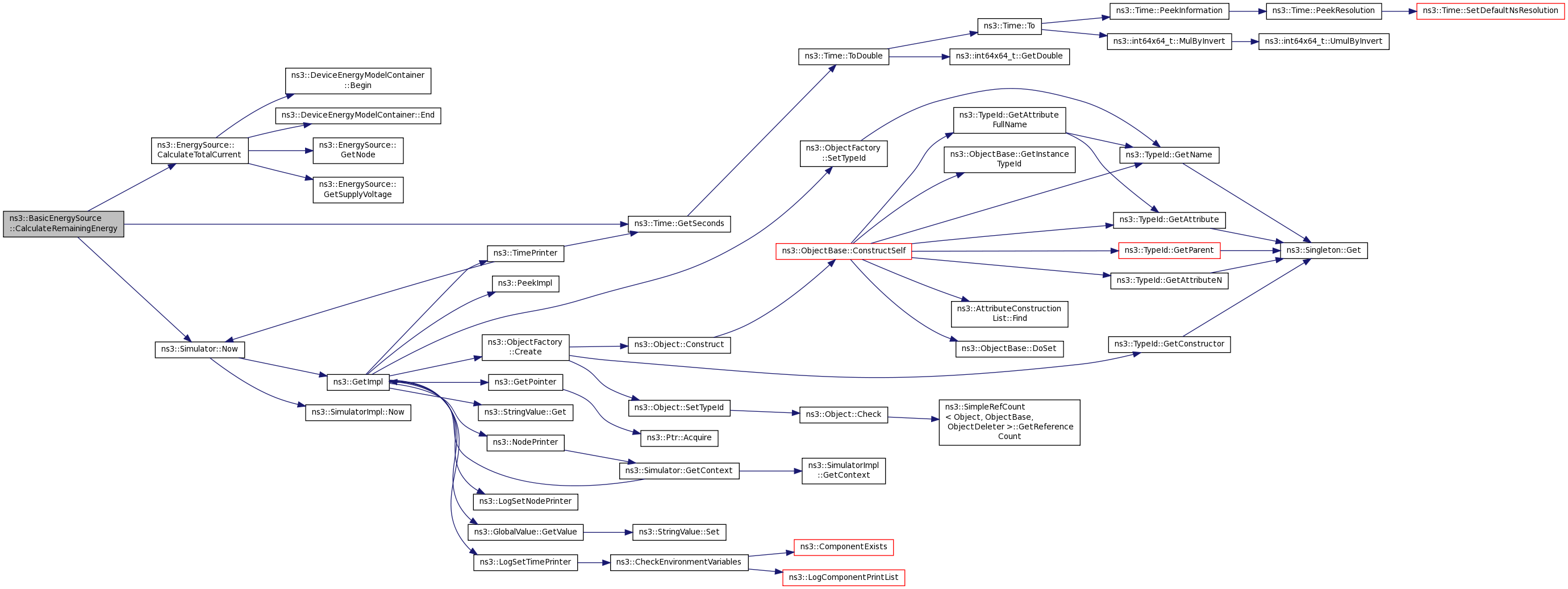

void ns3::BasicEnergySource::CalculateRemainingEnergy ( void )

private

Calculates remaining energy.

This function uses the total current from all device models to calculate the amount of energy to decrease. The energy to decrease is given by: energy to decrease = total current * supply voltage * time duration This function subtracts the calculated energy to decrease from remaining energy.

Definition at line 223 of file basic-energy-source.cc.

References ns3::EnergySource::CalculateTotalCurrent(), ns3::Time::GetSeconds(), m_lastUpdateTime, m_remainingEnergyJ, m_supplyVoltageV, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by UpdateEnergySource().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BasicEnergySource::DoDispose ( void )

privatevirtual

Defined in ns3::Object.

Reimplemented from ns3::EnergySource.

Definition at line 196 of file basic-energy-source.cc.

References ns3::EnergySource::BreakDeviceEnergyModelRefCycle(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::BasicEnergySource::DoInitialize ( void )

privatevirtual

Defined in ns3::Object.

Reimplemented from ns3::Object.

Definition at line 189 of file basic-energy-source.cc.

References NS_LOG_FUNCTION, and UpdateEnergySource().

Here is the call graph for this function:

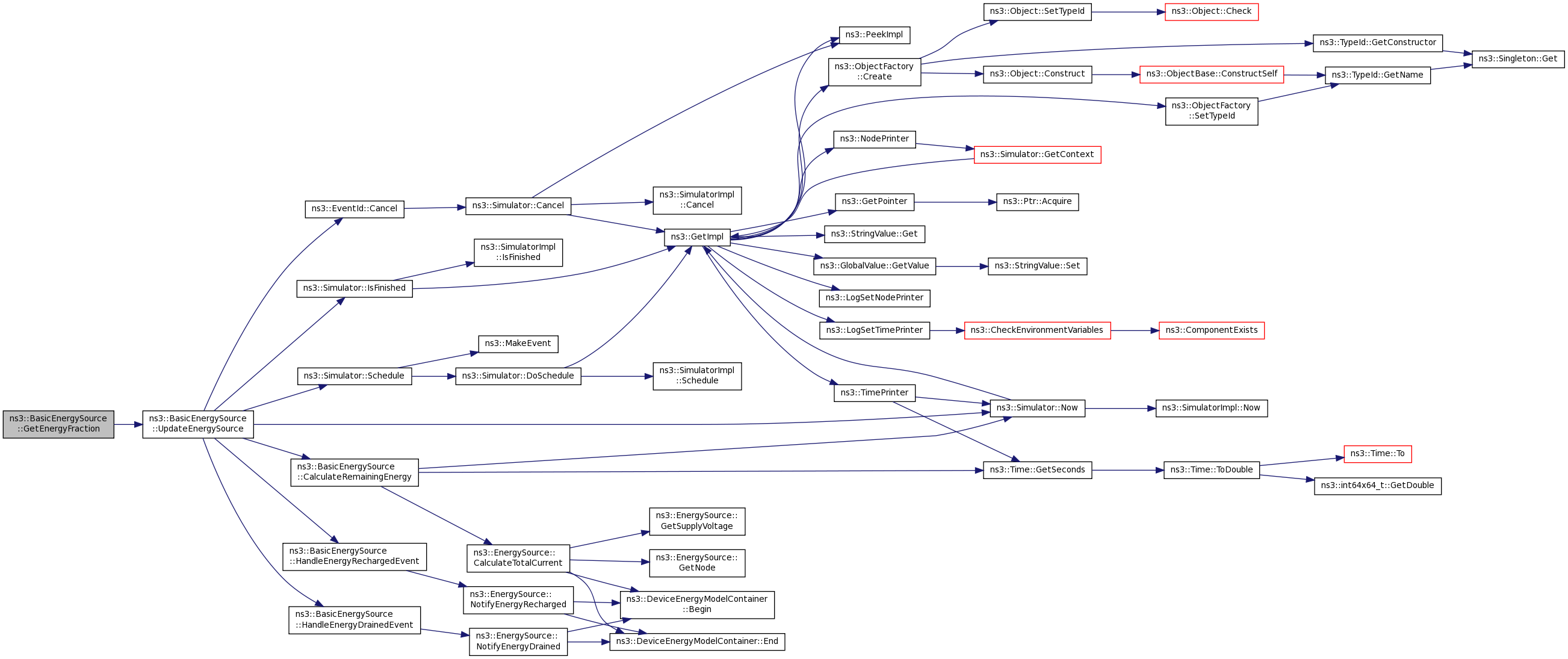

double ns3::BasicEnergySource::GetEnergyFraction ( void )

virtual

Returns: Energy fraction.

Implements GetEnergyFraction.

Implements ns3::EnergySource.

Definition at line 141 of file basic-energy-source.cc.

References m_initialEnergyJ, m_remainingEnergyJ, NS_LOG_FUNCTION, and UpdateEnergySource().

Here is the call graph for this function:

Time ns3::BasicEnergySource::GetEnergyUpdateInterval ( void ) const

Returns: The interval between each energy update.

Definition at line 111 of file basic-energy-source.cc.

References m_energyUpdateInterval, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::BasicEnergySource::GetInitialEnergy ( void ) const

virtual

Returns: Initial energy stored in energy source, in Joules.

Implements GetInitialEnergy.

Implements ns3::EnergySource.

Definition at line 125 of file basic-energy-source.cc.

References m_initialEnergyJ, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

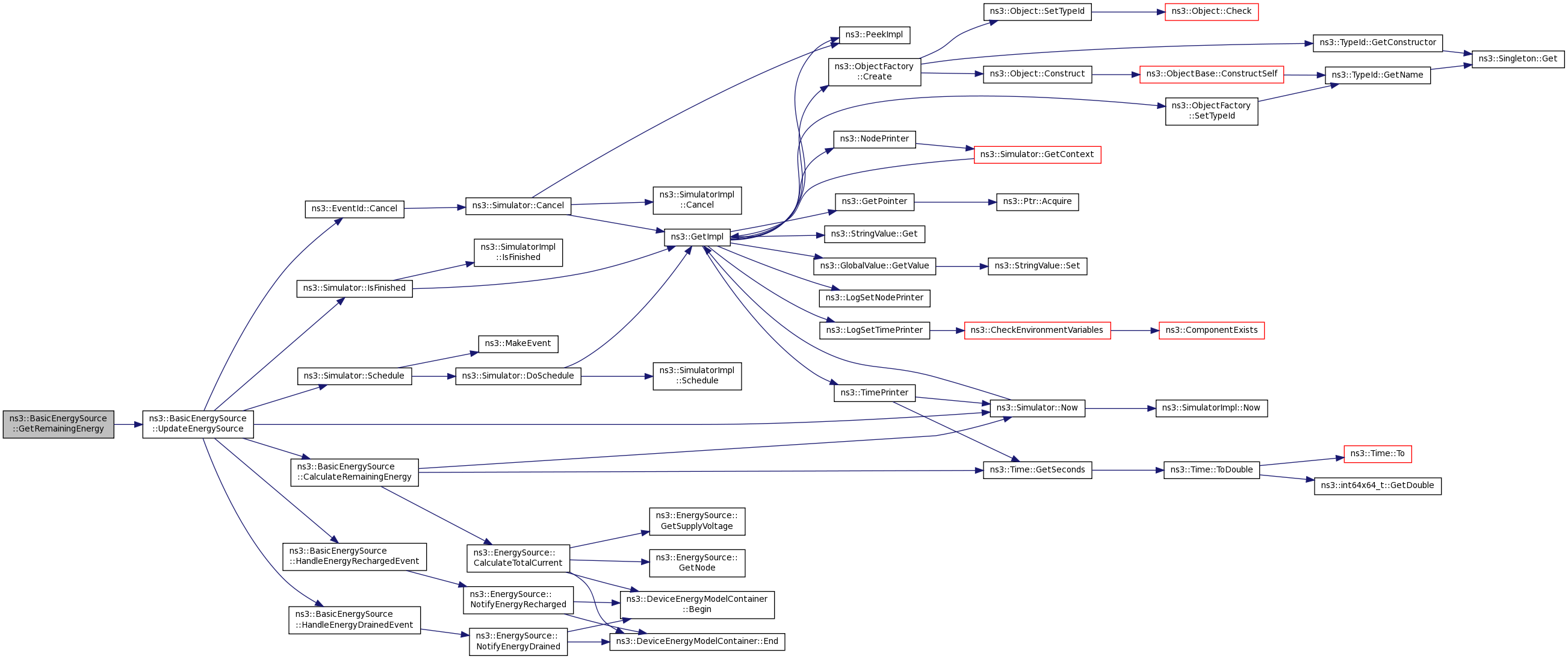

double ns3::BasicEnergySource::GetRemainingEnergy ( void )

virtual

Returns: Remaining energy in energy source, in Joules

Implements GetRemainingEnergy.

Implements ns3::EnergySource.

Definition at line 132 of file basic-energy-source.cc.

References m_remainingEnergyJ, NS_LOG_FUNCTION, and UpdateEnergySource().

Referenced by AnimationRemainingEnergyTestCase::CheckLogic().

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::BasicEnergySource::GetSupplyVoltage ( void ) const

virtual

Returns: Supply voltage at the energy source.

Implements GetSupplyVoltage.

Implements ns3::EnergySource.

Definition at line 118 of file basic-energy-source.cc.

References m_supplyVoltageV, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

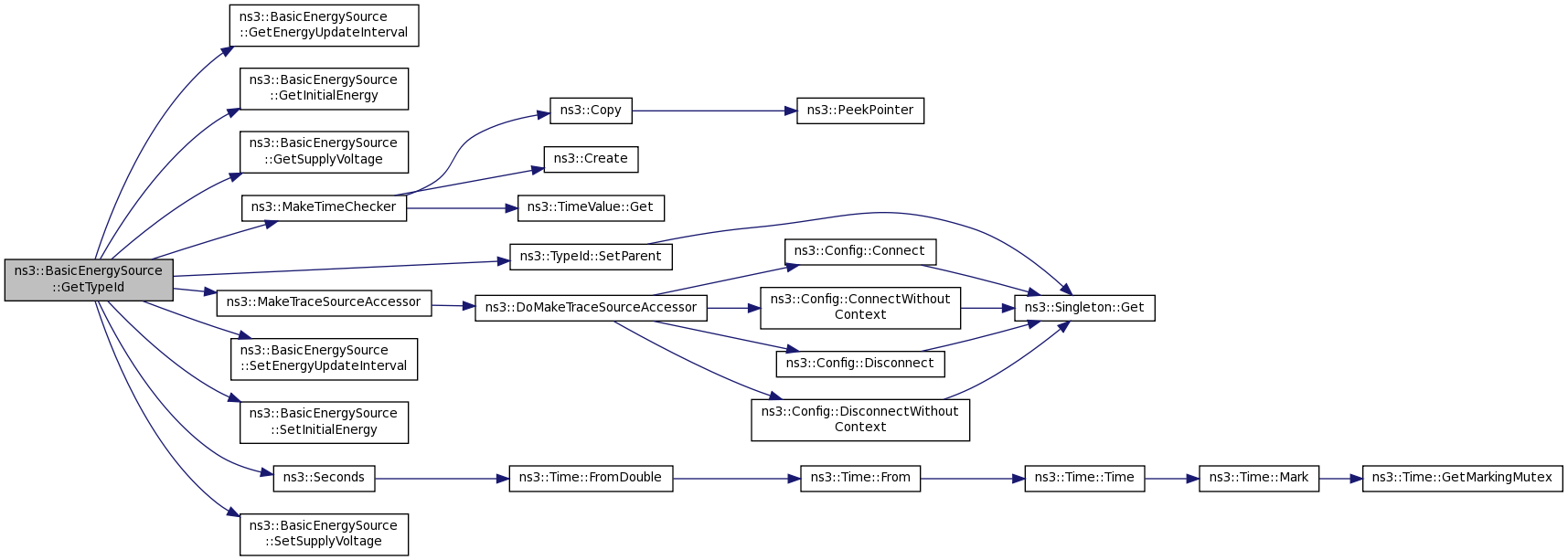

TypeId ns3::BasicEnergySource::GetTypeId ( void )

static

Definition at line 35 of file basic-energy-source.cc.

References GetEnergyUpdateInterval(), GetInitialEnergy(), GetSupplyVoltage(), m_highBatteryTh, m_lowBatteryTh, m_remainingEnergyJ, ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), ns3::Seconds(), SetEnergyUpdateInterval(), SetInitialEnergy(), ns3::TypeId::SetParent(), and SetSupplyVoltage().

Here is the call graph for this function:

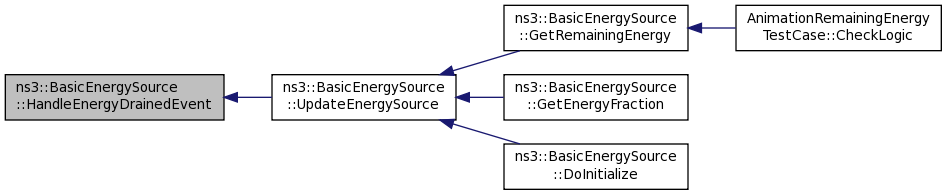

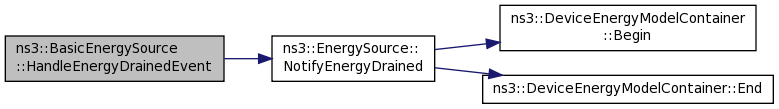

void ns3::BasicEnergySource::HandleEnergyDrainedEvent ( void )

private

Handles the remaining energy going to zero event.

This function notifies all the energy models aggregated to the node about the energy being depleted. Each energy model is then responsible for its own handler.

Definition at line 203 of file basic-energy-source.cc.

References m_remainingEnergyJ, ns3::EnergySource::NotifyEnergyDrained(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by UpdateEnergySource().

Here is the call graph for this function:

Here is the caller graph for this function:

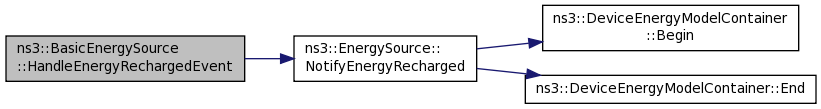

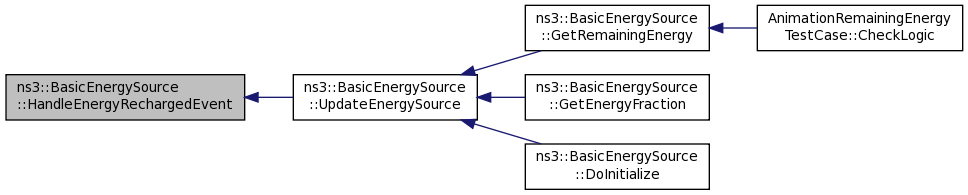

void ns3::BasicEnergySource::HandleEnergyRechargedEvent ( void )

private

Handles the remaining energy exceeding the high threshold after it went below the low threshold.

This function notifies all the energy models aggregated to the node about the energy being recharged. Each energy model is then responsible for its own handler.

Definition at line 215 of file basic-energy-source.cc.

References ns3::EnergySource::NotifyEnergyRecharged(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by UpdateEnergySource().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BasicEnergySource::SetEnergyUpdateInterval ( Time interval )

Parameters

interval Energy update interval.

This function sets the interval between each energy update.

Definition at line 104 of file basic-energy-source.cc.

References m_energyUpdateInterval, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BasicEnergySource::SetInitialEnergy ( double initialEnergyJ )

Parameters

initialEnergyJ Initial energy, in Joules

Sets initial energy stored in the energy source. Note that initial energy is assumed to be set before simulation starts and is set only once per simulation.

Definition at line 88 of file basic-energy-source.cc.

References m_initialEnergyJ, m_remainingEnergyJ, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by GetTypeId(), and AnimationRemainingEnergyTestCase::PrepareNetwork().

Here is the caller graph for this function:
