Abstract Channel Base Class. More...
#include <channel.h>

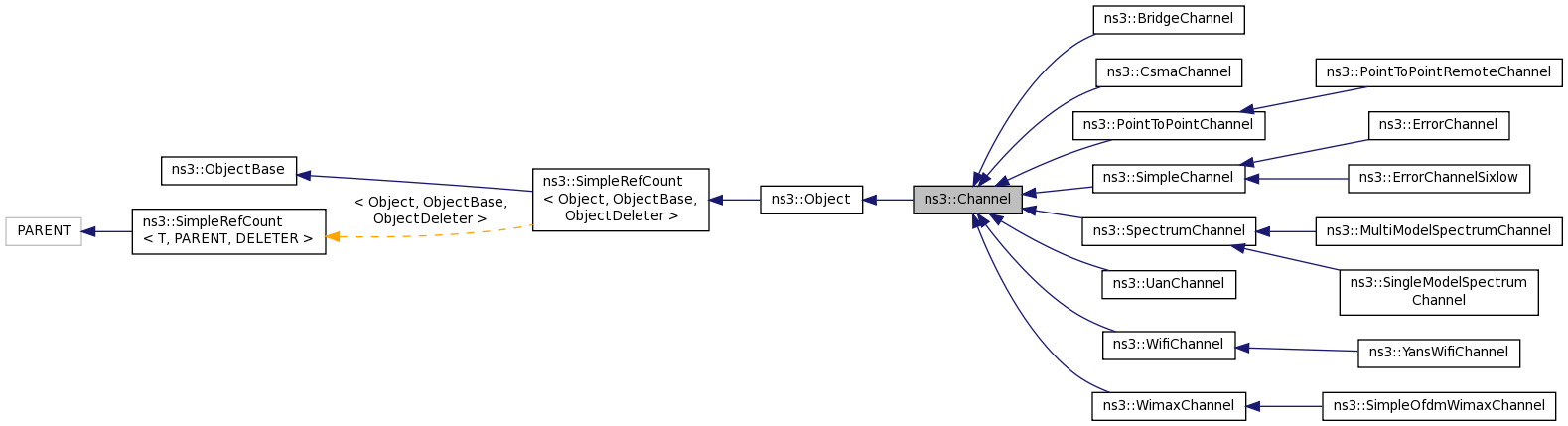

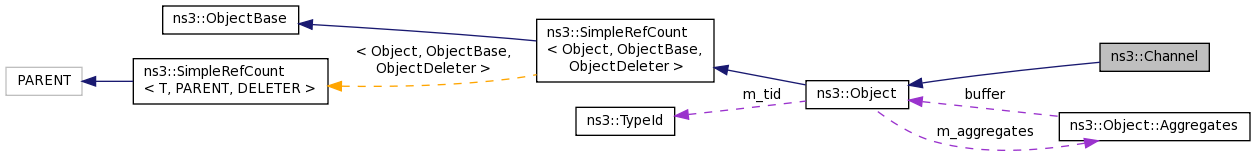

Inheritance diagram for ns3::Channel: Collaboration diagram for ns3::Channel:Public Member Functions | |
| Channel () | |
| virtual | ~Channel () |
| virtual Ptr< NetDevice > | GetDevice (uint32_t i) const =0 |
| uint32_t | GetId (void) const |
| virtual uint32_t | GetNDevices (void) const =0 |
| Public Member Functions inherited from ns3::Object | |
| Object () | |
| virtual | ~Object () |
| void | AggregateObject (Ptr< Object > other) |
| void | Dispose (void) |
| Run the DoDispose methods of this object and all the objects aggregated to it. More... | |
| AggregateIterator | GetAggregateIterator (void) const |
| virtual TypeId | GetInstanceTypeId (void) const |
| template<typename T > | |
| Ptr< T > | GetObject (void) const |
| template<typename T > | |
| Ptr< T > | GetObject (TypeId tid) const |
| void | Initialize (void) |
| This method calls the virtual DoInitialize method on all the objects aggregated to this object. More... | |
| Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| SimpleRefCount () | |
| Constructor. More... | |
| SimpleRefCount (const SimpleRefCount &o) | |
| Copy constructor. More... | |
| uint32_t | GetReferenceCount (void) const |
| Get the reference count of the object. More... | |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| Assignment. More... | |
| void | Ref (void) const |
| Increment the reference count. More... | |
| void | Unref (void) const |
| Decrement the reference count. More... | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &attribute) const |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::Object | |
| static TypeId | GetTypeId (void) |
| Register this type. More... | |
| Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| static void | Cleanup (void) |
| Noop. More... | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
Private Attributes | |
| uint32_t | m_id |
| Channel id for this channel. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::Object | |
| Object (const Object &o) | |
| virtual void | DoDispose (void) |
| This method is called by Object::Dispose or by the object's destructor, whichever comes first. More... | |
| virtual void | DoInitialize (void) |
| This method is called only once by Object::Initialize. More... | |
| virtual void | NotifyNewAggregate (void) |
| This method is invoked whenever two sets of objects are aggregated together. More... | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| virtual void | NotifyConstructionCompleted (void) |
| This method is invoked once all member attributes have been initialized. More... | |
Abstract Channel Base Class.
A channel is a logical path over which information flows. The path can be as simple as a short piece of wire, or as complicated as space-time.
Subclasses must use Simulator::ScheduleWithContext to correctly update event contexts when scheduling an event from one node to another one.
ns3::Channel is accessible through the following paths with Config::Set and Config::Connect:
No TraceSources are defined for this type.
| ns3::Channel::Channel | ( | ) |
Definition at line 45 of file channel.cc.
References ns3::ChannelList::Add(), m_id, and NS_LOG_FUNCTION.

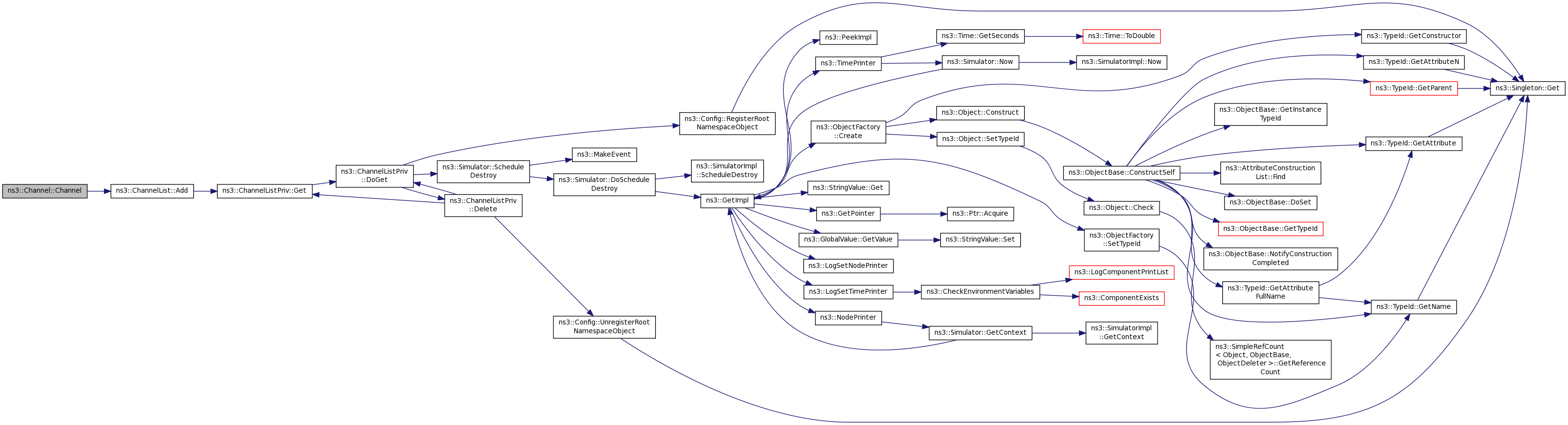

Here is the call graph for this function:
|
virtual |
Definition at line 52 of file channel.cc.
References NS_LOG_FUNCTION.
| i | index of NetDevice to retrieve |
This method must be implemented by subclasses.
Implemented in ns3::CsmaChannel, ns3::MultiModelSpectrumChannel, ns3::PointToPointChannel, ns3::SimpleChannel, ns3::UanChannel, ns3::YansWifiChannel, ns3::SingleModelSpectrumChannel, ns3::WimaxChannel, ns3::ErrorChannelSixlow, ns3::ErrorChannel, and ns3::BridgeChannel.
| uint32_t ns3::Channel::GetId | ( | void | ) | const |
This unique id happens to be also the index of the Channel into the ChannelList.
Definition at line 58 of file channel.cc.
References m_id, and NS_LOG_FUNCTION.
|
pure virtual |
This method must be implemented by subclasses.
Implemented in ns3::CsmaChannel, ns3::MultiModelSpectrumChannel, ns3::PointToPointChannel, ns3::SimpleChannel, ns3::UanChannel, ns3::YansWifiChannel, ns3::SingleModelSpectrumChannel, ns3::WimaxChannel, ns3::ErrorChannelSixlow, ns3::ErrorChannel, and ns3::BridgeChannel.
|
static |
Get the type ID.
Definition at line 33 of file channel.cc.
References ns3::TypeId::ATTR_GET, m_id, and ns3::TypeId::SetParent().
Here is the call graph for this function:
|
private |
