Holds a vector of ns3::EnergyHarvester pointers. More...

#include <energy-harvester-container.h>

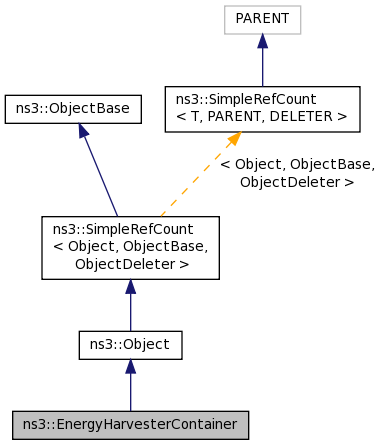

Inheritance diagram for ns3::EnergyHarvesterContainer:

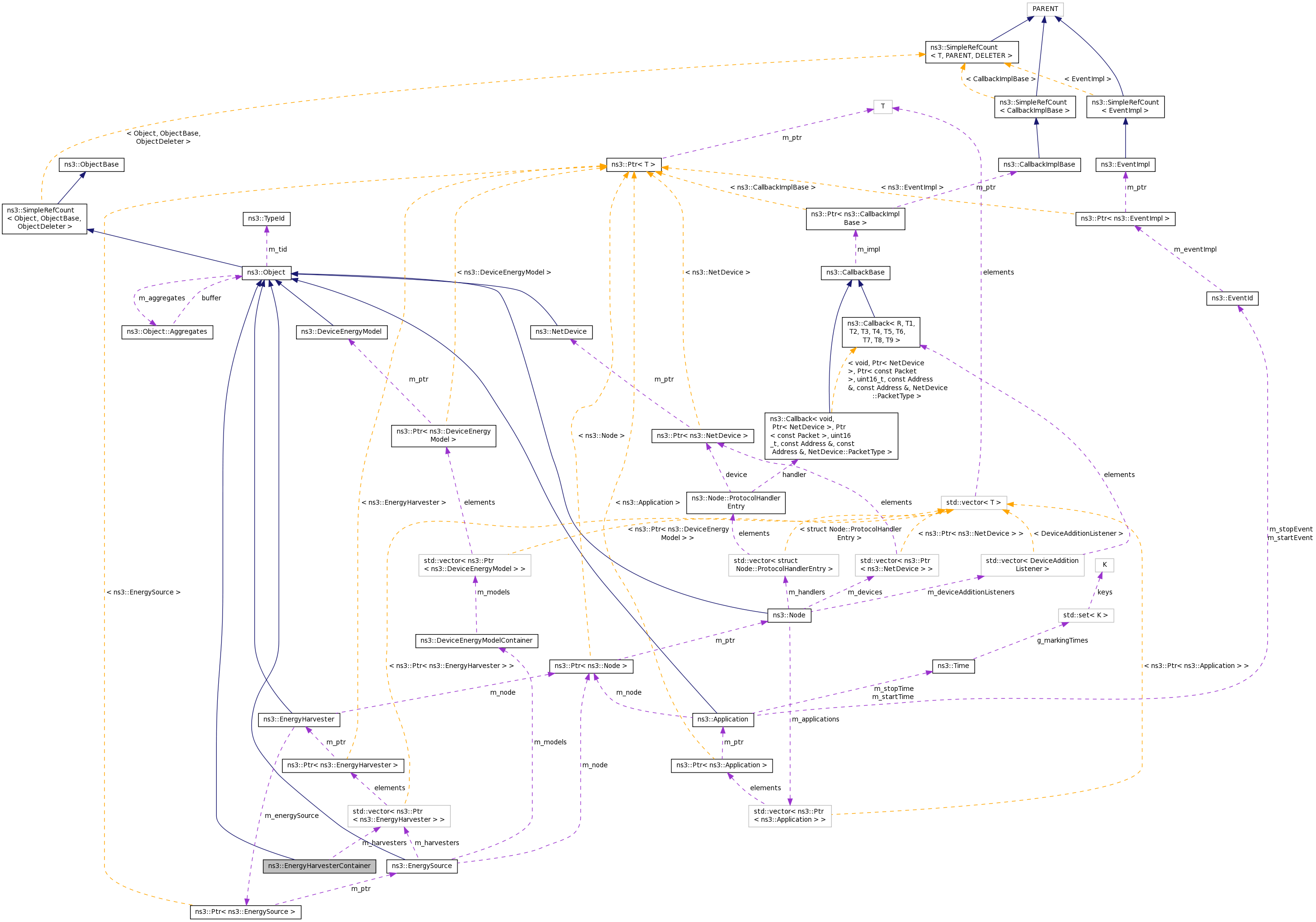

Collaboration diagram for ns3::EnergyHarvesterContainer:

Public Types
typedef std::vector< Ptr < EnergyHarvester > >::const_iterator	Iterator

Public Member Functions
	EnergyHarvesterContainer ()
	Creates an empty EnergyHarvesterContainer. More...

	EnergyHarvesterContainer (Ptr< EnergyHarvester > harvester)

	EnergyHarvesterContainer (std::string harvesterName)

	EnergyHarvesterContainer (const EnergyHarvesterContainer &a, const EnergyHarvesterContainer &b)

	~EnergyHarvesterContainer ()

void	Add (EnergyHarvesterContainer container)

void	Add (Ptr< EnergyHarvester > harvester)
	Append a single Ptr<EnergyHarvester> to the end of this container. More...

void	Add (std::string harvesterName)
	Append a single Ptr<EnergyHarvester> referred to by its object name to the end of this container. More...

Iterator	Begin (void) const
	Get an iterator which refers to the first EnergyHarvester pointer in the container. More...

void	Clear (void)
	Removes all elements in the container. More...

Iterator	End (void) const
	Get an iterator which refers to the last EnergyHarvester pointer in the container. More...

Ptr< EnergyHarvester >	Get (uint32_t i) const
	Get the i-th Ptr<EnergyHarvester> stored in this container. More...

uint32_t	GetN (void) const
	Get the number of Ptr<EnergyHarvester> stored in this container. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	Calls Object::Initialize () for all EnergySource objects. More...

Private Attributes
std::vector< Ptr < EnergyHarvester > >	m_harvesters

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Holds a vector of ns3::EnergyHarvester pointers.

EnergyHarvesterContainer returns a list of EnergyHarvester pointers installed on a node. Users can use this list to access EnergyHarvester objects to obtain the total energy harvested on a node easily.

See also: NetDeviceContainer

Definition at line 45 of file energy-harvester-container.h.

Member Typedef Documentation

typedef std::vector< Ptr<EnergyHarvester> >::const_iterator ns3::EnergyHarvesterContainer::Iterator

Definition at line 48 of file energy-harvester-container.h.

Constructor & Destructor Documentation

ns3::EnergyHarvesterContainer::EnergyHarvesterContainer ( )

Creates an empty EnergyHarvesterContainer.

Definition at line 41 of file energy-harvester-container.cc.

References NS_LOG_FUNCTION.

ns3::EnergyHarvesterContainer::~EnergyHarvesterContainer ( )

Definition at line 46 of file energy-harvester-container.cc.

References NS_LOG_FUNCTION.

ns3::EnergyHarvesterContainer::EnergyHarvesterContainer ( Ptr< EnergyHarvester > harvester )

Parameters

harvester Pointer to an EnergyHarvester.

Creates a EnergyHarvesterContainer with exactly one EnergyHarvester previously instantiated.

Definition at line 51 of file energy-harvester-container.cc.

References m_harvesters, NS_ASSERT, and NS_LOG_FUNCTION.

ns3::EnergyHarvesterContainer::EnergyHarvesterContainer ( std::string harvesterName )

Parameters

harvesterName Name of EnergyHarvester.

Creates an EnergyHarvesterContainer with exactly one EnergyHarvester previously instantiated and assigned a name using the Object name service. This EnergyHarvester is specified by its assigned name.

Definition at line 58 of file energy-harvester-container.cc.

References m_harvesters, NS_ASSERT, and NS_LOG_FUNCTION.

ns3::EnergyHarvesterContainer::EnergyHarvesterContainer	(	const EnergyHarvesterContainer &	a,
		const EnergyHarvesterContainer &	b
	)

Parameters

a	A EnergyHarvesterContainer.
b	Another EnergyHarvesterContainer.

Creates a EnergyHarvesterContainer by concatenating EnergyHarvesterContainer b to EnergyHarvesterContainer a.

Note: Can be used to concatenate 2 Ptr<EnergyHarvester> directly. C++ will be calling EnergyHarvesterContainer constructor with Ptr<EnergyHarvester> first.

Definition at line 66 of file energy-harvester-container.cc.

References Add(), and NS_LOG_FUNCTION.

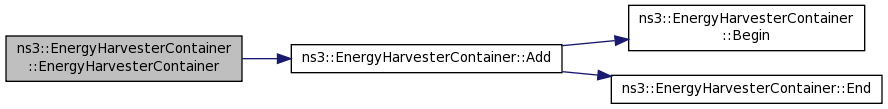

Here is the call graph for this function:

Member Function Documentation

void ns3::EnergyHarvesterContainer::Add ( EnergyHarvesterContainer container )

Parameters

container Another EnergyHarvesterContainer.

Appends the contents of another EnergyHarvesterContainer to the end of this EnergyHarvesterContainer.

Definition at line 103 of file energy-harvester-container.cc.

References Begin(), End(), m_harvesters, and NS_LOG_FUNCTION.

Referenced by EnergyHarvesterContainer(), and ns3::EnergyHarvesterHelper::Install().

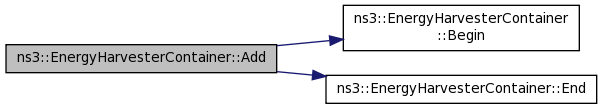

Here is the call graph for this function:

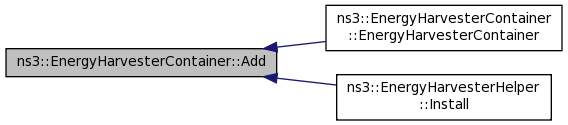

Here is the caller graph for this function:

void ns3::EnergyHarvesterContainer::Add ( Ptr< EnergyHarvester > harvester )

Append a single Ptr<EnergyHarvester> to the end of this container.

Parameters

harvester Pointer to an EnergyHarvester.

Definition at line 113 of file energy-harvester-container.cc.

References m_harvesters, NS_ASSERT, and NS_LOG_FUNCTION.

void ns3::EnergyHarvesterContainer::Add ( std::string harvesterName )

Append a single Ptr<EnergyHarvester> referred to by its object name to the end of this container.

Parameters

harvesterName Name of EnergyHarvester object.

Definition at line 121 of file energy-harvester-container.cc.

References m_harvesters, NS_ASSERT, and NS_LOG_FUNCTION.

EnergyHarvesterContainer::Iterator ns3::EnergyHarvesterContainer::Begin ( void ) const

Get an iterator which refers to the first EnergyHarvester pointer in the container.

Returns: An iterator which refers to the first EnergyHarvester in container.

EnergyHarvesters can be retrieved from the container in two ways. First, directly by an index into the container, and second, using an iterator. This method is used in the iterator method and is typically used in a for-loop to run through the EnergyHarvesters.

EnergyHarvesterContainer::Iterator i;
for (i = container.Begin (); i != container.End (); ++i)
  {
    (*i)->method ();  // some EnergyHarvester method
  }

Definition at line 75 of file energy-harvester-container.cc.

References m_harvesters, and NS_LOG_FUNCTION.

Referenced by Add().

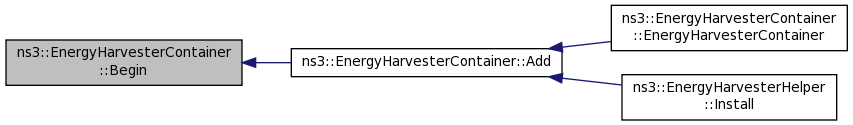

Here is the caller graph for this function:

void ns3::EnergyHarvesterContainer::Clear ( void )

Removes all elements in the container.

Definition at line 130 of file energy-harvester-container.cc.

References m_harvesters, and NS_LOG_FUNCTION.

void ns3::EnergyHarvesterContainer::DoDispose ( void )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 142 of file energy-harvester-container.cc.

References m_harvesters.

void ns3::EnergyHarvesterContainer::DoInitialize ( void )

privatevirtual

Calls Object::Initialize () for all EnergySource objects.

Reimplemented from ns3::Object.

Definition at line 154 of file energy-harvester-container.cc.

References m_harvesters.

EnergyHarvesterContainer::Iterator ns3::EnergyHarvesterContainer::End ( void ) const

Get an iterator which refers to the last EnergyHarvester pointer in the container.

Returns: An iterator which refers to the last EnergyHarvester in container.

EnergyHarvesters can be retrieved from the container in two ways. First, directly by an index into the container, and second, using an iterator. This method is used in the iterator method and is typically used in a for-loop to run through the EnergyHarvesters.

EnergyHarvesterContainer::Iterator i;
for (i = container.Begin (); i != container.End (); ++i)
  {
    (*i)->method ();  // some EnergyHarvester method
  }

Definition at line 82 of file energy-harvester-container.cc.

References m_harvesters, and NS_LOG_FUNCTION.

Referenced by Add().

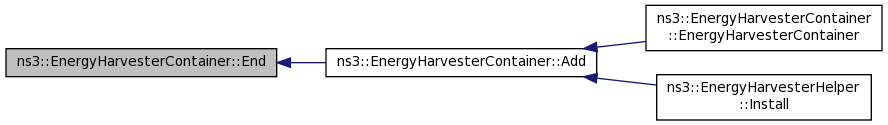

Here is the caller graph for this function:
