#include <epc-ue-nas.h>

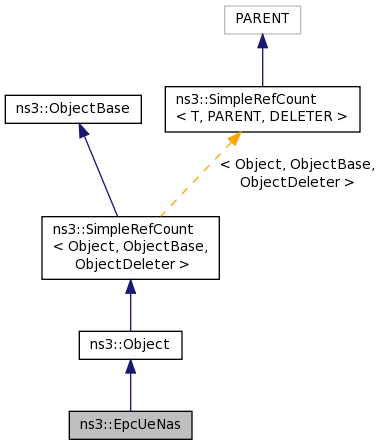

Inheritance diagram for ns3::EpcUeNas:

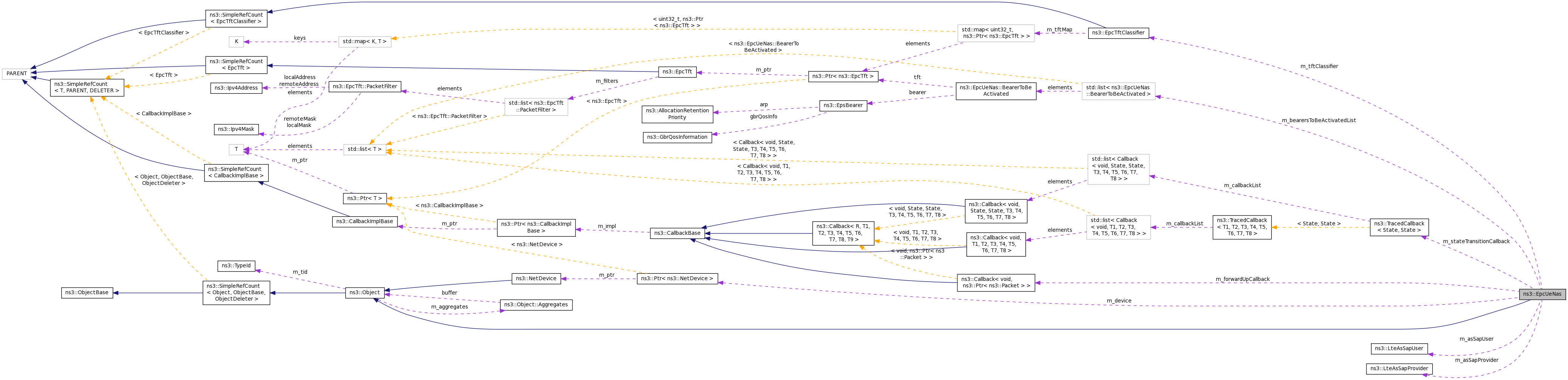

Collaboration diagram for ns3::EpcUeNas:

Classes
struct	BearerToBeActivated

Public Types
enum	State { OFF = 0, ATTACHING, IDLE_REGISTERED, CONNECTING_TO_EPC, ACTIVE, NUM_STATES }
	Definition of NAS states as per "LTE - From theory to practice", Section 3.2.3.2 "Connection Establishment and Release". More...

Public Member Functions
	EpcUeNas ()
	Constructor. More...

virtual	~EpcUeNas ()
	Destructor. More...

void	ActivateEpsBearer (EpsBearer bearer, Ptr< EpcTft > tft)
	Activate an EPS bearer. More...

void	Connect ()
	Causes NAS to tell AS to go to ACTIVE state. More...

void	Connect (uint16_t cellId, uint16_t dlEarfcn)
	Causes NAS to tell AS to camp to a specific cell and go to ACTIVE state. More...

void	Disconnect ()
	instruct the NAS to disconnect More...

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

LteAsSapUser *	GetAsSapUser ()

uint32_t	GetCsgId () const

State	GetState () const

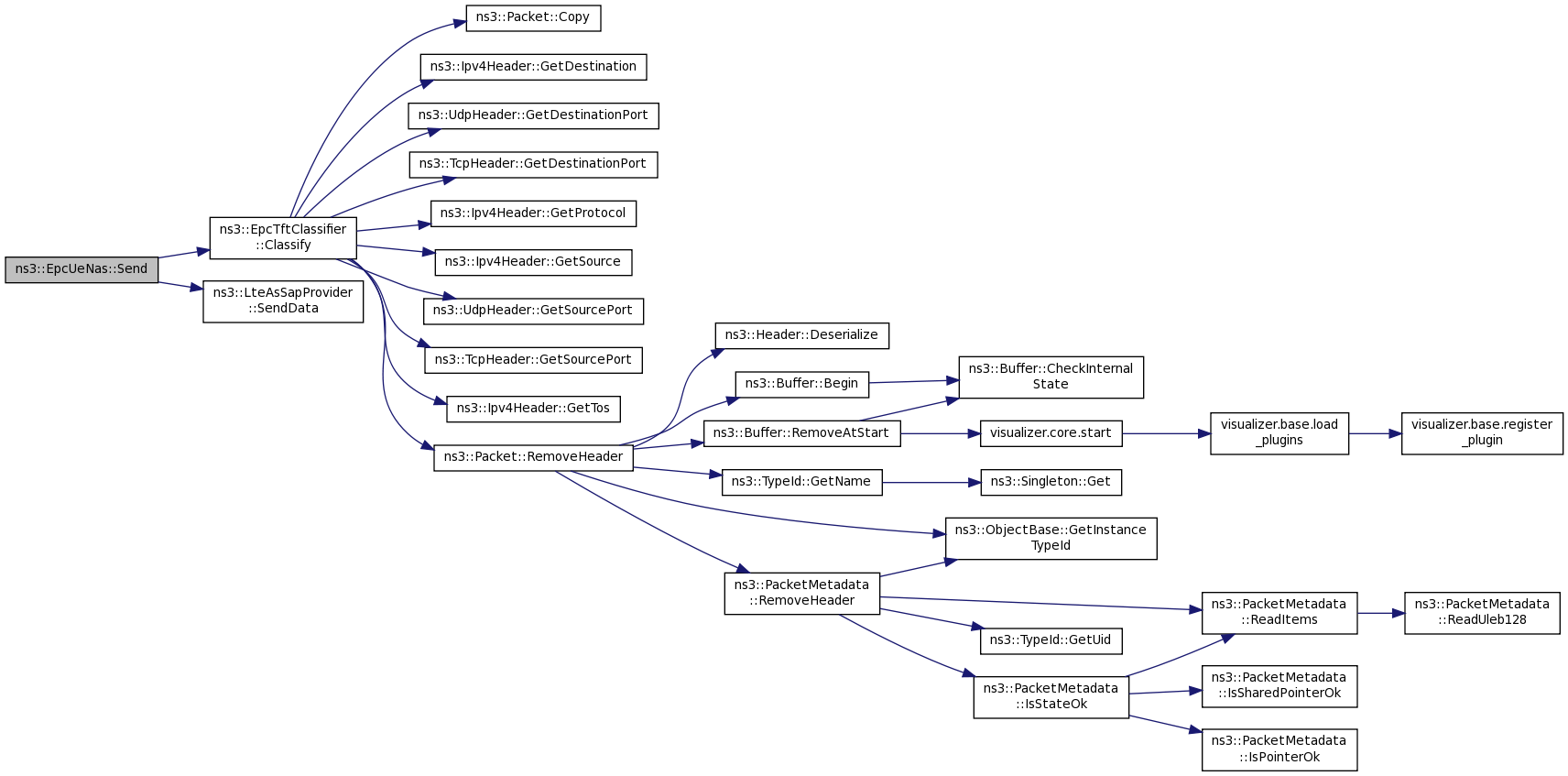

bool	Send (Ptr< Packet > p)
	Enqueue an IP packet on the proper bearer for uplink transmission. More...

void	SetAsSapProvider (LteAsSapProvider *s)
	Set the AS SAP provider to interact with the NAS entity. More...

void	SetCsgId (uint32_t csgId)

void	SetDevice (Ptr< NetDevice > dev)

void	SetForwardUpCallback (Callback< void, Ptr< Packet > > cb)
	set the callback used to forward data packets up the stack More...

void	SetImsi (uint64_t imsi)

void	StartCellSelection (uint16_t dlEarfcn)
	Causes NAS to tell AS to find a suitable cell and camp to it. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

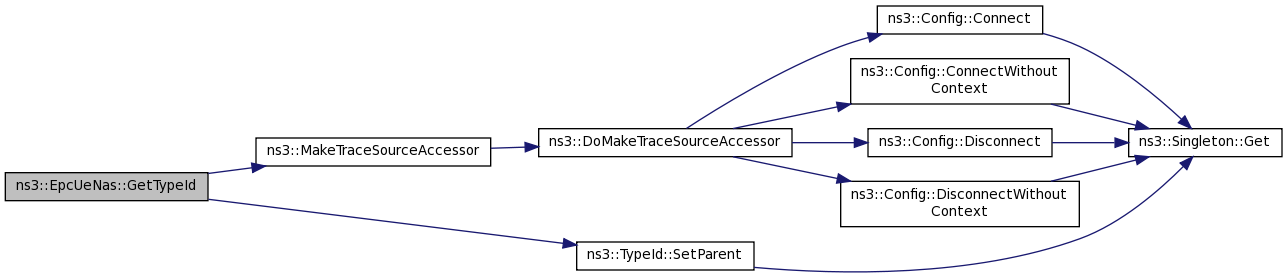

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	DoActivateEpsBearer (EpsBearer bearer, Ptr< EpcTft > tft)

void	DoNotifyConnectionFailed ()

void	DoNotifyConnectionReleased ()

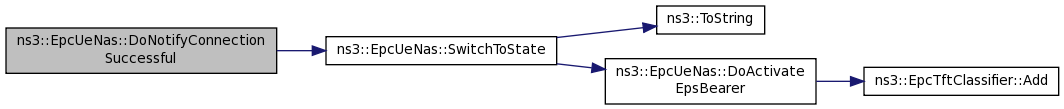

void	DoNotifyConnectionSuccessful ()

void	DoRecvData (Ptr< Packet > packet)

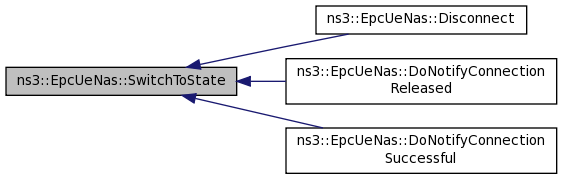

void	SwitchToState (State s)

Private Attributes
LteAsSapProvider *	m_asSapProvider

LteAsSapUser *	m_asSapUser

std::list< BearerToBeActivated >	m_bearersToBeActivatedList

uint8_t	m_bidCounter

uint32_t	m_csgId

Ptr< NetDevice >	m_device

Callback< void, Ptr< Packet > >	m_forwardUpCallback

uint64_t	m_imsi

State	m_state

TracedCallback< State, State >	m_stateTransitionCallback

EpcTftClassifier	m_tftClassifier

Friends
class	MemberLteAsSapUser< EpcUeNas >

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Config Paths

ns3::EpcUeNas is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/EpcUeNas
/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/EpcUeNas

No Attributes are defined for this type.

TraceSources

StateTransition: fired upon every UE NAS state transition

Definition at line 34 of file epc-ue-nas.h.

Member Enumeration Documentation

enum ns3::EpcUeNas::State

Definition of NAS states as per "LTE - From theory to practice", Section 3.2.3.2 "Connection Establishment and Release".

Enumerator
OFF
ATTACHING
IDLE_REGISTERED
CONNECTING_TO_EPC
ACTIVE
NUM_STATES

Definition at line 156 of file epc-ue-nas.h.

Constructor & Destructor Documentation

ns3::EpcUeNas::EpcUeNas ( )

Constructor.

Definition at line 57 of file epc-ue-nas.cc.

References m_asSapUser, and NS_LOG_FUNCTION.

ns3::EpcUeNas::~EpcUeNas ( )

virtual

Destructor.

Definition at line 68 of file epc-ue-nas.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::EpcUeNas::ActivateEpsBearer	(	EpsBearer	bearer,
		Ptr< EpcTft >	tft
	)

Activate an EPS bearer.

Parameters

bearer	the characteristics of the bearer to be created
tft	the TFT identifying the traffic that will go on this bearer

Definition at line 182 of file epc-ue-nas.cc.

References ACTIVE, ns3::EpcUeNas::BearerToBeActivated::bearer, m_bearersToBeActivatedList, m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::EpcUeNas::BearerToBeActivated::tft.

Referenced by ns3::EmuEpcHelper::ActivateEpsBearer().

Here is the caller graph for this function:

void ns3::EpcUeNas::Connect ( )

Causes NAS to tell AS to go to ACTIVE state.

The end result is equivalent with EMM Registered + ECM Connected states.

Definition at line 151 of file epc-ue-nas.cc.

References ns3::LteAsSapProvider::Connect(), m_asSapProvider, and NS_LOG_FUNCTION.

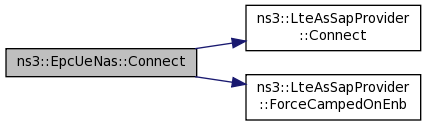

Here is the call graph for this function:

void ns3::EpcUeNas::Connect	(	uint16_t	cellId,
		uint16_t	dlEarfcn
	)

Causes NAS to tell AS to camp to a specific cell and go to ACTIVE state.

Parameters

cellId	the id of the eNB to camp on
dlEarfcn	the DL frequency of the eNB

The end result is equivalent with EMM Registered + ECM Connected states. Since RRC Idle Mode cell selection is not supported yet, we force the UE RRC to be camped on a specific eNB.

Definition at line 160 of file epc-ue-nas.cc.

References ns3::LteAsSapProvider::Connect(), ns3::LteAsSapProvider::ForceCampedOnEnb(), m_asSapProvider, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::EpcUeNas::Disconnect ( )

instruct the NAS to disconnect

Definition at line 173 of file epc-ue-nas.cc.

References ns3::LteAsSapProvider::Disconnect(), m_asSapProvider, NS_LOG_FUNCTION, OFF, and SwitchToState().

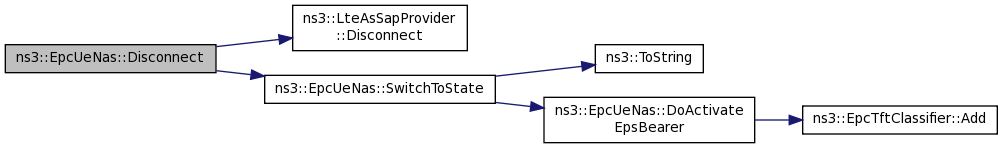

Here is the call graph for this function:

void ns3::EpcUeNas::DoActivateEpsBearer	(	EpsBearer	bearer,
		Ptr< EpcTft >	tft
	)

private

Definition at line 263 of file epc-ue-nas.cc.

References ns3::EpcTftClassifier::Add(), m_bidCounter, m_tftClassifier, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by SwitchToState().

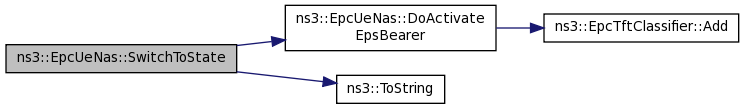

Here is the call graph for this function:

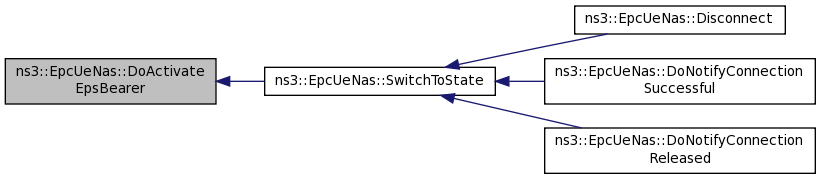

Here is the caller graph for this function:

void ns3::EpcUeNas::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 74 of file epc-ue-nas.cc.

References m_asSapUser, and NS_LOG_FUNCTION.

void ns3::EpcUeNas::DoNotifyConnectionFailed ( )

private

Definition at line 240 of file epc-ue-nas.cc.

References ns3::LteAsSapProvider::Connect(), m_asSapProvider, NS_LOG_FUNCTION, and ns3::Simulator::ScheduleNow().

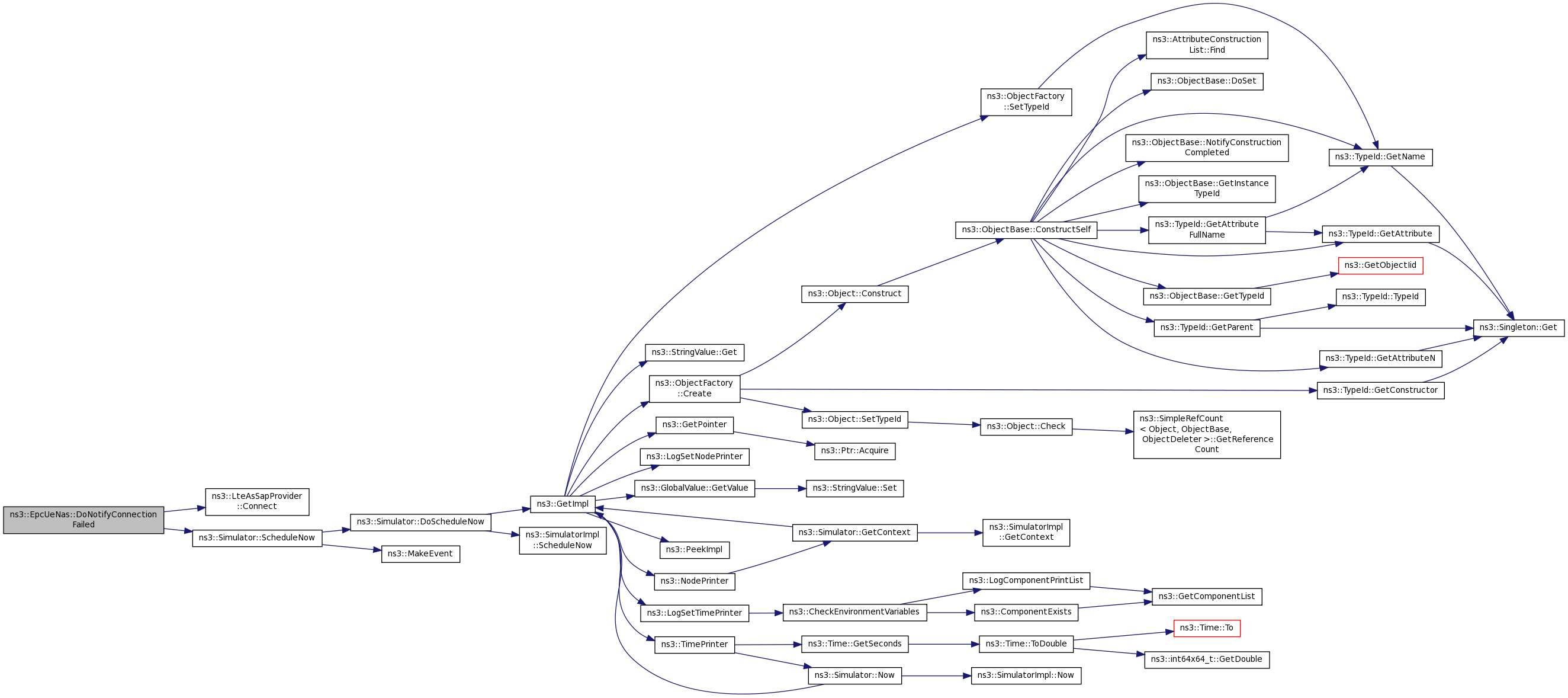

Here is the call graph for this function:
