Doxygen introspection did not find any typical Config paths. More...

#include <epc-x2-header.h>

Inheritance diagram for ns3::EpcX2UeContextReleaseHeader:

Collaboration diagram for ns3::EpcX2UeContextReleaseHeader:

Public Member Functions
	EpcX2UeContextReleaseHeader ()

virtual	~EpcX2UeContextReleaseHeader ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

virtual TypeId	GetInstanceTypeId (void) const

uint32_t	GetLengthOfIes () const

uint16_t	GetNewEnbUeX2apId () const

uint32_t	GetNumberOfIes () const

uint16_t	GetOldEnbUeX2apId () const

virtual uint32_t	GetSerializedSize (void) const

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetNewEnbUeX2apId (uint16_t x2apId)

void	SetOldEnbUeX2apId (uint16_t x2apId)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint32_t	m_headerLength

uint16_t	m_newEnbUeX2apId

uint32_t	m_numberOfIes

uint16_t	m_oldEnbUeX2apId

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 244 of file epc-x2-header.h.

Constructor & Destructor Documentation

ns3::EpcX2UeContextReleaseHeader::EpcX2UeContextReleaseHeader ( )

Definition at line 980 of file epc-x2-header.cc.

ns3::EpcX2UeContextReleaseHeader::~EpcX2UeContextReleaseHeader ( )

virtual

Definition at line 988 of file epc-x2-header.cc.

References m_headerLength, m_newEnbUeX2apId, m_numberOfIes, and m_oldEnbUeX2apId.

Member Function Documentation

uint32_t ns3::EpcX2UeContextReleaseHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 1028 of file epc-x2-header.cc.

References GetSerializedSize(), m_headerLength, m_newEnbUeX2apId, m_numberOfIes, m_oldEnbUeX2apId, ns3::Buffer::Iterator::ReadNtohU16(), and visualizer.core::start().

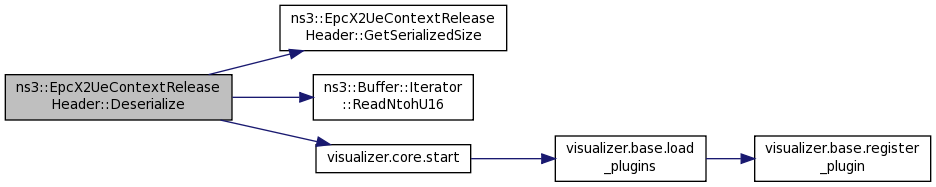

Here is the call graph for this function:

TypeId ns3::EpcX2UeContextReleaseHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 1007 of file epc-x2-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::EpcX2UeContextReleaseHeader::GetLengthOfIes ( ) const

Definition at line 1072 of file epc-x2-header.cc.

References m_headerLength.

Referenced by ns3::EpcX2::DoSendUeContextRelease().

Here is the caller graph for this function:

uint16_t ns3::EpcX2UeContextReleaseHeader::GetNewEnbUeX2apId ( ) const

Definition at line 1060 of file epc-x2-header.cc.

References m_newEnbUeX2apId.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

Here is the caller graph for this function:

uint32_t ns3::EpcX2UeContextReleaseHeader::GetNumberOfIes ( ) const

Definition at line 1078 of file epc-x2-header.cc.

References m_numberOfIes.

Referenced by ns3::EpcX2::DoSendUeContextRelease().

Here is the caller graph for this function:

uint16_t ns3::EpcX2UeContextReleaseHeader::GetOldEnbUeX2apId ( ) const

Definition at line 1048 of file epc-x2-header.cc.

References m_oldEnbUeX2apId.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

Here is the caller graph for this function:

uint32_t ns3::EpcX2UeContextReleaseHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 1013 of file epc-x2-header.cc.

References m_headerLength.

Referenced by Deserialize().

Here is the caller graph for this function:

TypeId ns3::EpcX2UeContextReleaseHeader::GetTypeId ( void )

static

Definition at line 997 of file epc-x2-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EpcX2UeContextReleaseHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 1041 of file epc-x2-header.cc.

References m_newEnbUeX2apId, and m_oldEnbUeX2apId.

void ns3::EpcX2UeContextReleaseHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 1019 of file epc-x2-header.cc.

References m_newEnbUeX2apId, m_oldEnbUeX2apId, visualizer.core::start(), and ns3::Buffer::Iterator::WriteHtonU16().

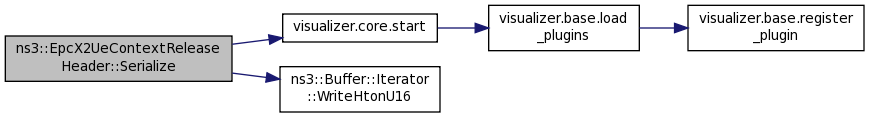

Here is the call graph for this function:
