ns3::FixedRoomPositionAllocator Class Reference

Generate a random position uniformly distributed in the volume of a chosen room inside a chosen building. More...

#include <building-position-allocator.h>

Inheritance diagram for ns3::FixedRoomPositionAllocator:

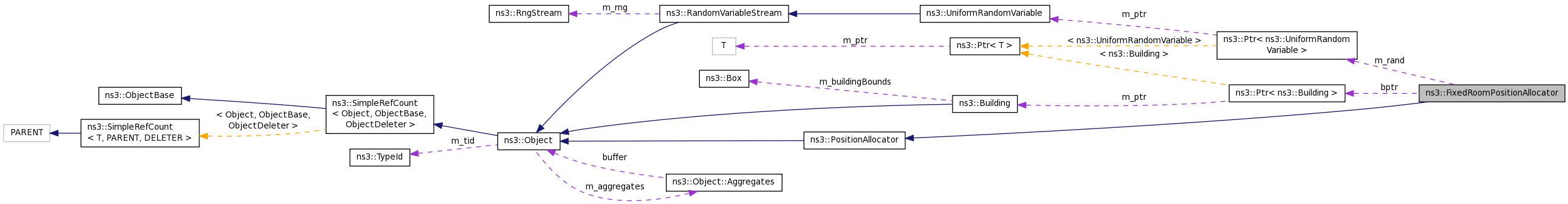

Collaboration diagram for ns3::FixedRoomPositionAllocator:

Public Member Functions
	FixedRoomPositionAllocator (uint32_t x, uint32_t y, uint32_t z, Ptr< Building > b)
int64_t	AssignStreams (int64_t)
	Assign a fixed random variable stream number to the random variables used by this model. More...
virtual Vector	GetNext (void) const
Public Member Functions inherited from ns3::PositionAllocator
	PositionAllocator ()
virtual	~PositionAllocator ()
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::PositionAllocator
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...
Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Ptr< Building >	bptr
uint32_t	floor
Ptr< UniformRandomVariable >	m_rand
	Provides uniform random variables. More...
uint32_t	roomx
uint32_t	roomy

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...
virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...
virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Generate a random position uniformly distributed in the volume of a chosen room inside a chosen building.

Config Paths

ns3::FixedRoomPositionAllocator is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::FixedRoomPositionAllocator

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 154 of file building-position-allocator.h.

Constructor & Destructor Documentation

FixedRoomPositionAllocator::FixedRoomPositionAllocator	(	uint32_t	x,
		uint32_t	y,
		uint32_t	z,
		Ptr< Building >	b
	)

Parameters

x	index of the room on the x-axis
y	index of the room on the y-axis
z	index of the room on the z-axis (i.e., floor number)
b	pointer to the chosen building

Definition at line 288 of file building-position-allocator.cc.

References bptr, floor, m_rand, roomx, roomy, and sample-rng-plot::x.

Member Function Documentation

int64_t FixedRoomPositionAllocator::AssignStreams ( int64_t  stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream

first stream index to use

Returns

the number of stream indices assigned by this model

Implements ns3::PositionAllocator.

Definition at line 342 of file building-position-allocator.cc.

References m_rand, and ns3::RandomVariableStream::SetStream().

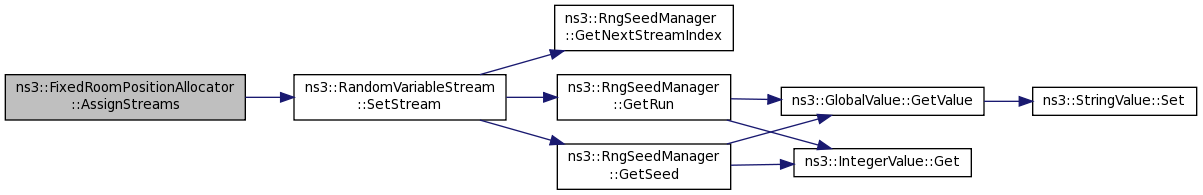

Here is the call graph for this function:

Vector FixedRoomPositionAllocator::GetNext ( void  ) const

virtual

Returns

the next chosen position.

This method must be implement in subclasses.

Implements ns3::PositionAllocator.

Definition at line 312 of file building-position-allocator.cc.

References bptr, floor, ns3::UniformRandomVariable::GetValue(), m_rand, NS_LOG_LOGIC, roomx, roomy, and sample-rng-plot::x.

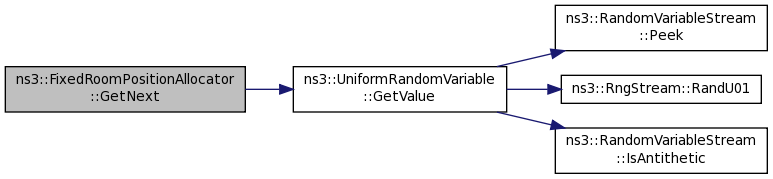

Here is the call graph for this function:

TypeId FixedRoomPositionAllocator::GetTypeId ( void  )

static

Definition at line 302 of file building-position-allocator.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

Member Data Documentation

Ptr<Building> ns3::FixedRoomPositionAllocator::bptr

private

Definition at line 192 of file building-position-allocator.h.

Referenced by FixedRoomPositionAllocator(), and GetNext().

uint32_t ns3::FixedRoomPositionAllocator::floor

private

Definition at line 190 of file building-position-allocator.h.

Referenced by FixedRoomPositionAllocator(), and GetNext().

Ptr<UniformRandomVariable> ns3::FixedRoomPositionAllocator::m_rand

private

Provides uniform random variables.

Definition at line 195 of file building-position-allocator.h.

Referenced by AssignStreams(), FixedRoomPositionAllocator(), and GetNext().

uint32_t ns3::FixedRoomPositionAllocator::roomx

private

Definition at line 188 of file building-position-allocator.h.

Referenced by FixedRoomPositionAllocator(), and GetNext().

uint32_t ns3::FixedRoomPositionAllocator::roomy

private

Definition at line 189 of file building-position-allocator.h.

Referenced by FixedRoomPositionAllocator(), and GetNext().

---

The documentation for this class was generated from the following files:

• src/buildings/helper/building-position-allocator.h
• src/buildings/helper/building-position-allocator.cc
