ns3::LogComponent Class Reference

A single log component configuration. More...

#include <log.h>

Collaboration diagram for ns3::LogComponent:

Public Member Functions
	LogComponent (const std::string &name, const enum LogLevel mask=LOG_NONE)
	Constructor. More...
void	Disable (const enum LogLevel level)
	Disable logging at level for this LogComponent. More...
void	Enable (const enum LogLevel level)
	Enable this LogComponent at level More...
bool	IsEnabled (const enum LogLevel level) const
	Check if this LogComponent is enabled for level More...
bool	IsNoneEnabled (void) const
	Check if all levels are disabled. More...
char const *	Name (void) const
	Get the name of this LogComponent. More...
void	SetMask (const enum LogLevel level)
	Prevent the enabling of a specific LogLevel. More...

Static Public Member Functions
static std::string	GetLevelLabel (const enum LogLevel level)
	Get the string label for the given LogLevel. More...

Private Member Functions
void	EnvVarCheck (void)
	Parse the NS_LOG environment variable for options relating to this LogComponent. More...

Private Attributes
int32_t	m_levels
	Enabled LogLevels. More...
int32_t	m_mask
	Blocked LogLevels. More...
std::string	m_name
	LogComponent name. More...

Detailed Description

A single log component configuration.

Definition at line 263 of file log.h.

Constructor & Destructor Documentation

ns3::LogComponent::LogComponent	(	const std::string &	name,
		const enum LogLevel	mask = LOG_NONE
	)

Constructor.

Parameters

[in]	name	the user-visible name for this component.
[in]	mask	LogLevels blocked for this LogComponent. Blocking a log level helps prevent recursion by logging in functions which help implement the logging facility.

Definition at line 87 of file log.cc.

References EnvVarCheck(), ns3::GetComponentList(), and NS_FATAL_ERROR.

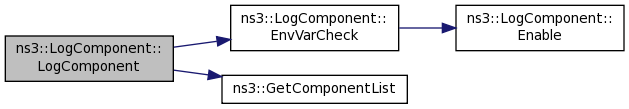

Here is the call graph for this function:

Member Function Documentation

void ns3::LogComponent::Disable

(

const enum LogLevel

level

)

Disable logging at level for this LogComponent.

Parameters

[in]

level

the LogLevel to disable.

Definition at line 270 of file log.cc.

References m_levels.

void ns3::LogComponent::Enable

(

const enum LogLevel

level

)

Enable this LogComponent at level

Parameters

[in]

level

the LogLevel to enable.

Definition at line 264 of file log.cc.

References m_levels, and m_mask.

Referenced by EnvVarCheck().

Here is the caller graph for this function:

void ns3::LogComponent::EnvVarCheck ( void  )

private

Parse the NS_LOG environment variable for options relating to this LogComponent.

Definition at line 107 of file log.cc.

References Enable(), ns3::LOG_DEBUG, ns3::LOG_ERROR, ns3::LOG_FUNCTION, ns3::LOG_INFO, ns3::LOG_LEVEL_ALL, ns3::LOG_LEVEL_DEBUG, ns3::LOG_LEVEL_ERROR, ns3::LOG_LEVEL_FUNCTION, ns3::LOG_LEVEL_INFO, ns3::LOG_LEVEL_LOGIC, ns3::LOG_LEVEL_WARN, ns3::LOG_LOGIC, ns3::LOG_PREFIX_ALL, ns3::LOG_PREFIX_FUNC, ns3::LOG_PREFIX_LEVEL, ns3::LOG_PREFIX_NODE, ns3::LOG_PREFIX_TIME, ns3::LOG_WARN, and m_name.

Referenced by LogComponent().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::LogComponent::GetLevelLabel ( const enum LogLevel  level )

static

Get the string label for the given LogLevel.

Parameters

[in]

level

the LogLevel to get the label for.

Returns

the string label for level

Definition at line 283 of file log.cc.

References ns3::LOG_DEBUG, ns3::LOG_ERROR, ns3::LOG_FUNCTION, ns3::LOG_INFO, ns3::LOG_LOGIC, and ns3::LOG_WARN.

bool ns3::LogComponent::IsEnabled

(

const enum LogLevel

level

)

const

Check if this LogComponent is enabled for level

Parameters

[in]

level

the level to check for.

Returns

true if level is enabled.

Definition at line 245 of file log.cc.

References m_levels.

bool ns3::LogComponent::IsNoneEnabled

(

void

)

const

Check if all levels are disabled.

Returns

true if all levels are disabled.

Definition at line 252 of file log.cc.

References m_levels.

char const * ns3::LogComponent::Name

(

void

)

const

Get the name of this LogComponent.

Returns

the name of this LogComponent.

Definition at line 276 of file log.cc.

References m_name.

void ns3::LogComponent::SetMask

(

const enum LogLevel

level

)

Prevent the enabling of a specific LogLevel.

Parameters

level

the LogLevel to block

Definition at line 258 of file log.cc.

References m_mask.

Member Data Documentation

int32_t ns3::LogComponent::m_levels

private

Enabled LogLevels.

Definition at line 326 of file log.h.

Referenced by Disable(), Enable(), IsEnabled(), and IsNoneEnabled().

int32_t ns3::LogComponent::m_mask

private

Blocked LogLevels.

Definition at line 327 of file log.h.

Referenced by Enable(), and SetMask().

std::string ns3::LogComponent::m_name

private

LogComponent name.

Definition at line 328 of file log.h.

Referenced by EnvVarCheck(), and Name().

---

The documentation for this class was generated from the following files:

• src/core/model/log.h
• src/core/model/log.cc
