Doxygen introspection did not find any typical Config paths. More...

#include <lte-stats-calculator.h>

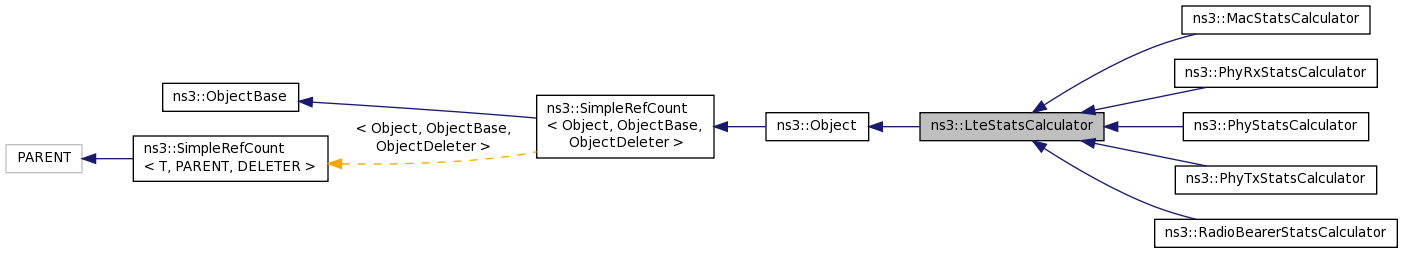

Inheritance diagram for ns3::LteStatsCalculator:

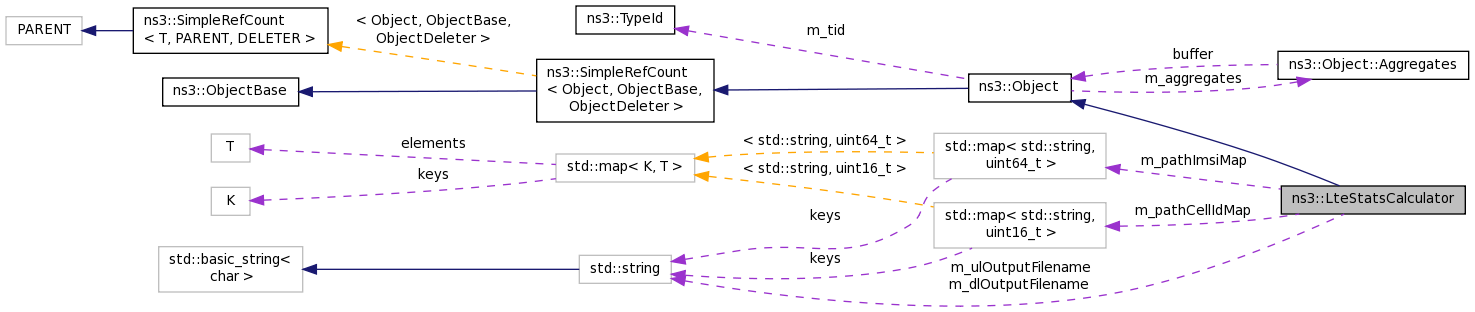

Collaboration diagram for ns3::LteStatsCalculator:

Public Member Functions
	LteStatsCalculator ()
	Constructor. More...

virtual	~LteStatsCalculator ()
	Destructor. More...

bool	ExistsCellIdPath (std::string path)
	Checks if there is an already stored cell id for the given path. More...

bool	ExistsImsiPath (std::string path)
	Checks if there is an already stored IMSI for the given path. More...

uint16_t	GetCellIdPath (std::string path)
	Retrieves the cell id information for the given path. More...

std::string	GetDlOutputFilename (void)
	Get the name of the file where the downlink statistics will be stored. More...

uint64_t	GetImsiPath (std::string path)
	Retrieves the imsi information for the given path. More...

std::string	GetUlOutputFilename (void)
	Get the name of the file where the uplink statistics will be stored. More...

void	SetCellIdPath (std::string path, uint16_t cellId)
	Stores the (path, cellId) pairs in a map. More...

void	SetDlOutputFilename (std::string outputFilename)
	Set the name of the file where the downlink statistics will be stored. More...

void	SetImsiPath (std::string path, uint64_t imsi)
	Stores the (path, imsi) pairs in a map. More...

void	SetUlOutputFilename (std::string outputFilename)
	Set the name of the file where the uplink statistics will be stored. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Protected Member Functions
static uint16_t	FindCellIdFromEnbMac (std::string path, uint16_t rnti)

static uint16_t	FindCellIdFromEnbRlcPath (std::string path)

static uint64_t	FindImsiForEnb (std::string path, uint16_t rnti)

static uint64_t	FindImsiForUe (std::string path, uint16_t rnti)

static uint64_t	FindImsiFromEnbMac (std::string path, uint16_t rnti)

static uint64_t	FindImsiFromEnbRlcPath (std::string path)

static uint64_t	FindImsiFromLteNetDevice (std::string path)

static uint64_t	FindImsiFromUePhy (std::string path)

Private Attributes
std::string	m_dlOutputFilename

std::map< std::string, uint16_t >	m_pathCellIdMap

std::map< std::string, uint64_t >	m_pathImsiMap

std::string	m_ulOutputFilename

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 30 of file lte-stats-calculator.h.

Constructor & Destructor Documentation

ns3::LteStatsCalculator::LteStatsCalculator ( )

Constructor.

Definition at line 34 of file lte-stats-calculator.cc.

ns3::LteStatsCalculator::~LteStatsCalculator ( )

virtual

Destructor.

Definition at line 42 of file lte-stats-calculator.cc.

Member Function Documentation

bool ns3::LteStatsCalculator::ExistsCellIdPath ( std::string path )

Checks if there is an already stored cell id for the given path.

Parameters

path	Path in the attribute system to check

Returns: true if the path exists, false otherwise

Definition at line 111 of file lte-stats-calculator.cc.

References m_pathCellIdMap.

bool ns3::LteStatsCalculator::ExistsImsiPath ( std::string path )

Checks if there is an already stored IMSI for the given path.

Parameters

path	Path in the attribute system to check

Returns: true if the path exists, false otherwise

Definition at line 85 of file lte-stats-calculator.cc.

References m_pathImsiMap.

uint16_t ns3::LteStatsCalculator::FindCellIdFromEnbMac	(	std::string	path,
		uint16_t	rnti
	)

staticprotected

Definition at line 245 of file lte-stats-calculator.cc.

References FindCellIdFromEnbRlcPath(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::MacStatsCalculator::DlSchedulingCallback(), and ns3::MacStatsCalculator::UlSchedulingCallback().

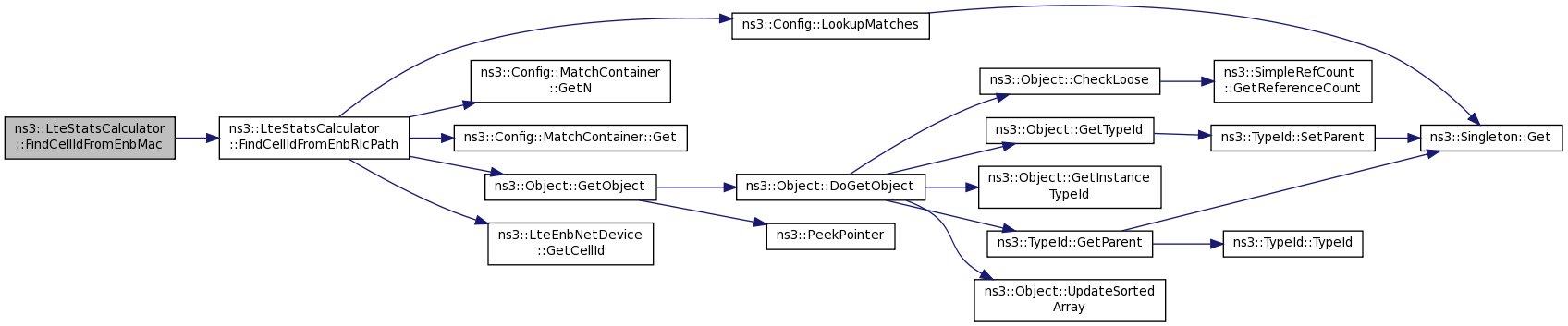

Here is the call graph for this function:

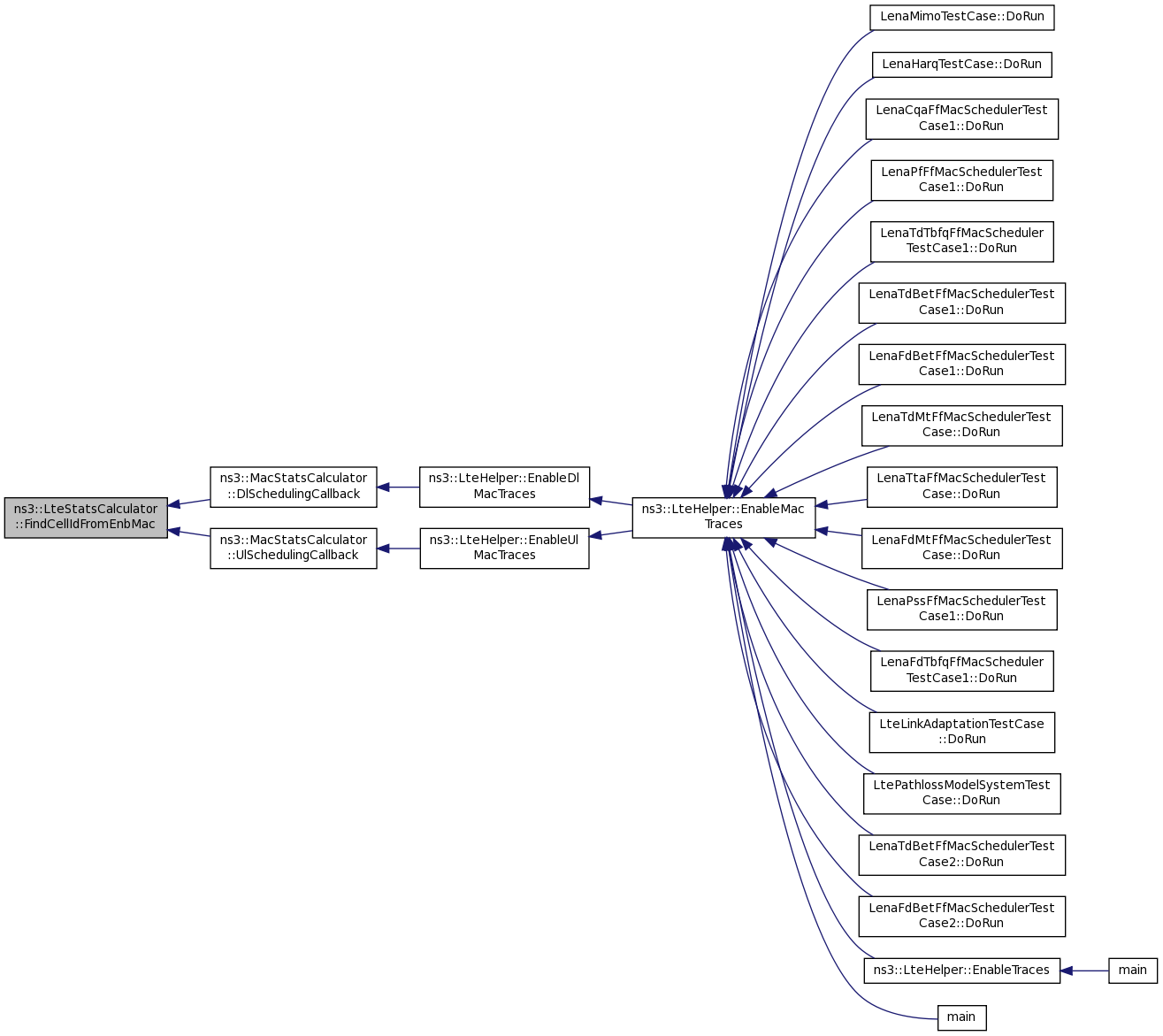

Here is the caller graph for this function:

uint16_t ns3::LteStatsCalculator::FindCellIdFromEnbRlcPath ( std::string path )

staticprotected

Definition at line 208 of file lte-stats-calculator.cc.

References ns3::Config::MatchContainer::Get(), ns3::LteEnbNetDevice::GetCellId(), ns3::Config::MatchContainer::GetN(), ns3::Object::GetObject(), ns3::Config::LookupMatches(), NS_FATAL_ERROR, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by FindCellIdFromEnbMac().

Here is the call graph for this function:

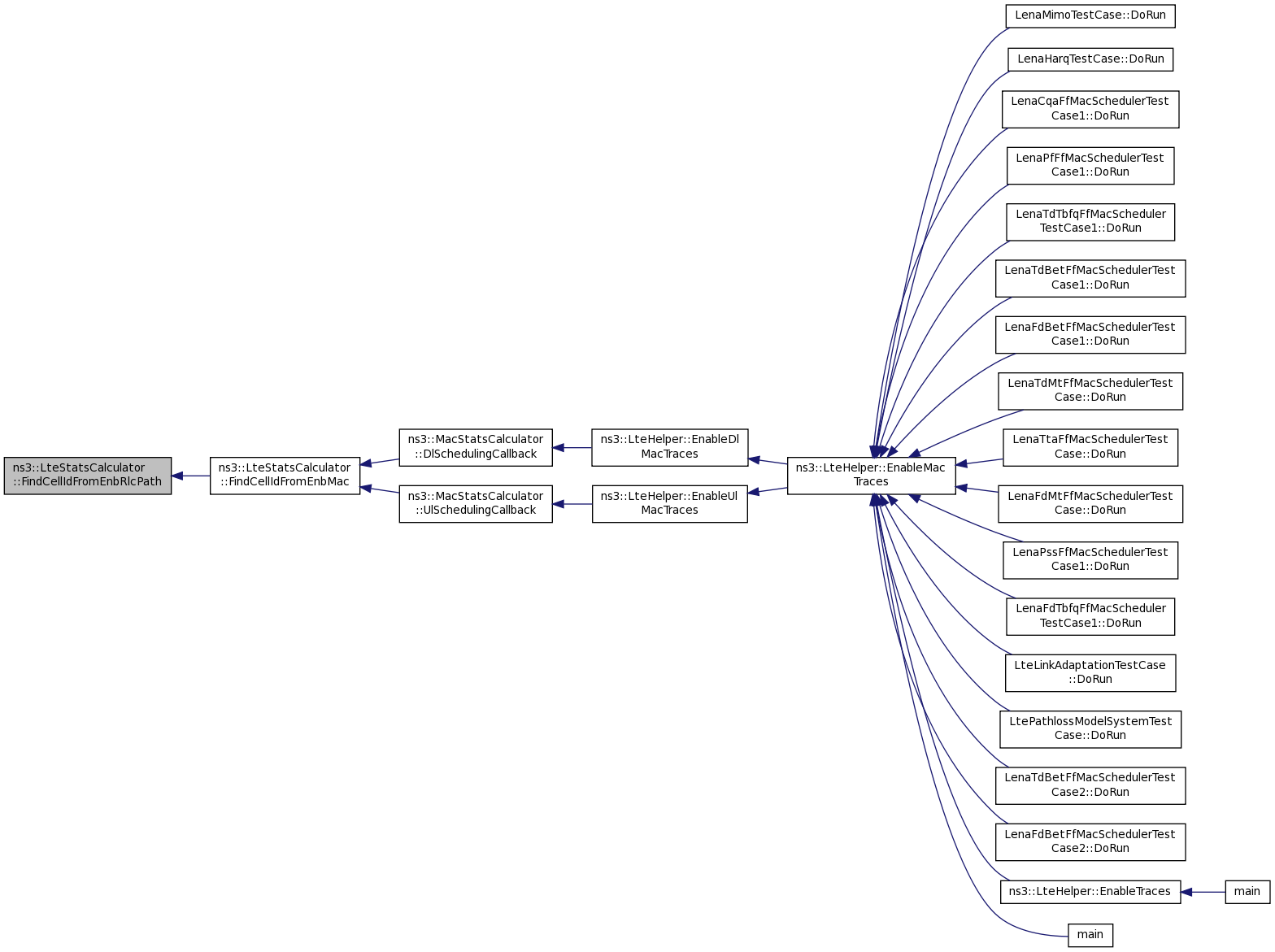

Here is the caller graph for this function:

uint64_t ns3::LteStatsCalculator::FindImsiForEnb	(	std::string	path,
		uint16_t	rnti
	)

staticprotected

Definition at line 260 of file lte-stats-calculator.cc.

References FindImsiFromEnbRlcPath(), FindImsiFromLteNetDevice(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::PhyTxStatsCalculator::DlPhyTransmissionCallback(), and ns3::PhyRxStatsCalculator::UlPhyReceptionCallback().

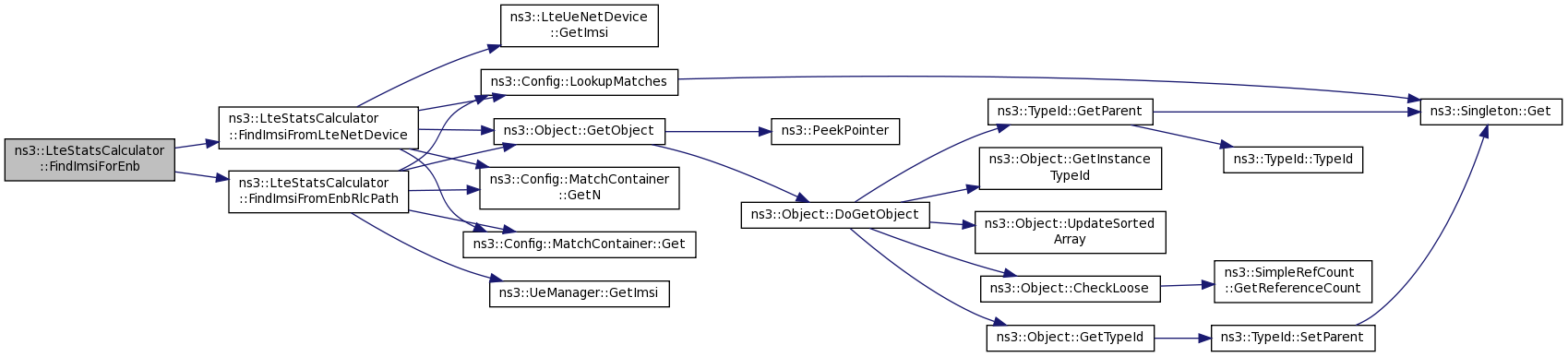

Here is the call graph for this function:

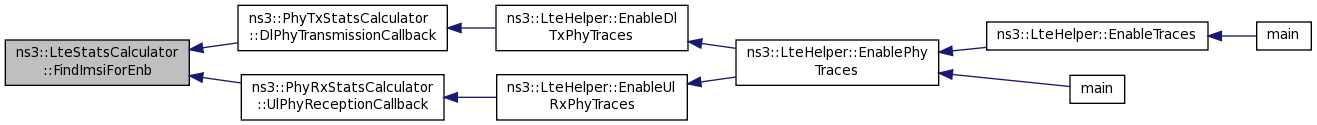

Here is the caller graph for this function:

uint64_t ns3::LteStatsCalculator::FindImsiForUe	(	std::string	path,
		uint16_t	rnti
	)

staticprotected

Definition at line 285 of file lte-stats-calculator.cc.

References FindImsiFromEnbRlcPath(), FindImsiFromLteNetDevice(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::PhyRxStatsCalculator::DlPhyReceptionCallback(), and ns3::PhyTxStatsCalculator::UlPhyTransmissionCallback().

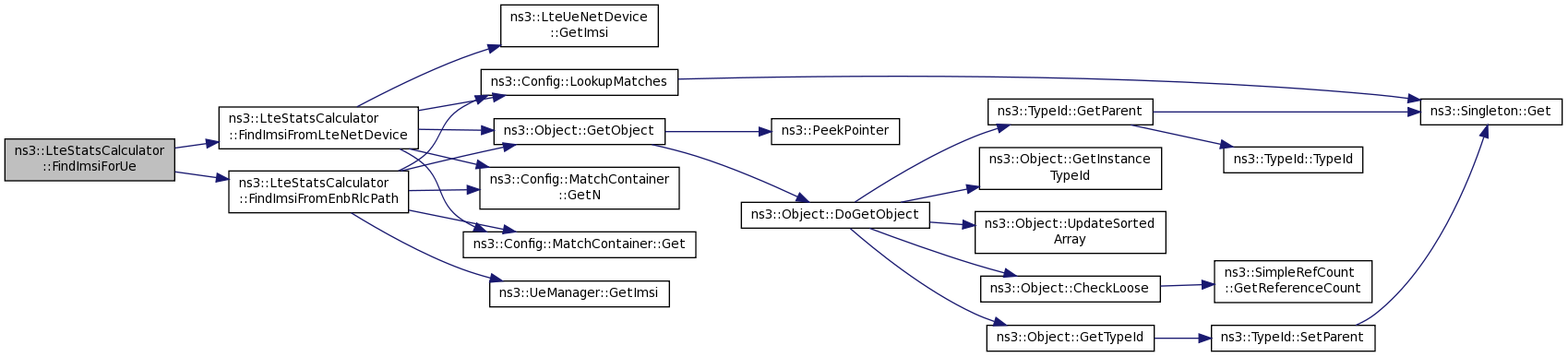

Here is the call graph for this function:

Here is the caller graph for this function:

uint64_t ns3::LteStatsCalculator::FindImsiFromEnbMac	(	std::string	path,
		uint16_t	rnti
	)

staticprotected

Definition at line 230 of file lte-stats-calculator.cc.

References FindImsiFromEnbRlcPath(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::MacStatsCalculator::DlSchedulingCallback(), ns3::PhyStatsCalculator::ReportUeSinr(), and ns3::MacStatsCalculator::UlSchedulingCallback().

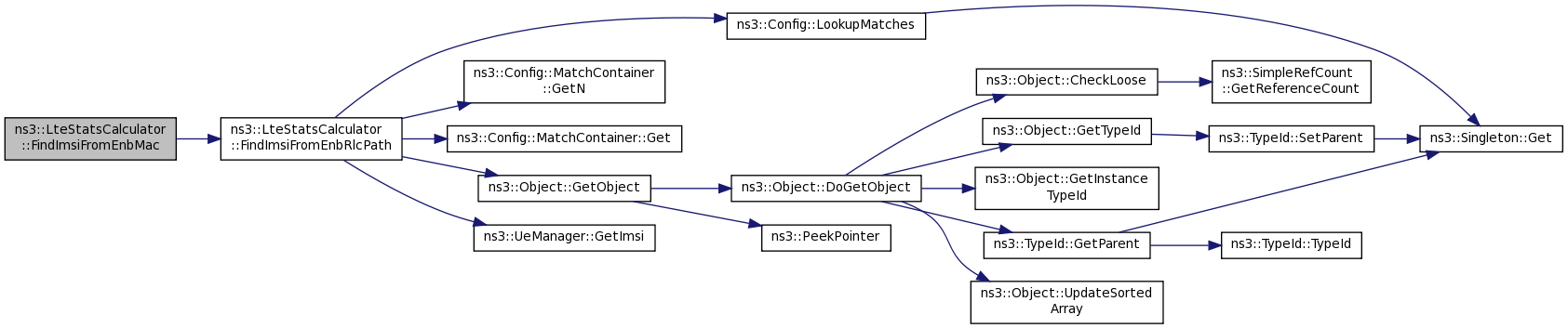

Here is the call graph for this function:

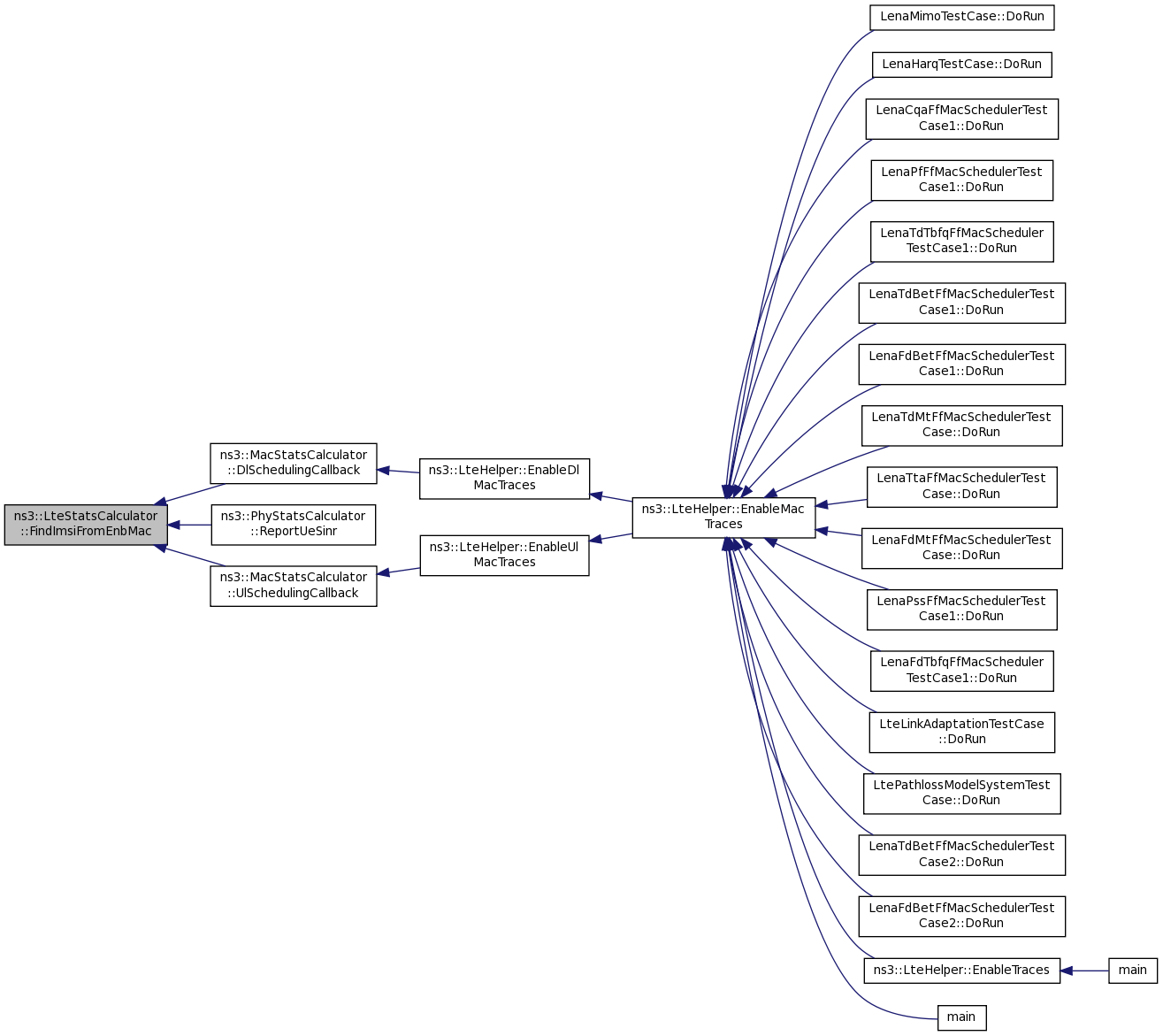

Here is the caller graph for this function:

uint64_t ns3::LteStatsCalculator::FindImsiFromEnbRlcPath ( std::string path )

staticprotected

Definition at line 138 of file lte-stats-calculator.cc.

References ns3::Config::MatchContainer::Get(), ns3::UeManager::GetImsi(), ns3::Config::MatchContainer::GetN(), ns3::Object::GetObject(), ns3::Config::LookupMatches(), NS_FATAL_ERROR, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by FindImsiForEnb(), FindImsiForUe(), and FindImsiFromEnbMac().

Here is the call graph for this function:

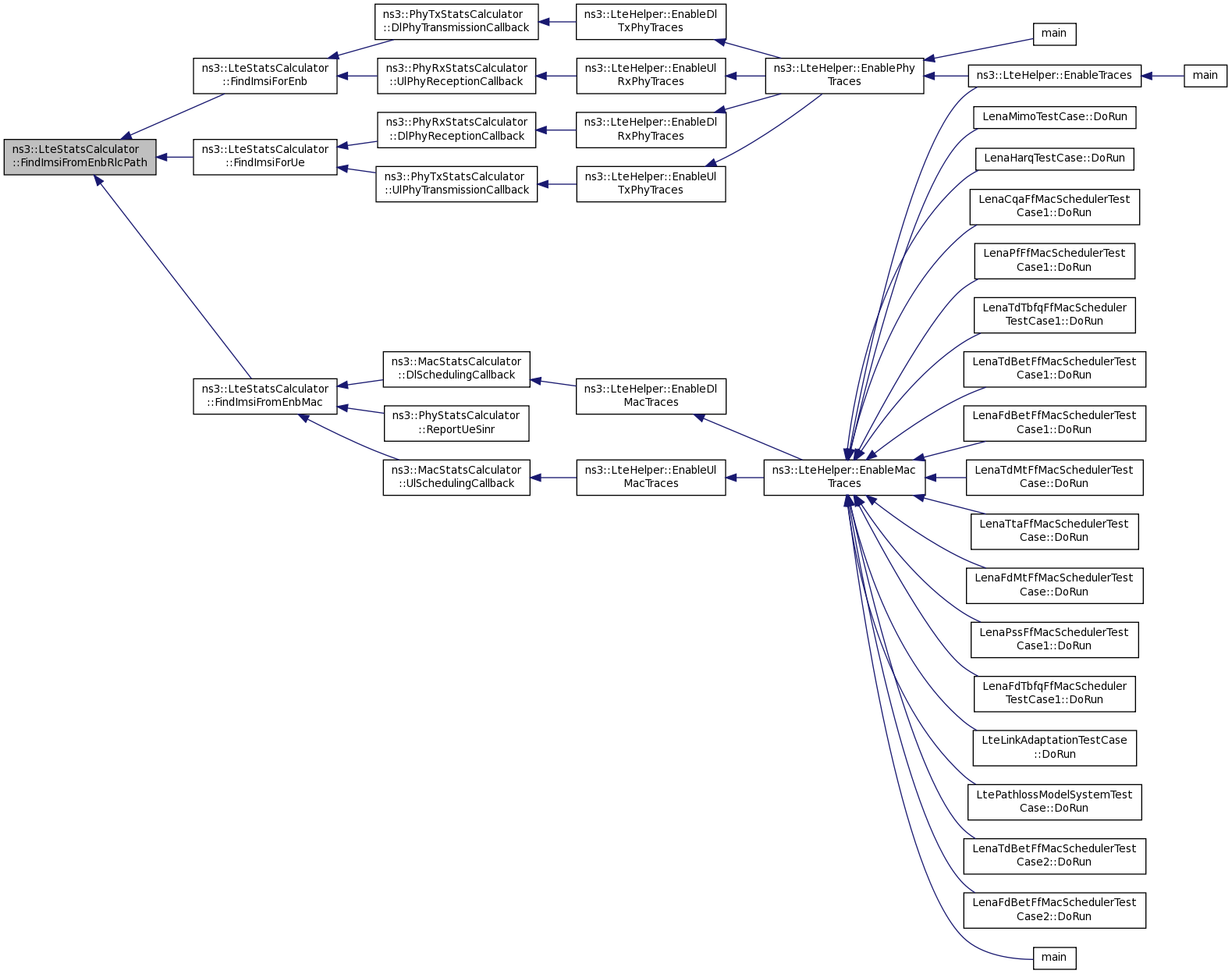

Here is the caller graph for this function:

uint64_t ns3::LteStatsCalculator::FindImsiFromLteNetDevice ( std::string path )

staticprotected

Definition at line 186 of file lte-stats-calculator.cc.

References ns3::Config::MatchContainer::Get(), ns3::LteUeNetDevice::GetImsi(), ns3::Config::MatchContainer::GetN(), ns3::Object::GetObject(), ns3::Config::LookupMatches(), NS_FATAL_ERROR, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by FindImsiForEnb(), and FindImsiForUe().

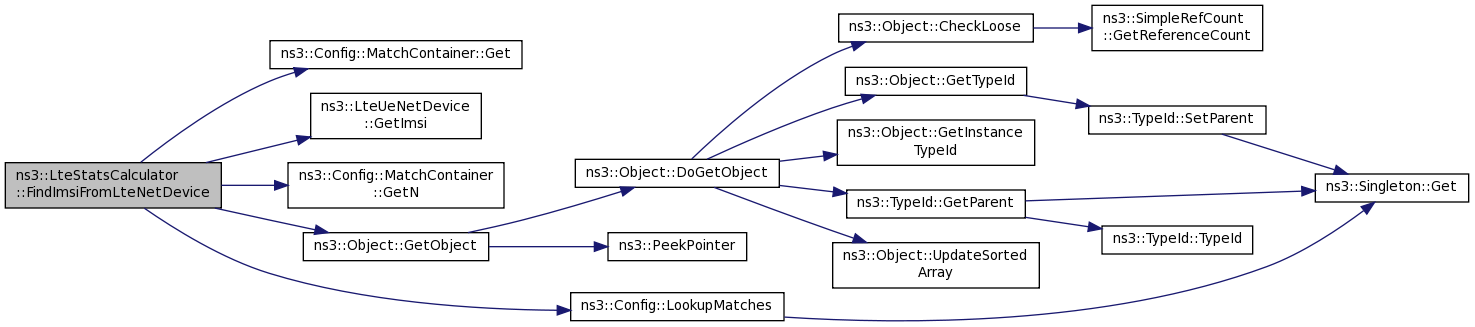

Here is the call graph for this function:

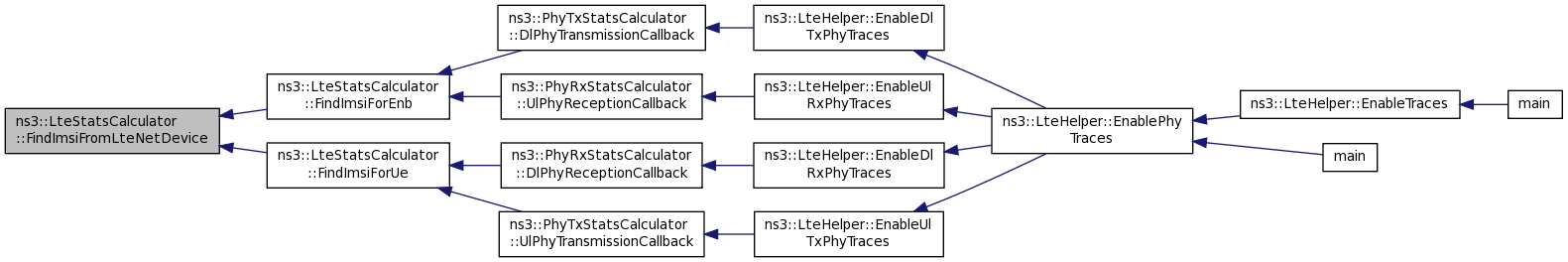

Here is the caller graph for this function:

uint64_t ns3::LteStatsCalculator::FindImsiFromUePhy ( std::string path )

staticprotected

Definition at line 161 of file lte-stats-calculator.cc.

References ns3::Config::MatchContainer::Get(), ns3::Config::MatchContainer::GetN(), ns3::Object::GetObject(), ns3::Config::LookupMatches(), NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::PhyStatsCalculator::ReportCurrentCellRsrpSinrCallback().

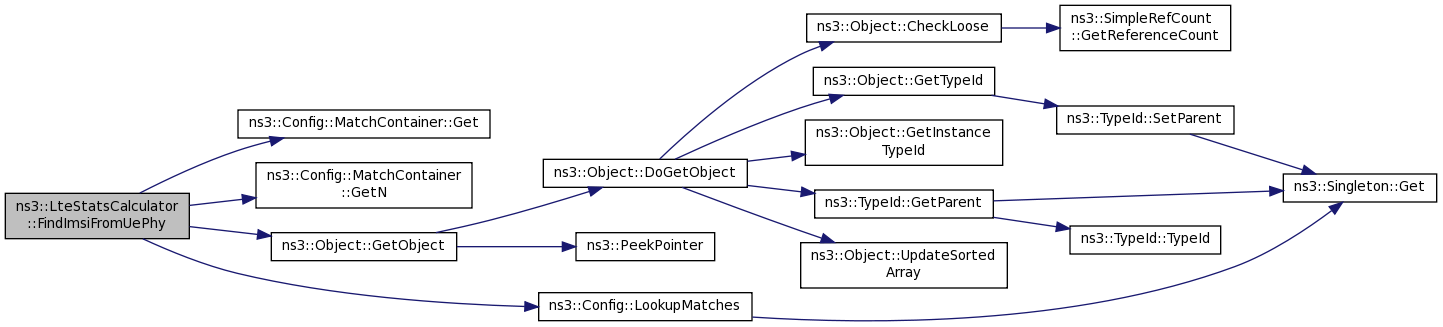

Here is the call graph for this function:

Here is the caller graph for this function:

uint16_t ns3::LteStatsCalculator::GetCellIdPath ( std::string path )

Retrieves the cell id information for the given path.

Parameters

path	Path in the attribute system to get

Returns: the cell ID associated with the given path

Definition at line 131 of file lte-stats-calculator.cc.

References m_pathCellIdMap.

std::string ns3::LteStatsCalculator::GetDlOutputFilename ( void )

Get the name of the file where the downlink statistics will be stored.

Returns: the name of the file where the downlink statistics will be stored

Definition at line 78 of file lte-stats-calculator.cc.

References m_dlOutputFilename.

Referenced by ns3::PhyTxStatsCalculator::DlPhyTransmission(), ns3::MacStatsCalculator::GetDlOutputFilename(), ns3::RadioBearerStatsCalculator::GetDlOutputFilename(), ns3::PhyRxStatsCalculator::GetDlRxOutputFilename(), and ns3::PhyTxStatsCalculator::GetDlTxOutputFilename().

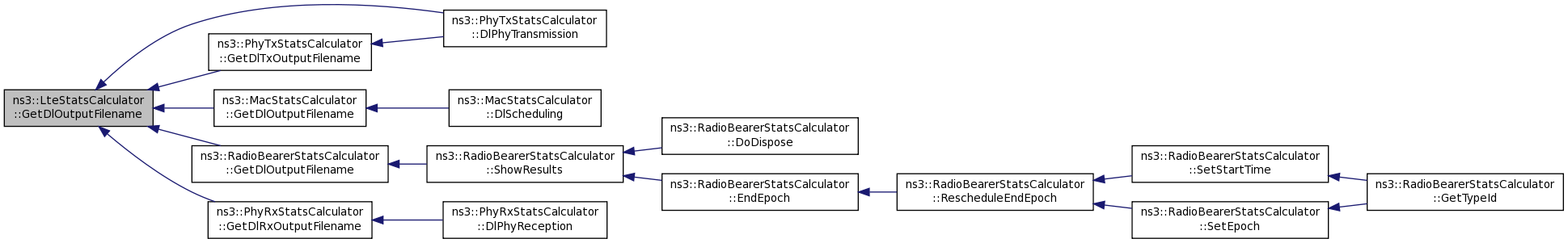

Here is the caller graph for this function:

uint64_t ns3::LteStatsCalculator::GetImsiPath ( std::string path )

Retrieves the imsi information for the given path.

Parameters

path	Path in the attribute system to get

Returns: the IMSI associated with the given path

Definition at line 105 of file lte-stats-calculator.cc.

References m_pathImsiMap.

TypeId ns3::LteStatsCalculator::GetTypeId ( void )

static

Definition at line 49 of file lte-stats-calculator.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

std::string ns3::LteStatsCalculator::GetUlOutputFilename ( void )

Get the name of the file where the uplink statistics will be stored.

Returns: the name of the file where the uplink statistics will be stored

Definition at line 66 of file lte-stats-calculator.cc.

References m_ulOutputFilename.

Referenced by ns3::MacStatsCalculator::GetUlOutputFilename(), ns3::RadioBearerStatsCalculator::GetUlOutputFilename(), ns3::PhyRxStatsCalculator::GetUlRxOutputFilename(), and ns3::PhyTxStatsCalculator::GetUlTxOutputFilename().

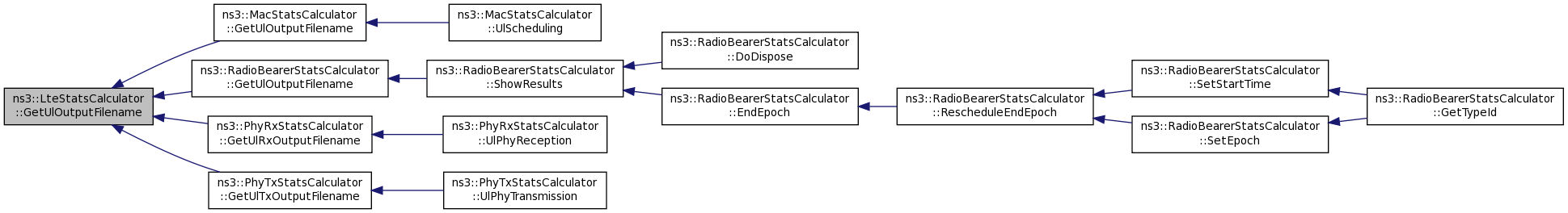

Here is the caller graph for this function:

void ns3::LteStatsCalculator::SetCellIdPath	(	std::string	path,
		uint16_t	cellId
	)

Stores the (path, cellId) pairs in a map.

Parameters

path	Path in the attribute system to store
cellId	cell id value to store

Definition at line 124 of file lte-stats-calculator.cc.

References m_pathCellIdMap, and NS_LOG_FUNCTION.

void ns3::LteStatsCalculator::SetDlOutputFilename ( std::string outputFilename )

Set the name of the file where the downlink statistics will be stored.

Parameters

outputFilename string with the name of the file

Definition at line 72 of file lte-stats-calculator.cc.

References m_dlOutputFilename.

Referenced by ns3::RadioBearerStatsCalculator::GetTypeId(), ns3::MacStatsCalculator::SetDlOutputFilename(), ns3::PhyRxStatsCalculator::SetDlRxOutputFilename(), and ns3::PhyTxStatsCalculator::SetDlTxOutputFilename().

Here is the caller graph for this function:

void ns3::LteStatsCalculator::SetImsiPath	(	std::string	path,
		uint64_t	imsi
	)

Stores the (path, imsi) pairs in a map.

Parameters

path	Path in the attribute system to store
imsi	IMSI value to store

Definition at line 98 of file lte-stats-calculator.cc.

References m_pathImsiMap, and NS_LOG_FUNCTION.

void ns3::LteStatsCalculator::SetUlOutputFilename ( std::string outputFilename )

Set the name of the file where the uplink statistics will be stored.

Parameters

outputFilename string with the name of the file

Definition at line 60 of file lte-stats-calculator.cc.

References m_ulOutputFilename.

Referenced by ns3::RadioBearerStatsCalculator::GetTypeId(), ns3::MacStatsCalculator::SetUlOutputFilename(), ns3::PhyRxStatsCalculator::SetUlRxOutputFilename(), and ns3::PhyTxStatsCalculator::SetUlTxOutputFilename().

Here is the caller graph for this function:

Member Data Documentation

std::string ns3::LteStatsCalculator::m_dlOutputFilename

private

Definition at line 129 of file lte-stats-calculator.h.

Referenced by GetDlOutputFilename(), and SetDlOutputFilename().

std::map<std::string, uint16_t> ns3::LteStatsCalculator::m_pathCellIdMap

private

Definition at line 127 of file lte-stats-calculator.h.

Referenced by ExistsCellIdPath(), GetCellIdPath(), and SetCellIdPath().

std::map<std::string, uint64_t> ns3::LteStatsCalculator::m_pathImsiMap

private

Definition at line 126 of file lte-stats-calculator.h.

Referenced by ExistsImsiPath(), GetImsiPath(), and SetImsiPath().

std::string ns3::LteStatsCalculator::m_ulOutputFilename

private

Definition at line 130 of file lte-stats-calculator.h.

Referenced by GetUlOutputFilename(), and SetUlOutputFilename().

The documentation for this class was generated from the following files:

src/lte/helper/lte-stats-calculator.h
src/lte/helper/lte-stats-calculator.cc

Public Member Functions

Static Public Member Functions

Static Protected Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
