ns3::LteTestMac Class Reference

This class implements a testing loopback MAC layer. More...

#include <lte-test-entities.h>

Inheritance diagram for ns3::LteTestMac:

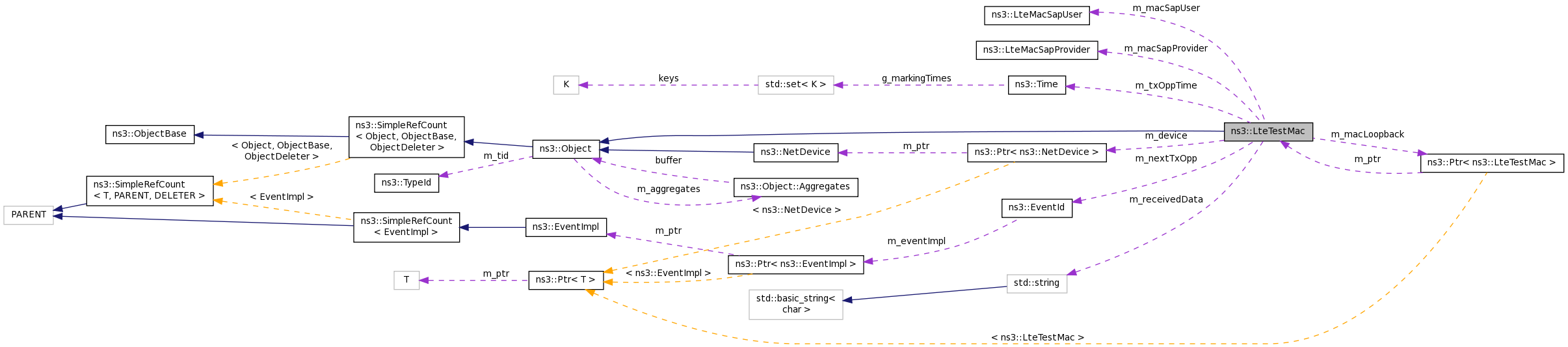

Collaboration diagram for ns3::LteTestMac:

Public Types
enum	RlcHeaderType_t { UM_RLC_HEADER = 0, AM_RLC_HEADER = 1 }
enum	TxOpportunityMode_t { MANUAL_MODE = 0, AUTOMATIC_MODE = 1, RANDOM_MODE = 2 }

Public Member Functions
	LteTestMac (void)
virtual	~LteTestMac (void)
virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...
std::string	GetDataReceived (void)
LteMacSapProvider *	GetLteMacSapProvider (void)
	Get the MAC SAP provider. More...
uint32_t	GetRxBytes (void)
uint32_t	GetRxPdus (void)
uint32_t	GetTxBytes (void)
uint32_t	GetTxPdus (void)
bool	Receive (Ptr< NetDevice > nd, Ptr< const Packet > p, uint16_t protocol, const Address &addr)
void	SendTxOpportunity (Time, uint32_t)
void	SetDevice (Ptr< NetDevice > device)
void	SetLteMacLoopback (Ptr< LteTestMac > s)
	Set the other side of the MAC Loopback. More...
void	SetLteMacSapUser (LteMacSapUser *s)
	Set the MAC SAP user. More...
void	SetPdcpHeaderPresent (bool present)
void	SetRlcHeaderType (uint8_t rlcHeaderType)
void	SetTxOpportunityMode (uint8_t mode)
void	SetTxOppSize (uint32_t txOppSize)
void	SetTxOppTime (Time txOppTime)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...
Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	DoReportBufferStatus (LteMacSapProvider::ReportBufferStatusParameters)
void	DoTransmitPdu (LteMacSapProvider::TransmitPduParameters)
	MAC SAP. More...

Private Attributes
Ptr< NetDevice >	m_device
Ptr< LteTestMac >	m_macLoopback
LteMacSapProvider *	m_macSapProvider
LteMacSapUser *	m_macSapUser
EventId	m_nextTxOpp
bool	m_pdcpHeaderPresent
std::string	m_receivedData
uint8_t	m_rlcHeaderType
uint32_t	m_rxBytes
uint32_t	m_rxPdus
uint32_t	m_txBytes
uint8_t	m_txOpportunityMode
uint32_t	m_txOppSize
Time	m_txOppTime
uint32_t	m_txPdus

Friends
class	EnbMacMemberLteMacSapProvider< LteTestMac >

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...
virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

This class implements a testing loopback MAC layer.

Definition at line 154 of file lte-test-entities.h.

Member Enumeration Documentation

enum ns3::LteTestMac::RlcHeaderType_t

Enumerator
UM_RLC_HEADER
AM_RLC_HEADER

Definition at line 203 of file lte-test-entities.h.

enum ns3::LteTestMac::TxOpportunityMode_t

Enumerator
MANUAL_MODE
AUTOMATIC_MODE
RANDOM_MODE

Definition at line 213 of file lte-test-entities.h.

Constructor & Destructor Documentation

ns3::LteTestMac::LteTestMac

(

void

)

Definition at line 346 of file lte-test-entities.cc.

References m_device, m_macLoopback, m_macSapProvider, m_macSapUser, m_pdcpHeaderPresent, m_rlcHeaderType, m_rxBytes, m_rxPdus, m_txBytes, m_txOpportunityMode, m_txOppSize, m_txOppTime, m_txPdus, MANUAL_MODE, NS_LOG_FUNCTION, ns3::Seconds(), and UM_RLC_HEADER.

Here is the call graph for this function:

ns3::LteTestMac::~LteTestMac ( void  )

virtual

Definition at line 370 of file lte-test-entities.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteTestMac::DoDispose ( void  )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 376 of file lte-test-entities.cc.

References m_device, m_macSapProvider, and NS_LOG_FUNCTION.

void ns3::LteTestMac::DoReportBufferStatus ( LteMacSapProvider::ReportBufferStatusParameters  params )

private

Definition at line 566 of file lte-test-entities.cc.

References AUTOMATIC_MODE, m_macSapUser, m_txOpportunityMode, ns3::LteMacSapUser::NotifyTxOpportunity(), NS_LOG_FUNCTION, ns3::LteMacSapProvider::ReportBufferStatusParameters::retxQueueSize, ns3::Simulator::Schedule(), ns3::Seconds(), ns3::LteMacSapProvider::ReportBufferStatusParameters::statusPduSize, and ns3::LteMacSapProvider::ReportBufferStatusParameters::txQueueSize.

Here is the call graph for this function:

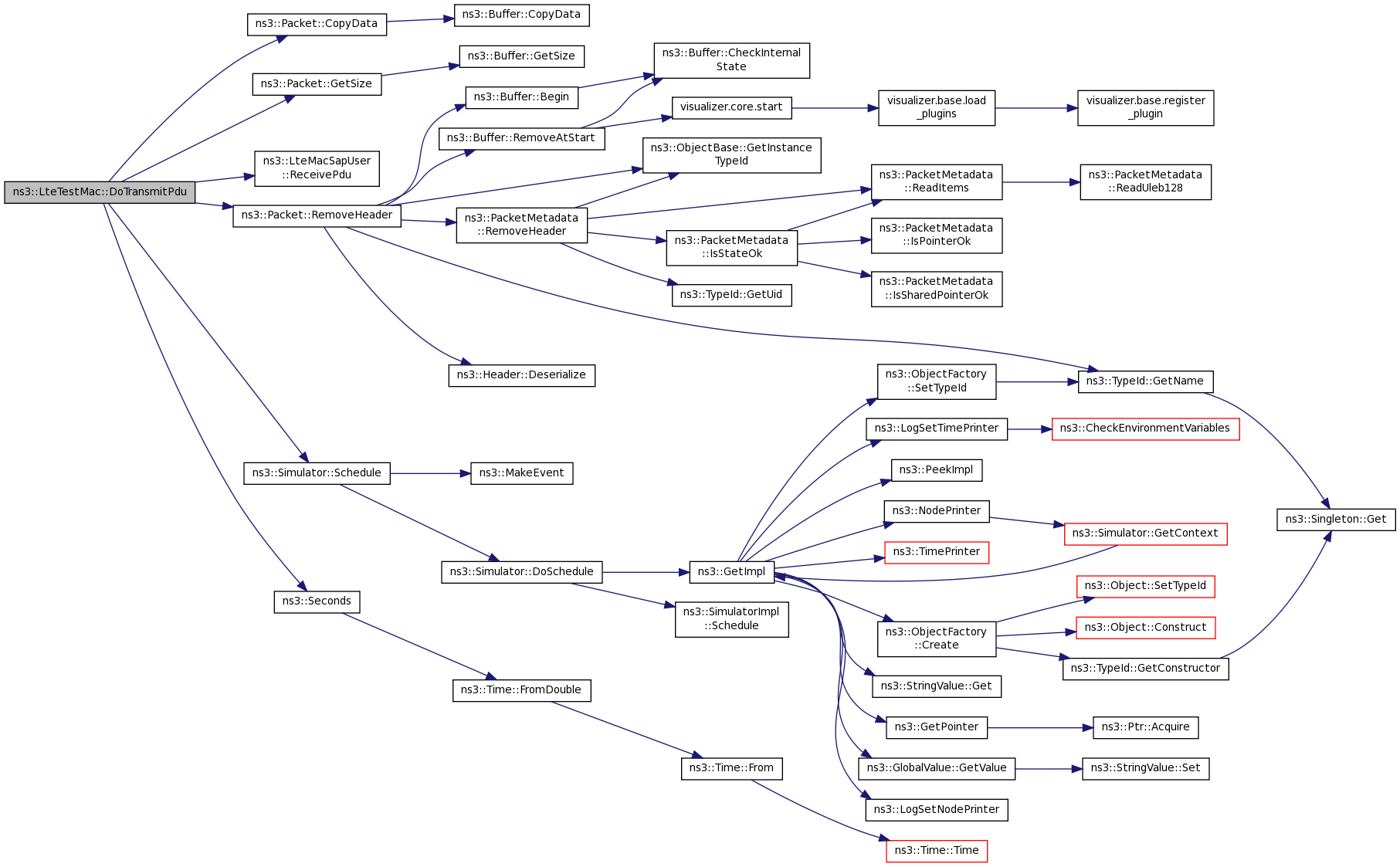

void ns3::LteTestMac::DoTransmitPdu ( LteMacSapProvider::TransmitPduParameters  params )

private

MAC SAP.

Definition at line 512 of file lte-test-entities.cc.

References AM_RLC_HEADER, ns3::Packet::CopyData(), ns3::Packet::GetSize(), m_device, m_macLoopback, m_macSapUser, m_pdcpHeaderPresent, m_receivedData, m_rlcHeaderType, m_txBytes, m_txPdus, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::LteMacSapProvider::TransmitPduParameters::pdu, ns3::LteMacSapUser::ReceivePdu(), ns3::Packet::RemoveHeader(), ns3::Simulator::Schedule(), and ns3::Seconds().

Here is the call graph for this function:

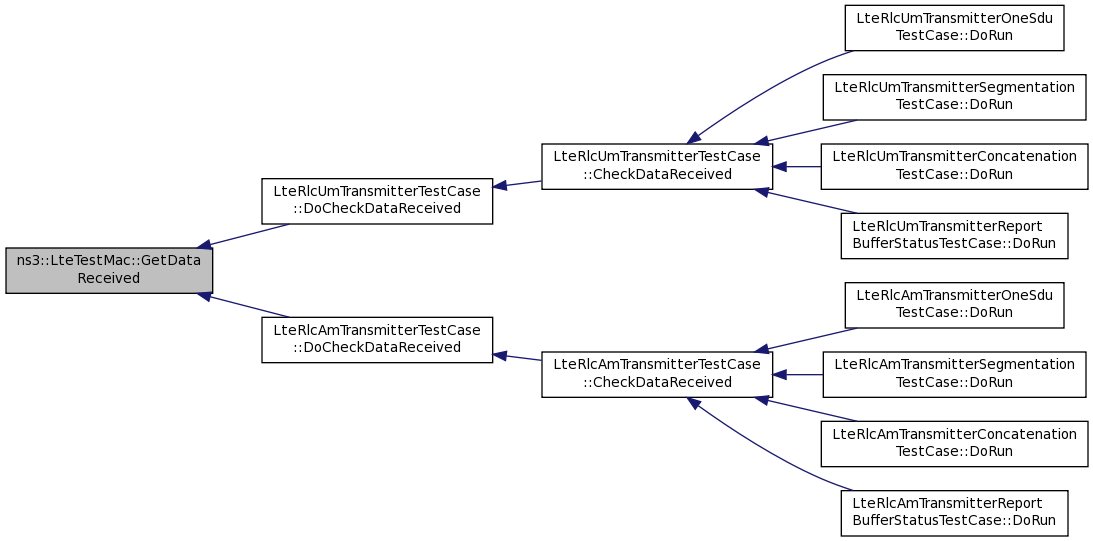

std::string ns3::LteTestMac::GetDataReceived

(

void

)

Definition at line 413 of file lte-test-entities.cc.

References m_receivedData, and NS_LOG_FUNCTION.

Referenced by LteRlcUmTransmitterTestCase::DoCheckDataReceived(), and LteRlcAmTransmitterTestCase::DoCheckDataReceived().

Here is the caller graph for this function:

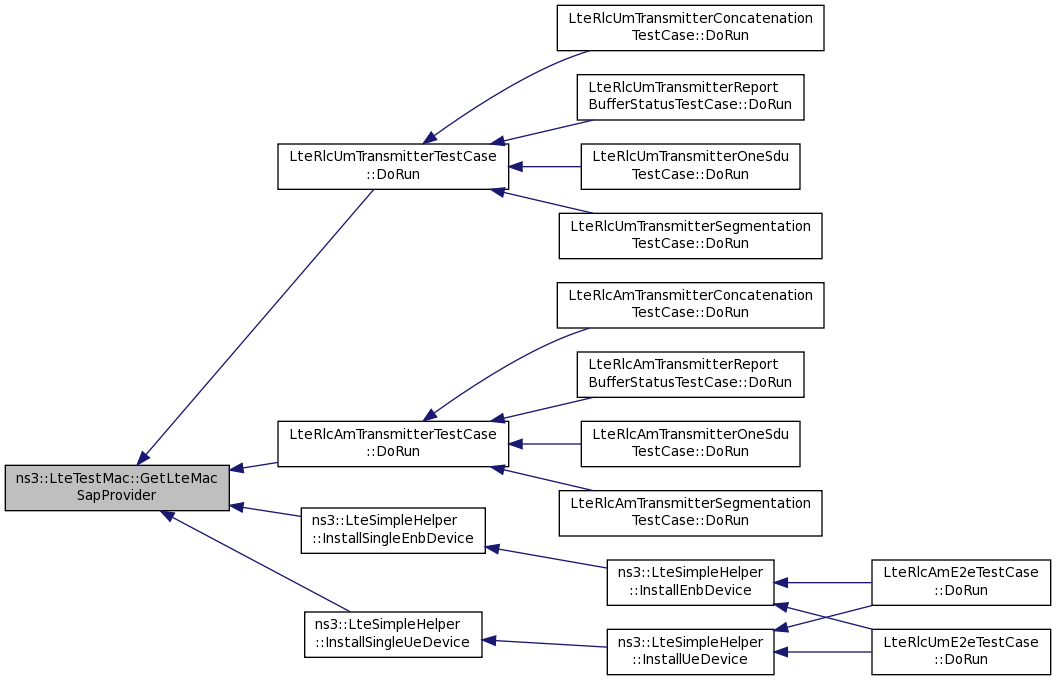

LteMacSapProvider * ns3::LteTestMac::GetLteMacSapProvider

(

void

)

Get the MAC SAP provider.

Returns

a pointer to the SAP provider of the MAC

Definition at line 401 of file lte-test-entities.cc.

References m_macSapProvider.

Referenced by LteRlcUmTransmitterTestCase::DoRun(), LteRlcAmTransmitterTestCase::DoRun(), ns3::LteSimpleHelper::InstallSingleEnbDevice(), and ns3::LteSimpleHelper::InstallSingleUeDevice().

Here is the caller graph for this function:

uint32_t ns3::LteTestMac::GetRxBytes

(

void

)

Definition at line 442 of file lte-test-entities.cc.

References m_rxBytes, and NS_LOG_FUNCTION.

uint32_t ns3::LteTestMac::GetRxPdus

(

void

)

Definition at line 435 of file lte-test-entities.cc.

References m_rxPdus, and NS_LOG_FUNCTION.

uint32_t ns3::LteTestMac::GetTxBytes

(

void

)

Definition at line 428 of file lte-test-entities.cc.

References m_txBytes, and NS_LOG_FUNCTION.

uint32_t ns3::LteTestMac::GetTxPdus

(

void

)

Definition at line 421 of file lte-test-entities.cc.

References m_txPdus, and NS_LOG_FUNCTION.

TypeId ns3::LteTestMac::GetTypeId ( void  )

static

Definition at line 336 of file lte-test-entities.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

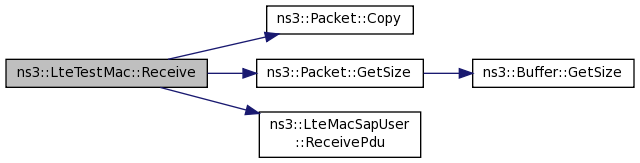

bool ns3::LteTestMac::Receive	(	Ptr< NetDevice >	nd,
		Ptr< const Packet >	p,
		uint16_t	protocol,
		const Address &	addr
	)

Definition at line 592 of file lte-test-entities.cc.

References ns3::Packet::Copy(), ns3::Packet::GetSize(), m_macSapUser, m_rxBytes, m_rxPdus, NS_LOG_FUNCTION, and ns3::LteMacSapUser::ReceivePdu().

Referenced by ns3::LteSimpleHelper::InstallSingleEnbDevice(), and ns3::LteSimpleHelper::InstallSingleUeDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

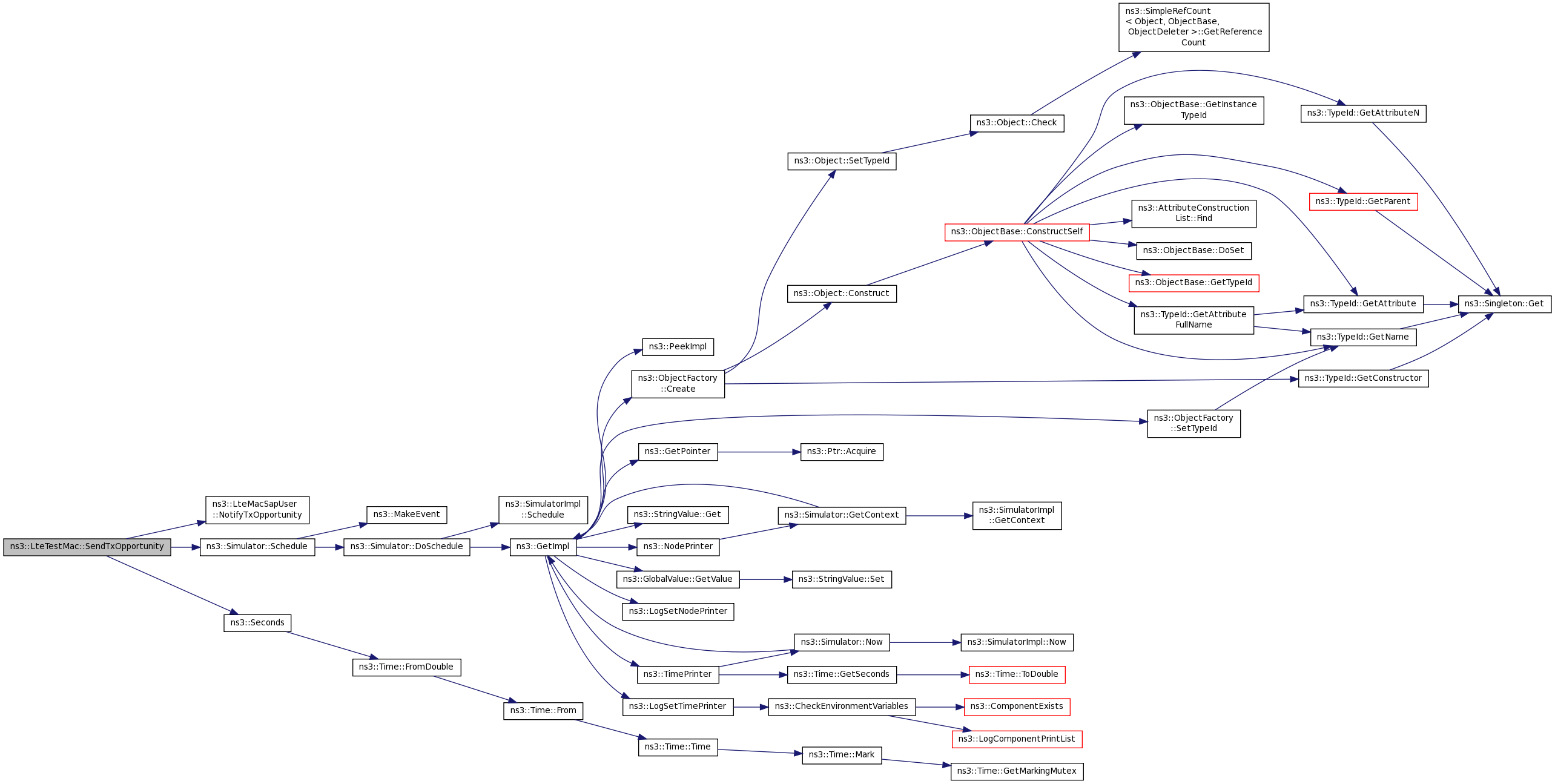

void ns3::LteTestMac::SendTxOpportunity	(	Time	time,
		uint32_t	bytes
	)

Definition at line 450 of file lte-test-entities.cc.

References m_macSapUser, m_txOpportunityMode, m_txOppSize, m_txOppTime, ns3::LteMacSapUser::NotifyTxOpportunity(), NS_LOG_FUNCTION, RANDOM_MODE, ns3::Simulator::Schedule(), and ns3::Seconds().

Referenced by LteRlcUmTransmitterOneSduTestCase::DoRun(), LteRlcAmTransmitterOneSduTestCase::DoRun(), LteRlcUmTransmitterSegmentationTestCase::DoRun(), LteRlcAmTransmitterSegmentationTestCase::DoRun(), LteRlcUmTransmitterConcatenationTestCase::DoRun(), LteRlcAmTransmitterConcatenationTestCase::DoRun(), LteRlcUmTransmitterReportBufferStatusTestCase::DoRun(), LteRlcAmTransmitterReportBufferStatusTestCase::DoRun(), and SetTxOpportunityMode().

Here is the call graph for this function:

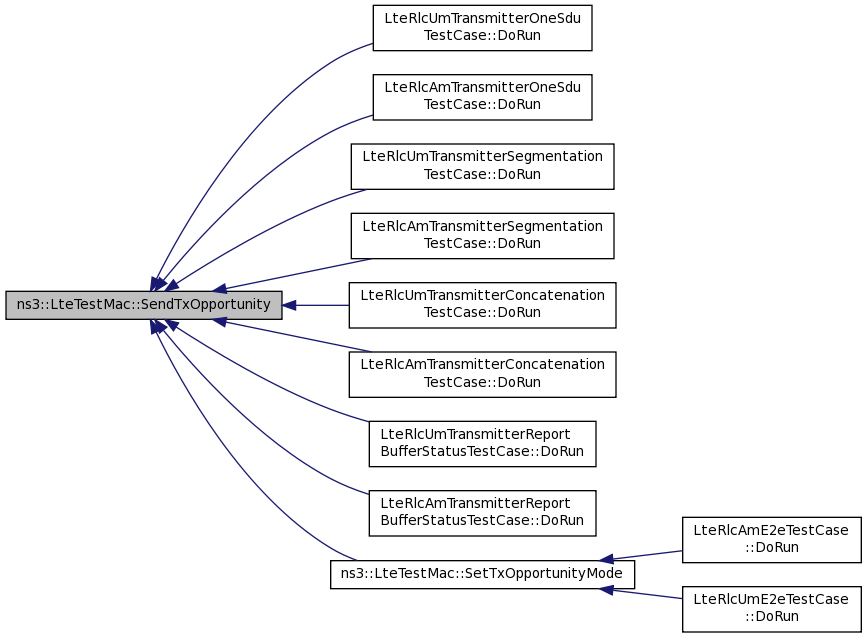

Here is the caller graph for this function:

void ns3::LteTestMac::SetDevice

(

Ptr< NetDevice >

device

)

Definition at line 389 of file lte-test-entities.cc.

References m_device.

Referenced by ns3::LteSimpleHelper::InstallSingleEnbDevice(), and ns3::LteSimpleHelper::InstallSingleUeDevice().

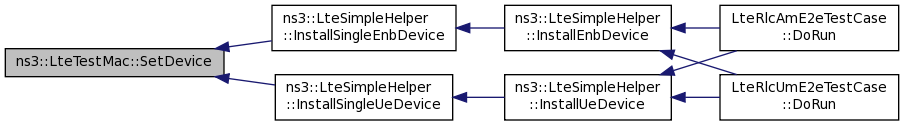

Here is the caller graph for this function:

void ns3::LteTestMac::SetLteMacLoopback

(

Ptr< LteTestMac >

s

)

Set the other side of the MAC Loopback.

Parameters

s	a pointer to the other side of the MAC loopback

Definition at line 407 of file lte-test-entities.cc.

References m_macLoopback, and s.

void ns3::LteTestMac::SetLteMacSapUser

(

LteMacSapUser *

s

)

Set the MAC SAP user.

Parameters

s	a pointer to the MAC SAP user

Definition at line 395 of file lte-test-entities.cc.

References m_macSapUser, and s.

Referenced by LteRlcUmTransmitterTestCase::DoRun(), LteRlcAmTransmitterTestCase::DoRun(), ns3::LteSimpleHelper::InstallSingleEnbDevice(), and ns3::LteSimpleHelper::InstallSingleUeDevice().

Here is the caller graph for this function:

void ns3::LteTestMac::SetPdcpHeaderPresent

(

bool

present

)

Definition at line 464 of file lte-test-entities.cc.

References m_pdcpHeaderPresent, and NS_LOG_FUNCTION.

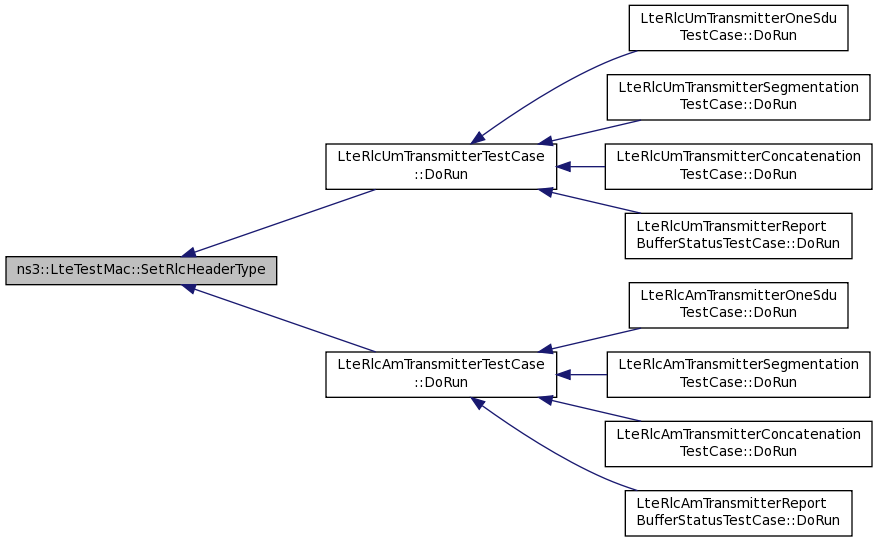

void ns3::LteTestMac::SetRlcHeaderType

(

uint8_t

rlcHeaderType

)

Definition at line 471 of file lte-test-entities.cc.

References m_rlcHeaderType, and NS_LOG_FUNCTION.

Referenced by LteRlcUmTransmitterTestCase::DoRun(), and LteRlcAmTransmitterTestCase::DoRun().

Here is the caller graph for this function:

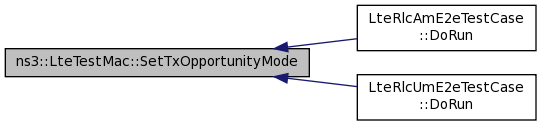

void ns3::LteTestMac::SetTxOpportunityMode

(

uint8_t

mode

)

Definition at line 478 of file lte-test-entities.cc.

References m_txOpportunityMode, m_txOppSize, m_txOppTime, NS_LOG_FUNCTION, RANDOM_MODE, ns3::Seconds(), and SendTxOpportunity().

Referenced by LteRlcAmE2eTestCase::DoRun(), and LteRlcUmE2eTestCase::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteTestMac::SetTxOppSize

(

uint32_t

txOppSize

)

Definition at line 500 of file lte-test-entities.cc.

References m_txOppSize, and NS_LOG_FUNCTION.

Referenced by LteRlcAmE2eTestCase::DoRun(), and LteRlcUmE2eTestCase::DoRun().

Here is the caller graph for this function:

void ns3::LteTestMac::SetTxOppTime

(

Time

txOppTime

)

Definition at line 493 of file lte-test-entities.cc.

References m_txOppTime, and NS_LOG_FUNCTION.

Referenced by LteRlcAmE2eTestCase::DoRun(), and LteRlcUmE2eTestCase::DoRun().

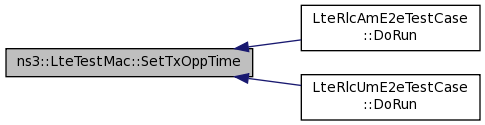

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class EnbMacMemberLteMacSapProvider< LteTestMac >

friend

Definition at line 157 of file lte-test-entities.h.

Member Data Documentation

Ptr<NetDevice> ns3::LteTestMac::m_device

private

Definition at line 243 of file lte-test-entities.h.

Referenced by DoDispose(), DoTransmitPdu(), LteTestMac(), and SetDevice().

Ptr<LteTestMac> ns3::LteTestMac::m_macLoopback

private

Definition at line 235 of file lte-test-entities.h.

Referenced by DoTransmitPdu(), LteTestMac(), and SetLteMacLoopback().

LteMacSapProvider* ns3::LteTestMac::m_macSapProvider

private

Definition at line 233 of file lte-test-entities.h.

Referenced by DoDispose(), GetLteMacSapProvider(), and LteTestMac().

LteMacSapUser* ns3::LteTestMac::m_macSapUser

private

Definition at line 234 of file lte-test-entities.h.

Referenced by DoReportBufferStatus(), DoTransmitPdu(), LteTestMac(), Receive(), SendTxOpportunity(), and SetLteMacSapUser().

EventId ns3::LteTestMac::m_nextTxOpp

private

Definition at line 246 of file lte-test-entities.h.

bool ns3::LteTestMac::m_pdcpHeaderPresent

private

Definition at line 240 of file lte-test-entities.h.

Referenced by DoTransmitPdu(), LteTestMac(), and SetPdcpHeaderPresent().

std::string ns3::LteTestMac::m_receivedData

private

Definition at line 237 of file lte-test-entities.h.

Referenced by DoTransmitPdu(), and GetDataReceived().

uint8_t ns3::LteTestMac::m_rlcHeaderType

private

Definition at line 239 of file lte-test-entities.h.

Referenced by DoTransmitPdu(), LteTestMac(), and SetRlcHeaderType().

uint32_t ns3::LteTestMac::m_rxBytes

private

Definition at line 254 of file lte-test-entities.h.

Referenced by GetRxBytes(), LteTestMac(), and Receive().

uint32_t ns3::LteTestMac::m_rxPdus

private

Definition at line 253 of file lte-test-entities.h.

Referenced by GetRxPdus(), LteTestMac(), and Receive().

uint32_t ns3::LteTestMac::m_txBytes

private

Definition at line 252 of file lte-test-entities.h.

Referenced by DoTransmitPdu(), GetTxBytes(), and LteTestMac().

uint8_t ns3::LteTestMac::m_txOpportunityMode

private

Definition at line 241 of file lte-test-entities.h.

Referenced by DoReportBufferStatus(), LteTestMac(), SendTxOpportunity(), and SetTxOpportunityMode().

uint32_t ns3::LteTestMac::m_txOppSize

private

Definition at line 248 of file lte-test-entities.h.

Referenced by LteTestMac(), SendTxOpportunity(), SetTxOpportunityMode(), and SetTxOppSize().

Time ns3::LteTestMac::m_txOppTime

private

Definition at line 247 of file lte-test-entities.h.

Referenced by LteTestMac(), SendTxOpportunity(), SetTxOpportunityMode(), and SetTxOppTime().

uint32_t ns3::LteTestMac::m_txPdus

private

Definition at line 251 of file lte-test-entities.h.

Referenced by DoTransmitPdu(), GetTxPdus(), and LteTestMac().

---

The documentation for this class was generated from the following files:

• src/lte/test/lte-test-entities.h
• src/lte/test/lte-test-entities.cc
