ns3::LteUePowerControl Class Reference

This class realizes Uplink Power Control functionality. More...

#include <lte-ue-power-control.h>

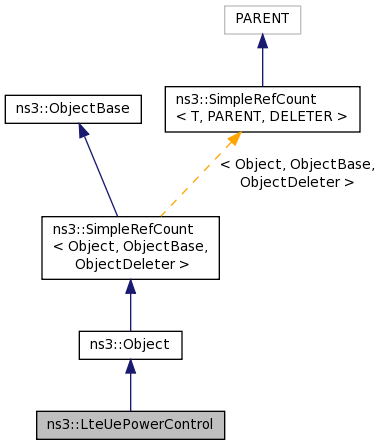

+ Inheritance diagram for ns3::LteUePowerControl:

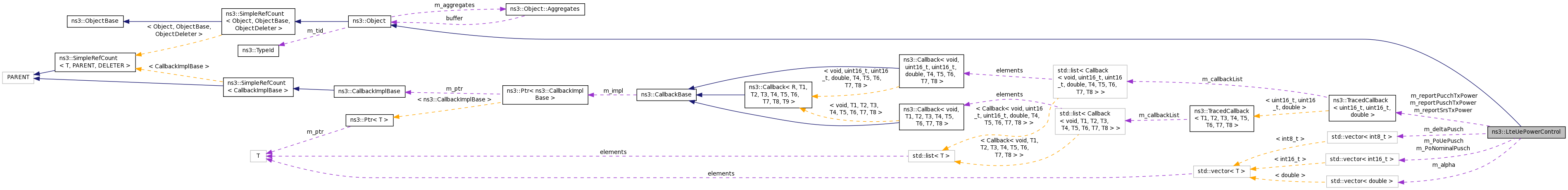

+ Collaboration diagram for ns3::LteUePowerControl:

Public Member Functions

 LteUePowerControl ()

virtual ~LteUePowerControl ()

void CalculatePucchTxPower ()

void CalculatePuschTxPower ()

void CalculateSrsTxPower ()

void ConfigureReferenceSignalPower (int8_t referenceSignalPower)

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

double GetPcmax ()

double GetPucchTxPower (std::vector< int > rb)

double GetPuschTxPower (std::vector< int > rb)

double GetSrsTxPower (std::vector< int > rb)

void ReportTpc (uint8_t tpc)

void SetAlpha (double value)

void SetCellId (uint16_t cellId)

void SetPcmax (double value)

void SetPoNominalPusch (int16_t value)

void SetPoUePusch (int16_t value)

void SetRnti (uint16_t rnti)

void SetRsrp (double value)

void SetTxPower (double value)

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCount & operator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

void SetSubChannelMask (std::vector< int > mask)


Private Attributes

bool m_accumulationEnabled

std::vector< double > m_alpha

uint16_t m_cellId

bool m_closedLoop

double m_curPucchTxPower

double m_curPuschTxPower

double m_curSrsTxPower

std::vector< int8_t > m_deltaPusch

double m_deltaTF

double m_fc

uint16_t m_M_Pusch

double m_pathLoss

double m_Pcmax

double m_Pcmin

std::vector< int16_t > m_PoNominalPusch

std::vector< int16_t > m_PoUePusch

int16_t m_PsrsOffset

double m_referenceSignalPower

TracedCallback< uint16_t,
uint16_t, double > 		m_reportPucchTxPower

TracedCallback< uint16_t,
uint16_t, double > 		m_reportPuschTxPower
 Trace information regarding Uplink TxPower uint16_t cellId, uint16_t rnti, double txPower. More...

TracedCallback< uint16_t,
uint16_t, double > 		m_reportSrsTxPower

uint16_t m_rnti

double m_rsrp

bool m_rsrpSet

uint16_t m_srsBandwidth

double m_txPower


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

This class realizes Uplink Power Control functionality.

Doxygen introspection did not find any typical Config paths.

When LteUePhy is about sending PUSCH/PUCCH/SRS it should ask LteUePowerControl for current channel TX power level and then use it while creating SpectrumValue for Uplink Transmission

LteUePowerControl computes TX power level for PUSCH and SRS. PUCCH is realized in ideal way and PUSCH do not use any resources, so there is no need to compute power for that channel

LteUePowerControlcomputes TX power based on some preconfigured parameters and current Path-loss. Path-loss is computed as difference between current RSRP and referenceSignalPower level. Current RSRP is passed to LteUePowerControl by LteUePhy. referenceSignalPower is configurable by attribute system

Moreover, LteUePhy pass all received TPC values to LteUePowerControl, what is a part of Closed Loop Power Control functionality


Attributes

  • ClosedLoop: If true Closed Loop mode will be active, otherwise Open Loop
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read
  • AccumulationEnabled: If true TCP accumulation mode will be active, otherwise absolute mode will be active
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read
  • Alpha: Value of Alpha paramter
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 1
    • Flags: construct write
  • Pcmax: Max Transmission power in dBm, Default value 23 dBmTS36.101 section 6.2.3
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 23
    • Flags: construct write read
  • Pcmin: Min Transmission power in dBm, Default value -40 dBmTS36.101 section 6.2.3
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: -40
    • Flags: construct write read
  • PoNominalPusch: P_O_NOMINAL_PUSCH INT (-126 ... 24), Default value -80
  • PoUePusch: P_O_UE_PUSCH INT(-8...7), Default value 0
  • PsrsOffset: P_SRS_OFFSET INT(0...15), Default value 7

TraceSources

  • ReportPuschTxPower: Report PUSCH TxPower in dBm
  • ReportPucchTxPower: Report PUCCH TxPower in dBm
  • ReportSrsTxPower: Report SRS TxPower in dBm

Definition at line 54 of file lte-ue-power-control.h.

Constructor & Destructor Documentation

ns3::LteUePowerControl::LteUePowerControl ( )

Definition at line 35 of file lte-ue-power-control.cc.

References m_cellId, m_curPucchTxPower, m_curPuschTxPower, m_curSrsTxPower, m_deltaTF, m_fc, m_M_Pusch, m_pathLoss, m_rnti, m_rsrpSet, m_txPower, and NS_LOG_FUNCTION.

ns3::LteUePowerControl::~LteUePowerControl ( )
virtual

Definition at line 53 of file lte-ue-power-control.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteUePowerControl::CalculatePucchTxPower ( )

Definition at line 386 of file lte-ue-power-control.cc.

References m_curPucchTxPower, m_curPuschTxPower, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by GetPucchTxPower().

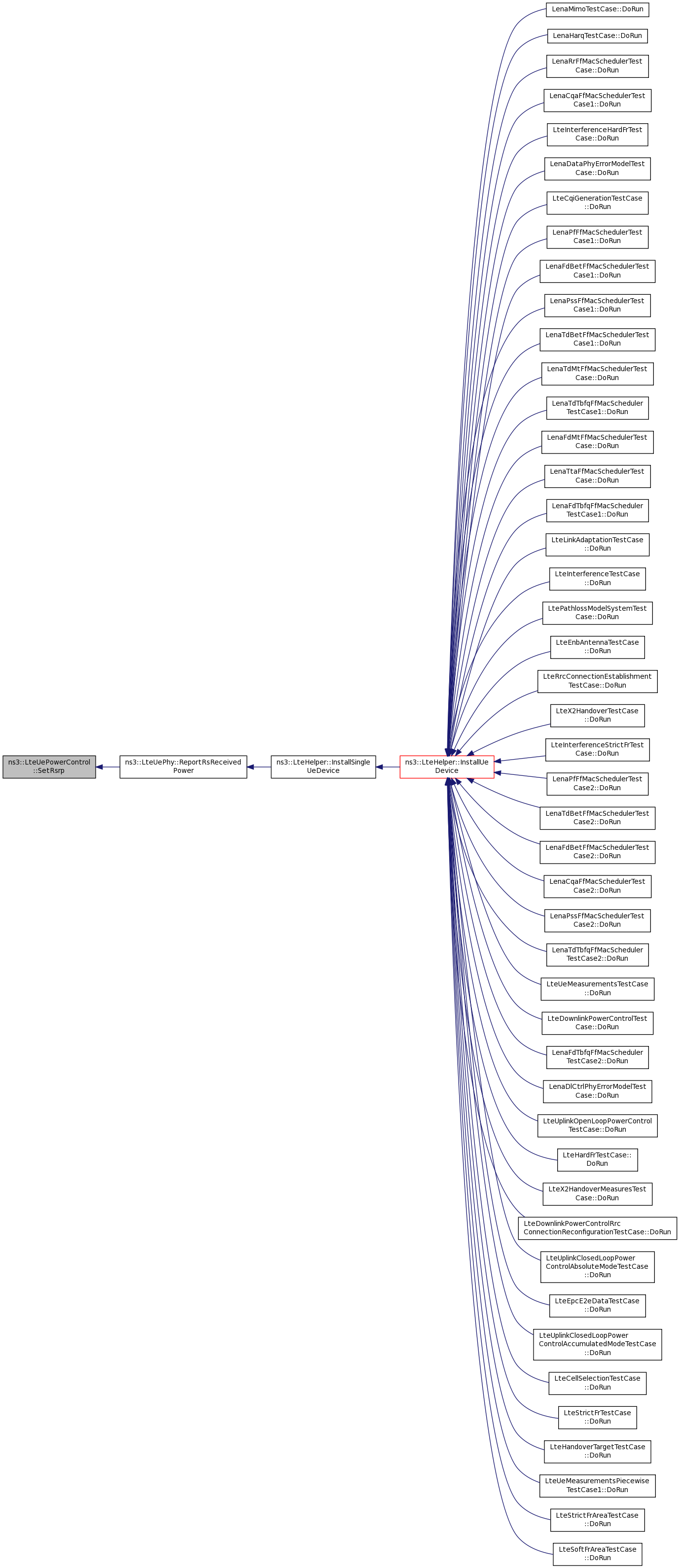

+ Here is the caller graph for this function:

void ns3::LteUePowerControl::CalculatePuschTxPower ( )

Definition at line 358 of file lte-ue-power-control.cc.

References m_alpha, m_curPuschTxPower, m_deltaTF, m_fc, m_M_Pusch, m_pathLoss, m_Pcmax, m_Pcmin, m_PoNominalPusch, m_PoUePusch, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by GetPuschTxPower().

+ Here is the caller graph for this function:

void ns3::LteUePowerControl::CalculateSrsTxPower ( )

Definition at line 394 of file lte-ue-power-control.cc.

References m_alpha, m_curSrsTxPower, m_deltaTF, m_fc, m_M_Pusch, m_pathLoss, m_Pcmax, m_Pcmin, m_PoNominalPusch, m_PoUePusch, m_PsrsOffset, m_srsBandwidth, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by GetSrsTxPower().

+ Here is the caller graph for this function:

void ns3::LteUePowerControl::ConfigureReferenceSignalPower ( int8_t  referenceSignalPower)

Definition at line 156 of file lte-ue-power-control.cc.

References m_referenceSignalPower, and NS_LOG_FUNCTION.

Referenced by ns3::LteUePhy::DoConfigureReferenceSignalPower().

+ Here is the caller graph for this function:

void ns3::LteUePowerControl::DoDispose ( void  )
virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 65 of file lte-ue-power-control.cc.

References NS_LOG_FUNCTION.

void ns3::LteUePowerControl::DoInitialize ( void  )
virtual

This method is called only once by Object::Initialize.

If the user calls Object::Initialize multiple times, DoInitialize is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 59 of file lte-ue-power-control.cc.

References NS_LOG_FUNCTION.

double ns3::LteUePowerControl::GetPcmax ( )

Definition at line 139 of file lte-ue-power-control.cc.

References m_Pcmax, and NS_LOG_FUNCTION.

double ns3::LteUePowerControl::GetPucchTxPower ( std::vector< int >  rb)

Definition at line 431 of file lte-ue-power-control.cc.

References CalculatePucchTxPower(), m_cellId, m_curPucchTxPower, m_reportPucchTxPower, m_rnti, and NS_LOG_FUNCTION.

Referenced by ns3::LteUePhy::SubframeIndication().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

double ns3::LteUePowerControl::GetPuschTxPower ( std::vector< int >  rb)

Definition at line 418 of file lte-ue-power-control.cc.

References CalculatePuschTxPower(), m_cellId, m_curPuschTxPower, m_M_Pusch, m_reportPuschTxPower, m_rnti, and NS_LOG_FUNCTION.

Referenced by ns3::LteUePhy::SubframeIndication().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

double ns3::LteUePowerControl::GetSrsTxPower ( std::vector< int >  rb)

Definition at line 443 of file lte-ue-power-control.cc.

References CalculateSrsTxPower(), m_cellId, m_curSrsTxPower, m_reportSrsTxPower, m_rnti, m_srsBandwidth, and NS_LOG_FUNCTION.

Referenced by ns3::LteUePhy::SendSrs().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

TypeId ns3::LteUePowerControl::GetTypeId ( void  )
static

Definition at line 71 of file lte-ue-power-control.cc.

References m_accumulationEnabled, m_closedLoop, m_Pcmax, m_Pcmin, m_PsrsOffset, m_reportPucchTxPower, m_reportPuschTxPower, m_reportSrsTxPower, ns3::MakeTraceSourceAccessor(), SetAlpha(), ns3::TypeId::SetParent(), SetPoNominalPusch(), and SetPoUePusch().

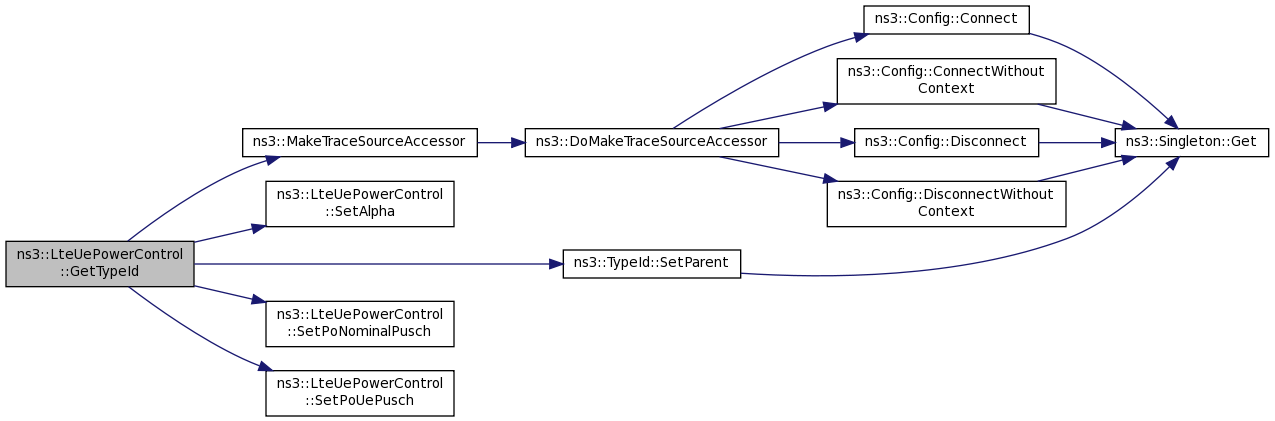

+ Here is the call graph for this function:

void ns3::LteUePowerControl::ReportTpc ( uint8_t  tpc)

Definition at line 265 of file lte-ue-power-control.cc.

References m_accumulationEnabled, m_closedLoop, m_curPuschTxPower, m_deltaPusch, m_fc, m_Pcmax, m_Pcmin, NS_FATAL_ERROR, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by ns3::LteUePhy::ReceiveLteControlMessageList().

+ Here is the caller graph for this function:

void ns3::LteUePowerControl::SetAlpha ( double  value)

Definition at line 212 of file lte-ue-power-control.cc.

References m_alpha, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::LteUePowerControl::SetCellId ( uint16_t  cellId)

Definition at line 163 of file lte-ue-power-control.cc.

References m_cellId, and NS_LOG_FUNCTION.

Referenced by ns3::LteUePhy::DoSetRnti().

+ Here is the caller graph for this function:

void ns3::LteUePowerControl::SetPcmax ( double  value)

Definition at line 132 of file lte-ue-power-control.cc.

References m_Pcmax, and NS_LOG_FUNCTION.

void ns3::LteUePowerControl::SetPoNominalPusch ( int16_t  value)

Definition at line 176 of file lte-ue-power-control.cc.

References m_PoNominalPusch, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::LteUePowerControl::SetPoUePusch ( int16_t  value)

Definition at line 195 of file lte-ue-power-control.cc.

References m_PoUePusch, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::LteUePowerControl::SetRnti ( uint16_t  rnti)

Definition at line 169 of file lte-ue-power-control.cc.

References m_rnti, and NS_LOG_FUNCTION.

Referenced by ns3::LteUePhy::DoSetRnti().

+ Here is the caller graph for this function:

void ns3::LteUePowerControl::SetRsrp ( double  value)

Definition at line 248 of file lte-ue-power-control.cc.

References m_pathLoss, m_referenceSignalPower, m_rsrp, m_rsrpSet, and NS_LOG_FUNCTION.

Referenced by ns3::LteUePhy::ReportRsReceivedPower().

+ Here is the caller graph for this function:

void ns3::LteUePowerControl::SetSubChannelMask ( std::vector< int >  mask)
private

Definition at line 351 of file lte-ue-power-control.cc.

References m_M_Pusch, and NS_LOG_FUNCTION.

void ns3::LteUePowerControl::SetTxPower ( double  value)

Definition at line 146 of file lte-ue-power-control.cc.

References m_curPucchTxPower, m_curPuschTxPower, m_curSrsTxPower, m_txPower, and NS_LOG_FUNCTION.

Referenced by ns3::LteUePhy::SetTxPower().

+ Here is the caller graph for this function:

Member Data Documentation

bool ns3::LteUePowerControl::m_accumulationEnabled
private

Definition at line 121 of file lte-ue-power-control.h.

Referenced by GetTypeId(), and ReportTpc().

std::vector<double> ns3::LteUePowerControl::m_alpha
private

Definition at line 111 of file lte-ue-power-control.h.

Referenced by CalculatePuschTxPower(), CalculateSrsTxPower(), and SetAlpha().

uint16_t ns3::LteUePowerControl::m_cellId
private

Definition at line 123 of file lte-ue-power-control.h.

Referenced by GetPucchTxPower(), GetPuschTxPower(), GetSrsTxPower(), LteUePowerControl(), and SetCellId().

bool ns3::LteUePowerControl::m_closedLoop
private

Definition at line 120 of file lte-ue-power-control.h.

Referenced by GetTypeId(), and ReportTpc().

double ns3::LteUePowerControl::m_curPucchTxPower
private

Definition at line 98 of file lte-ue-power-control.h.

Referenced by CalculatePucchTxPower(), GetPucchTxPower(), LteUePowerControl(), and SetTxPower().

double ns3::LteUePowerControl::m_curPuschTxPower
private

Definition at line 97 of file lte-ue-power-control.h.

Referenced by CalculatePucchTxPower(), CalculatePuschTxPower(), GetPuschTxPower(), LteUePowerControl(), ReportTpc(), and SetTxPower().

double ns3::LteUePowerControl::m_curSrsTxPower
private

Definition at line 99 of file lte-ue-power-control.h.

Referenced by CalculateSrsTxPower(), GetSrsTxPower(), LteUePowerControl(), and SetTxPower().

std::vector<int8_t> ns3::LteUePowerControl::m_deltaPusch
private

Definition at line 115 of file lte-ue-power-control.h.

Referenced by ReportTpc().

double ns3::LteUePowerControl::m_deltaTF
private

Definition at line 113 of file lte-ue-power-control.h.

Referenced by CalculatePuschTxPower(), CalculateSrsTxPower(), and LteUePowerControl().

double ns3::LteUePowerControl::m_fc
private

Definition at line 116 of file lte-ue-power-control.h.

Referenced by CalculatePuschTxPower(), CalculateSrsTxPower(), LteUePowerControl(), and ReportTpc().

uint16_t ns3::LteUePowerControl::m_M_Pusch
private

Definition at line 110 of file lte-ue-power-control.h.

Referenced by CalculatePuschTxPower(), CalculateSrsTxPower(), GetPuschTxPower(), LteUePowerControl(), and SetSubChannelMask().

double ns3::LteUePowerControl::m_pathLoss
private

Definition at line 112 of file lte-ue-power-control.h.

Referenced by CalculatePuschTxPower(), CalculateSrsTxPower(), LteUePowerControl(), and SetRsrp().

double ns3::LteUePowerControl::m_Pcmax
private

Definition at line 94 of file lte-ue-power-control.h.

Referenced by CalculatePuschTxPower(), CalculateSrsTxPower(), GetPcmax(), GetTypeId(), ReportTpc(), and SetPcmax().

double ns3::LteUePowerControl::m_Pcmin
private

Definition at line 95 of file lte-ue-power-control.h.

Referenced by CalculatePuschTxPower(), CalculateSrsTxPower(), GetTypeId(), and ReportTpc().

std::vector<int16_t> ns3::LteUePowerControl::m_PoNominalPusch
private

Definition at line 105 of file lte-ue-power-control.h.

Referenced by CalculatePuschTxPower(), CalculateSrsTxPower(), and SetPoNominalPusch().

std::vector<int16_t> ns3::LteUePowerControl::m_PoUePusch
private

Definition at line 106 of file lte-ue-power-control.h.

Referenced by CalculatePuschTxPower(), CalculateSrsTxPower(), and SetPoUePusch().

int16_t ns3::LteUePowerControl::m_PsrsOffset
private

Definition at line 108 of file lte-ue-power-control.h.

Referenced by CalculateSrsTxPower(), and GetTypeId().

double ns3::LteUePowerControl::m_referenceSignalPower
private

Definition at line 101 of file lte-ue-power-control.h.

Referenced by ConfigureReferenceSignalPower(), and SetRsrp().

TracedCallback<uint16_t, uint16_t, double> ns3::LteUePowerControl::m_reportPucchTxPower
private

Definition at line 130 of file lte-ue-power-control.h.

Referenced by GetPucchTxPower(), and GetTypeId().

TracedCallback<uint16_t, uint16_t, double> ns3::LteUePowerControl::m_reportPuschTxPower
private

Trace information regarding Uplink TxPower uint16_t cellId, uint16_t rnti, double txPower.

Definition at line 129 of file lte-ue-power-control.h.

Referenced by GetPuschTxPower(), and GetTypeId().

TracedCallback<uint16_t, uint16_t, double> ns3::LteUePowerControl::m_reportSrsTxPower
private

Definition at line 131 of file lte-ue-power-control.h.

Referenced by GetSrsTxPower(), and GetTypeId().

uint16_t ns3::LteUePowerControl::m_rnti
private

Definition at line 124 of file lte-ue-power-control.h.

Referenced by GetPucchTxPower(), GetPuschTxPower(), GetSrsTxPower(), LteUePowerControl(), and SetRnti().

double ns3::LteUePowerControl::m_rsrp
private

Definition at line 103 of file lte-ue-power-control.h.

Referenced by SetRsrp().

bool ns3::LteUePowerControl::m_rsrpSet
private

Definition at line 102 of file lte-ue-power-control.h.

Referenced by LteUePowerControl(), and SetRsrp().

uint16_t ns3::LteUePowerControl::m_srsBandwidth
private

Definition at line 118 of file lte-ue-power-control.h.

Referenced by CalculateSrsTxPower(), and GetSrsTxPower().

double ns3::LteUePowerControl::m_txPower
private

Definition at line 93 of file lte-ue-power-control.h.

Referenced by LteUePowerControl(), and SetTxPower().

The documentation for this class was generated from the following files:
