Implement the header for management frames of type add block ack request. More...

#include <mgt-headers.h>

Inheritance diagram for ns3::MgtAddBaRequestHeader:

Collaboration diagram for ns3::MgtAddBaRequestHeader:

Public Member Functions
	MgtAddBaRequestHeader ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

uint16_t	GetBufferSize (void) const
	Return the buffer size. More...

virtual TypeId	GetInstanceTypeId (void) const

virtual uint32_t	GetSerializedSize (void) const

uint16_t	GetStartingSequence (void) const
	Return the starting sequence number. More...

uint8_t	GetTid (void) const
	Return the Traffic ID (TID). More...

uint16_t	GetTimeout (void) const
	Return the timeout. More...

bool	IsAmsduSupported (void) const
	Return whether A-MSDU capability is supported. More...

bool	IsImmediateBlockAck (void) const
	Return whether the Block ACK policy is immediate Block ACK. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetAmsduSupport (bool supported)
	Enable or disable A-MSDU support. More...

void	SetBufferSize (uint16_t size)
	Set buffer size. More...

void	SetDelayedBlockAck ()
	Enable delayed Block ACK. More...

void	SetImmediateBlockAck ()
	Enable immediate Block ACK. More...

void	SetStartingSequence (uint16_t seq)
	Set the starting sequence number. More...

void	SetTid (uint8_t tid)
	Set Traffic ID (TID). More...

void	SetTimeout (uint16_t timeout)
	Set timeout. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
uint16_t	GetParameterSet (void) const
	Return the raw parameter set. More...

uint16_t	GetStartingSequenceControl (void) const
	Return the raw sequence control. More...

void	SetParameterSet (uint16_t params)
	Set the parameter set from the given raw value. More...

void	SetStartingSequenceControl (uint16_t seqControl)
	Set sequence control with the given raw value. More...

Private Attributes
uint8_t	m_amsduSupport
	Flag if A-MSDU is supported. More...

uint16_t	m_bufferSize
	Buffer size. More...

uint8_t	m_dialogToken

uint8_t	m_policy
	Block ACK policy. More...

uint16_t	m_startingSeq
	Starting sequence number. More...

uint8_t	m_tid
	Traffic ID. More...

uint16_t	m_timeoutValue
	Timeout. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Implement the header for management frames of type add block ack request.

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 454 of file mgt-headers.h.

Constructor & Destructor Documentation

ns3::MgtAddBaRequestHeader::MgtAddBaRequestHeader ( )

Definition at line 642 of file mgt-headers.cc.

Member Function Documentation

uint32_t ns3::MgtAddBaRequestHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 691 of file mgt-headers.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_dialogToken, m_timeoutValue, ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadU8(), SetParameterSet(), SetStartingSequenceControl(), and visualizer.core::start().

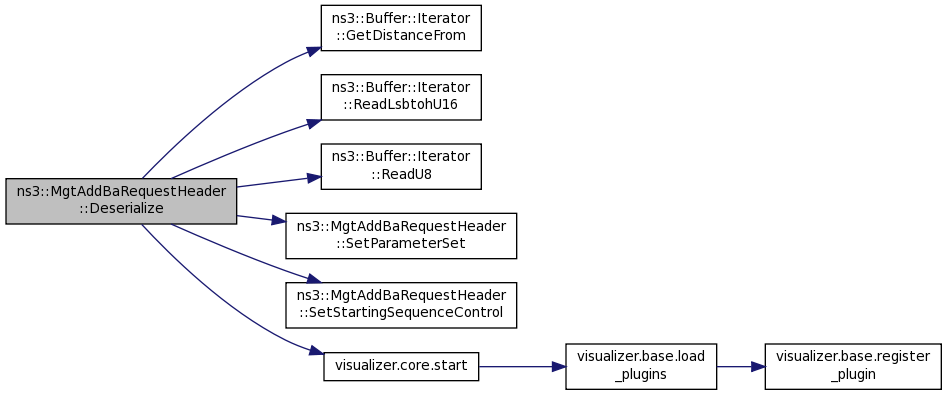

Here is the call graph for this function:

uint16_t ns3::MgtAddBaRequestHeader::GetBufferSize ( void ) const

Return the buffer size.

Returns: the buffer size.

Definition at line 763 of file mgt-headers.cc.

References m_bufferSize.

TypeId ns3::MgtAddBaRequestHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 659 of file mgt-headers.cc.

References GetTypeId().

Here is the call graph for this function:

uint16_t ns3::MgtAddBaRequestHeader::GetParameterSet ( void ) const

private

Return the raw parameter set.

Returns: the raw parameter set

Definition at line 793 of file mgt-headers.cc.

References m_amsduSupport, m_bufferSize, m_policy, and m_tid.

Referenced by Serialize().

Here is the caller graph for this function:

uint32_t ns3::MgtAddBaRequestHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 670 of file mgt-headers.cc.

uint16_t ns3::MgtAddBaRequestHeader::GetStartingSequence ( void ) const

Return the starting sequence number.

Returns: the starting sequence number

Definition at line 775 of file mgt-headers.cc.

References m_startingSeq.

Referenced by ns3::BlockAckManager::CreateAgreement(), and ns3::RegularWifiMac::SendAddBaResponse().

Here is the caller graph for this function:

uint16_t ns3::MgtAddBaRequestHeader::GetStartingSequenceControl ( void ) const

private

Return the raw sequence control.

Returns: the raw sequence control

Definition at line 781 of file mgt-headers.cc.

References m_startingSeq.

Referenced by Serialize().

Here is the caller graph for this function:

uint8_t ns3::MgtAddBaRequestHeader::GetTid ( void ) const

Return the Traffic ID (TID).

Returns: TID

Definition at line 745 of file mgt-headers.cc.

References m_tid.

Referenced by ns3::BlockAckManager::CreateAgreement(), and ns3::RegularWifiMac::SendAddBaResponse().

Here is the caller graph for this function:

uint16_t ns3::MgtAddBaRequestHeader::GetTimeout ( void ) const

Return the timeout.

Returns: timeout

Definition at line 757 of file mgt-headers.cc.

References m_timeoutValue.

Referenced by ns3::BlockAckManager::CreateAgreement(), and ns3::RegularWifiMac::SendAddBaResponse().

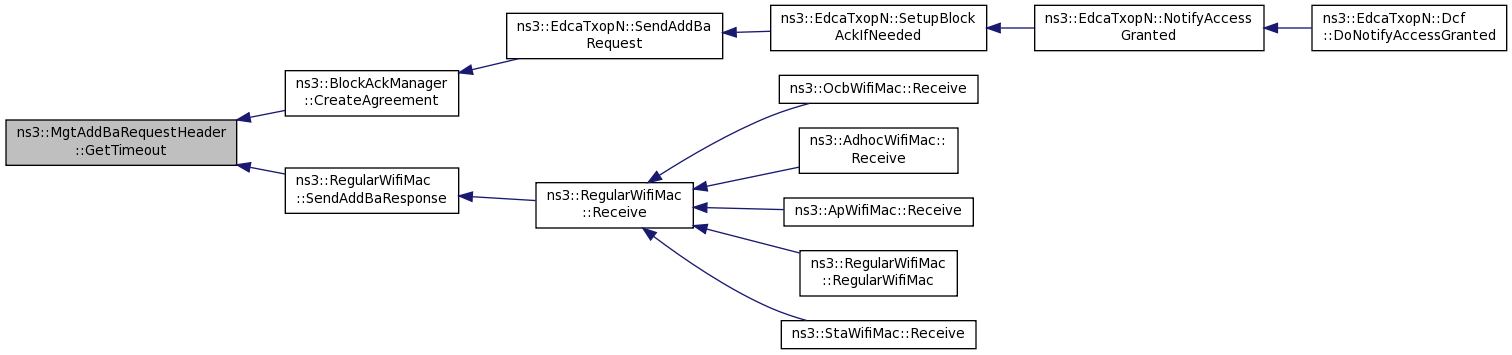

Here is the caller graph for this function:

TypeId ns3::MgtAddBaRequestHeader::GetTypeId ( void )

static

Definition at line 650 of file mgt-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::MgtAddBaRequestHeader::IsAmsduSupported ( void ) const

Return whether A-MSDU capability is supported.

Returns: true is A-MSDU is supported, false otherwise

Definition at line 769 of file mgt-headers.cc.

References m_amsduSupport.

Referenced by ns3::BlockAckManager::CreateAgreement(), and ns3::RegularWifiMac::SendAddBaResponse().

Here is the caller graph for this function:

bool ns3::MgtAddBaRequestHeader::IsImmediateBlockAck ( void ) const

Return whether the Block ACK policy is immediate Block ACK.

Returns: true if immediate Block ACK is being used, false otherwise

Definition at line 751 of file mgt-headers.cc.

References m_policy.

Referenced by ns3::BlockAckManager::CreateAgreement(), and ns3::RegularWifiMac::SendAddBaResponse().

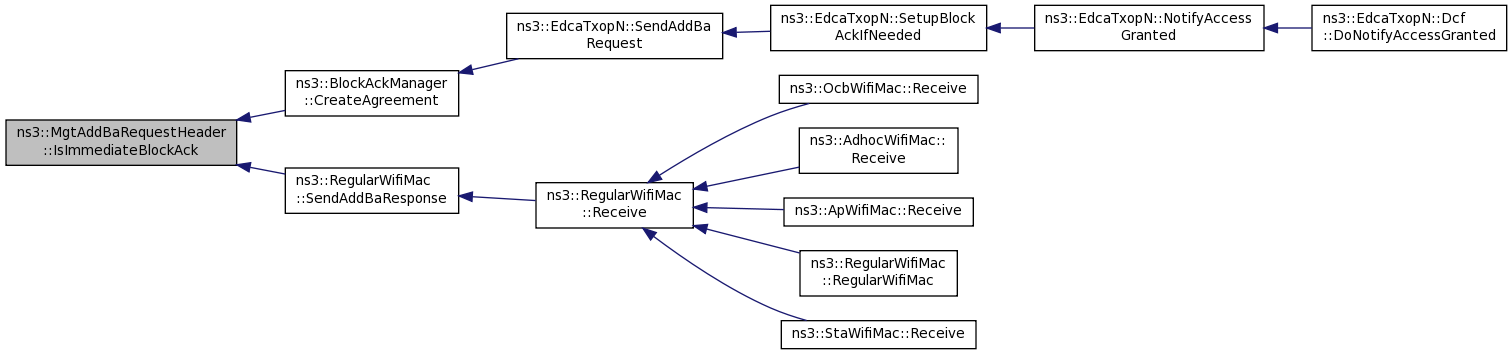

Here is the caller graph for this function:

void ns3::MgtAddBaRequestHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 665 of file mgt-headers.cc.

void ns3::MgtAddBaRequestHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 681 of file mgt-headers.cc.

References GetParameterSet(), GetStartingSequenceControl(), m_dialogToken, m_timeoutValue, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtolsbU16(), and ns3::Buffer::Iterator::WriteU8().

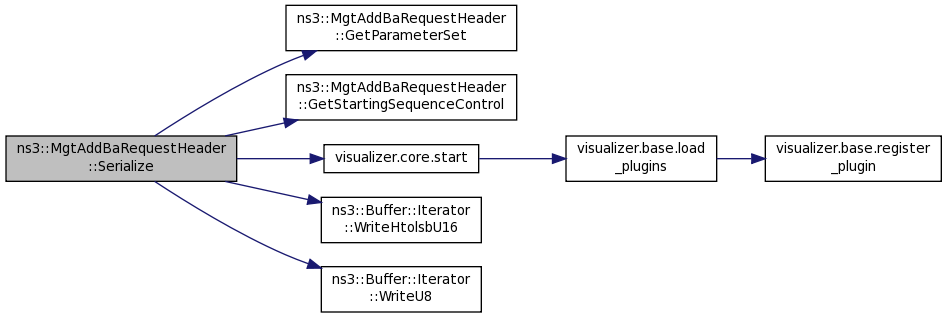

Here is the call graph for this function:
