Standard MSDU aggregator. More...

#include <msdu-standard-aggregator.h>

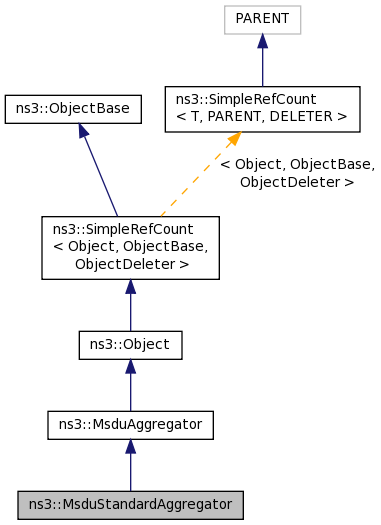

Inheritance diagram for ns3::MsduStandardAggregator:

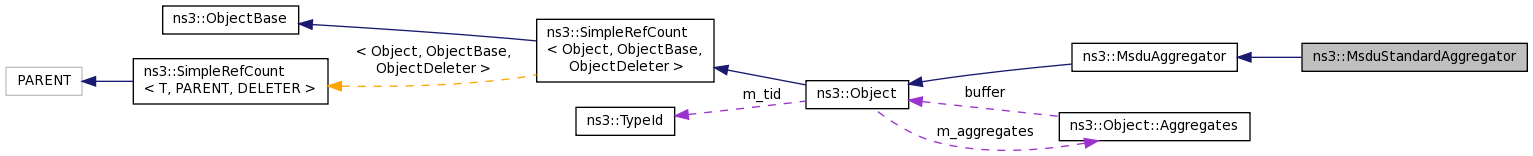

Collaboration diagram for ns3::MsduStandardAggregator:

Public Member Functions
	MsduStandardAggregator ()

	~MsduStandardAggregator ()

virtual bool	Aggregate (Ptr< const Packet > packet, Ptr< Packet > aggregatedPacket, Mac48Address src, Mac48Address dest)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::MsduAggregator
static DeaggregatedMsdus	Deaggregate (Ptr< Packet > aggregatedPacket)

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
uint32_t	CalculatePadding (Ptr< const Packet > packet)
	Calculates how much padding must be added to the end of aggregated packet, after that a new packet is added. More...

Private Attributes
uint32_t	m_maxAmsduLength

Additional Inherited Members
Public Types inherited from ns3::MsduAggregator
typedef std::list< std::pair < Ptr< Packet > , AmsduSubframeHeader > >	DeaggregatedMsdus

typedef std::list< std::pair < Ptr< Packet > , AmsduSubframeHeader > >::const_iterator	DeaggregatedMsdusCI

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Standard MSDU aggregator.

Doxygen introspection did not find any typical Config paths.

Attributes

MaxAmsduSize: Max length in byte of an A-MSDU
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 7935
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 32 of file msdu-standard-aggregator.h.

Constructor & Destructor Documentation

ns3::MsduStandardAggregator::MsduStandardAggregator ( )

Definition at line 46 of file msdu-standard-aggregator.cc.

ns3::MsduStandardAggregator::~MsduStandardAggregator ( )

Definition at line 50 of file msdu-standard-aggregator.cc.

Member Function Documentation

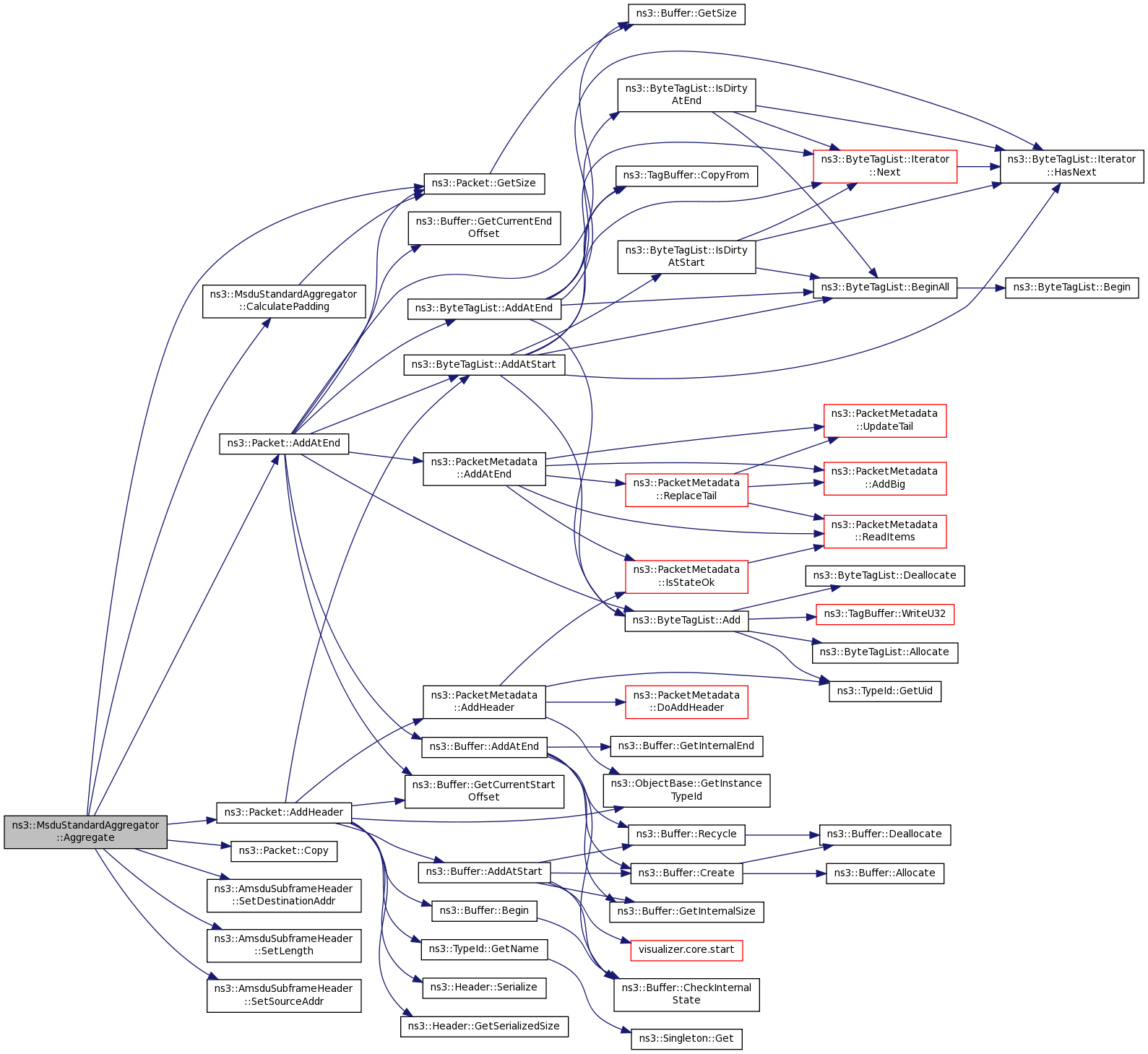

bool ns3::MsduStandardAggregator::Aggregate	(	Ptr< const Packet >	packet,
		Ptr< Packet >	aggregatedPacket,
		Mac48Address	src,
		Mac48Address	dest
	)

virtual

Parameters

packet	Packet we have to insert into aggregatedPacket.
aggregatedPacket	Packet that will contain packet, if aggregation is possible,
src	Source address of packet.
dest	Destination address of packet.
