A model for the error rate for different modulations. More...

#include <nist-error-rate-model.h>

Inheritance diagram for ns3::NistErrorRateModel:

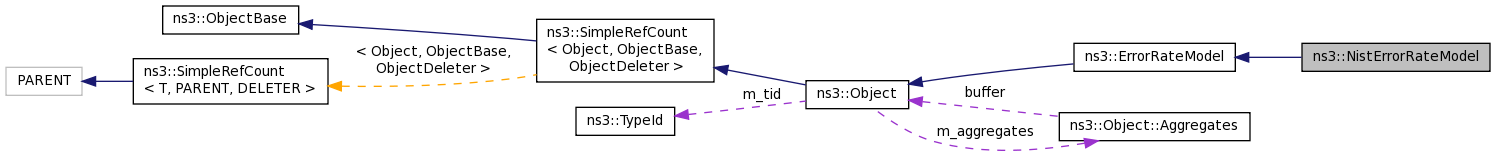

Collaboration diagram for ns3::NistErrorRateModel:

Public Member Functions
	NistErrorRateModel ()

virtual double	GetChunkSuccessRate (WifiMode mode, double snr, uint32_t nbits) const
	A pure virtual method that must be implemented in the subclass. More...

Public Member Functions inherited from ns3::ErrorRateModel
double	CalculateSnr (WifiMode txMode, double ber) const

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ErrorRateModel
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
double	CalculatePe (double p, uint32_t bValue) const
	Return the coded BER for the given p and b. More...

double	Get16QamBer (double snr) const
	Return BER of QAM16 at the given SNR. More...

double	Get64QamBer (double snr) const
	Return BER of QAM64 at the given SNR. More...

double	GetBpskBer (double snr) const
	Return BER of BPSK at the given SNR. More...

double	GetFec16QamBer (double snr, uint32_t nbits, uint32_t bValue) const
	Return BER of QAM16 at the given SNR after applying FEC. More...

double	GetFec64QamBer (double snr, uint32_t nbits, uint32_t bValue) const
	Return BER of QAM64 at the given SNR after applying FEC. More...

double	GetFecBpskBer (double snr, uint32_t nbits, uint32_t bValue) const
	Return BER of BPSK at the given SNR after applying FEC. More...

double	GetFecQpskBer (double snr, uint32_t nbits, uint32_t bValue) const
	Return BER of QPSK at the given SNR after applying FEC. More...

double	GetQpskBer (double snr) const
	Return BER of QPSK at the given SNR. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

A model for the error rate for different modulations.

Doxygen introspection did not find any typical Config paths.

For OFDM modulation, the model description and validation can be found in http://www.nsnam.org/~pei/80211ofdm.pdf. For DSSS modulations (802.11b), the model uses the DsssErrorRateModel.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 38 of file nist-error-rate-model.h.

Constructor & Destructor Documentation

ns3::NistErrorRateModel::NistErrorRateModel ( )

Definition at line 42 of file nist-error-rate-model.cc.

Member Function Documentation

double ns3::NistErrorRateModel::CalculatePe	(	double	p,
		uint32_t	bValue
	)		const

private

Return the coded BER for the given p and b.

Parameters

p
bValue

Returns: BER

Definition at line 107 of file nist-error-rate-model.cc.

References NS_ASSERT.

Referenced by GetFec16QamBer(), GetFec64QamBer(), GetFecBpskBer(), and GetFecQpskBer().

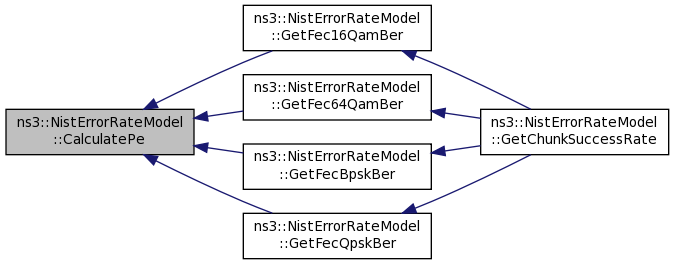

Here is the caller graph for this function:

double ns3::NistErrorRateModel::Get16QamBer ( double snr ) const

private

Return BER of QAM16 at the given SNR.

Parameters

snr snr value

Returns: BER of QAM16 at the given SNR

Definition at line 63 of file nist-error-rate-model.cc.

References NS_LOG_INFO.

Referenced by GetFec16QamBer().

Here is the caller graph for this function:

double ns3::NistErrorRateModel::Get64QamBer ( double snr ) const

private

Return BER of QAM64 at the given SNR.

Parameters

snr snr value

Returns: BER of QAM64 at the given SNR

Definition at line 71 of file nist-error-rate-model.cc.

References NS_LOG_INFO.

Referenced by GetFec64QamBer().

Here is the caller graph for this function:

double ns3::NistErrorRateModel::GetBpskBer ( double snr ) const

private

Return BER of BPSK at the given SNR.

Parameters

snr snr value

Returns: BER of BPSK at the given SNR

Definition at line 47 of file nist-error-rate-model.cc.

References NS_LOG_INFO.

Referenced by GetFecBpskBer().

Here is the caller graph for this function:

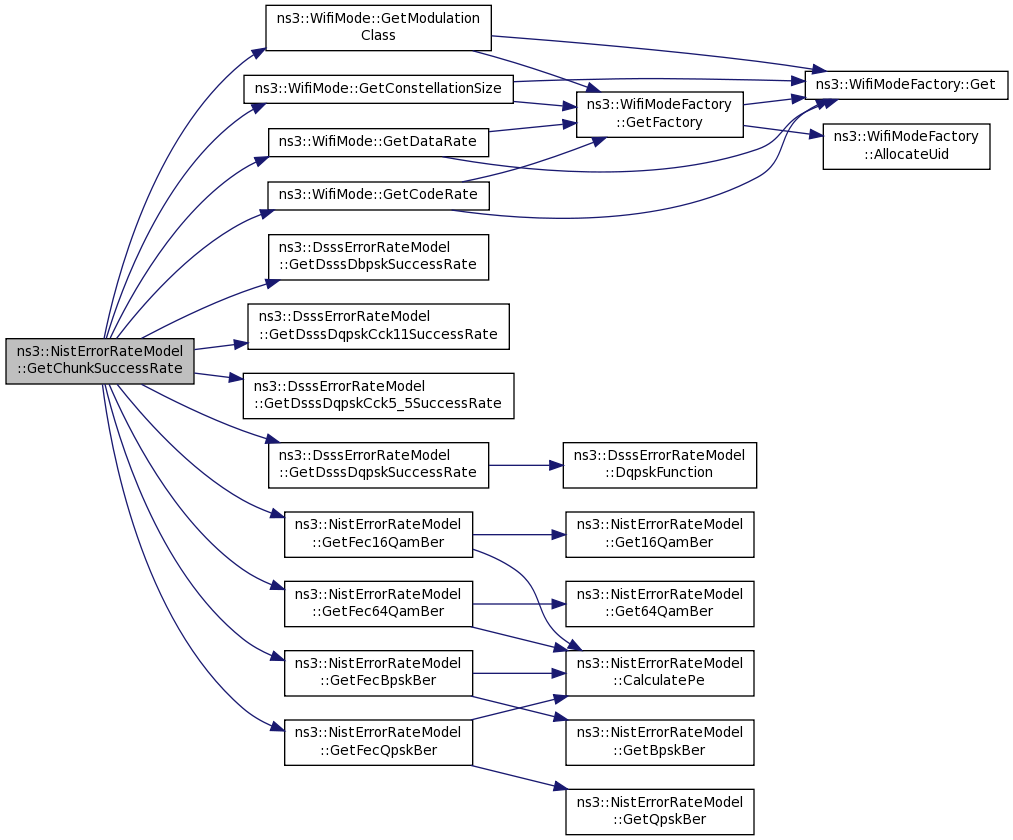

double ns3::NistErrorRateModel::GetChunkSuccessRate	(	WifiMode	mode,
		double	snr,
		uint32_t	nbits
	)		const

virtual

A pure virtual method that must be implemented in the subclass.

This method returns the probability that the given 'chuck' of the packet will be successfully received by the PHY.

A chuck can be viewed as a part of a packet with equal SNR. The probability of successfully receiving the chunk depends on the mode, the SNR, and the size of the chunk.

Parameters
