Router advertisement daemon. More...

#include <radvd.h>

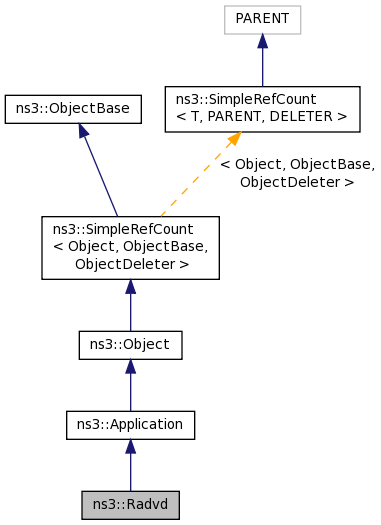

Inheritance diagram for ns3::Radvd:

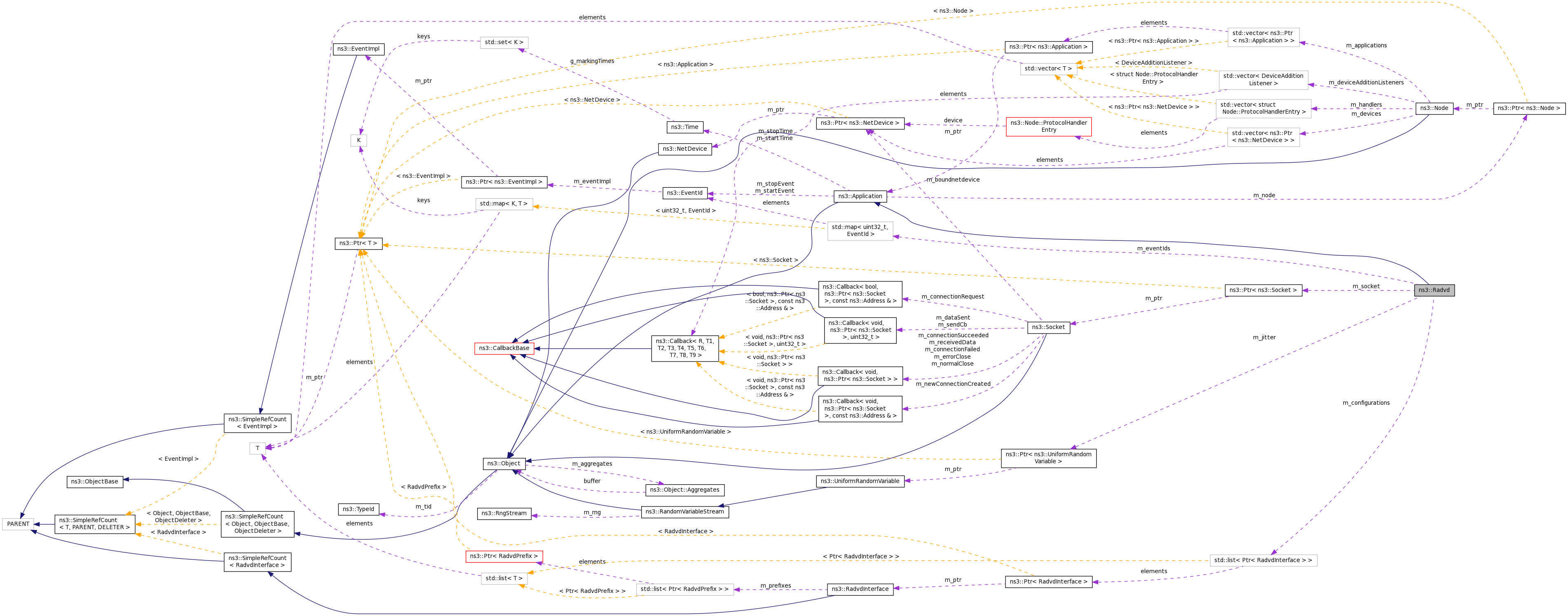

Collaboration diagram for ns3::Radvd:

Public Member Functions
	Radvd ()
	Constructor. More...

virtual	~Radvd ()
	Destructor. More...

void	AddConfiguration (Ptr< RadvdInterface > routerInterface)
	Add configuration for an interface;. More...

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

Public Member Functions inherited from ns3::Application
	Application ()

virtual	~Application ()

Ptr< Node >	GetNode () const

void	SetNode (Ptr< Node > node)

void	SetStartTime (Time start)
	Specify application start time. More...

void	SetStopTime (Time stop)
	Specify application stop time. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Application
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Attributes
static const uint32_t	MAX_RA_DELAY_TIME = 500
	Default value for maximum delay of RA (ms) More...

Protected Member Functions
virtual void	DoDispose ()
	Dispose the instance. More...

Protected Member Functions inherited from ns3::Application
virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Types
typedef std::map< uint32_t, EventId >	EventIdMap
	Container: interface number, EventId. More...

typedef std::map< uint32_t, EventId >::const_iterator	EventIdMapCI
	Container Const Iterator: interface number, EventId. More...

typedef std::map< uint32_t, EventId >::iterator	EventIdMapI
	Container Iterator: interface number, EventId. More...

typedef std::list< Ptr < RadvdInterface > >	RadvdInterfaceList
	Container: Ptr to RadvdInterface. More...

typedef std::list< Ptr < RadvdInterface > >::const_iterator	RadvdInterfaceListCI
	Container Const Iterator: Ptr to RadvdInterface. More...

typedef std::list< Ptr < RadvdInterface > >::iterator	RadvdInterfaceListI
	Container Iterator: Ptr to RadvdInterface. More...

Private Member Functions
void	HandleRead (Ptr< Socket > socket)
	Handle received packet, especially router solicitation. More...

void	ScheduleTransmit (Time dt, Ptr< RadvdInterface > config, EventId &eventId, Ipv6Address dst=Ipv6Address::GetAllNodesMulticast(), bool reschedule=false)
	Schedule sending a packet. More...

void	Send (Ptr< RadvdInterface > config, Ipv6Address dst=Ipv6Address::GetAllNodesMulticast(), bool reschedule=false)
	Send a packet. More...

virtual void	StartApplication ()
	Start the application. More...

virtual void	StopApplication ()
	Stop the application. More...

Private Attributes
RadvdInterfaceList	m_configurations
	List of configuration for interface. More...

EventIdMap	m_eventIds
	Event ID map. More...

Ptr< UniformRandomVariable >	m_jitter
	Variable to provide jitter in advertisement interval. More...

Ptr< Socket >	m_socket
	Raw socket to send RA. More...

Additional Inherited Members
Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node
	The node that this application is installed on. More...

EventId	m_startEvent
	The event that will fire at m_startTime to start the application. More...

Time	m_startTime
	The simulation time that the application will start. More...

EventId	m_stopEvent
	The event that will fire at m_stopTime to end the application. More...

Time	m_stopTime
	The simulation time that the application will end. More...

Detailed Description

Router advertisement daemon.

Config Paths

ns3::Radvd is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/ApplicationList/[i]/$ns3::Radvd

Attributes

AdvertisementJitter: Uniform variable to provide jitter between min and max values of AdvInterval
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::UniformRandomVariable>
- Initial value: ns3::UniformRandomVariable
- Flags: construct write read

Attributes defined in parent class ns3::Application

StartTime: Time at which the application will start
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write read
StopTime: Time at which the application will stop
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 47 of file radvd.h.

Member Typedef Documentation

typedef std::map<uint32_t, EventId> ns3::Radvd::EventIdMap

private

Container: interface number, EventId.

Definition at line 102 of file radvd.h.

typedef std::map<uint32_t, EventId>::const_iterator ns3::Radvd::EventIdMapCI

private

Container Const Iterator: interface number, EventId.

Definition at line 106 of file radvd.h.

typedef std::map<uint32_t, EventId>::iterator ns3::Radvd::EventIdMapI

private

Container Iterator: interface number, EventId.

Definition at line 104 of file radvd.h.

typedef std::list<Ptr<RadvdInterface> > ns3::Radvd::RadvdInterfaceList

private

Container: Ptr to RadvdInterface.

Definition at line 95 of file radvd.h.

typedef std::list<Ptr<RadvdInterface> >::const_iterator ns3::Radvd::RadvdInterfaceListCI

private

Container Const Iterator: Ptr to RadvdInterface.

Definition at line 99 of file radvd.h.

typedef std::list<Ptr<RadvdInterface> >::iterator ns3::Radvd::RadvdInterfaceListI

private

Container Iterator: Ptr to RadvdInterface.

Definition at line 97 of file radvd.h.

Constructor & Destructor Documentation

ns3::Radvd::Radvd ( )

Constructor.

Definition at line 61 of file radvd.cc.

References NS_LOG_FUNCTION.

ns3::Radvd::~Radvd ( )

virtual

Destructor.

Definition at line 66 of file radvd.cc.

References m_configurations, m_socket, and NS_LOG_FUNCTION.

Member Function Documentation

void ns3::Radvd::AddConfiguration ( Ptr< RadvdInterface > routerInterface )

Add configuration for an interface;.

Parameters

routerInterface configuration

Definition at line 123 of file radvd.cc.

References m_configurations, and NS_LOG_FUNCTION.

int64_t ns3::Radvd::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 130 of file radvd.cc.

References m_jitter, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

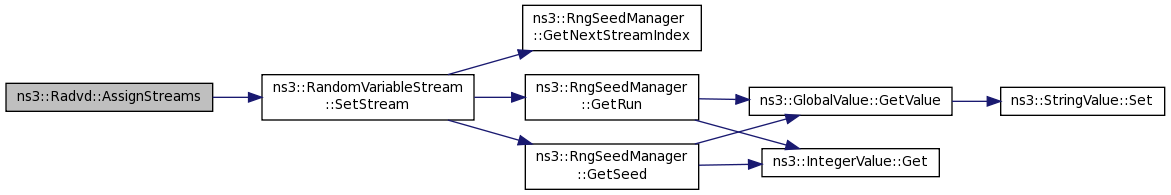

Here is the call graph for this function:

void ns3::Radvd::DoDispose ( void )

protectedvirtual

Dispose the instance.

Reimplemented from ns3::Application.

Definition at line 77 of file radvd.cc.

References ns3::Application::DoDispose(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

TypeId ns3::Radvd::GetTypeId ( void )

static

Get the type ID.

Returns: type ID

Definition at line 47 of file radvd.cc.

References m_jitter, and ns3::TypeId::SetParent().

Referenced by ns3::RadvdHelper::RadvdHelper().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Radvd::HandleRead ( Ptr< Socket > socket )

private

Handle received packet, especially router solicitation.

Parameters

socket socket to read data from

Definition at line 246 of file radvd.cc.

References first::address, ns3::Inet6SocketAddress::ConvertFrom(), ns3::Packet::CopyData(), ns3::Icmpv6Header::GetCode(), ns3::Inet6SocketAddress::GetIpv6(), ns3::Ipv6Header::GetSourceAddress(), ns3::Time::GetTimeStep(), ns3::UniformRandomVariable::GetValue(), ns3::Icmpv6Header::ICMPV6_ND_ROUTER_SOLICITATION, ns3::Inet6SocketAddress::IsMatchingType(), m_configurations, m_eventIds, m_jitter, MAX_RA_DELAY_TIME, ns3::MilliSeconds(), ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_INFO, ns3::Socket::RecvFrom(), ns3::Packet::RemoveHeader(), and ScheduleTransmit().

Referenced by StartApplication().

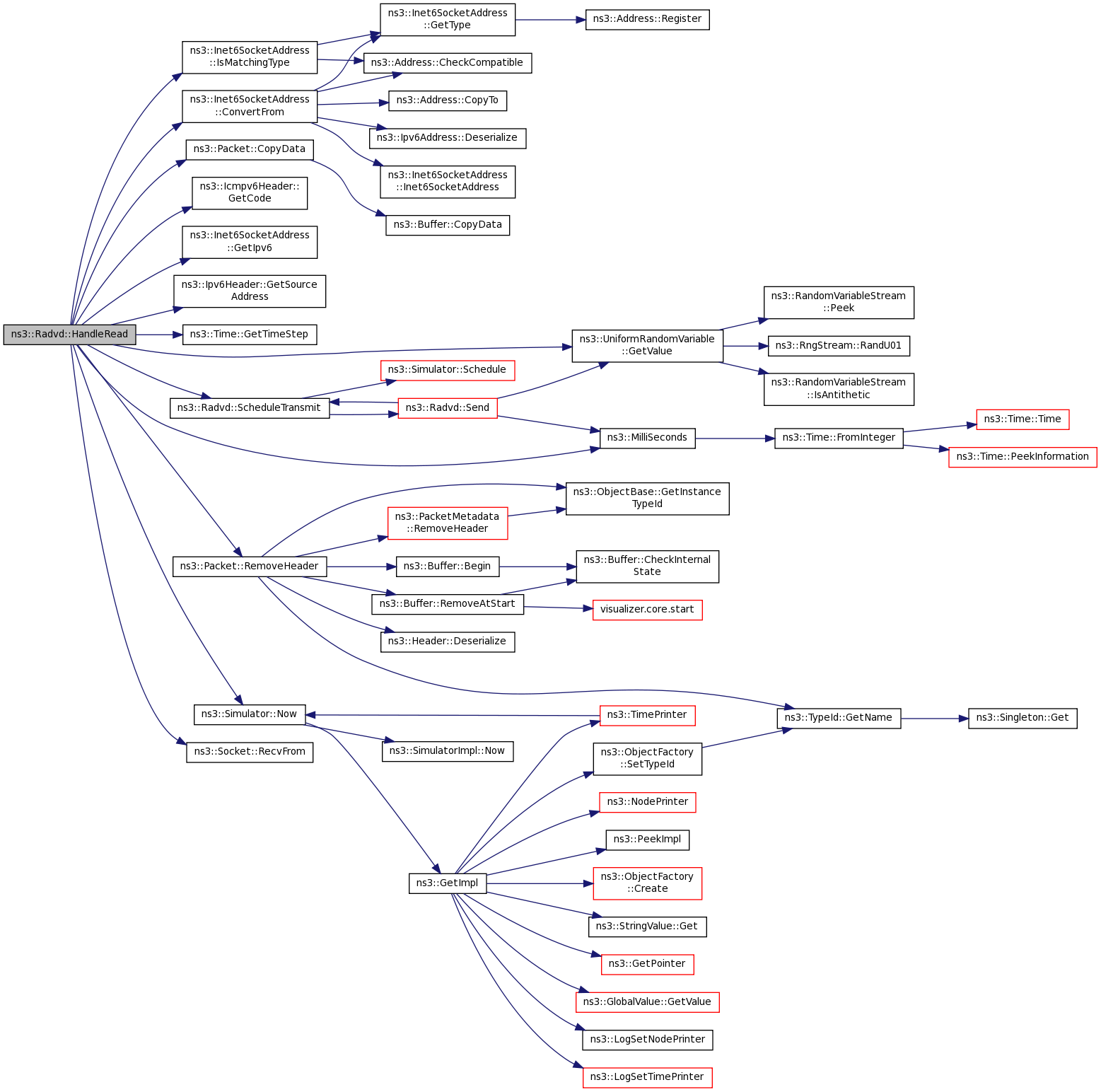

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Radvd::ScheduleTransmit	(	Time	dt,
		Ptr< RadvdInterface >	config,
		EventId &	eventId,
		Ipv6Address	dst = `Ipv6Address::GetAllNodesMulticast ()`,
		bool	reschedule = `false`
	)

private

Schedule sending a packet.

Parameters

dt	interval between packet
config	interface configuration
eventId	event ID associated
dst	IPv6 destination address
reschedule	if true another send will be reschedule (periodic)
