RipNgHeader - see RFC 2080 More...

#include <ripng-header.h>

Inheritance diagram for ns3::RipNgHeader:

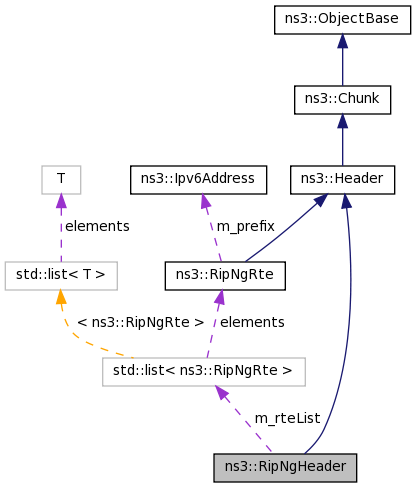

Collaboration diagram for ns3::RipNgHeader:

Public Types
enum	Command_e { REQUEST = 0x1, RESPONSE = 0x2 }
	Commands to be used in RipNg headers. More...

Public Member Functions
	RipNgHeader (void)

void	AddRte (RipNgRte rte)
	Add a RTE to the message. More...

void	ClearRtes ()
	Clear all the RTEs from the header. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...

Command_e	GetCommand (void) const
	Get the command. More...

virtual TypeId	GetInstanceTypeId (void) const
	Return the instance type identifier. More...

std::list< RipNgRte >	GetRteList (void) const
	Get the list of the RTEs included in the message. More...

uint16_t	GetRteNumber (void) const
	Get the number of RTE included in the message. More...

virtual uint32_t	GetSerializedSize (void) const
	Get the serialized size of the packet. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...

void	SetCommand (Command_e command)
	Set the command. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_command
	command type More...

std::list< RipNgRte >	m_rteList
	list of the RTEs in the message More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

RipNgHeader - see RFC 2080

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 144 of file ripng-header.h.

Member Enumeration Documentation

enum ns3::RipNgHeader::Command_e

Commands to be used in RipNg headers.

Enumerator
REQUEST
RESPONSE

Definition at line 185 of file ripng-header.h.

Constructor & Destructor Documentation

ns3::RipNgHeader::RipNgHeader ( void )

Definition at line 135 of file ripng-header.cc.

Member Function Documentation

void ns3::RipNgHeader::AddRte ( RipNgRte rte )

Add a RTE to the message.

Parameters

rte the RTE

Definition at line 226 of file ripng-header.cc.

References m_rteList.

Referenced by ns3::RipNg::DoSendRouteUpdate(), ns3::RipNg::HandleRequests(), and ns3::RipNg::SendRouteRequest().

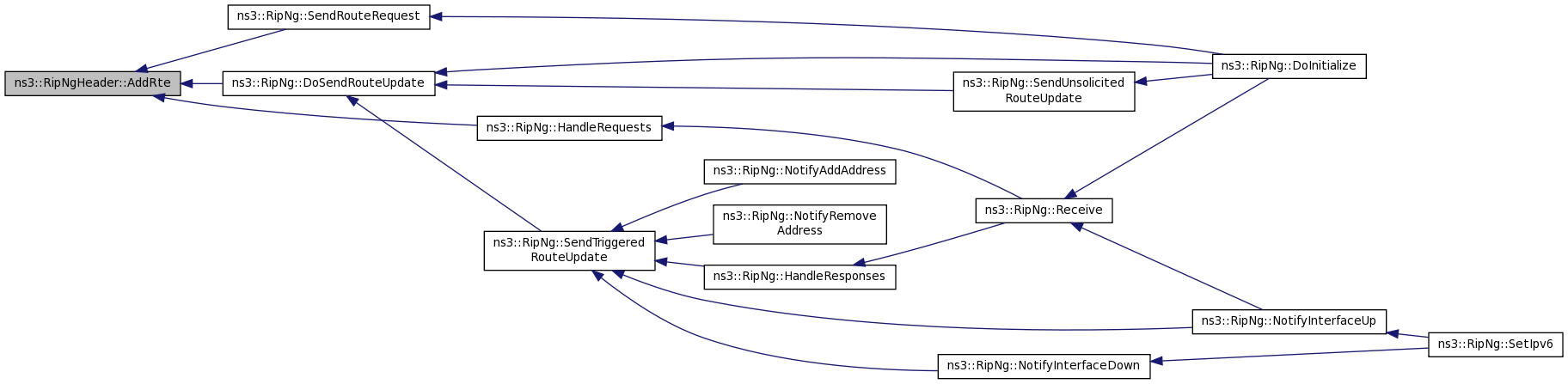

Here is the caller graph for this function:

void ns3::RipNgHeader::ClearRtes ( )

Clear all the RTEs from the header.

Definition at line 231 of file ripng-header.cc.

References m_rteList.

Referenced by ns3::RipNg::DoSendRouteUpdate(), and ns3::RipNg::HandleRequests().

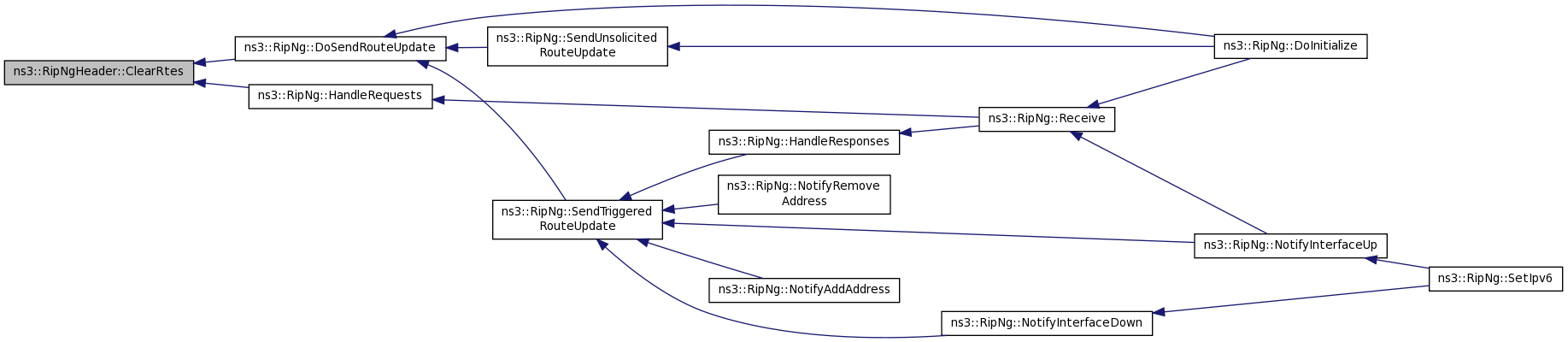

Here is the caller graph for this function:

uint32_t ns3::RipNgHeader::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Implements ns3::Header.

Definition at line 184 of file ripng-header.cc.

References ns3::RipNgRte::Deserialize(), GetSerializedSize(), ns3::Buffer::Iterator::GetSize(), m_command, m_rteList, ns3::Buffer::Iterator::Next(), NS_ASSERT_MSG, ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), REQUEST, RESPONSE, and visualizer.core::start().

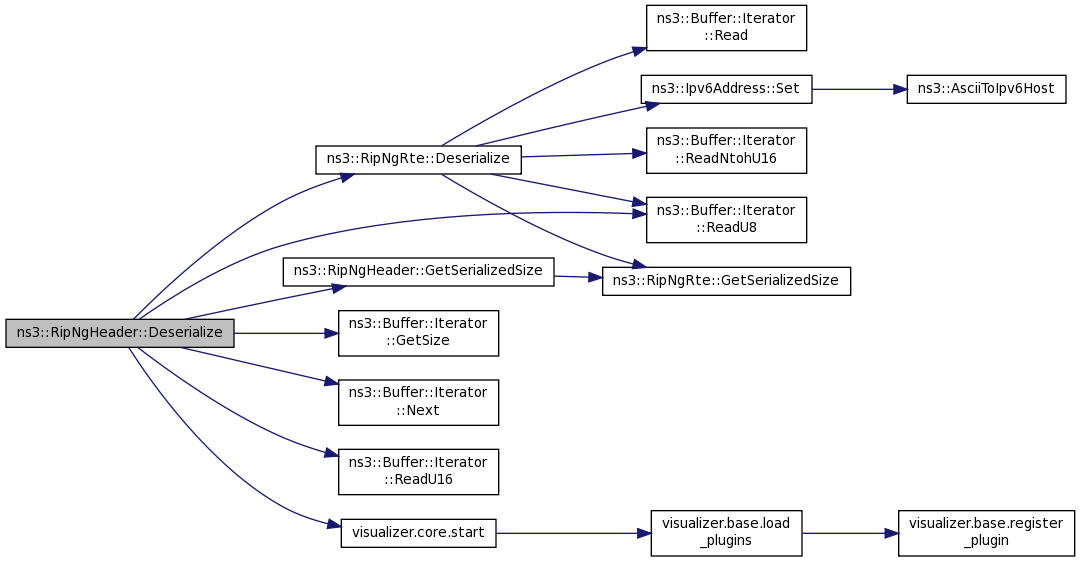

Here is the call graph for this function:

RipNgHeader::Command_e ns3::RipNgHeader::GetCommand ( void ) const

Get the command.

Returns: the command

Definition at line 221 of file ripng-header.cc.

References m_command.

Referenced by ns3::RipNg::Receive().

Here is the caller graph for this function:

TypeId ns3::RipNgHeader::GetInstanceTypeId ( void ) const

virtual

Return the instance type identifier.

Returns: instance type ID

Implements ns3::ObjectBase.

Definition at line 146 of file ripng-header.cc.

References GetTypeId().

Here is the call graph for this function:

std::list< RipNgRte > ns3::RipNgHeader::GetRteList ( void ) const

Get the list of the RTEs included in the message.

Returns: the list of the RTEs in the message

Definition at line 241 of file ripng-header.cc.

References m_rteList.

Referenced by ns3::RipNg::HandleRequests(), ns3::RipNg::HandleResponses(), and Ipv6RipngSplitHorizonStrategyTest::ReceivePktProbe().

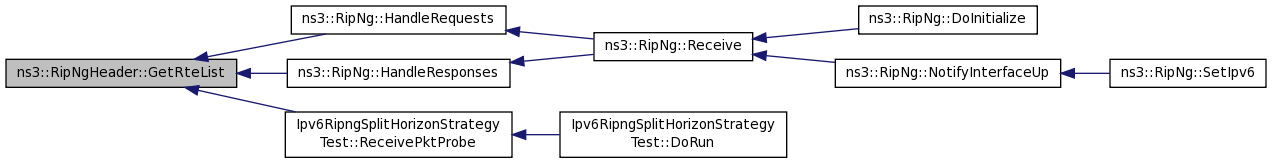

Here is the caller graph for this function:

uint16_t ns3::RipNgHeader::GetRteNumber ( void ) const

Get the number of RTE included in the message.

Returns: the number of RTE in the message

Definition at line 236 of file ripng-header.cc.

References m_rteList.

Referenced by ns3::RipNg::DoSendRouteUpdate(), and ns3::RipNg::HandleRequests().

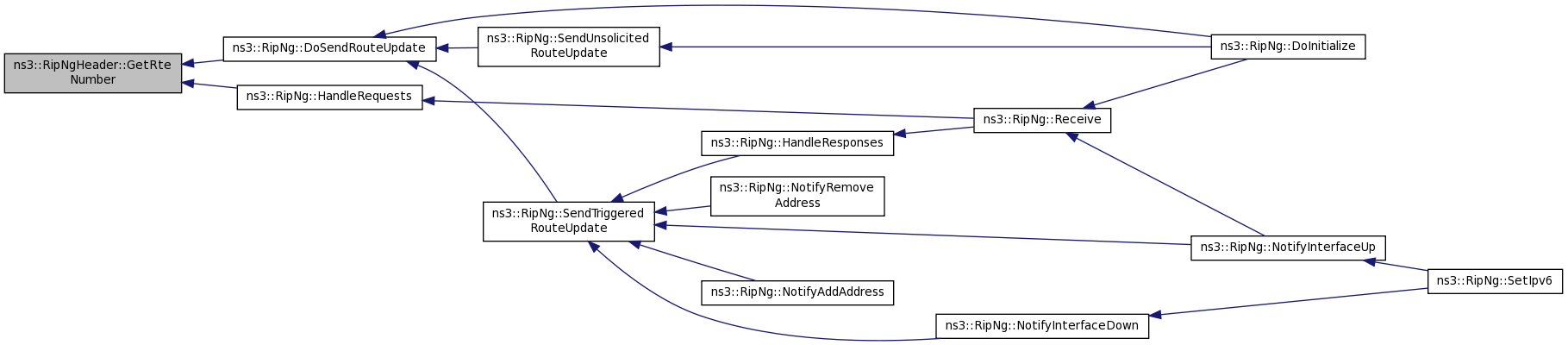

Here is the caller graph for this function:

uint32_t ns3::RipNgHeader::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: size

Implements ns3::Header.

Definition at line 162 of file ripng-header.cc.

References ns3::RipNgRte::GetSerializedSize(), and m_rteList.

Referenced by Deserialize(), ns3::RipNg::DoSendRouteUpdate(), and ns3::RipNg::HandleRequests().

Here is the call graph for this function:

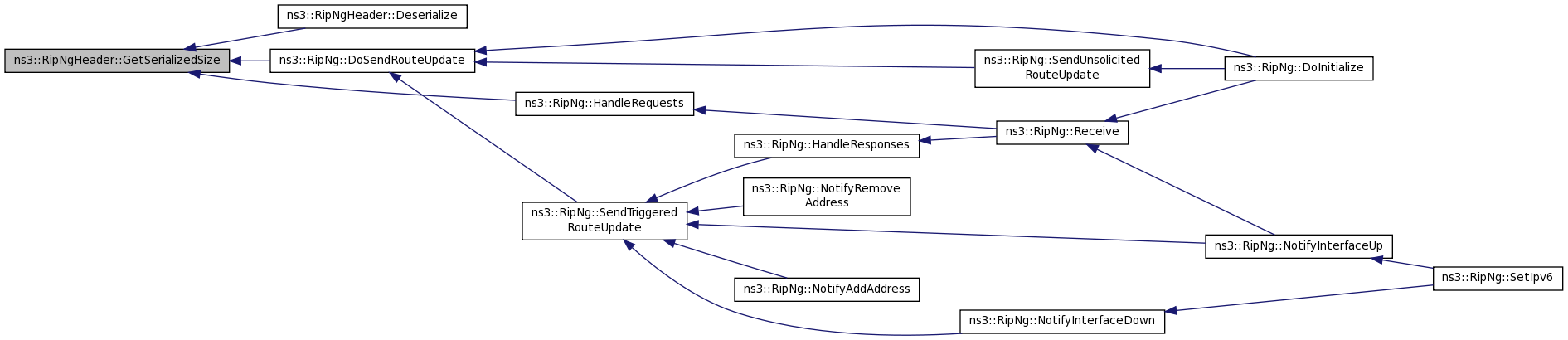

Here is the caller graph for this function:

TypeId ns3::RipNgHeader::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 140 of file ripng-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RipNgHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 151 of file ripng-header.cc.

References m_command, and m_rteList.

Referenced by ns3::operator<<().

Here is the caller graph for this function:
