build TapBridge to allow ns-3 simulations to interact with Linux tap devices and processes on the Linux host. More...

#include <tap-bridge-helper.h>

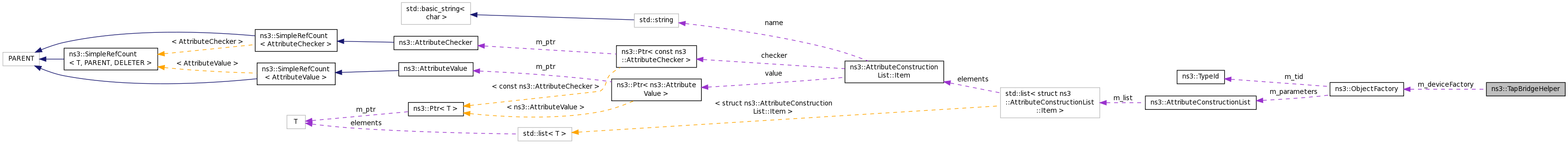

Collaboration diagram for ns3::TapBridgeHelper:

Public Member Functions
	TapBridgeHelper ()
	Construct a TapBridgeHelper to make life easier for people wanting to have their simulations interact with Linux tap devices and processes on the Linux host. More...

	TapBridgeHelper (Ipv4Address gateway)
	Construct a TapBridgeHelper to make life easier for people wanting to have their simulations interact with Linux tap devices and processes on the Linux host. More...

Ptr< NetDevice >	Install (Ptr< Node > node, Ptr< NetDevice > nd)
	This method installs a TapBridge on the specified Node and forms the bridge with the NetDevice specified. More...

Ptr< NetDevice >	Install (std::string nodeName, Ptr< NetDevice > nd)
	This method installs a TapBridge on the specified Node and forms the bridge with the NetDevice specified. More...

Ptr< NetDevice >	Install (Ptr< Node > node, std::string ndName)
	This method installs a TapBridge on the specified Node and forms the bridge with the NetDevice specified. More...

Ptr< NetDevice >	Install (std::string nodeName, std::string ndName)
	This method installs a TapBridge on the specified Node and forms the bridge with the NetDevice specified. More...

Ptr< NetDevice >	Install (Ptr< Node > node, Ptr< NetDevice > nd, const AttributeValue &bridgeType)
	This method installs a TapBridge on the specified Node and forms the bridge with the NetDevice specified. More...

void	SetAttribute (std::string n1, const AttributeValue &v1)

Private Attributes
ObjectFactory	m_deviceFactory

Detailed Description

build TapBridge to allow ns-3 simulations to interact with Linux tap devices and processes on the Linux host.

Definition at line 36 of file tap-bridge-helper.h.

Constructor & Destructor Documentation

ns3::TapBridgeHelper::TapBridgeHelper ( )

Construct a TapBridgeHelper to make life easier for people wanting to have their simulations interact with Linux tap devices and processes on the Linux host.

Definition at line 30 of file tap-bridge-helper.cc.

References m_deviceFactory, NS_LOG_FUNCTION_NOARGS, and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

ns3::TapBridgeHelper::TapBridgeHelper ( Ipv4Address gateway )

Construct a TapBridgeHelper to make life easier for people wanting to have their simulations interact with Linux tap devices and processes on the Linux host.

Parameters

gateway An Ipv4Address to be used as the default gateway for the created bridges,

Definition at line 36 of file tap-bridge-helper.cc.

References ns3::TapBridge::CONFIGURE_LOCAL, m_deviceFactory, NS_LOG_FUNCTION_NOARGS, SetAttribute(), and ns3::ObjectFactory::SetTypeId().

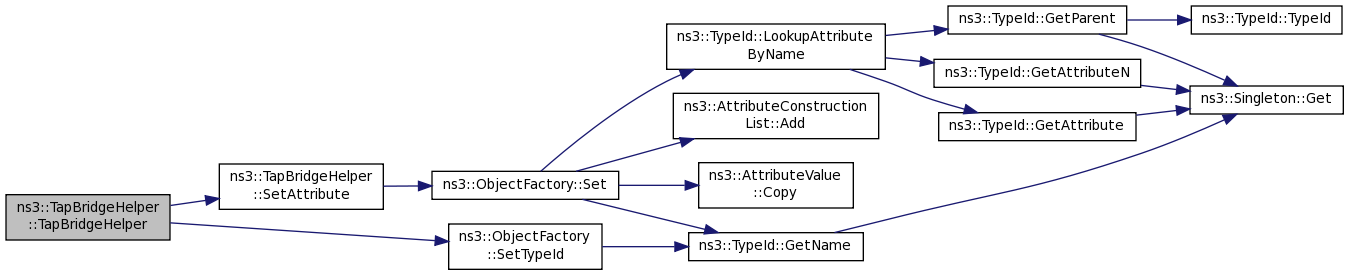

Here is the call graph for this function:

Member Function Documentation

Ptr< NetDevice > ns3::TapBridgeHelper::Install	(	Ptr< Node >	node,
		Ptr< NetDevice >	nd
	)

This method installs a TapBridge on the specified Node and forms the bridge with the NetDevice specified.

The Node is specified using a Ptr<Node> and the NetDevice is specified using a Ptr<NetDevice>

Parameters

node	The Ptr<Node> to install the TapBridge in
nd	The Ptr<NetDevice> to attach to the bridge.

Returns: A pointer to the new TapBridge NetDevice.

Definition at line 61 of file tap-bridge-helper.cc.

References ns3::Node::AddDevice(), ns3::ObjectFactory::Create(), ns3::Node::GetId(), m_deviceFactory, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by Install(), and main().

Here is the call graph for this function:

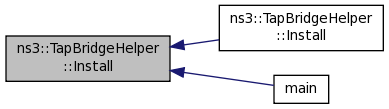

Here is the caller graph for this function:

Ptr< NetDevice > ns3::TapBridgeHelper::Install	(	std::string	nodeName,
		Ptr< NetDevice >	nd
	)

This method installs a TapBridge on the specified Node and forms the bridge with the NetDevice specified.

The node is specified by a name string that has previously been associated with the Node using the Object Name Service. The NetDevice is specified by a Ptr<NetDevice>.

Parameters

nodeName	The name of the Node to install the TapBridge in
nd	The Ptr<NetDevice> to attach to the bridge.

Returns: A pointer to the new TapBridge NetDevice.

Definition at line 74 of file tap-bridge-helper.cc.

References Install().

Here is the call graph for this function:

Ptr< NetDevice > ns3::TapBridgeHelper::Install	(	Ptr< Node >	node,
		std::string	ndName
	)

This method installs a TapBridge on the specified Node and forms the bridge with the NetDevice specified.

The NetDevice is specified by a name string that has previously been associated with the NetDevice using the Object Name Service.

Parameters

node	The Ptr<Node> to install the TapBridge in
ndName	The name of the NetDevice to attach to the bridge.

Returns: A pointer to the new TapBridge NetDevice.

Definition at line 81 of file tap-bridge-helper.cc.

References Install().

Here is the call graph for this function:

Ptr< NetDevice > ns3::TapBridgeHelper::Install	(	std::string	nodeName,
		std::string	ndName
	)

This method installs a TapBridge on the specified Node and forms the bridge with the NetDevice specified.

The node is specified by a name string that has previously been associated with the Node using the Object Name Service. The NetDevice is specified by a name string that has previously been associated with the Object Name Service.

Parameters

nodeName	The name of the Node to install the TapBridge in
ndName	The name of the NetDevice to attach to the bridge.

Returns: A pointer to the new TapBridge NetDevice.

Definition at line 88 of file tap-bridge-helper.cc.

References Install().

Here is the call graph for this function:

Ptr< NetDevice > ns3::TapBridgeHelper::Install	(	Ptr< Node >	node,
		Ptr< NetDevice >	nd,
		const AttributeValue &	bridgeType
	)

This method installs a TapBridge on the specified Node and forms the bridge with the NetDevice specified.

The Node is specified using a Ptr<Node> and the NetDevice is specified using a Ptr<NetDevice>. The type of the actual Bridge device is specified with the provided AttributeValue (typically "ns3::TapBridge").

Parameters

node	The Ptr<Node> to install the TapBridge in
nd	The Ptr<NetDevice> to attach to the bridge.
bridgeType	The TypeId of the bridge that will be automatically created.
