ns3::TcpHeaderGetSetTestCase Class Reference

Inheritance diagram for ns3::TcpHeaderGetSetTestCase:

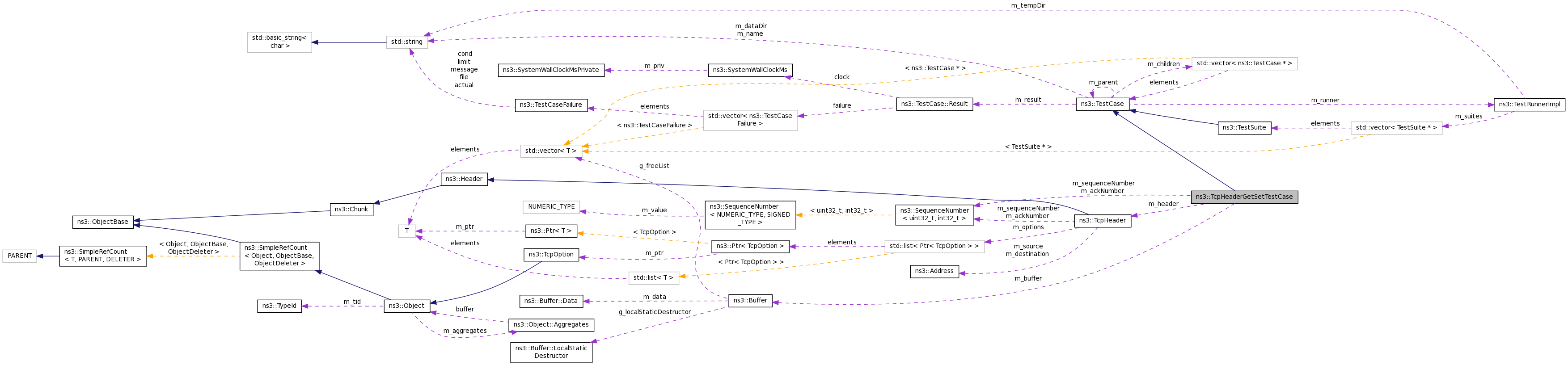

Collaboration diagram for ns3::TcpHeaderGetSetTestCase:

Public Member Functions
	TcpHeaderGetSetTestCase (uint16_t sourcePort, uint16_t destinationPort, SequenceNumber32 sequenceNumber, SequenceNumber32 ackNumber, uint8_t flags, uint16_t m_windowSize, uint16_t m_urgentPointer, std::string name)
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Protected Attributes
SequenceNumber32	m_ackNumber
	ACK number. More...
uint16_t	m_destinationPort
	Destination port. More...
uint8_t	m_flags
	Flags (really a uint6_t) More...
SequenceNumber32	m_sequenceNumber
	Sequence number. More...
uint16_t	m_sourcePort
	Source port. More...
uint16_t	m_urgentPointer
	Urgent pointer. More...
uint16_t	m_windowSize
	Window size. More...

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
virtual void	DoTeardown (void)
	Implementation to do any local setup required for this TestCase. More...

Private Attributes
Buffer	m_buffer
TcpHeader	m_header

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
void	AddTestCase (TestCase *testCase) NS_DEPRECATED
	Add an individual child TestCase case to this TestCase. More...
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
bool	GetErrorStatus (void) const NS_DEPRECATED
TestCase *	GetParent () const
bool	IsStatusFailure (void) const
bool	IsStatusSuccess (void) const
void	SetDataDir (std::string directory)
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
bool	MustContinueOnFailure (void) const
std::string	CreateDataDirFilename (std::string filename)
std::string	CreateTempDirFilename (std::string filename)

Detailed Description

Definition at line 31 of file tcp-header-test.cc.

Constructor & Destructor Documentation

ns3::TcpHeaderGetSetTestCase::TcpHeaderGetSetTestCase	(	uint16_t	sourcePort,
		uint16_t	destinationPort,
		SequenceNumber32	sequenceNumber,
		SequenceNumber32	ackNumber,
		uint8_t	flags,
		uint16_t	m_windowSize,
		uint16_t	m_urgentPointer,
		std::string	name
	)

Definition at line 55 of file tcp-header-test.cc.

References ns3::Buffer::AddAtStart(), ns3::Buffer::Begin(), ns3::TcpHeader::GetLength(), ns3::TcpHeader::GetSerializedSize(), m_ackNumber, m_buffer, m_destinationPort, m_flags, m_header, m_sequenceNumber, m_sourcePort, m_urgentPointer, m_windowSize, NS_TEST_ASSERT_MSG_EQ, ns3::TcpHeader::Serialize(), ns3::TcpHeader::SetAckNumber(), ns3::TcpHeader::SetDestinationPort(), ns3::TcpHeader::SetFlags(), ns3::TcpHeader::SetSequenceNumber(), ns3::TcpHeader::SetSourcePort(), ns3::TcpHeader::SetUrgentPointer(), and ns3::TcpHeader::SetWindowSize().

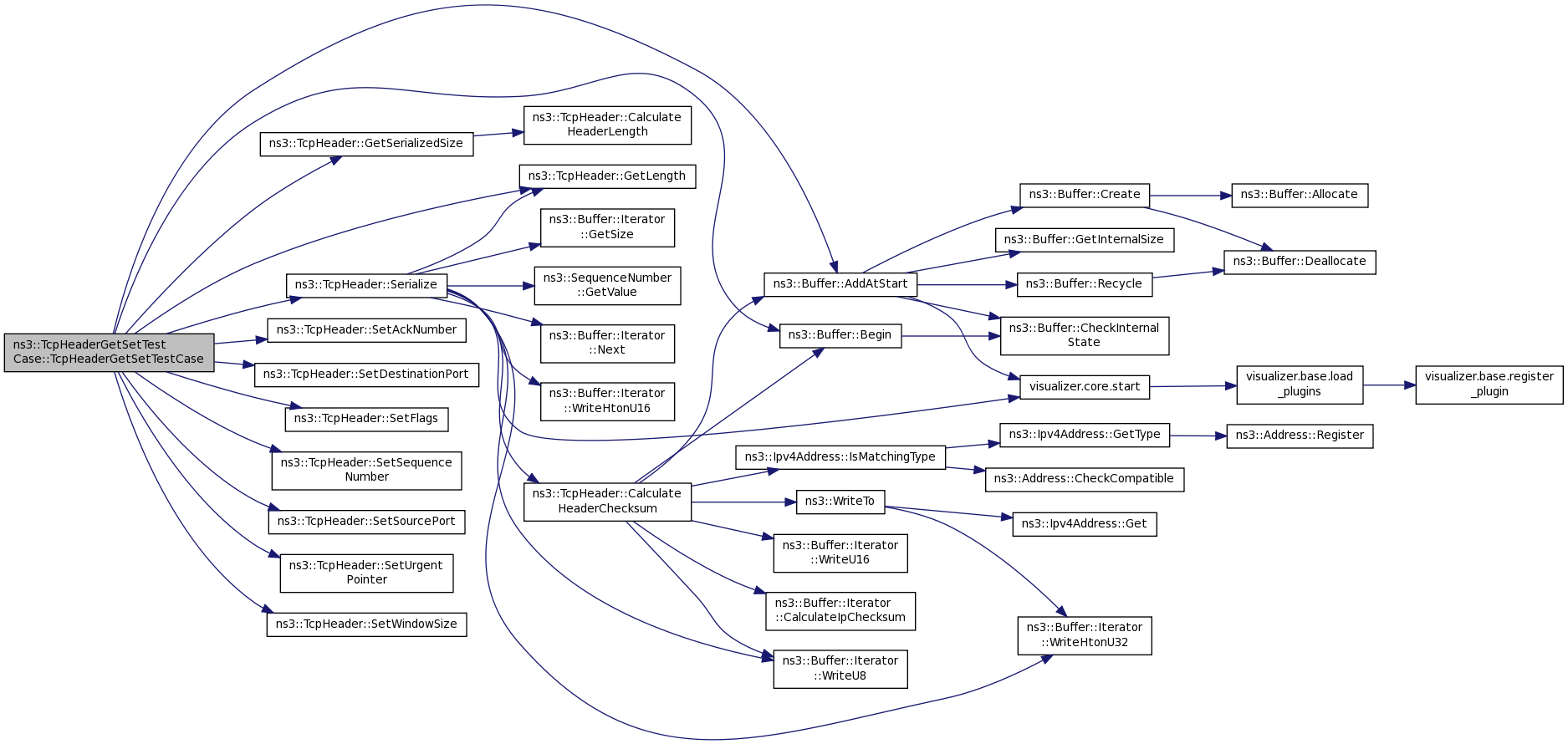

Here is the call graph for this function:

Member Function Documentation

void ns3::TcpHeaderGetSetTestCase::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 84 of file tcp-header-test.cc.

References ns3::Buffer::Begin(), ns3::TcpHeader::Deserialize(), ns3::TcpHeader::GetAckNumber(), ns3::TcpHeader::GetDestinationPort(), ns3::TcpHeader::GetFlags(), ns3::TcpHeader::GetLength(), ns3::TcpHeader::GetSequenceNumber(), ns3::TcpHeader::GetSourcePort(), ns3::TcpHeader::GetUrgentPointer(), ns3::TcpHeader::GetWindowSize(), m_ackNumber, m_buffer, m_destinationPort, m_flags, m_header, m_sequenceNumber, m_sourcePort, m_urgentPointer, m_windowSize, and NS_TEST_ASSERT_MSG_EQ.

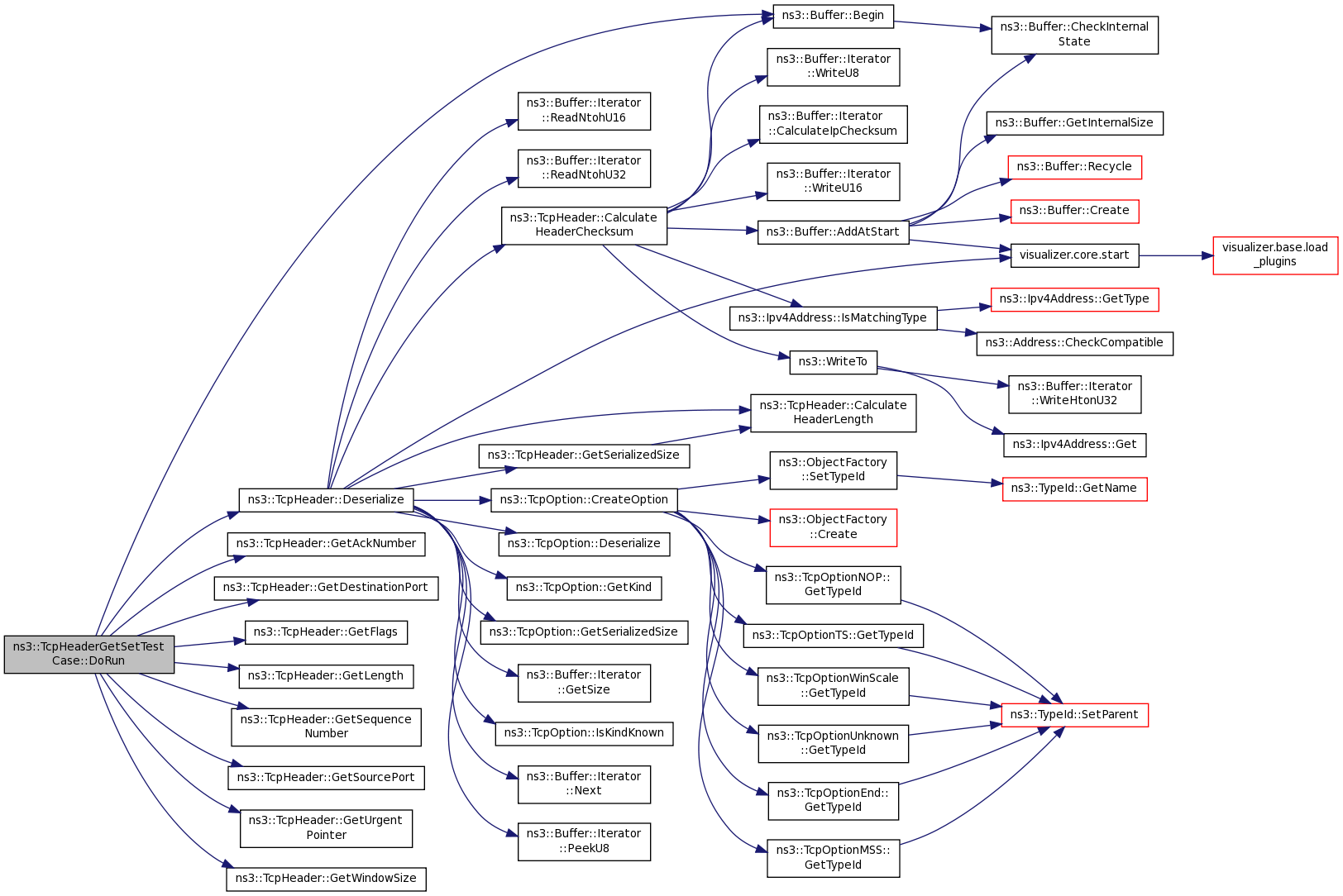

Here is the call graph for this function:

void ns3::TcpHeaderGetSetTestCase::DoTeardown ( void  )

privatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test teardown

Reimplemented from ns3::TestCase.

Definition at line 124 of file tcp-header-test.cc.

Member Data Documentation

SequenceNumber32 ns3::TcpHeaderGetSetTestCase::m_ackNumber

protected

ACK number.

Definition at line 42 of file tcp-header-test.cc.

Referenced by DoRun(), and TcpHeaderGetSetTestCase().

Buffer ns3::TcpHeaderGetSetTestCase::m_buffer

private

Definition at line 52 of file tcp-header-test.cc.

Referenced by DoRun(), and TcpHeaderGetSetTestCase().

uint16_t ns3::TcpHeaderGetSetTestCase::m_destinationPort

protected

Destination port.

Definition at line 40 of file tcp-header-test.cc.

Referenced by DoRun(), and TcpHeaderGetSetTestCase().

uint8_t ns3::TcpHeaderGetSetTestCase::m_flags

protected

Flags (really a uint6_t)

Definition at line 43 of file tcp-header-test.cc.

Referenced by DoRun(), and TcpHeaderGetSetTestCase().

TcpHeader ns3::TcpHeaderGetSetTestCase::m_header

private

Definition at line 51 of file tcp-header-test.cc.

Referenced by DoRun(), and TcpHeaderGetSetTestCase().

SequenceNumber32 ns3::TcpHeaderGetSetTestCase::m_sequenceNumber

protected

Sequence number.

Definition at line 41 of file tcp-header-test.cc.

Referenced by DoRun(), and TcpHeaderGetSetTestCase().

uint16_t ns3::TcpHeaderGetSetTestCase::m_sourcePort

protected

Source port.

Definition at line 39 of file tcp-header-test.cc.

Referenced by DoRun(), and TcpHeaderGetSetTestCase().

uint16_t ns3::TcpHeaderGetSetTestCase::m_urgentPointer

protected

Urgent pointer.

Definition at line 45 of file tcp-header-test.cc.

Referenced by DoRun(), and TcpHeaderGetSetTestCase().

uint16_t ns3::TcpHeaderGetSetTestCase::m_windowSize

protected

Window size.

Definition at line 44 of file tcp-header-test.cc.

Referenced by DoRun(), and TcpHeaderGetSetTestCase().

---

The documentation for this class was generated from the following file:

• src/internet/test/tcp-header-test.cc
