An unknown TCP option. More...

#include <tcp-option.h>

Inheritance diagram for ns3::TcpOptionUnknown:

Collaboration diagram for ns3::TcpOptionUnknown:

Public Member Functions
	TcpOptionUnknown ()

virtual	~TcpOptionUnknown ()

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the Option from a buffer iterator. More...

virtual TypeId	GetInstanceTypeId (void) const

virtual uint8_t	GetKind (void) const
	Get the `kind' (as in RFC 793) of this option. More...

virtual uint32_t	GetSerializedSize (void) const
	Returns number of bytes required for Option serialization. More...

virtual void	Print (std::ostream &os) const
	Print the Option contents. More...

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the Option to a buffer iterator. More...

Public Member Functions inherited from ns3::TcpOption
	TcpOption ()

virtual	~TcpOption ()

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::TcpOption
static Ptr< TcpOption >	CreateOption (uint8_t kind)
	Creates an option. More...

static TypeId	GetTypeId (void)
	Get the type ID. More...

static bool	IsKindKnown (uint8_t kind)
	Check if the option is implemented. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_content [40]
	The option data. More...

uint8_t	m_kind
	The unknown option kind. More...

uint32_t	m_size
	The unknown option size. More...

Additional Inherited Members
Public Types inherited from ns3::TcpOption
enum	Kind { END = 0, NOP = 1, MSS = 2, WINSCALE = 3, TS = 8, UNKNOWN = 255 }
	The option Kind, as defined in the respective RFCs. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

An unknown TCP option.

Doxygen introspection did not find any typical Config paths.

An unknown option can be deserialized and (only if deserialized previously) serialized again.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 116 of file tcp-option.h.

Constructor & Destructor Documentation

ns3::TcpOptionUnknown::TcpOptionUnknown ( )

Definition at line 112 of file tcp-option.cc.

References m_kind, and m_size.

ns3::TcpOptionUnknown::~TcpOptionUnknown ( )

virtual

Definition at line 119 of file tcp-option.cc.

Member Function Documentation

uint32_t ns3::TcpOptionUnknown::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the Option from a buffer iterator.

Parameters

start the buffer iterator

Returns: the number of deserialized bytes

Implements ns3::TcpOption.

Definition at line 166 of file tcp-option.cc.

References m_content, m_kind, m_size, NS_LOG_WARN, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

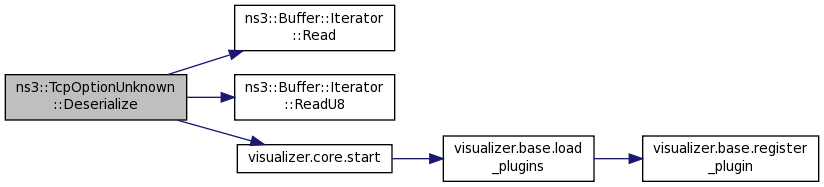

Here is the call graph for this function:

TypeId ns3::TcpOptionUnknown::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Reimplemented from ns3::TcpOption.

Definition at line 134 of file tcp-option.cc.

References GetTypeId().

Here is the call graph for this function:
