RTS header. More...

#include <uan-header-rc.h>

Inheritance diagram for ns3::UanHeaderRcRts:

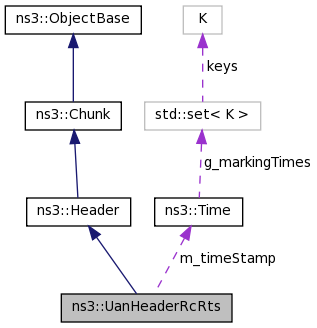

Collaboration diagram for ns3::UanHeaderRcRts:

Public Member Functions
	UanHeaderRcRts ()
	Default constructor. More...

	UanHeaderRcRts (uint8_t frameNo, uint8_t retryNo, uint8_t noFrames, uint16_t length, Time ts)
	Constructor. More...

virtual	~UanHeaderRcRts ()
	Destructor. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)

uint8_t	GetFrameNo (void) const
	Get the frame number. More...

virtual TypeId	GetInstanceTypeId (void) const

uint16_t	GetLength (void) const
	Get the total number of bytes in the reservation, including headers. More...

uint8_t	GetNoFrames (void) const
	Get the number of data frames in the reservation. More...

uint8_t	GetRetryNo (void) const
	Get the retry number of this RTS packet. More...

virtual uint32_t	GetSerializedSize (void) const

Time	GetTimeStamp (void) const
	Get the transmit timestamp of this RTS packet. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetFrameNo (uint8_t fno)
	Set the frame number. More...

void	SetLength (uint16_t length)
	Set the number of data bytes in the reservation. More...

void	SetNoFrames (uint8_t no)
	Set the number of data frames included in this reservation request. More...

void	SetRetryNo (uint8_t no)
	Set the retry number of this RTS packet. More...

void	SetTimeStamp (Time timeStamp)
	Set RTS transmission time. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_frameNo
	Reservation frame number. More...

uint16_t	m_length
	Number of bytes (including headers) in data. More...

uint8_t	m_noFrames
	Number of data frames in reservation. More...

uint8_t	m_retryNo
	Retry number of RTS packet. More...

Time	m_timeStamp
	RTS TX timestamp. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

RTS header.

Doxygen introspection did not find any typical Config paths.

Contains frame number, retry number, number of frames, length, and timestamp.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 110 of file uan-header-rc.h.

Constructor & Destructor Documentation

ns3::UanHeaderRcRts::UanHeaderRcRts ( )

Default constructor.

Definition at line 123 of file uan-header-rc.cc.

ns3::UanHeaderRcRts::UanHeaderRcRts	(	uint8_t	frameNo,
		uint8_t	retryNo,
		uint8_t	noFrames,
		uint16_t	length,
		Time	ts
	)

Constructor.

Parameters

frameNo	Reservation frame number.
retryNo	Retry number of RTS packet.
noFrames	Number of data frames in reservation.
length	Number of bytes (including headers) in data.
ts	RTS TX timestamp.

Note: Timestamp is serialized into 32 bits with ms accuracy.

Definition at line 134 of file uan-header-rc.cc.

ns3::UanHeaderRcRts::~UanHeaderRcRts ( )

virtual

Destructor.

Definition at line 145 of file uan-header-rc.cc.

Member Function Documentation

uint32_t ns3::UanHeaderRcRts::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 237 of file uan-header-rc.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_frameNo, m_length, m_noFrames, m_retryNo, m_timeStamp, ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), ns3::Seconds(), and visualizer.core::start().

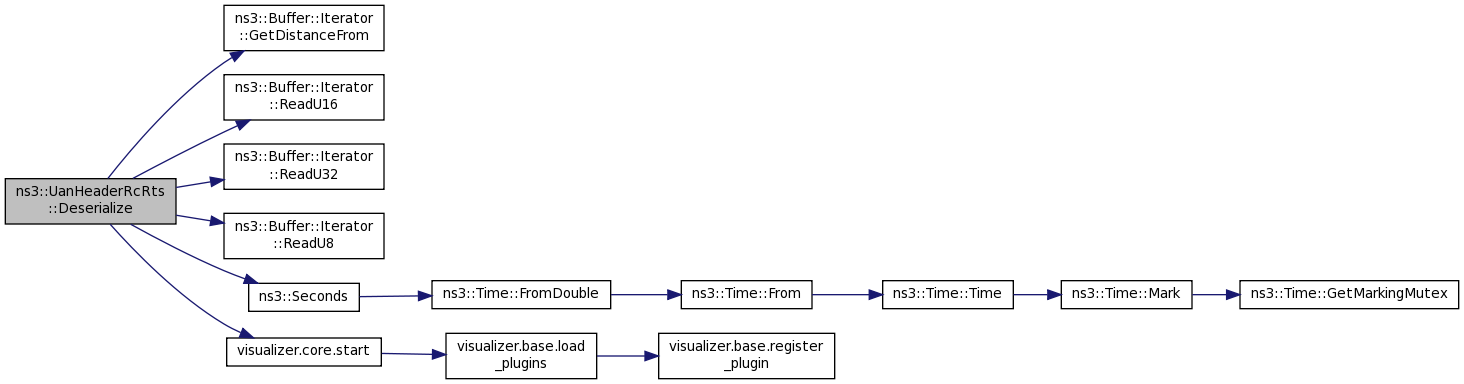

Here is the call graph for this function:

uint8_t ns3::UanHeaderRcRts::GetFrameNo ( void ) const

Get the frame number.

Returns: The frame number.

Definition at line 214 of file uan-header-rc.cc.

References m_frameNo.

Referenced by ns3::UanMacRcGw::ReceivePacket().

Here is the caller graph for this function:

TypeId ns3::UanHeaderRcRts::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 256 of file uan-header-rc.cc.

References GetTypeId().

Here is the call graph for this function:

uint16_t ns3::UanHeaderRcRts::GetLength ( void ) const

Get the total number of bytes in the reservation, including headers.

Returns: Total number of bytes in data packets for reservation.

Definition at line 196 of file uan-header-rc.cc.

References m_length.

Referenced by ns3::UanMacRcGw::ReceivePacket().

Here is the caller graph for this function:

uint8_t ns3::UanHeaderRcRts::GetNoFrames ( void ) const

Get the number of data frames in the reservation.

Returns: The number of data frames.

Definition at line 190 of file uan-header-rc.cc.

References m_noFrames.

Referenced by ns3::UanMacRcGw::ReceivePacket().

Here is the caller graph for this function:

uint8_t ns3::UanHeaderRcRts::GetRetryNo ( void ) const

Get the retry number of this RTS packet.

Returns: The retry number.

Definition at line 208 of file uan-header-rc.cc.

References m_retryNo.

Referenced by ns3::UanMacRcGw::ReceivePacket().

Here is the caller graph for this function:

uint32_t ns3::UanHeaderRcRts::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 220 of file uan-header-rc.cc.

Referenced by ns3::UanMacRcGw::UanMacRcGw().

Here is the caller graph for this function:

Time ns3::UanHeaderRcRts::GetTimeStamp ( void ) const

Get the transmit timestamp of this RTS packet.

Returns: The TX time.

Note: Timestamp is serialized with 32 bits in ms precision.

Definition at line 202 of file uan-header-rc.cc.

References m_timeStamp.

TypeId ns3::UanHeaderRcRts::GetTypeId ( void )

static

Register this type.

Returns: The TypeId.

Definition at line 151 of file uan-header-rc.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanHeaderRcRts::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 250 of file uan-header-rc.cc.

References ns3::Time::GetSeconds(), m_frameNo, m_length, m_noFrames, m_retryNo, and m_timeStamp.

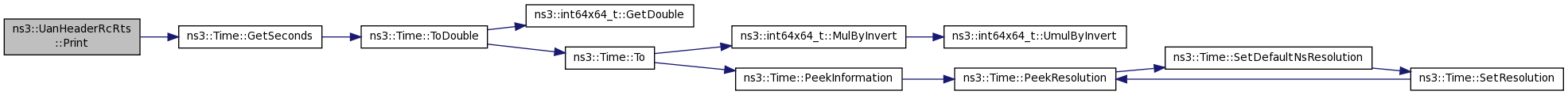

Here is the call graph for this function:

void ns3::UanHeaderRcRts::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 226 of file uan-header-rc.cc.

References ns3::Time::GetSeconds(), m_frameNo, m_length, m_noFrames, m_retryNo, m_timeStamp, ns3::Buffer::Iterator::WriteU16(), ns3::Buffer::Iterator::WriteU32(), and ns3::Buffer::Iterator::WriteU8().

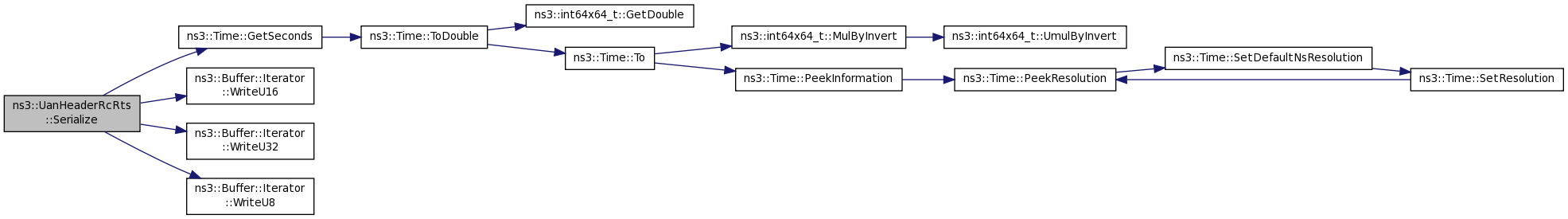

Here is the call graph for this function:
