Packet error rate calculation assuming WHOI Micromodem-like PHY. More...

#include <uan-phy-gen.h>

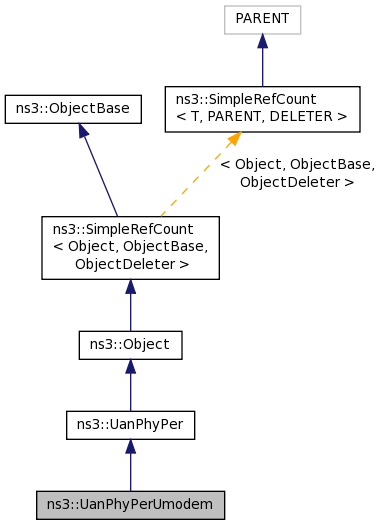

Inheritance diagram for ns3::UanPhyPerUmodem:

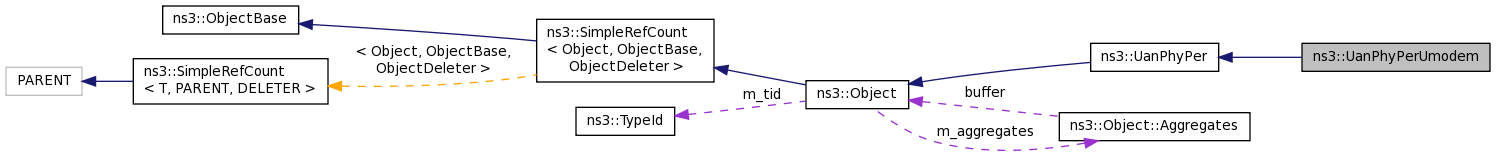

Collaboration diagram for ns3::UanPhyPerUmodem:

Public Member Functions
	UanPhyPerUmodem ()
	Constructor. More...

virtual	~UanPhyPerUmodem ()
	Destructor. More...

virtual double	CalcPer (Ptr< Packet > pkt, double sinrDb, UanTxMode mode)
	Calculate the packet error probability based on SINR at the receiver and a tx mode. More...

Public Member Functions inherited from ns3::UanPhyPer
virtual void	Clear (void)
	Clear all pointer references. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::UanPhyPer
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
double	NChooseK (uint32_t n, uint32_t k)
	Binomial coefficient. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::UanPhyPer
virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Packet error rate calculation assuming WHOI Micromodem-like PHY.

Doxygen introspection did not find any typical Config paths.

Calculates PER assuming rate 1/2 convolutional code with constraint length 9 with soft decision viterbi decoding and a CRC capable of correcting 1 bit error.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 74 of file uan-phy-gen.h.

Constructor & Destructor Documentation

ns3::UanPhyPerUmodem::UanPhyPerUmodem ( )

Constructor.

Definition at line 243 of file uan-phy-gen.cc.

ns3::UanPhyPerUmodem::~UanPhyPerUmodem ( )

virtual

Destructor.

Definition at line 247 of file uan-phy-gen.cc.

Member Function Documentation

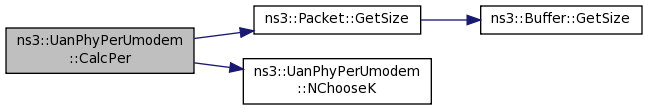

double ns3::UanPhyPerUmodem::CalcPer	(	Ptr< Packet >	pkt,
		double	sinrDb,
		UanTxMode	mode
	)

virtual

Calculate the packet error probability based on SINR at the receiver and a tx mode.

This implementation uses calculations for binary FSK modulation coded by a rate 1/2 convolutional code with constraint length = 9 and a viterbi decoder and finally a CRC capable of correcting one bit error. These equations can be found in the book, Digital Communications, by Proakis (any version I think).

Parameters
