Half duplex implementation of transducer object. More...

#include <uan-transducer-hd.h>

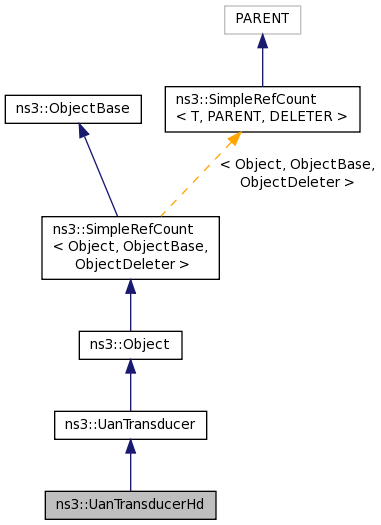

Inheritance diagram for ns3::UanTransducerHd:

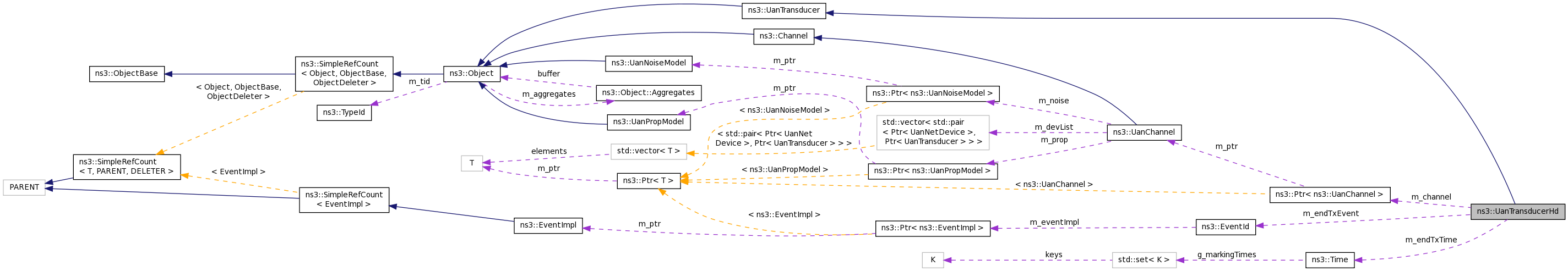

Collaboration diagram for ns3::UanTransducerHd:

Public Member Functions
	UanTransducerHd ()
	Constructor. More...

virtual	~UanTransducerHd ()
	Dummy destructor, see DoDispose. More...

virtual void	AddPhy (Ptr< UanPhy >)
	Attach a physical network layer above this transducer. More...

virtual void	Clear (void)
	Clears all pointer references. More...

virtual const ArrivalList &	GetArrivalList (void) const
	Get the list of overlapped (in time) packets at this transducer. More...

virtual Ptr< UanChannel >	GetChannel (void) const
	Get the attached channel. More...

virtual const UanPhyList &	GetPhyList (void) const
	Get the list of physical layer above this transducer. More...

virtual State	GetState (void) const
	Get the transducer state. More...

virtual bool	IsRx (void) const
	Is the state receiving (or available for reception)? More...

virtual bool	IsTx (void) const
	Is the state transmitting? More...

virtual void	Receive (Ptr< Packet > packet, double rxPowerDb, UanTxMode txMode, UanPdp pdp)
	Notify this object that a new packet has arrived at this nodes location. More...

virtual void	SetChannel (Ptr< UanChannel > chan)
	Attach this transducer to a channel. More...

virtual void	Transmit (Ptr< UanPhy > src, Ptr< Packet > packet, double txPowerDb, UanTxMode txMode)
	Transmit a packet from this transducer. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::UanTransducer
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose ()
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Member Functions
void	EndTx (void)
	Handle end of transmission event. More...

void	RemoveArrival (UanPacketArrival arrival)
	Remove an entry from the arrival list. More...

Private Attributes
ArrivalList	m_arrivalList
	List of arriving packets which overlap in time. More...

Ptr< UanChannel >	m_channel
	The attached channel. More...

bool	m_cleared
	Flab when we've been cleared. More...

EventId	m_endTxEvent
	Event scheduled for end of transmission. More...

Time	m_endTxTime
	Time at which transmission will be completed. More...

UanPhyList	m_phyList
	List of physical layers attached above this tranducer. More...

State	m_state
	Transducer state. More...

Additional Inherited Members
Public Types inherited from ns3::UanTransducer
typedef std::list < UanPacketArrival >	ArrivalList
	List of arriving packets overlapping in time. More...

enum	State { TX, RX }
	Transducer state. More...

typedef std::list< Ptr< UanPhy > >	UanPhyList
	List of UanPhy objects. More...

Detailed Description

Half duplex implementation of transducer object.

Doxygen introspection did not find any typical Config paths.

This class will only allow attached Phy's to receive packets if not in TX mode.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 36 of file uan-transducer-hd.h.

Constructor & Destructor Documentation

ns3::UanTransducerHd::UanTransducerHd ( )

Constructor.

Definition at line 36 of file uan-transducer-hd.cc.

ns3::UanTransducerHd::~UanTransducerHd ( )

virtual

Dummy destructor, see DoDispose.

Definition at line 44 of file uan-transducer-hd.cc.

Member Function Documentation

void ns3::UanTransducerHd::AddPhy ( Ptr< UanPhy > phy )

virtual

Attach a physical network layer above this transducer.

More than one physical layer may be attached.

Parameters

phy	The physical layer.

Implements ns3::UanTransducer.

Definition at line 212 of file uan-transducer-hd.cc.

References m_phyList.

void ns3::UanTransducerHd::Clear ( void )

virtual

Clears all pointer references.

Implements ns3::UanTransducer.

Definition at line 49 of file uan-transducer-hd.cc.

References ns3::EventId::Cancel(), m_arrivalList, m_channel, m_cleared, m_endTxEvent, and m_phyList.

Referenced by DoDispose().

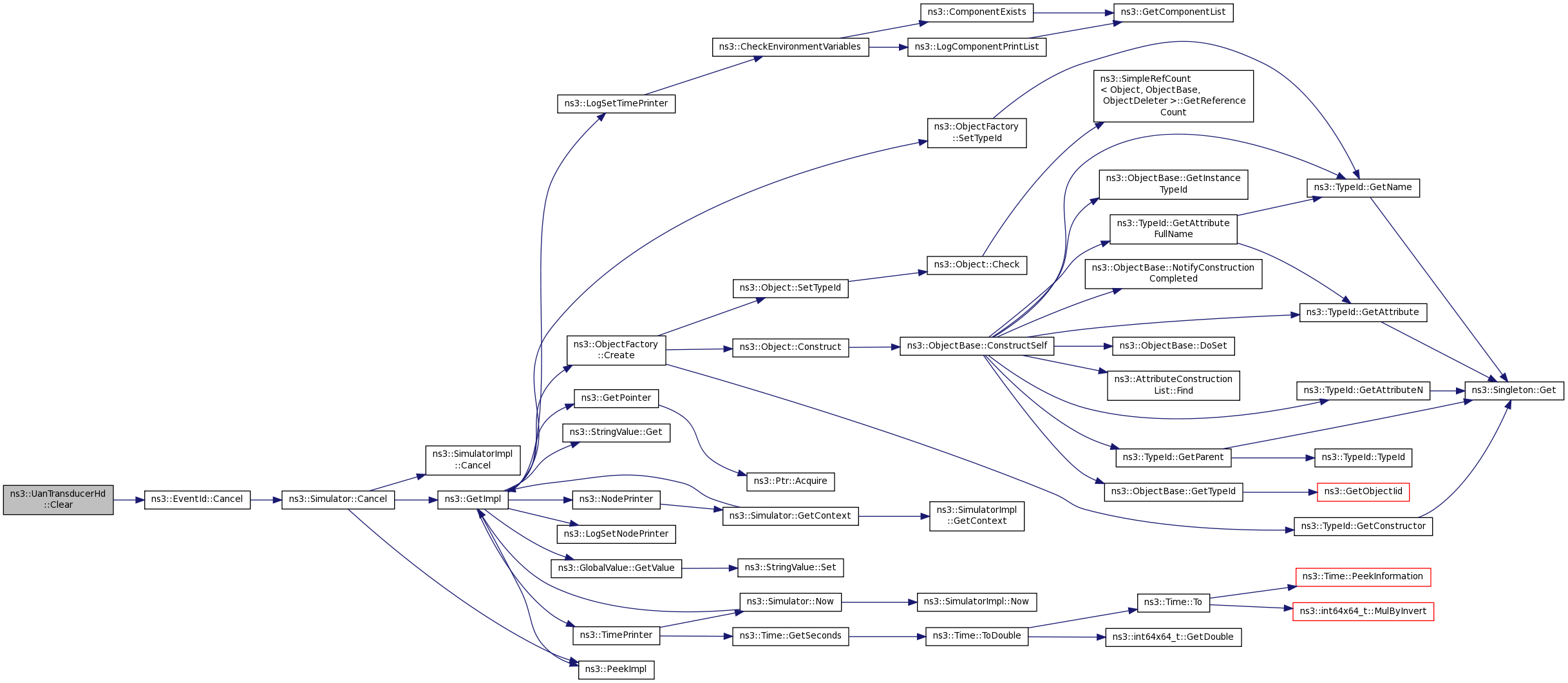

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanTransducerHd::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 82 of file uan-transducer-hd.cc.

References Clear(), and ns3::Object::DoDispose().

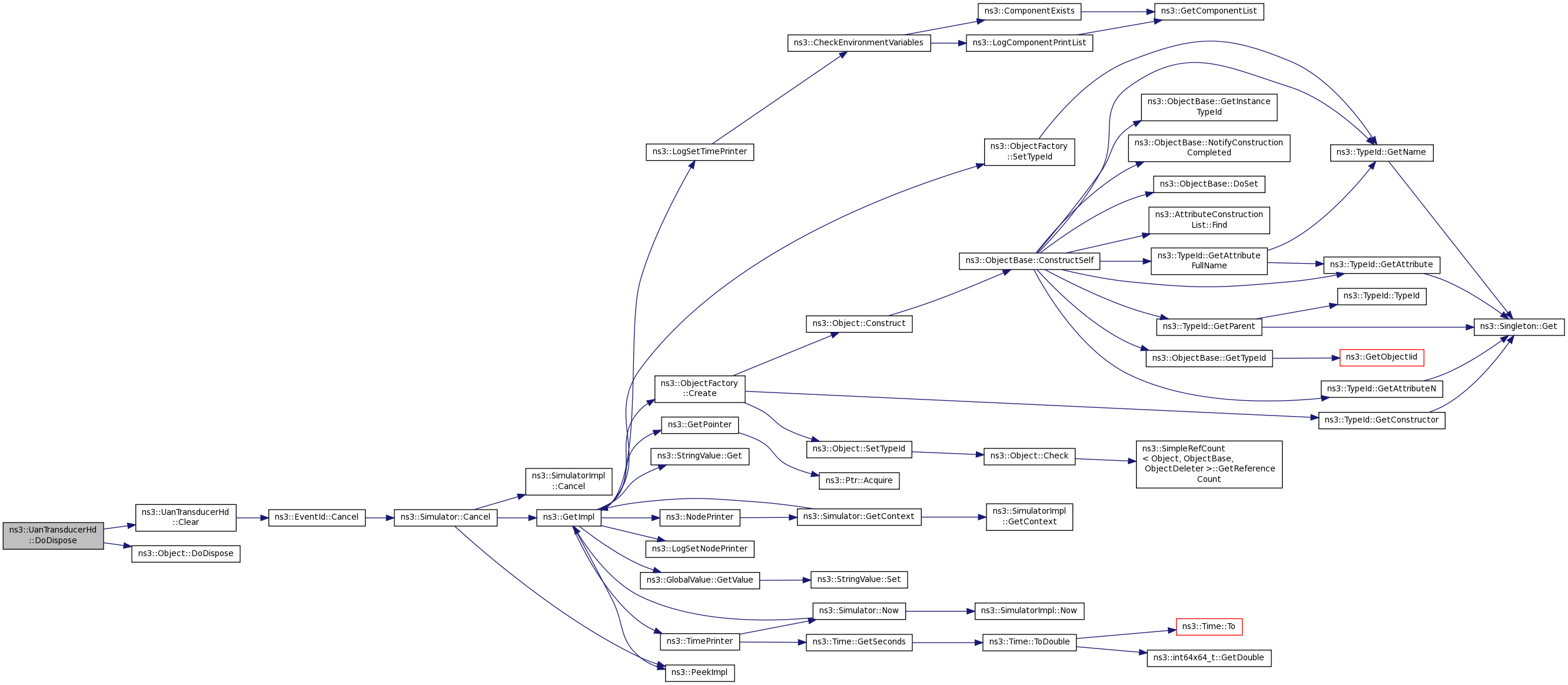

Here is the call graph for this function:

void ns3::UanTransducerHd::EndTx ( void )

private

Handle end of transmission event.

Definition at line 193 of file uan-transducer-hd.cc.

References m_endTxTime, m_state, NS_ASSERT, ns3::UanTransducer::RX, ns3::Seconds(), and ns3::UanTransducer::TX.

Referenced by Transmit().

Here is the call graph for this function:

Here is the caller graph for this function:

const UanTransducer::ArrivalList & ns3::UanTransducerHd::GetArrivalList ( void ) const

virtual

Get the list of overlapped (in time) packets at this transducer.

Returns: List of all packets currently crossing this node in the water.

Implements ns3::UanTransducer.

Definition at line 118 of file uan-transducer-hd.cc.

References m_arrivalList.

Ptr< UanChannel > ns3::UanTransducerHd::GetChannel ( void ) const

virtual

Get the attached channel.

Returns: The channel.

Implements ns3::UanTransducer.

Definition at line 207 of file uan-transducer-hd.cc.

References m_channel.

const UanTransducer::UanPhyList & ns3::UanTransducerHd::GetPhyList ( void ) const

virtual

Get the list of physical layer above this transducer.

Returns: List of attached physical layers.

Implements ns3::UanTransducer.

Definition at line 218 of file uan-transducer-hd.cc.

References m_phyList.

UanTransducer::State ns3::UanTransducerHd::GetState ( void ) const

virtual

Get the transducer state.

Returns: State (TX or RX) of this transducer.

Implements ns3::UanTransducer.

Definition at line 98 of file uan-transducer-hd.cc.

References m_state.

TypeId ns3::UanTransducerHd::GetTypeId ( void )

static

Register this type.

Returns: The object TypeId.

Definition at line 88 of file uan-transducer-hd.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

bool ns3::UanTransducerHd::IsRx ( void ) const

virtual

Is the state receiving (or available for reception)?

Returns: True if this transducer is available for receiving an incoming packet.

Implements ns3::UanTransducer.

Definition at line 105 of file uan-transducer-hd.cc.

References m_state, and ns3::UanTransducer::RX.

bool ns3::UanTransducerHd::IsTx ( void ) const

virtual

Is the state transmitting?

Returns: True if there is a packet being transmitted from this transducer.

Implements ns3::UanTransducer.

Definition at line 111 of file uan-transducer-hd.cc.

References m_state, and ns3::UanTransducer::TX.

void ns3::UanTransducerHd::Receive	(	Ptr< Packet >	packet,
		double	rxPowerDb,
		UanTxMode	txMode,
		UanPdp	pdp
	)

virtual

Notify this object that a new packet has arrived at this nodes location.

Parameters

packet	Packet arriving.
rxPowerDb	Signal power in dB of arriving packet.
txMode	Mode arriving packet is using.
pdp	PDP of arriving signal.

Implements ns3::UanTransducer.

Definition at line 124 of file uan-transducer-hd.cc.

References ns3::UanTxMode::GetDataRateBps(), ns3::Packet::GetSize(), m_arrivalList, m_phyList, m_state, ns3::Simulator::Now(), NS_LOG_DEBUG, RemoveArrival(), ns3::UanTransducer::RX, ns3::Simulator::Schedule(), and ns3::Seconds().

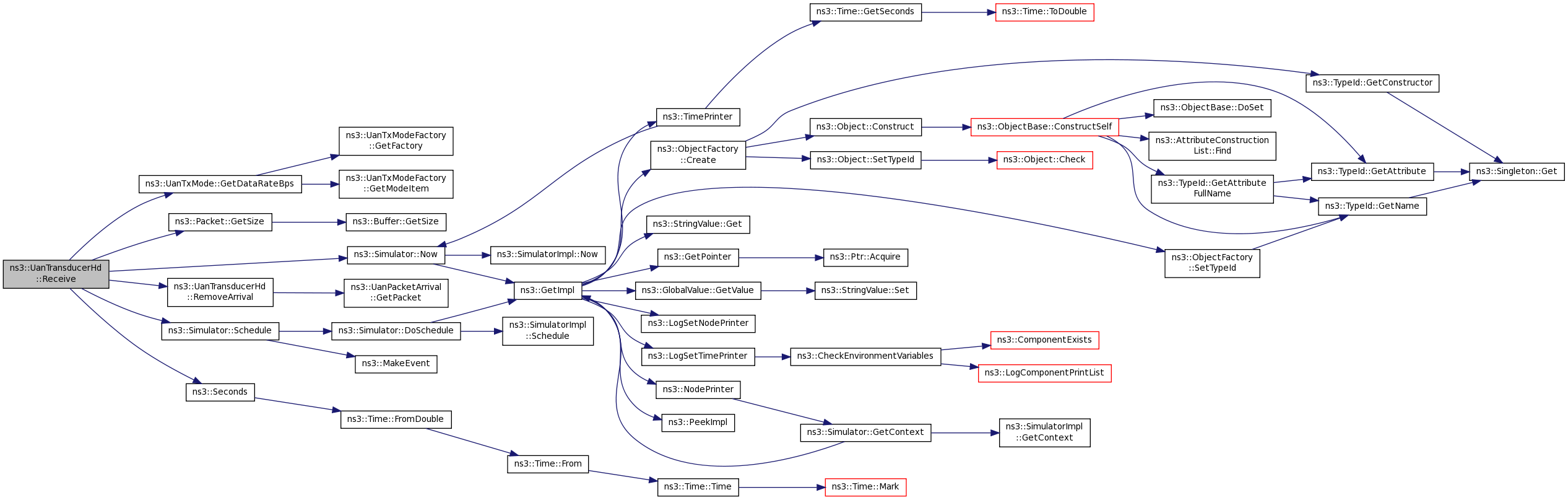

Here is the call graph for this function:

void ns3::UanTransducerHd::RemoveArrival ( UanPacketArrival arrival )

private

Remove an entry from the arrival list.

Parameters

arrival The packet arrival to remove.

Definition at line 224 of file uan-transducer-hd.cc.

References ns3::UanPacketArrival::GetPacket(), m_arrivalList, and m_phyList.

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanTransducerHd::SetChannel ( Ptr< UanChannel > chan )

virtual

Attach this transducer to a channel.

Parameters

chan	The channel

Implements ns3::UanTransducer.

Definition at line 200 of file uan-transducer-hd.cc.

References m_channel, and NS_LOG_DEBUG.

void ns3::UanTransducerHd::Transmit	(	Ptr< UanPhy >	src,
		Ptr< Packet >	packet,
		double	txPowerDb,
		UanTxMode	txMode
	)

virtual

Transmit a packet from this transducer.

Parameters

src	Source PHY.
packet	Packet to transmit.
txPowerDb	Outgoing Tx power of packet.
txMode	Mode to transmit packet with.

Implements ns3::UanTransducer.

Definition at line 152 of file uan-transducer-hd.cc.

References EndTx(), ns3::UanTxMode::GetDataRateBps(), ns3::Packet::GetSize(), m_channel, m_endTxEvent, m_endTxTime, m_phyList, m_state, ns3::UanPhy::NotifyTxEnd(), ns3::Simulator::Now(), NS_LOG_DEBUG, ns3::Simulator::Remove(), ns3::Simulator::Schedule(), ns3::Seconds(), and ns3::UanTransducer::TX.

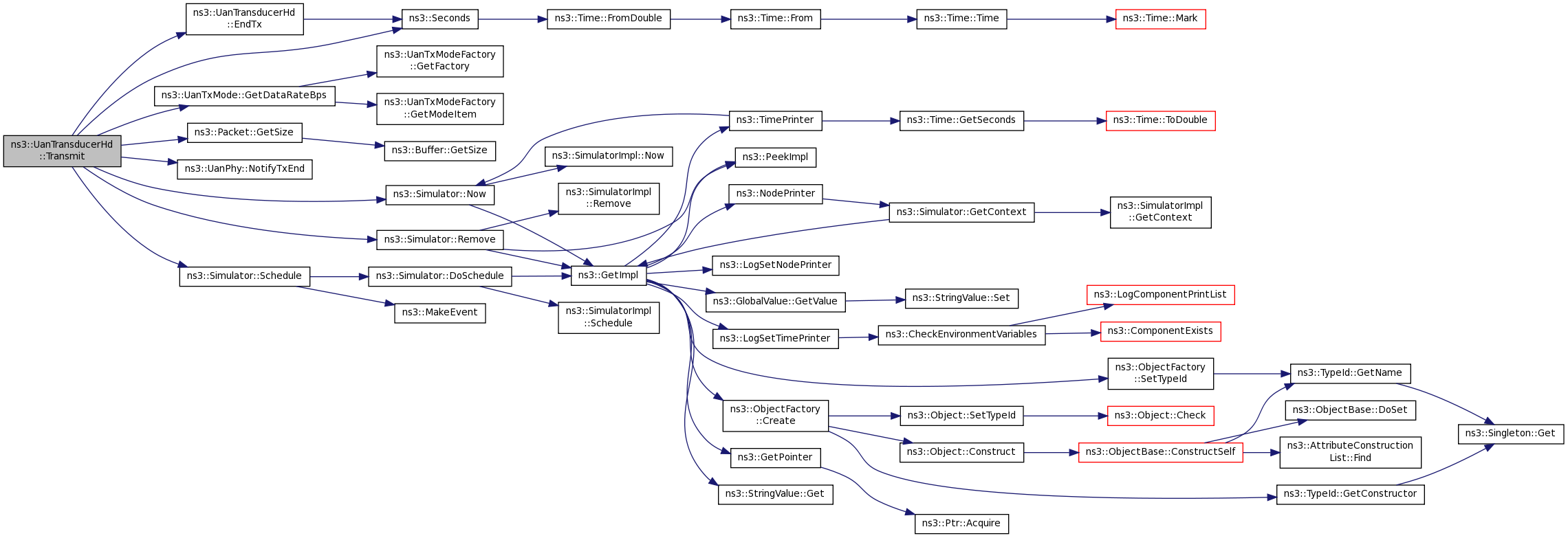

Here is the call graph for this function:

Member Data Documentation

ArrivalList ns3::UanTransducerHd::m_arrivalList

private

List of arriving packets which overlap in time.

Definition at line 65 of file uan-transducer-hd.h.

Referenced by Clear(), GetArrivalList(), Receive(), and RemoveArrival().

Ptr<UanChannel> ns3::UanTransducerHd::m_channel

private

The attached channel.

Definition at line 67 of file uan-transducer-hd.h.

Referenced by Clear(), GetChannel(), SetChannel(), and Transmit().

bool ns3::UanTransducerHd::m_cleared

private

Flab when we've been cleared.

Definition at line 70 of file uan-transducer-hd.h.

Referenced by Clear().

EventId ns3::UanTransducerHd::m_endTxEvent

private

Event scheduled for end of transmission.

Definition at line 68 of file uan-transducer-hd.h.

Referenced by Clear(), and Transmit().

Time ns3::UanTransducerHd::m_endTxTime

private

Time at which transmission will be completed.

Definition at line 69 of file uan-transducer-hd.h.

Referenced by EndTx(), and Transmit().

UanPhyList ns3::UanTransducerHd::m_phyList

private

List of physical layers attached above this tranducer.

Definition at line 66 of file uan-transducer-hd.h.

Referenced by AddPhy(), Clear(), GetPhyList(), Receive(), RemoveArrival(), and Transmit().

State ns3::UanTransducerHd::m_state

private

Transducer state.

Definition at line 64 of file uan-transducer-hd.h.

Referenced by EndTx(), GetState(), IsRx(), IsTx(), Receive(), and Transmit().

The documentation for this class was generated from the following files:

src/uan/model/uan-transducer-hd.h
src/uan/model/uan-transducer-hd.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
