Virtual class for uplink scheduler. More...

#include <bs-uplink-scheduler.h>

Inheritance diagram for ns3::UplinkScheduler:

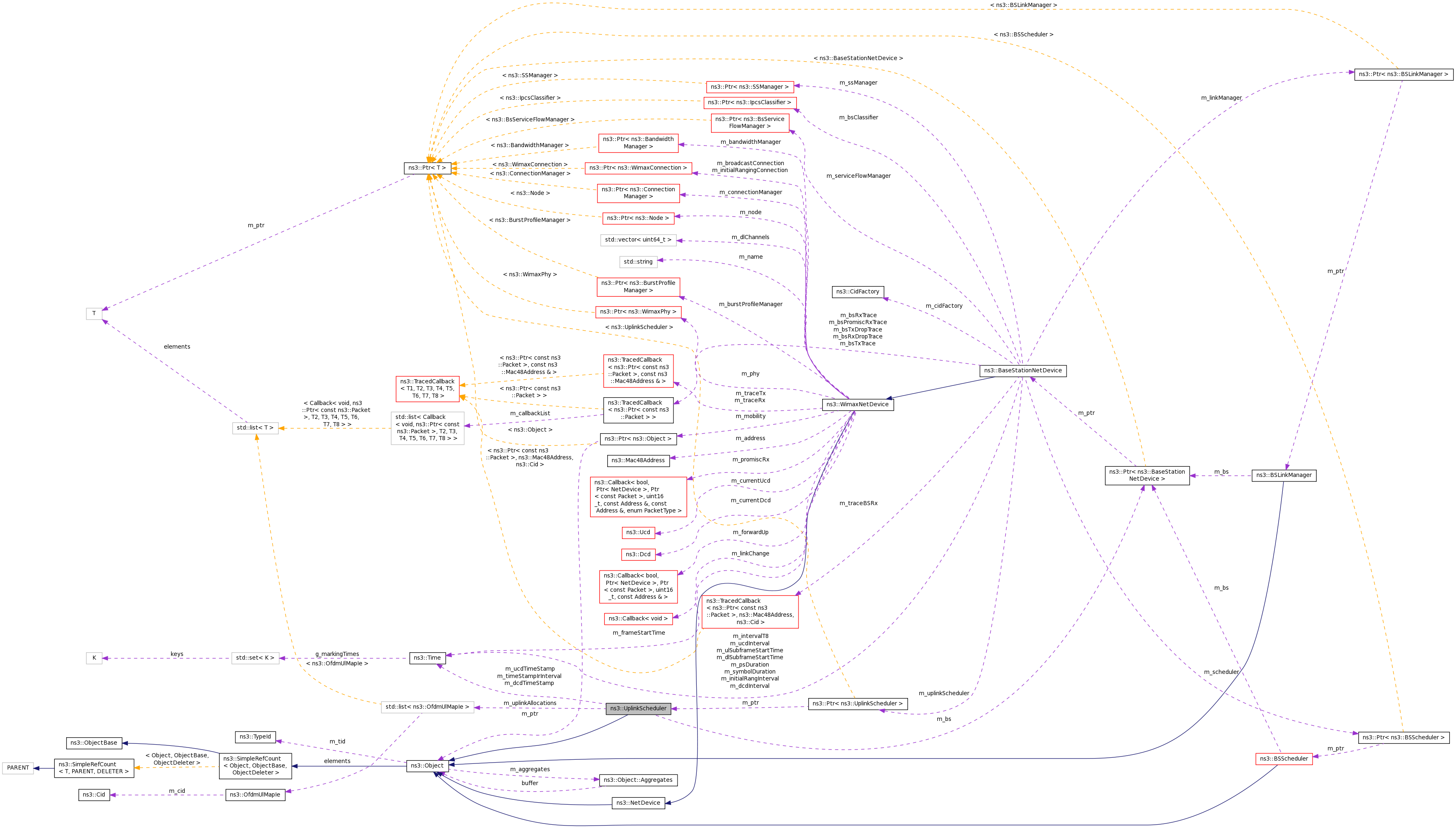

Collaboration diagram for ns3::UplinkScheduler:

Public Member Functions
	UplinkScheduler (void)

	UplinkScheduler (Ptr< BaseStationNetDevice > bs)

virtual	~UplinkScheduler (void)

virtual void	AddUplinkAllocation (OfdmUlMapIe &ulMapIe, const uint32_t &allocationSize, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)=0

virtual void	AllocateInitialRangingInterval (uint32_t &symbolsToAllocation, uint32_t &availableSymbols)=0

virtual uint32_t	CalculateAllocationStartTime (void)=0

virtual Ptr< BaseStationNetDevice >	GetBs (void)

virtual void	GetChannelDescriptorsToUpdate (bool &, bool &, bool &, bool &)=0
	Determines if channel descriptors sent in the current frame are required to be updated. More...

virtual Time	GetDcdTimeStamp (void) const

virtual bool	GetIsInvIrIntrvlAllocated (void) const

virtual bool	GetIsIrIntrvlAllocated (void) const

virtual uint8_t	GetNrIrOppsAllocated (void) const

virtual Time	GetTimeStampIrInterval (void)

virtual Time	GetUcdTimeStamp (void) const

virtual std::list< OfdmUlMapIe >	GetUplinkAllocations (void) const

virtual void	InitOnce (void)=0

virtual void	OnSetRequestedBandwidth (ServiceFlowRecord *sfr)=0

virtual void	ProcessBandwidthRequest (const BandwidthRequestHeader &bwRequestHdr)=0

virtual void	Schedule (void)=0

virtual void	ServiceBandwidthRequests (const SSRecord *ssRecord, enum ServiceFlow::SchedulingType schedulingType, OfdmUlMapIe &ulMapIe, const WimaxPhy::ModulationType modulationType, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)=0

virtual bool	ServiceBandwidthRequests (ServiceFlow *serviceFlow, enum ServiceFlow::SchedulingType schedulingType, OfdmUlMapIe &ulMapIe, const WimaxPhy::ModulationType modulationType, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)=0

virtual void	ServiceUnsolicitedGrants (const SSRecord *ssRecord, enum ServiceFlow::SchedulingType schedulingType, OfdmUlMapIe &ulMapIe, const WimaxPhy::ModulationType modulationType, uint32_t &symbolsToAllocation, uint32_t &availableSymbols)=0

virtual void	SetBs (Ptr< BaseStationNetDevice > bs)

virtual void	SetDcdTimeStamp (Time dcdTimeStamp)

virtual void	SetIsInvIrIntrvlAllocated (bool isInvIrIntrvlAllocated)

virtual void	SetIsIrIntrvlAllocated (bool isIrIntrvlAllocated)

virtual void	SetNrIrOppsAllocated (uint8_t nrIrOppsAllocated)

virtual void	SetTimeStampIrInterval (Time timeStampIrInterval)

virtual void	SetUcdTimeStamp (Time ucdTimeStamp)

virtual void	SetupServiceFlow (SSRecord ssRecord, ServiceFlow serviceFlow)=0

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Ptr< BaseStationNetDevice >	m_bs

Time	m_dcdTimeStamp

bool	m_isInvIrIntrvlAllocated

bool	m_isIrIntrvlAllocated

uint8_t	m_nrIrOppsAllocated

Time	m_timeStampIrInterval

Time	m_ucdTimeStamp

std::list< OfdmUlMapIe >	m_uplinkAllocations

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Virtual class for uplink scheduler.

Config Paths

ns3::UplinkScheduler is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/UplinkScheduler
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/UplinkScheduler

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 42 of file bs-uplink-scheduler.h.

Constructor & Destructor Documentation

ns3::UplinkScheduler::UplinkScheduler ( void )

Definition at line 41 of file bs-uplink-scheduler.cc.

ns3::UplinkScheduler::UplinkScheduler ( Ptr< BaseStationNetDevice > bs )

Definition at line 52 of file bs-uplink-scheduler.cc.

ns3::UplinkScheduler::~UplinkScheduler ( void )

virtual

Definition at line 63 of file bs-uplink-scheduler.cc.

References m_bs, and m_uplinkAllocations.

Member Function Documentation

virtual void ns3::UplinkScheduler::AddUplinkAllocation	(	OfdmUlMapIe &	ulMapIe,
		const uint32_t &	allocationSize,
		uint32_t &	symbolsToAllocation,
		uint32_t &	availableSymbols
	)

pure virtual

Implemented in ns3::UplinkSchedulerMBQoS, ns3::UplinkSchedulerRtps, and ns3::UplinkSchedulerSimple.

virtual void ns3::UplinkScheduler::AllocateInitialRangingInterval	(	uint32_t &	symbolsToAllocation,
		uint32_t &	availableSymbols
	)

pure virtual

Implemented in ns3::UplinkSchedulerRtps, ns3::UplinkSchedulerMBQoS, and ns3::UplinkSchedulerSimple.

virtual uint32_t ns3::UplinkScheduler::CalculateAllocationStartTime ( void )

pure virtual

Implemented in ns3::UplinkSchedulerMBQoS, ns3::UplinkSchedulerRtps, and ns3::UplinkSchedulerSimple.

Ptr< BaseStationNetDevice > ns3::UplinkScheduler::GetBs ( void )

virtual

Definition at line 164 of file bs-uplink-scheduler.cc.

References m_bs.

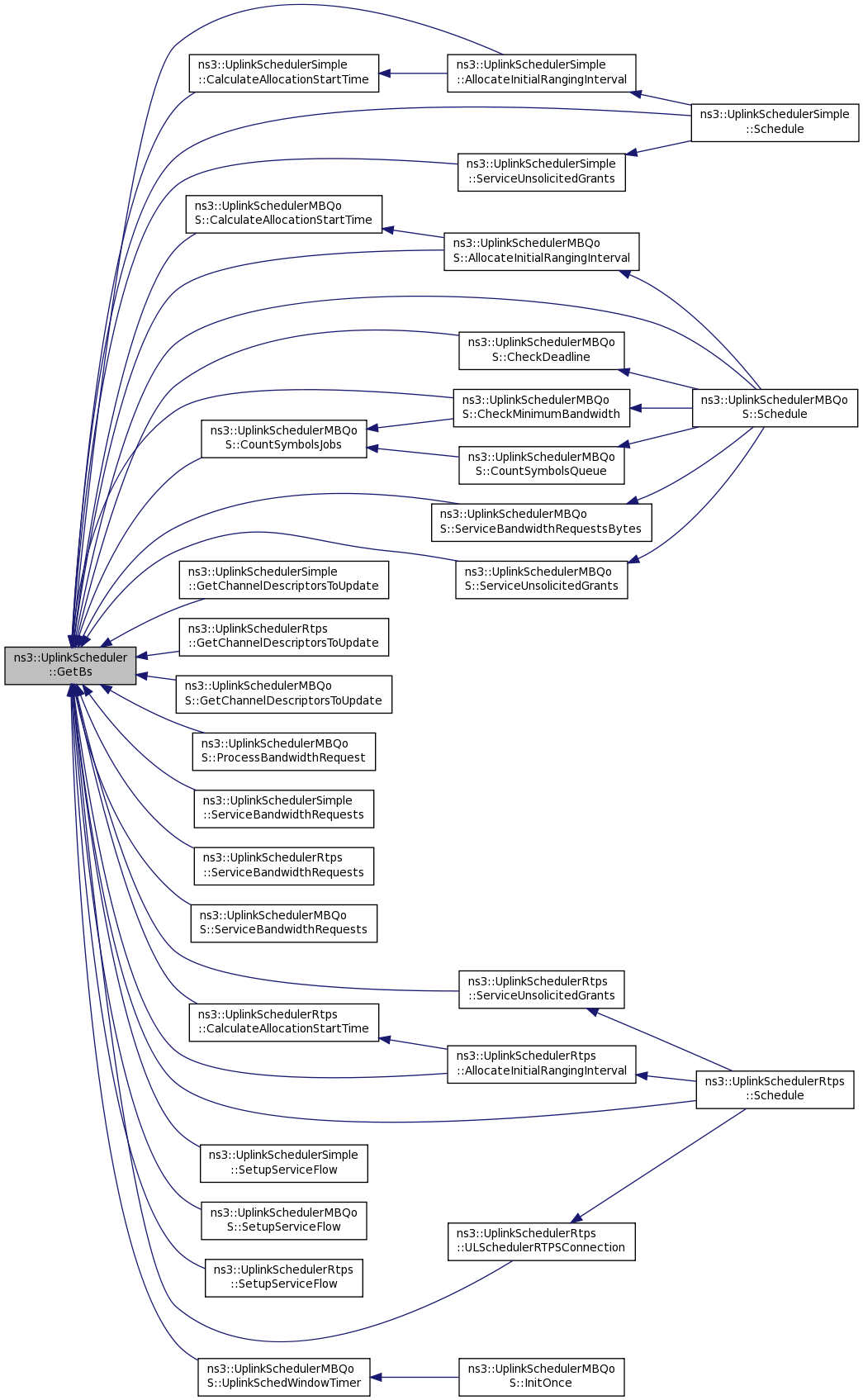

Here is the caller graph for this function:

virtual void ns3::UplinkScheduler::GetChannelDescriptorsToUpdate	(	bool &	,
		bool &	,
		bool &	,
		bool &
	)

pure virtual

Determines if channel descriptors sent in the current frame are required to be updated.

Implemented in ns3::UplinkSchedulerMBQoS, ns3::UplinkSchedulerRtps, and ns3::UplinkSchedulerSimple.

Time ns3::UplinkScheduler::GetDcdTimeStamp ( void ) const

virtual

Definition at line 122 of file bs-uplink-scheduler.cc.

References m_dcdTimeStamp.

Referenced by ns3::UplinkSchedulerSimple::GetChannelDescriptorsToUpdate(), ns3::UplinkSchedulerRtps::GetChannelDescriptorsToUpdate(), and ns3::UplinkSchedulerMBQoS::GetChannelDescriptorsToUpdate().

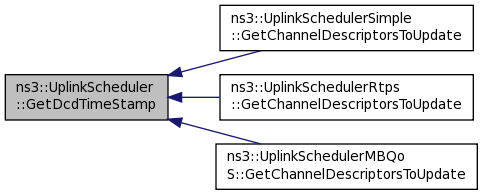

Here is the caller graph for this function:

bool ns3::UplinkScheduler::GetIsInvIrIntrvlAllocated ( void ) const

virtual

Definition at line 109 of file bs-uplink-scheduler.cc.

References m_isInvIrIntrvlAllocated.

bool ns3::UplinkScheduler::GetIsIrIntrvlAllocated ( void ) const

virtual

Definition at line 96 of file bs-uplink-scheduler.cc.

References m_isIrIntrvlAllocated.

uint8_t ns3::UplinkScheduler::GetNrIrOppsAllocated ( void ) const

virtual

Definition at line 84 of file bs-uplink-scheduler.cc.

References m_nrIrOppsAllocated.

Referenced by ns3::UplinkSchedulerSimple::AllocateInitialRangingInterval(), ns3::UplinkSchedulerMBQoS::AllocateInitialRangingInterval(), and ns3::UplinkSchedulerRtps::AllocateInitialRangingInterval().

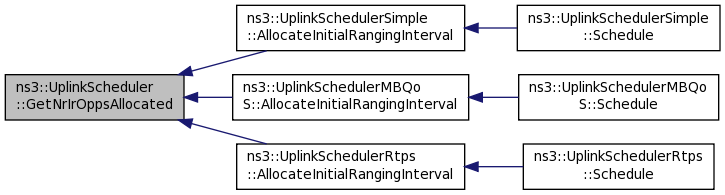

Here is the caller graph for this function:

Time ns3::UplinkScheduler::GetTimeStampIrInterval ( void )

virtual

Definition at line 152 of file bs-uplink-scheduler.cc.

References m_timeStampIrInterval.

Referenced by ns3::UplinkSchedulerSimple::AllocateInitialRangingInterval(), ns3::UplinkSchedulerMBQoS::AllocateInitialRangingInterval(), and ns3::UplinkSchedulerRtps::AllocateInitialRangingInterval().

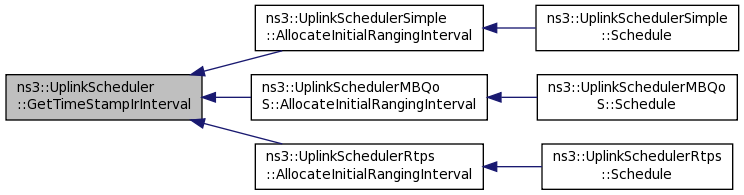

Here is the caller graph for this function:

TypeId ns3::UplinkScheduler::GetTypeId ( void )

static

Definition at line 75 of file bs-uplink-scheduler.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

Time ns3::UplinkScheduler::GetUcdTimeStamp ( void ) const

virtual

Definition at line 134 of file bs-uplink-scheduler.cc.

References m_ucdTimeStamp.

Referenced by ns3::UplinkSchedulerSimple::GetChannelDescriptorsToUpdate(), ns3::UplinkSchedulerRtps::GetChannelDescriptorsToUpdate(), and ns3::UplinkSchedulerMBQoS::GetChannelDescriptorsToUpdate().

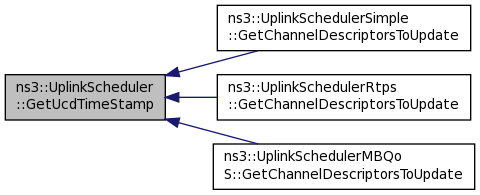

Here is the caller graph for this function:

std::list< OfdmUlMapIe > ns3::UplinkScheduler::GetUplinkAllocations ( void ) const

virtual

Reimplemented in ns3::UplinkSchedulerMBQoS, ns3::UplinkSchedulerRtps, and ns3::UplinkSchedulerSimple.

Definition at line 146 of file bs-uplink-scheduler.cc.

References m_uplinkAllocations.

void ns3::UplinkScheduler::InitOnce ( void )

pure virtual

Implemented in ns3::UplinkSchedulerMBQoS, ns3::UplinkSchedulerRtps, and ns3::UplinkSchedulerSimple.

Definition at line 69 of file bs-uplink-scheduler.cc.

virtual void ns3::UplinkScheduler::OnSetRequestedBandwidth ( ServiceFlowRecord * sfr )

pure virtual

Implemented in ns3::UplinkSchedulerMBQoS, ns3::UplinkSchedulerRtps, and ns3::UplinkSchedulerSimple.

virtual void ns3::UplinkScheduler::ProcessBandwidthRequest ( const BandwidthRequestHeader & bwRequestHdr )

pure virtual

Implemented in ns3::UplinkSchedulerMBQoS, ns3::UplinkSchedulerRtps, and ns3::UplinkSchedulerSimple.

virtual void ns3::UplinkScheduler::Schedule ( void )

pure virtual

Implemented in ns3::UplinkSchedulerMBQoS, ns3::UplinkSchedulerRtps, and ns3::UplinkSchedulerSimple.

virtual void ns3::UplinkScheduler::ServiceBandwidthRequests	(	const SSRecord *	ssRecord,
		enum ServiceFlow::SchedulingType	schedulingType,
		OfdmUlMapIe &	ulMapIe,
		const WimaxPhy::ModulationType	modulationType,
		uint32_t &	symbolsToAllocation,
		uint32_t &	availableSymbols
	)

pure virtual

Implemented in ns3::UplinkSchedulerMBQoS, ns3::UplinkSchedulerRtps, and ns3::UplinkSchedulerSimple.

virtual bool ns3::UplinkScheduler::ServiceBandwidthRequests	(	ServiceFlow *	serviceFlow,
		enum ServiceFlow::SchedulingType	schedulingType,
		OfdmUlMapIe &	ulMapIe,
		const WimaxPhy::ModulationType	modulationType,
		uint32_t &	symbolsToAllocation,
		uint32_t &	availableSymbols
	)

pure virtual

Implemented in ns3::UplinkSchedulerMBQoS, ns3::UplinkSchedulerRtps, and ns3::UplinkSchedulerSimple.

virtual void ns3::UplinkScheduler::ServiceUnsolicitedGrants	(	const SSRecord *	ssRecord,
		enum ServiceFlow::SchedulingType	schedulingType,
		OfdmUlMapIe &	ulMapIe,
		const WimaxPhy::ModulationType	modulationType,
		uint32_t &	symbolsToAllocation,
		uint32_t &	availableSymbols
	)
