codel-vs-droptail-asymmetric.cc File Reference

#include <iostream>
#include <fstream>
#include <string>
#include "ns3/core-module.h"
#include "ns3/network-module.h"
#include "ns3/internet-module.h"
#include "ns3/point-to-point-module.h"
#include "ns3/applications-module.h"
#include "ns3/config-store-module.h"
#include "ns3/error-model.h"
#include "ns3/tcp-header.h"
#include "ns3/udp-header.h"
#include "ns3/enum.h"
#include "ns3/event-id.h"
#include "ns3/ipv4-global-routing-helper.h"

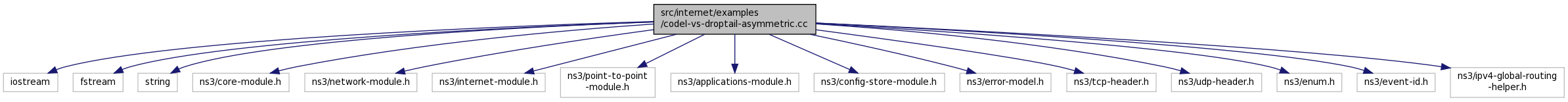

Include dependency graph for codel-vs-droptail-asymmetric.cc:

Go to the source code of this file.

Functions
void	CreateBulkFlow (AddressValue remoteAddress, Ptr< Node > sender, uint32_t pktSize, float stopTime)
void	CreateOnOffFlow (AddressValue remoteAddress, Ptr< Node > sender, float stopTime)
static void	CwndTracer (Ptr< OutputStreamWrapper >stream, uint32_t oldval, uint32_t newval)
static void	DroppingStateTracer (Ptr< OutputStreamWrapper >stream, bool oldVal, bool newVal)
static void	EveryDropTracer (Ptr< OutputStreamWrapper >stream, Ptr< const Packet > p)
int	main (int argc, char *argv[])
static void	QueueLengthTracer (Ptr< OutputStreamWrapper >stream, uint32_t oldval, uint32_t newval)
static void	SojournTracer (Ptr< OutputStreamWrapper >stream, Time oldval, Time newval)
static void	TraceCwnd (std::string cwndTrFileName)
static void	TraceDroppingState (std::string dropStateTrFileName)
static void	TraceEveryDrop (std::string everyDropTrFileName)
static void	TraceQueueLength (std::string queueLengthTrFileName)
static void	TraceSojourn (std::string sojournTrFileName)

Function Documentation

void CreateBulkFlow	(	AddressValue	remoteAddress,
		Ptr< Node >	sender,
		uint32_t	pktSize,
		float	stopTime
	)

Definition at line 190 of file codel-vs-droptail-asymmetric.cc.

References ns3::BulkSendHelper::Install(), ns3::Seconds(), ns3::BulkSendHelper::SetAttribute(), ns3::ApplicationContainer::Start(), and ns3::ApplicationContainer::Stop().

Referenced by main().

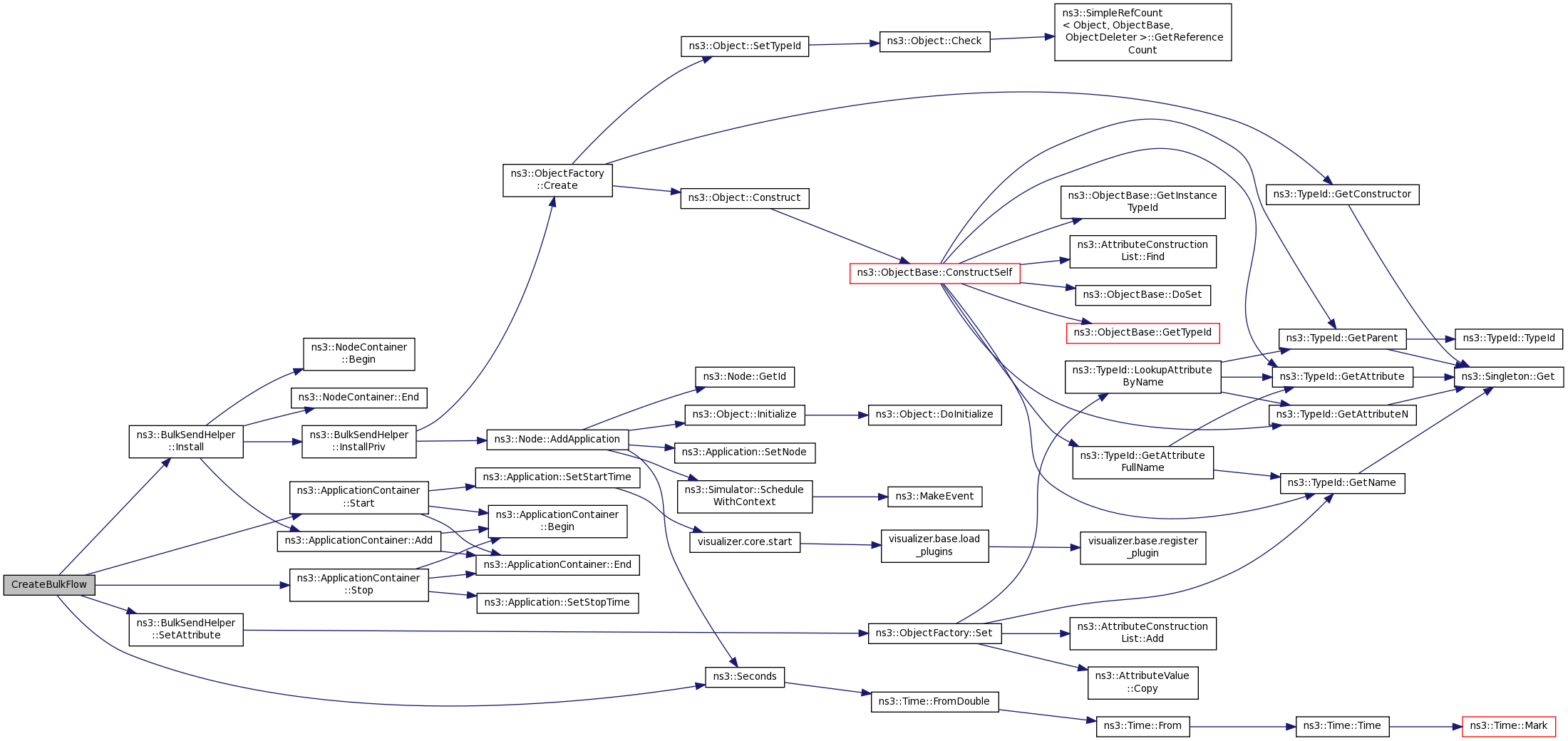

Here is the call graph for this function:

Here is the caller graph for this function:

void CreateOnOffFlow	(	AddressValue	remoteAddress,
		Ptr< Node >	sender,
		float	stopTime
	)

Definition at line 202 of file codel-vs-droptail-asymmetric.cc.

References ns3::OnOffHelper::Install(), ns3::Seconds(), ns3::OnOffHelper::SetAttribute(), ns3::ApplicationContainer::Start(), and ns3::ApplicationContainer::Stop().

Referenced by main().

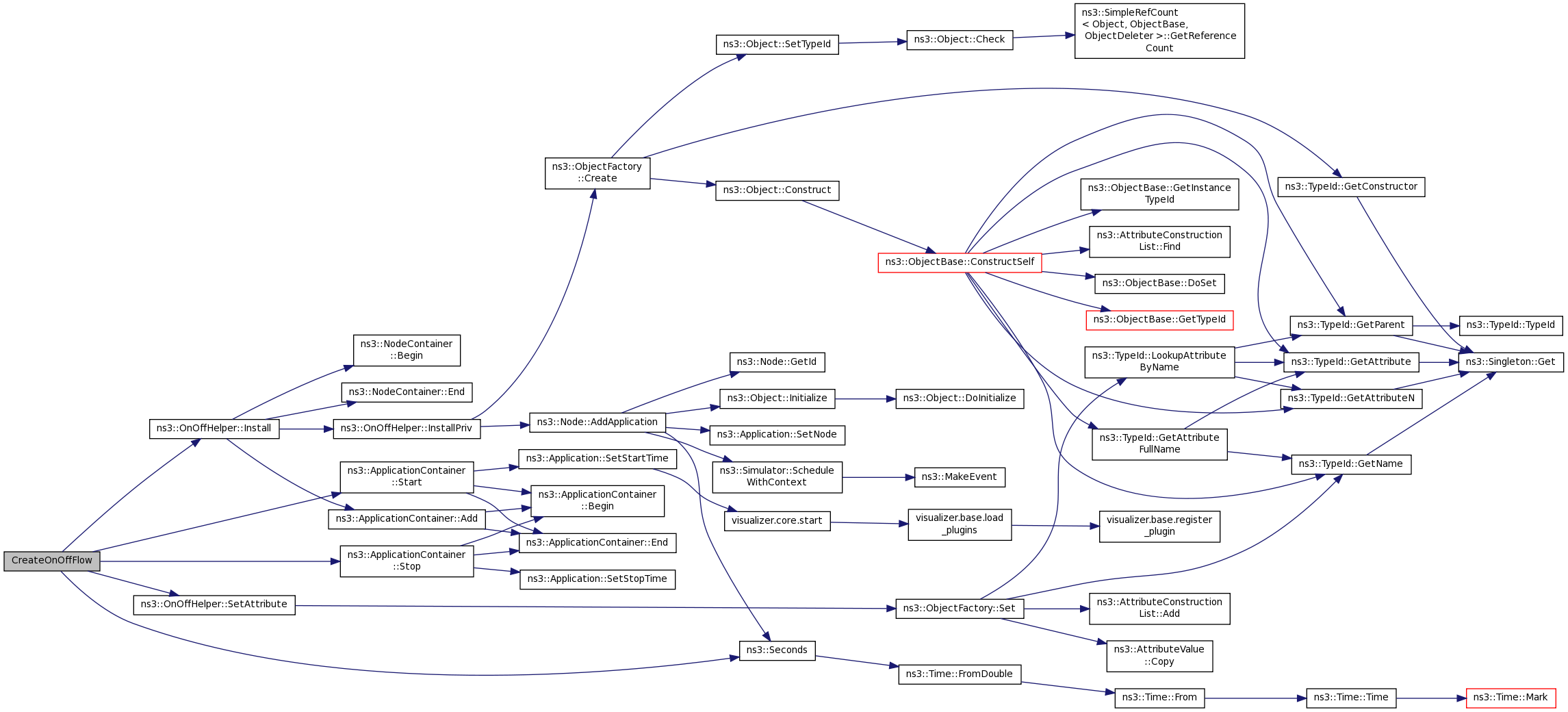

Here is the call graph for this function:

Here is the caller graph for this function:

static void CwndTracer ( Ptr< OutputStreamWrapper >  stream, uint32_t  oldval, uint32_t  newval  )

static

Definition at line 71 of file codel-vs-droptail-asymmetric.cc.

References ns3::OutputStreamWrapper::GetStream().

Referenced by TraceCwnd().

Here is the call graph for this function:

Here is the caller graph for this function:

static void DroppingStateTracer ( Ptr< OutputStreamWrapper >  stream, bool  oldVal, bool  newVal  )

static

Definition at line 159 of file codel-vs-droptail-asymmetric.cc.

References ns3::Time::GetSeconds(), ns3::OutputStreamWrapper::GetStream(), ns3::Simulator::Now(), and NS_LOG_INFO.

Referenced by TraceDroppingState().

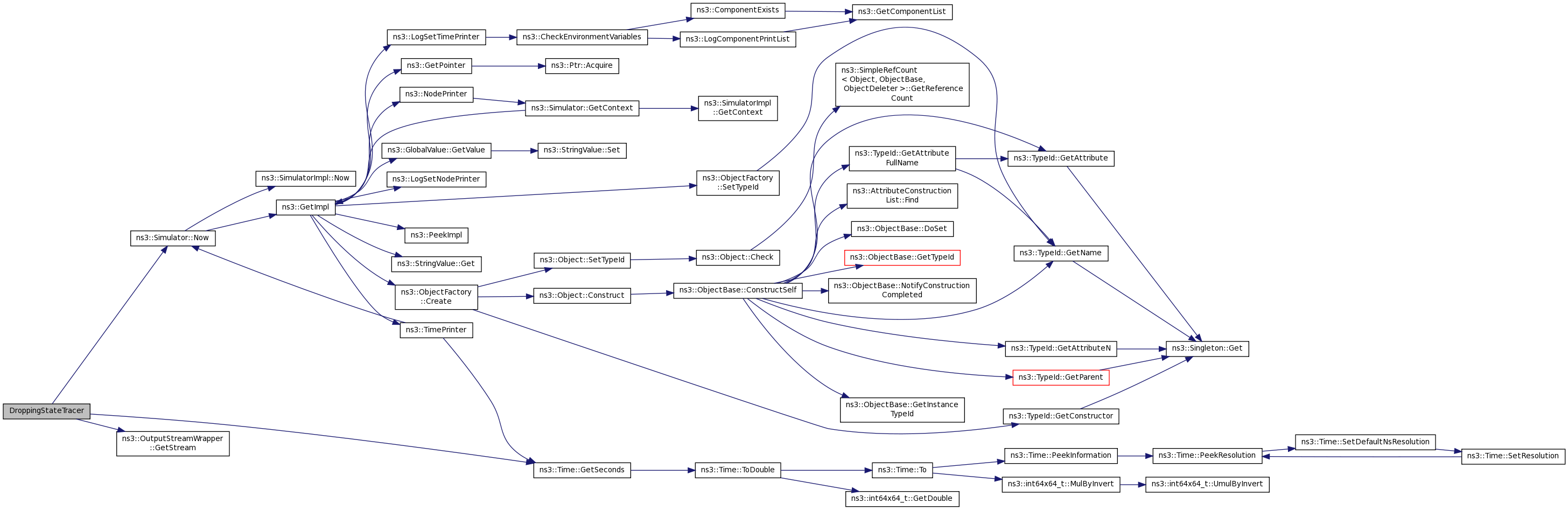

Here is the call graph for this function:

Here is the caller graph for this function:

static void EveryDropTracer ( Ptr< OutputStreamWrapper >  stream, Ptr< const Packet >  p  )

static

Definition at line 137 of file codel-vs-droptail-asymmetric.cc.

References ns3::Time::GetSeconds(), ns3::OutputStreamWrapper::GetStream(), and ns3::Simulator::Now().

Referenced by TraceEveryDrop().

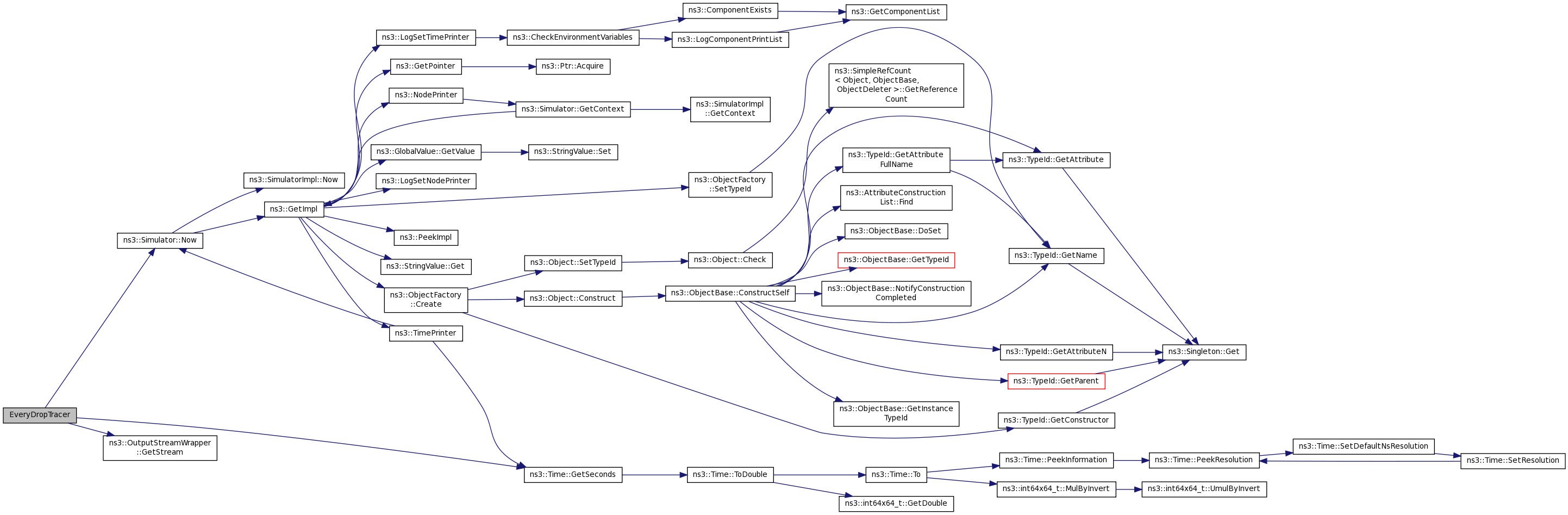

Here is the call graph for this function:

Here is the caller graph for this function:

int main	(	int	argc,
		char *	argv[]
	)

Definition at line 212 of file codel-vs-droptail-asymmetric.cc.

References ns3::Names::Add(), ns3::CommandLine::AddValue(), ns3::Ipv4AddressHelper::Assign(), ns3::GlobalValue::Bind(), ns3::ConfigStore::ConfigureAttributes(), ns3::ConfigStore::ConfigureDefaults(), ns3::NodeContainer::Create(), CreateBulkFlow(), CreateOnOffFlow(), ns3::Simulator::Destroy(), ns3::PcapHelperForDevice::EnablePcapAll(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::Ipv4Address::GetAny(), ns3::PacketSinkHelper::Install(), ns3::PointToPointHelper::Install(), ns3::InternetStackHelper::InstallAll(), ns3::LOG_LEVEL_FUNCTION, ns3::LogComponentEnable(), first::nodes, NS_LOG_INFO, ns3::CommandLine::Parse(), ns3::Ipv4GlobalRoutingHelper::PopulateRoutingTables(), ns3::Queue::QUEUE_MODE_BYTES, ns3::Simulator::Run(), ns3::Simulator::Schedule(), ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::Ipv4AddressHelper::SetBase(), ns3::PointToPointHelper::SetChannelAttribute(), ns3::Config::SetDefault(), first::stack, ns3::ApplicationContainer::Start(), startTime, ns3::Simulator::Stop(), ns3::ApplicationContainer::Stop(), stopTime, TraceCwnd(), TraceDroppingState(), TraceEveryDrop(), TraceQueueLength(), and TraceSojourn().

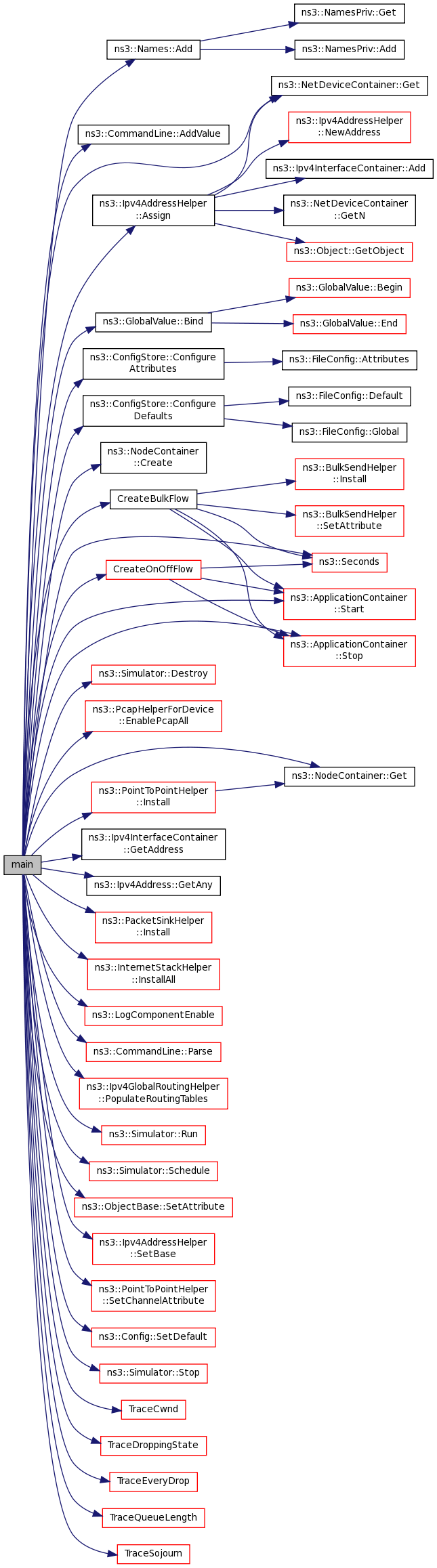

Here is the call graph for this function:

static void QueueLengthTracer ( Ptr< OutputStreamWrapper >  stream, uint32_t  oldval, uint32_t  newval  )

static

Definition at line 115 of file codel-vs-droptail-asymmetric.cc.

References ns3::OutputStreamWrapper::GetStream().

Referenced by TraceQueueLength().

Here is the call graph for this function:

Here is the caller graph for this function:

static void SojournTracer ( Ptr< OutputStreamWrapper >  stream, Time  oldval, Time  newval  )

static

Definition at line 93 of file codel-vs-droptail-asymmetric.cc.

References ns3::OutputStreamWrapper::GetStream().

Referenced by TraceSojourn().

Here is the call graph for this function:

Here is the caller graph for this function:

static void TraceCwnd ( std::string  cwndTrFileName )

static

Definition at line 77 of file codel-vs-droptail-asymmetric.cc.

References ns3::Config::ConnectWithoutContext(), ns3::AsciiTraceHelper::CreateFileStream(), CwndTracer(), ns3::MakeBoundCallback(), and NS_LOG_DEBUG.

Referenced by main().

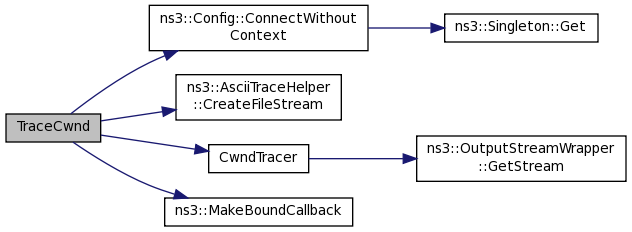

Here is the call graph for this function:

Here is the caller graph for this function:

static void TraceDroppingState ( std::string  dropStateTrFileName )

static

Definition at line 174 of file codel-vs-droptail-asymmetric.cc.

References ns3::Config::ConnectWithoutContext(), ns3::AsciiTraceHelper::CreateFileStream(), DroppingStateTracer(), ns3::MakeBoundCallback(), and NS_LOG_DEBUG.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

static void TraceEveryDrop ( std::string  everyDropTrFileName )

static

Definition at line 143 of file codel-vs-droptail-asymmetric.cc.

References ns3::Config::ConnectWithoutContext(), ns3::AsciiTraceHelper::CreateFileStream(), EveryDropTracer(), ns3::MakeBoundCallback(), and NS_LOG_DEBUG.

Referenced by main().

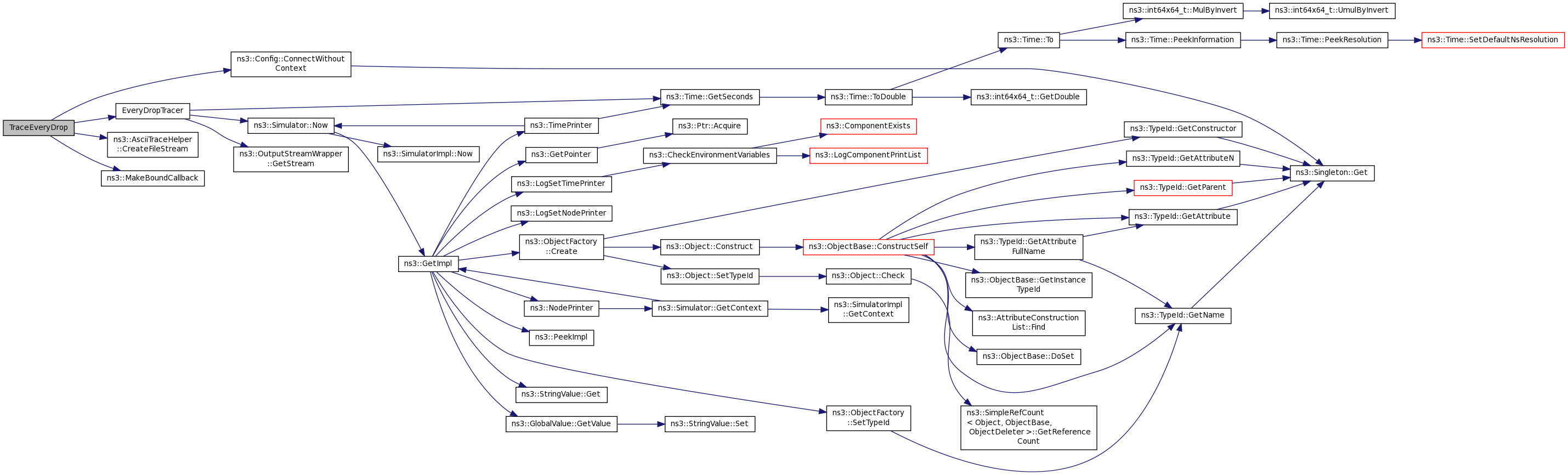

Here is the call graph for this function:

Here is the caller graph for this function:

static void TraceQueueLength ( std::string  queueLengthTrFileName )

static

Definition at line 121 of file codel-vs-droptail-asymmetric.cc.

References ns3::Config::ConnectWithoutContext(), ns3::AsciiTraceHelper::CreateFileStream(), ns3::MakeBoundCallback(), NS_LOG_DEBUG, and QueueLengthTracer().

Referenced by main().

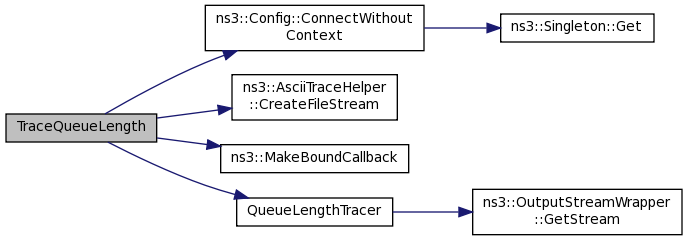

Here is the call graph for this function:

Here is the caller graph for this function:

static void TraceSojourn ( std::string  sojournTrFileName )

static

Definition at line 99 of file codel-vs-droptail-asymmetric.cc.

References ns3::Config::ConnectWithoutContext(), ns3::AsciiTraceHelper::CreateFileStream(), ns3::MakeBoundCallback(), NS_LOG_DEBUG, and SojournTracer().

Referenced by main().

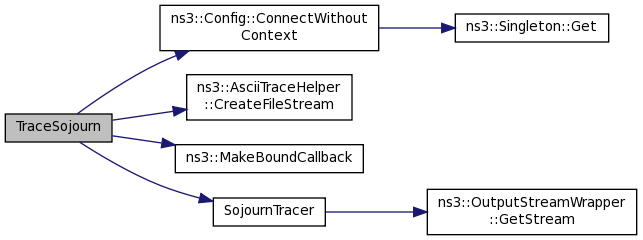

Here is the call graph for this function:

Here is the caller graph for this function:
