ns3::RraaWifiRemoteStation Struct Reference

hold per-remote-station state for RRAA Wifi manager. More...

Inheritance diagram for ns3::RraaWifiRemoteStation:

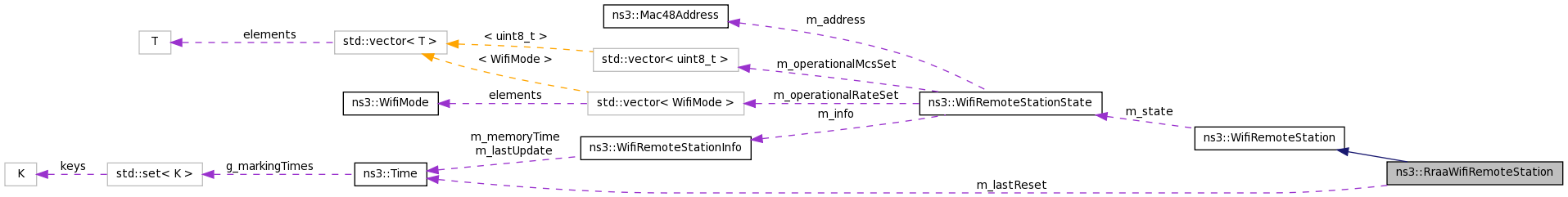

Collaboration diagram for ns3::RraaWifiRemoteStation:

Public Attributes
uint32_t	m_counter
uint32_t	m_failed
bool	m_initialized
bool	m_lastFrameFail
Time	m_lastReset
uint32_t	m_rate
uint32_t	m_rtsCounter
bool	m_rtsOn
uint32_t	m_rtsWnd
Public Attributes inherited from ns3::WifiRemoteStation
uint32_t	m_slrc
	STA long retry count. More...
uint32_t	m_ssrc
	STA short retry count. More...
WifiRemoteStationState *	m_state
	Remote station state. More...
uint8_t	m_tid
	traffic ID More...

Detailed Description

hold per-remote-station state for RRAA Wifi manager.

This struct extends from WifiRemoteStation struct to hold additional information required by the RRAA Wifi manager

Definition at line 41 of file rraa-wifi-manager.cc.

Member Data Documentation

uint32_t ns3::RraaWifiRemoteStation::m_counter

Definition at line 43 of file rraa-wifi-manager.cc.

Referenced by ns3::RraaWifiManager::CheckTimeout(), ns3::RraaWifiManager::DoReportDataFailed(), ns3::RraaWifiManager::DoReportDataOk(), ns3::RraaWifiManager::ResetCountersBasic(), and ns3::RraaWifiManager::RunBasicAlgorithm().

uint32_t ns3::RraaWifiRemoteStation::m_failed

Definition at line 44 of file rraa-wifi-manager.cc.

Referenced by ns3::RraaWifiManager::DoReportDataFailed(), ns3::RraaWifiManager::ResetCountersBasic(), and ns3::RraaWifiManager::RunBasicAlgorithm().

bool ns3::RraaWifiRemoteStation::m_initialized

Definition at line 50 of file rraa-wifi-manager.cc.

Referenced by ns3::RraaWifiManager::DoCreateStation(), ns3::RraaWifiManager::DoGetDataTxVector(), and ns3::RraaWifiManager::ResetCountersBasic().

bool ns3::RraaWifiRemoteStation::m_lastFrameFail

Definition at line 49 of file rraa-wifi-manager.cc.

Referenced by ns3::RraaWifiManager::ARts(), ns3::RraaWifiManager::DoCreateStation(), ns3::RraaWifiManager::DoReportDataFailed(), and ns3::RraaWifiManager::DoReportDataOk().

Time ns3::RraaWifiRemoteStation::m_lastReset

Definition at line 47 of file rraa-wifi-manager.cc.

Referenced by ns3::RraaWifiManager::CheckTimeout(), and ns3::RraaWifiManager::ResetCountersBasic().

uint32_t ns3::RraaWifiRemoteStation::m_rate

Definition at line 52 of file rraa-wifi-manager.cc.

Referenced by ns3::RraaWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::ResetCountersBasic(), and ns3::RraaWifiManager::RunBasicAlgorithm().

uint32_t ns3::RraaWifiRemoteStation::m_rtsCounter

Definition at line 46 of file rraa-wifi-manager.cc.

Referenced by ns3::RraaWifiManager::ARts(), and ns3::RraaWifiManager::DoCreateStation().

bool ns3::RraaWifiRemoteStation::m_rtsOn

Definition at line 48 of file rraa-wifi-manager.cc.

Referenced by ns3::RraaWifiManager::ARts(), ns3::RraaWifiManager::DoCreateStation(), and ns3::RraaWifiManager::DoNeedRts().

uint32_t ns3::RraaWifiRemoteStation::m_rtsWnd

Definition at line 45 of file rraa-wifi-manager.cc.

Referenced by ns3::RraaWifiManager::ARts(), and ns3::RraaWifiManager::DoCreateStation().

---

The documentation for this struct was generated from the following file:

• src/wifi/model/rraa-wifi-manager.cc
