RoutingStats Class Reference

The RoutingStats class manages collects statistics on routing data (application-data packet and byte counts) for the vehicular network. More...

Public Member Functions
	RoutingStats ()
	Constructor. More...
uint32_t	GetCumulativeRxBytes ()
	Returns the cumulative number of bytes received. More...
uint32_t	GetCumulativeRxPkts ()
	Returns the cumulative count of packets received. More...
uint32_t	GetCumulativeTxBytes ()
	Returns the cumulative number of bytes transmitted. More...
uint32_t	GetCumulativeTxPkts ()
	Returns the cumulative number of packets transmitted. More...
uint32_t	GetRxBytes ()
	Returns the number of bytes received. More...
uint32_t	GetRxPkts ()
	Returns the count of packets received. More...
uint32_t	GetTxBytes ()
	Returns the number of bytes transmitted. More...
uint32_t	GetTxPkts ()
	Returns the number of packets transmitted. More...
void	IncRxBytes (uint32_t rxBytes)
	Increments the number of (application-data) bytes received, not including MAC/PHY overhead. More...
void	IncRxPkts ()
	Increments the count of packets received. More...
void	IncTxBytes (uint32_t txBytes)
	Increment the number of bytes transmitted. More...
void	IncTxPkts ()
	Increment the count of packets transmitted. More...
void	SetRxBytes (uint32_t rxBytes)
	Sets the number of bytes received. More...
void	SetRxPkts (uint32_t rxPkts)
	Sets the number of packets received. More...
void	SetTxBytes (uint32_t txBytes)
	Sets the number of bytes transmitted. More...
void	SetTxPkts (uint32_t txPkts)
	Sets the number of packets transmitted. More...

Private Attributes
uint32_t	m_cumulativeRxBytes
uint32_t	m_cumulativeRxPkts
uint32_t	m_cumulativeTxBytes
uint32_t	m_cumulativeTxPkts
uint32_t	m_RxBytes
uint32_t	m_RxPkts
uint32_t	m_TxBytes
uint32_t	m_TxPkts

Detailed Description

The RoutingStats class manages collects statistics on routing data (application-data packet and byte counts) for the vehicular network.

Definition at line 136 of file vanet-routing-compare.cc.

Constructor & Destructor Documentation

RoutingStats::RoutingStats

(

)

Constructor.

Returns

none

Definition at line 260 of file vanet-routing-compare.cc.

Member Function Documentation

uint32_t RoutingStats::GetCumulativeRxBytes

(

)

Returns the cumulative number of bytes received.

Returns

the cumulative number of bytes received

Definition at line 275 of file vanet-routing-compare.cc.

References m_cumulativeRxBytes.

Referenced by VanetRoutingExperiment::ProcessOutputs().

Here is the caller graph for this function:

uint32_t RoutingStats::GetCumulativeRxPkts

(

)

Returns the cumulative count of packets received.

Returns

the cumulative count of packets received

Definition at line 287 of file vanet-routing-compare.cc.

References m_cumulativeRxPkts.

uint32_t RoutingStats::GetCumulativeTxBytes

(

)

Returns the cumulative number of bytes transmitted.

Parameters

socket

the receiving socket

Returns

none

Definition at line 325 of file vanet-routing-compare.cc.

References m_cumulativeTxBytes.

Referenced by VanetRoutingExperiment::CheckThroughput(), and VanetRoutingExperiment::ProcessOutputs().

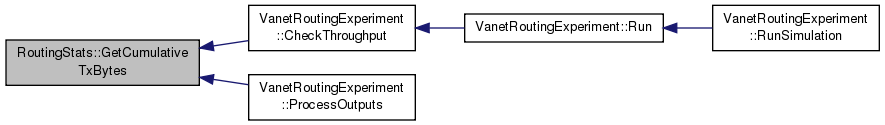

Here is the caller graph for this function:

uint32_t RoutingStats::GetCumulativeTxPkts

(

)

Returns the cumulative number of packets transmitted.

Returns

the cumulative number of packets transmitted

Definition at line 337 of file vanet-routing-compare.cc.

References m_cumulativeTxPkts.

uint32_t RoutingStats::GetRxBytes

(

void

)

Returns the number of bytes received.

Returns

the number of bytes received

Definition at line 269 of file vanet-routing-compare.cc.

References m_RxBytes.

Referenced by VanetRoutingExperiment::CheckThroughput().

Here is the caller graph for this function:

uint32_t RoutingStats::GetRxPkts

(

)

Returns the count of packets received.

Returns

the count of packets received

Definition at line 281 of file vanet-routing-compare.cc.

References m_RxPkts.

Referenced by VanetRoutingExperiment::CheckThroughput().

Here is the caller graph for this function:

uint32_t RoutingStats::GetTxBytes

(

void

)

Returns the number of bytes transmitted.

Returns

the number of bytes transmitted

Definition at line 319 of file vanet-routing-compare.cc.

References m_TxBytes.

uint32_t RoutingStats::GetTxPkts

(

)

Returns the number of packets transmitted.

Returns

the number of packets transmitted

Definition at line 331 of file vanet-routing-compare.cc.

References m_TxPkts.

void RoutingStats::IncRxBytes

(

uint32_t

rxBytes

)

Increments the number of (application-data) bytes received, not including MAC/PHY overhead.

Parameters

rxBytes

the number of bytes received

Returns

none

Definition at line 293 of file vanet-routing-compare.cc.

References m_cumulativeRxBytes, and m_RxBytes.

Referenced by RoutingHelper::ReceiveRoutingPacket().

Here is the caller graph for this function:

void RoutingStats::IncRxPkts

(

)

Increments the count of packets received.

Returns

none

Definition at line 300 of file vanet-routing-compare.cc.

References m_cumulativeRxPkts, and m_RxPkts.

Referenced by RoutingHelper::ReceiveRoutingPacket().

Here is the caller graph for this function:

void RoutingStats::IncTxBytes

(

uint32_t

txBytes

)

Increment the number of bytes transmitted.

Parameters

txBytes

the number of addtional bytes transmitted

Returns

none

Definition at line 343 of file vanet-routing-compare.cc.

References m_cumulativeTxBytes, and m_TxBytes.

Referenced by RoutingHelper::OnOffTrace().

Here is the caller graph for this function:

void RoutingStats::IncTxPkts

(

)

Increment the count of packets transmitted.

Returns

none

Definition at line 350 of file vanet-routing-compare.cc.

References m_cumulativeTxPkts, and m_TxPkts.

void RoutingStats::SetRxBytes

(

uint32_t

rxBytes

)

Sets the number of bytes received.

Parameters

rxBytes

the number of bytes received

Returns

none

Definition at line 307 of file vanet-routing-compare.cc.

References m_RxBytes.

Referenced by VanetRoutingExperiment::CheckThroughput().

Here is the caller graph for this function:

void RoutingStats::SetRxPkts

(

uint32_t

rxPkts

)

Sets the number of packets received.

Parameters

rxPkts

the number of packets received

Returns

none

Definition at line 313 of file vanet-routing-compare.cc.

References m_RxPkts.

Referenced by VanetRoutingExperiment::CheckThroughput().

Here is the caller graph for this function:

void RoutingStats::SetTxBytes

(

uint32_t

txBytes

)

Sets the number of bytes transmitted.

Parameters

txBytes

the number of bytes transmitted

Returns

none

Definition at line 357 of file vanet-routing-compare.cc.

References m_TxBytes.

void RoutingStats::SetTxPkts

(

uint32_t

txPkts

)

Sets the number of packets transmitted.

Parameters

txPkts

the number of packets transmitted

Returns

none

Definition at line 363 of file vanet-routing-compare.cc.

References m_TxPkts.

Member Data Documentation

uint32_t RoutingStats::m_cumulativeRxBytes

private

Definition at line 251 of file vanet-routing-compare.cc.

Referenced by GetCumulativeRxBytes(), and IncRxBytes().

uint32_t RoutingStats::m_cumulativeRxPkts

private

Definition at line 253 of file vanet-routing-compare.cc.

Referenced by GetCumulativeRxPkts(), and IncRxPkts().

uint32_t RoutingStats::m_cumulativeTxBytes

private

Definition at line 255 of file vanet-routing-compare.cc.

Referenced by GetCumulativeTxBytes(), and IncTxBytes().

uint32_t RoutingStats::m_cumulativeTxPkts

private

Definition at line 257 of file vanet-routing-compare.cc.

Referenced by GetCumulativeTxPkts(), and IncTxPkts().

uint32_t RoutingStats::m_RxBytes

private

Definition at line 250 of file vanet-routing-compare.cc.

Referenced by GetRxBytes(), IncRxBytes(), and SetRxBytes().

uint32_t RoutingStats::m_RxPkts

private

Definition at line 252 of file vanet-routing-compare.cc.

Referenced by GetRxPkts(), IncRxPkts(), and SetRxPkts().

uint32_t RoutingStats::m_TxBytes

private

Definition at line 254 of file vanet-routing-compare.cc.

Referenced by GetTxBytes(), IncTxBytes(), and SetTxBytes().

uint32_t RoutingStats::m_TxPkts

private

Definition at line 256 of file vanet-routing-compare.cc.

Referenced by GetTxPkts(), IncTxPkts(), and SetTxPkts().

---

The documentation for this class was generated from the following file:

• src/wave/examples/vanet-routing-compare.cc
