Manages all block ack agreements for an originator station. More...

#include <block-ack-manager.h>

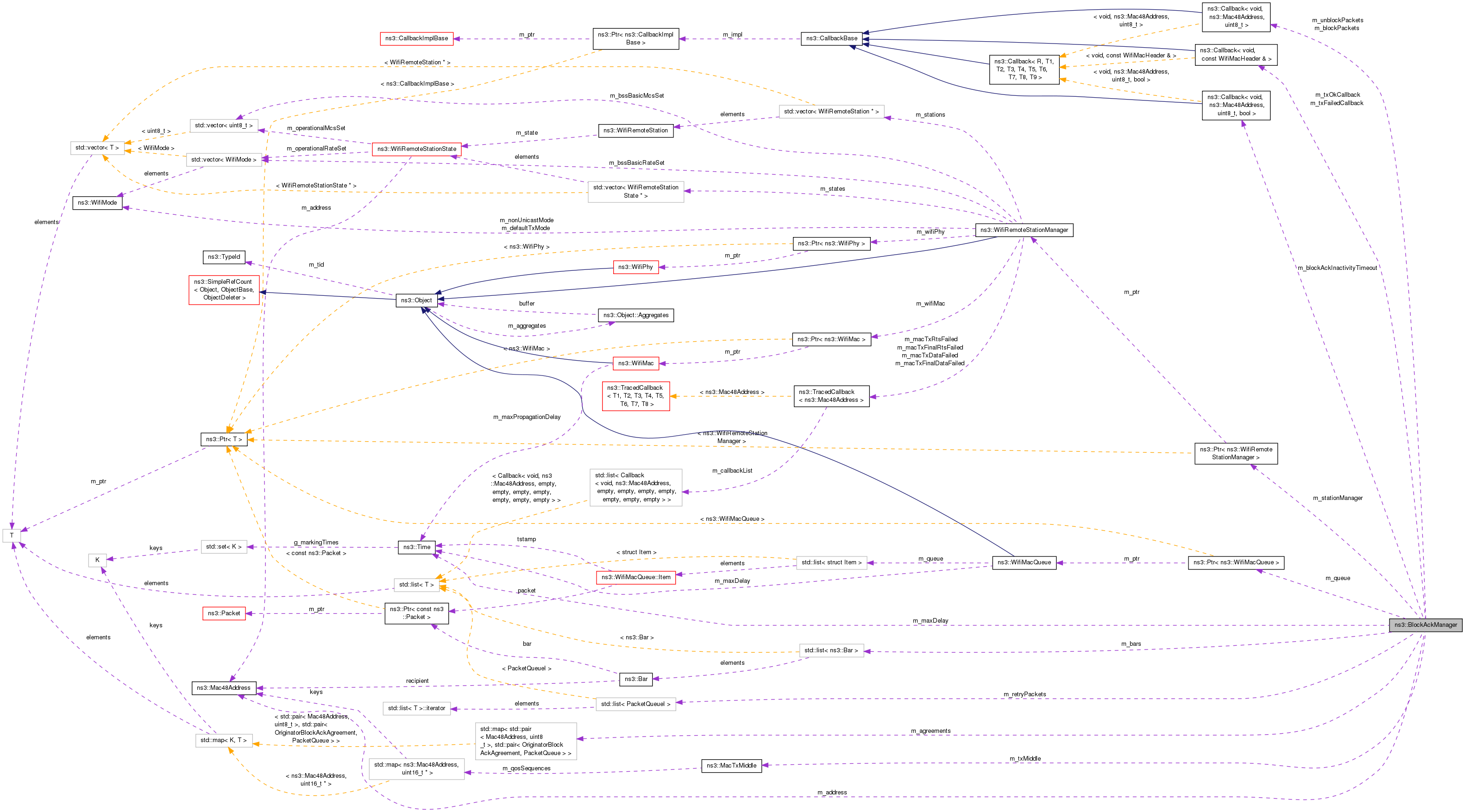

Collaboration diagram for ns3::BlockAckManager:

Classes
struct	Item
	A struct for packet, Wifi header, and timestamp. More...

Public Types
typedef Callback< void, const WifiMacHeader & >	TxFailed
	typedef for a callback to invoke when a packet transmission was failed. More...

typedef Callback< void, const WifiMacHeader & >	TxOk
	typedef for a callback to invoke when a packet transmission was completed successfully. More...

Public Member Functions
	BlockAckManager ()

	~BlockAckManager ()

bool	AlreadyExists (uint16_t currentSeq, Mac48Address recipient, uint8_t tid)
	Checks if the packet already exists in the retransmit queue or not if it does then it doesn't add it again. More...

void	CompleteAmpduExchange (Mac48Address recipient, uint8_t tid)

void	CreateAgreement (const MgtAddBaRequestHeader *reqHdr, Mac48Address recipient)

void	DestroyAgreement (Mac48Address recipient, uint8_t tid)

bool	ExistsAgreement (Mac48Address recipient, uint8_t tid) const

bool	ExistsAgreementInState (Mac48Address recipient, uint8_t tid, enum OriginatorBlockAckAgreement::State state) const

uint32_t	GetNBufferedPackets (Mac48Address recipient, uint8_t tid) const

Ptr< const Packet >	GetNextPacket (WifiMacHeader &hdr)

uint32_t	GetNextPacketSize (void) const

uint32_t	GetNRetryNeededPackets (Mac48Address recipient, uint8_t tid) const

uint16_t	GetSeqNumOfNextRetryPacket (Mac48Address recipient, uint8_t tid) const

bool	HasBar (struct Bar &bar)

bool	HasOtherFragments (uint16_t sequenceNumber) const

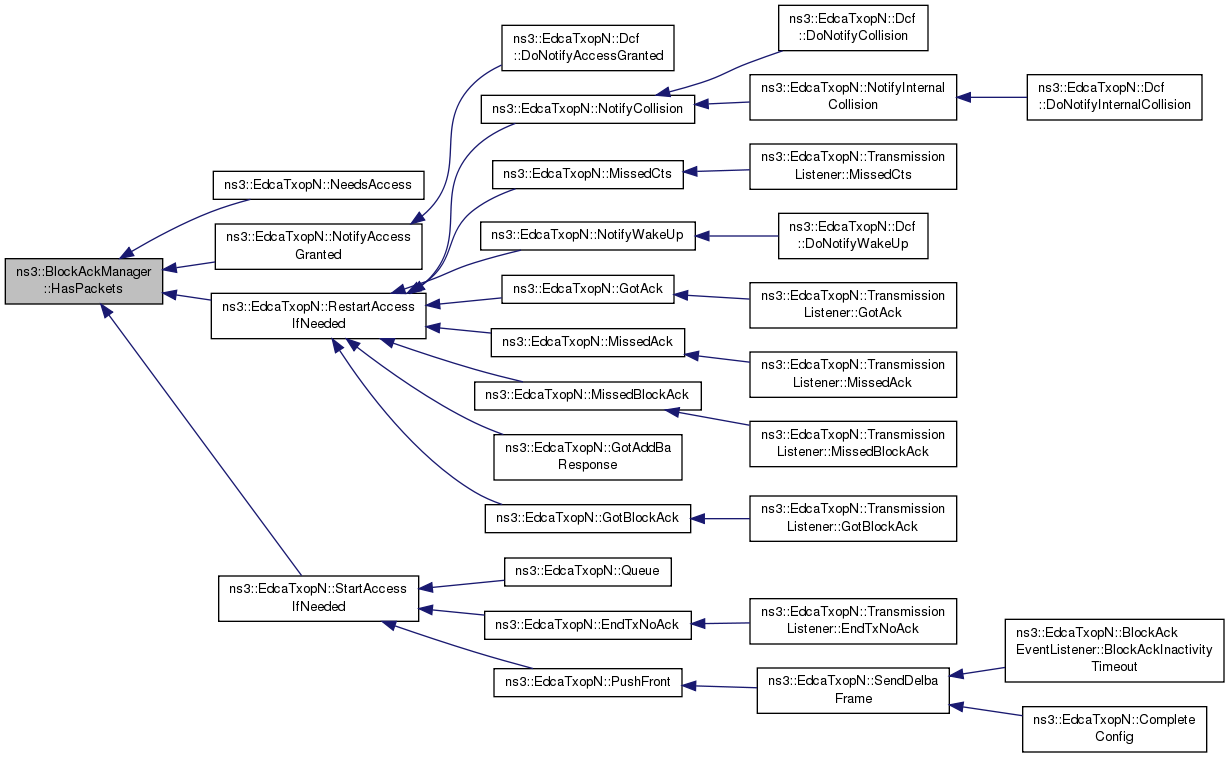

bool	HasPackets (void) const
	Returns true if there are packets that need of retransmission or at least a BAR is scheduled. More...

bool	NeedBarRetransmission (uint8_t tid, uint16_t seqNumber, Mac48Address recipient)
	This function returns true if the lifetime of the packets a BAR refers to didn't expire yet else it returns false. More...

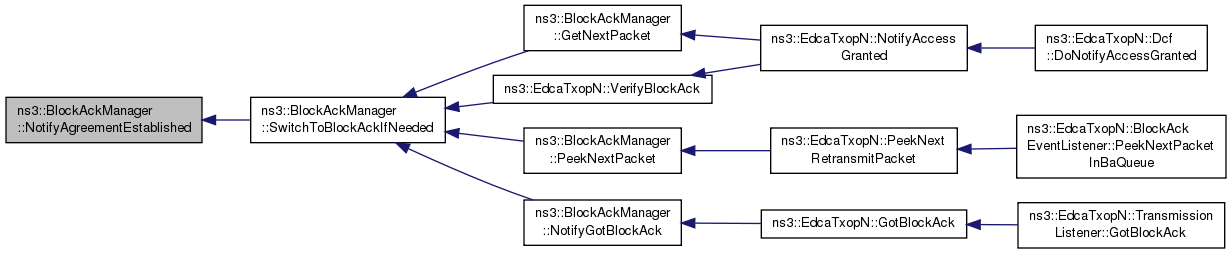

void	NotifyAgreementEstablished (Mac48Address recipient, uint8_t tid, uint16_t startingSeq)

void	NotifyAgreementUnsuccessful (Mac48Address recipient, uint8_t tid)

void	NotifyGotBlockAck (const CtrlBAckResponseHeader *blockAck, Mac48Address recipient, WifiMode txMode)

void	NotifyMpduTransmission (Mac48Address recipient, uint8_t tid, uint16_t nextSeqNumber, WifiMacHeader::QosAckPolicy policy)

Ptr< const Packet >	PeekNextPacket (WifiMacHeader &hdr, Mac48Address recipient, uint8_t tid, Time *timestamp)

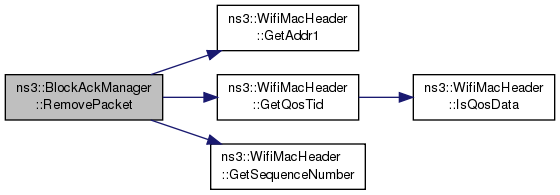

bool	RemovePacket (uint8_t tid, Mac48Address recipient, uint16_t seqnumber)
	Remove a packet after you peek in the queue and get it. More...

void	SetBlockAckInactivityCallback (Callback< void, Mac48Address, uint8_t, bool > callback)

void	SetBlockAckThreshold (uint8_t nPackets)

void	SetBlockAckType (enum BlockAckType bAckType)

void	SetBlockDestinationCallback (Callback< void, Mac48Address, uint8_t > callback)

void	SetMaxPacketDelay (Time maxDelay)

void	SetQueue (Ptr< WifiMacQueue > queue)

void	SetTxFailedCallback (TxFailed callback)

void	SetTxMiddle (MacTxMiddle *txMiddle)

void	SetTxOkCallback (TxOk callback)

void	SetUnblockDestinationCallback (Callback< void, Mac48Address, uint8_t > callback)

void	SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > manager)
	Set up WifiRemoteStationManager associated with this BlockAckManager. More...

void	StorePacket (Ptr< const Packet > packet, const WifiMacHeader &hdr, Time tStamp)

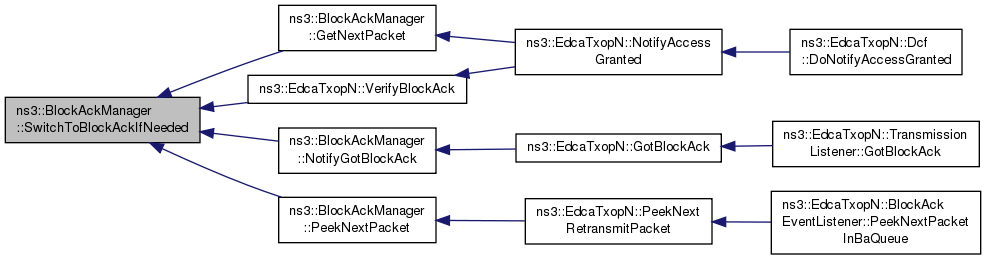

bool	SwitchToBlockAckIfNeeded (Mac48Address recipient, uint8_t tid, uint16_t startingSeq)

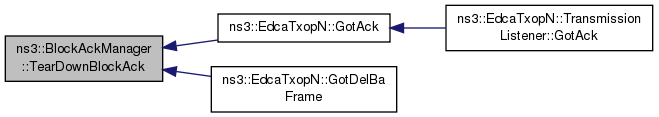

void	TearDownBlockAck (Mac48Address recipient, uint8_t tid)

void	UpdateAgreement (const MgtAddBaResponseHeader *respHdr, Mac48Address recipient)

Private Types
typedef std::map< std::pair< Mac48Address, uint8_t >, std::pair< OriginatorBlockAckAgreement, PacketQueue > >	Agreements
	typedef for a map between MAC address and block ACK agreement. More...

typedef std::map< std::pair< Mac48Address, uint8_t >, std::pair< OriginatorBlockAckAgreement, PacketQueue > >::const_iterator	AgreementsCI
	typedef for a const iterator for Agreements. More...

typedef std::map< std::pair< Mac48Address, uint8_t >, std::pair< OriginatorBlockAckAgreement, PacketQueue > >::iterator	AgreementsI
	typedef for an iterator for Agreements. More...

typedef std::list< Item >	PacketQueue
	typedef for a list of Item struct. More...

typedef std::list< Item >::const_iterator	PacketQueueCI
	typedef for a const iterator for PacketQueue. More...

typedef std::list< Item >::iterator	PacketQueueI
	typedef for an iterator for PacketQueue. More...

Private Member Functions
	BlockAckManager (const BlockAckManager &)

void	CleanupBuffers (void)
	This method removes packets whose lifetime was exceeded. More...

void	InactivityTimeout (Mac48Address, uint8_t)

void	InsertInRetryQueue (PacketQueueI item)

BlockAckManager &	operator= (const BlockAckManager &)

Ptr< Packet >	ScheduleBlockAckReqIfNeeded (Mac48Address recipient, uint8_t tid)

Private Attributes
Mac48Address	m_address

Agreements	m_agreements
	This data structure contains, for each block ack agreement (recipient, tid), a set of packets for which an ack by block ack is requested. More...

std::list< Bar >	m_bars

Callback< void, Mac48Address, uint8_t, bool >	m_blockAckInactivityTimeout

uint8_t	m_blockAckThreshold

enum BlockAckType	m_blockAckType

Callback< void, Mac48Address, uint8_t >	m_blockPackets

Time	m_maxDelay

Ptr< WifiMacQueue >	m_queue

std::list< PacketQueueI >	m_retryPackets
	This list contains all iterators to stored packets that need to be retransmitted. More...

Ptr< WifiRemoteStationManager >	m_stationManager

TxFailed	m_txFailedCallback

MacTxMiddle *	m_txMiddle

TxOk	m_txOkCallback

Callback< void, Mac48Address, uint8_t >	m_unblockPackets

Detailed Description

Manages all block ack agreements for an originator station.

Definition at line 75 of file block-ack-manager.h.

Member Typedef Documentation

typedef std::map<std::pair<Mac48Address, uint8_t>, std::pair<OriginatorBlockAckAgreement, PacketQueue> > ns3::BlockAckManager::Agreements

private

typedef for a map between MAC address and block ACK agreement.

Definition at line 377 of file block-ack-manager.h.

typedef std::map<std::pair<Mac48Address, uint8_t>, std::pair<OriginatorBlockAckAgreement, PacketQueue> >::const_iterator ns3::BlockAckManager::AgreementsCI

private

typedef for a const iterator for Agreements.

Definition at line 387 of file block-ack-manager.h.

typedef std::map<std::pair<Mac48Address, uint8_t>, std::pair<OriginatorBlockAckAgreement, PacketQueue> >::iterator ns3::BlockAckManager::AgreementsI

private

typedef for an iterator for Agreements.

Definition at line 382 of file block-ack-manager.h.

typedef std::list<Item> ns3::BlockAckManager::PacketQueue

private

typedef for a list of Item struct.

Definition at line 359 of file block-ack-manager.h.

typedef std::list<Item>::const_iterator ns3::BlockAckManager::PacketQueueCI

private

typedef for a const iterator for PacketQueue.

Definition at line 371 of file block-ack-manager.h.

typedef std::list<Item>::iterator ns3::BlockAckManager::PacketQueueI

private

typedef for an iterator for PacketQueue.

Definition at line 367 of file block-ack-manager.h.

typedef Callback<void, const WifiMacHeader&> ns3::BlockAckManager::TxFailed

typedef for a callback to invoke when a packet transmission was failed.

Definition at line 329 of file block-ack-manager.h.

typedef Callback<void, const WifiMacHeader&> ns3::BlockAckManager::TxOk

typedef for a callback to invoke when a packet transmission was completed successfully.

Definition at line 324 of file block-ack-manager.h.

Constructor & Destructor Documentation

ns3::BlockAckManager::BlockAckManager ( const BlockAckManager & )

private

ns3::BlockAckManager::BlockAckManager ( )

Definition at line 66 of file block-ack-manager.cc.

References NS_LOG_FUNCTION.

ns3::BlockAckManager::~BlockAckManager ( )

Definition at line 71 of file block-ack-manager.cc.

References m_agreements, m_queue, m_retryPackets, and NS_LOG_FUNCTION.

Member Function Documentation

bool ns3::BlockAckManager::AlreadyExists	(	uint16_t	currentSeq,
		Mac48Address	recipient,
		uint8_t	tid
	)

Checks if the packet already exists in the retransmit queue or not if it does then it doesn't add it again.

Definition at line 489 of file block-ack-manager.cc.

References m_retryPackets, and NS_LOG_FUNCTION.

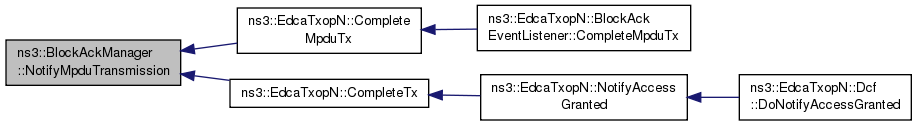

Referenced by NotifyGotBlockAck().

Here is the caller graph for this function:

void ns3::BlockAckManager::CleanupBuffers ( void )

private

This method removes packets whose lifetime was exceeded.

Definition at line 790 of file block-ack-manager.cc.

References m_agreements, m_maxDelay, m_retryPackets, ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by GetNextPacket(), NeedBarRetransmission(), and PeekNextPacket().

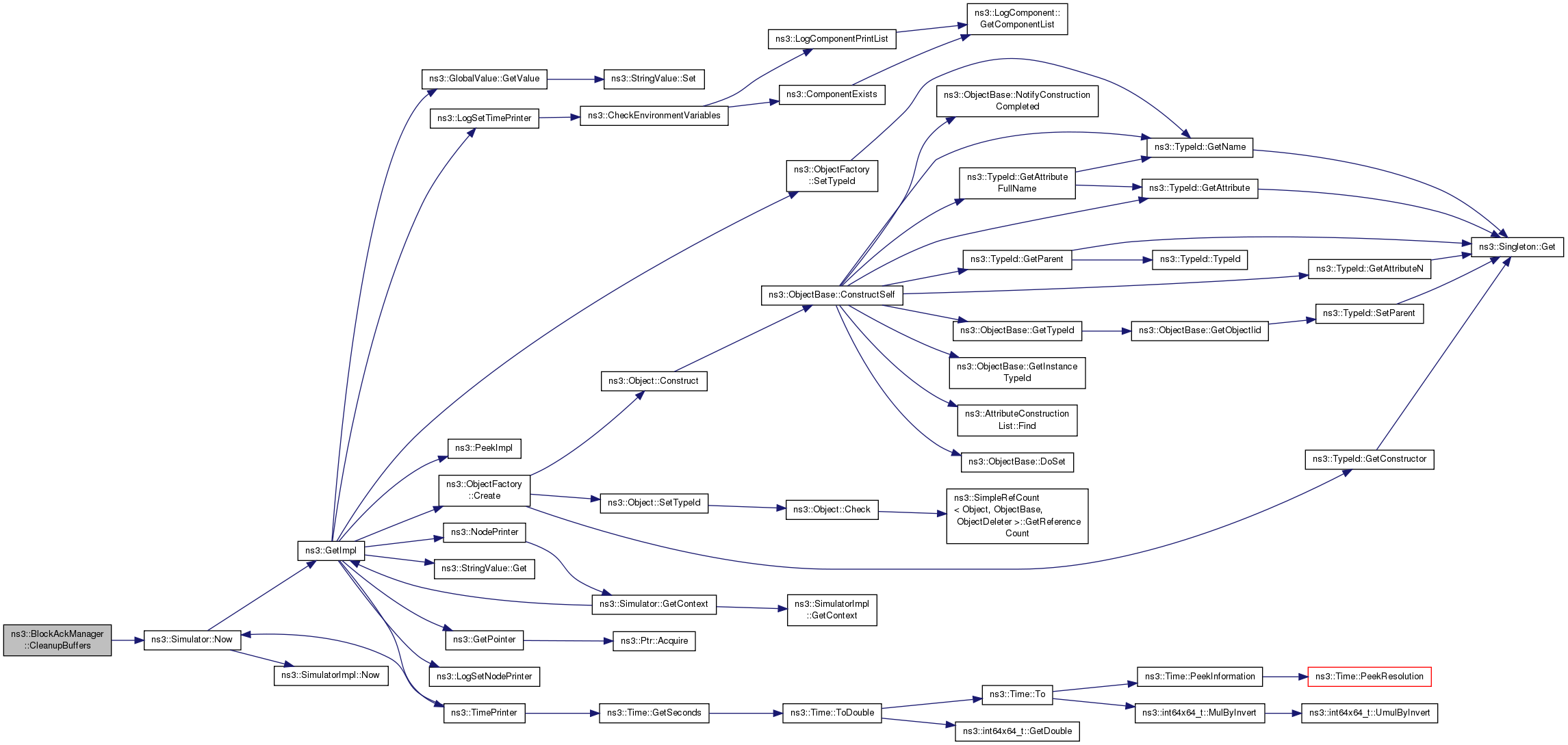

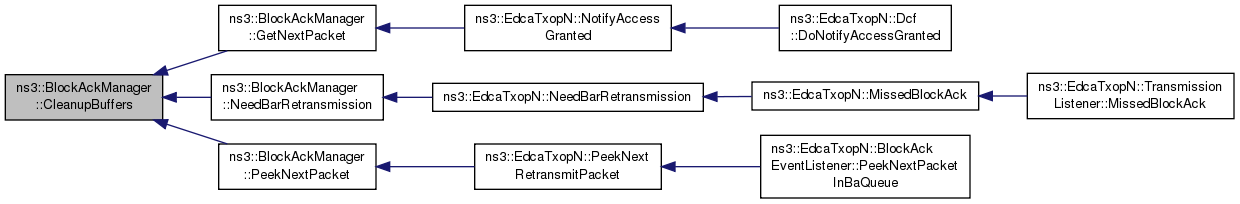

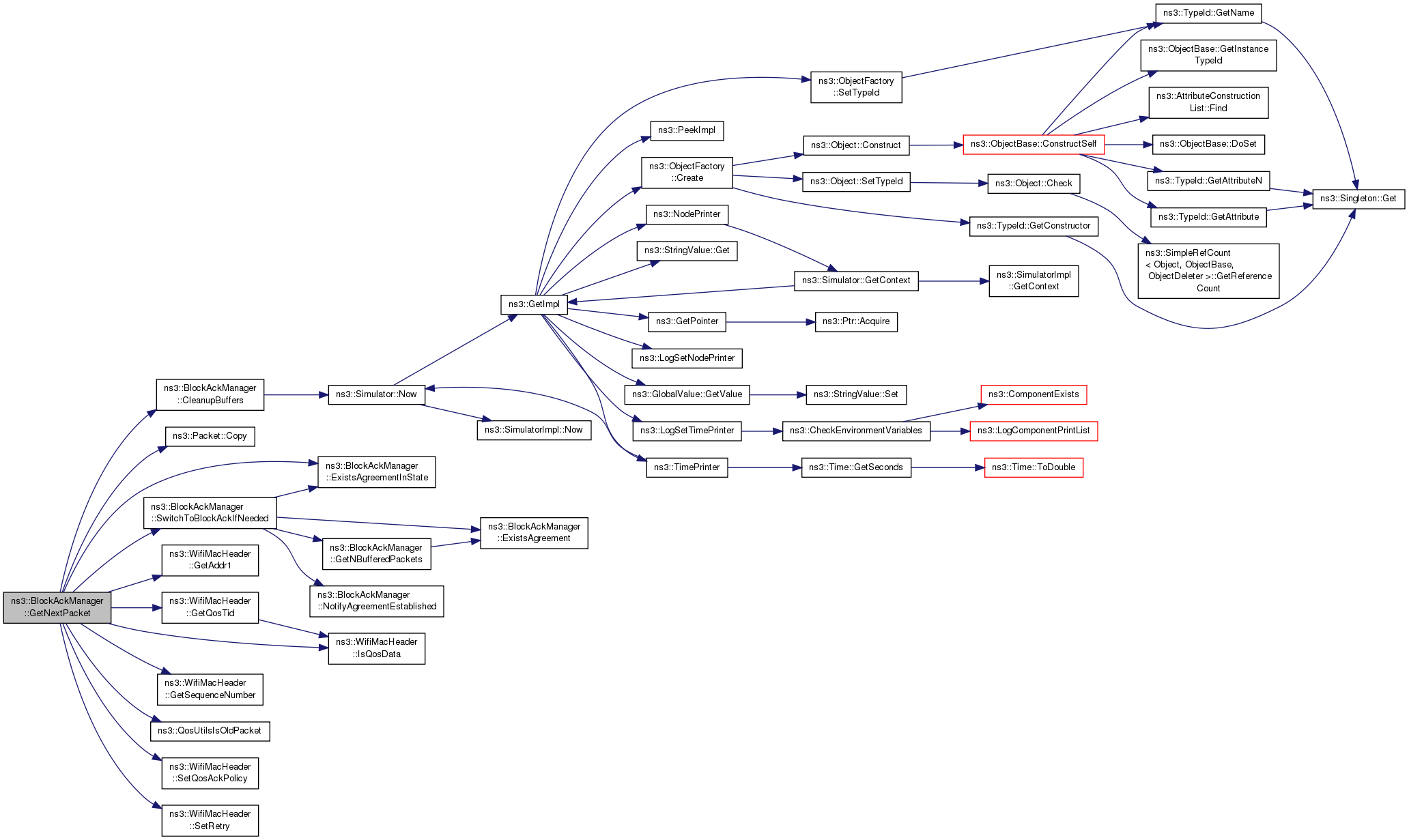

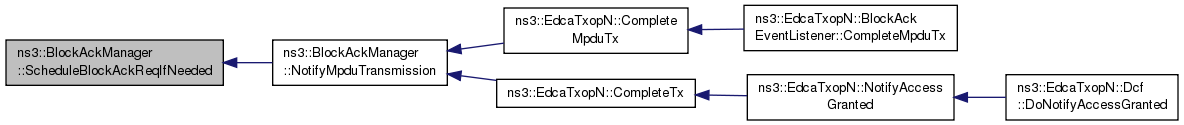

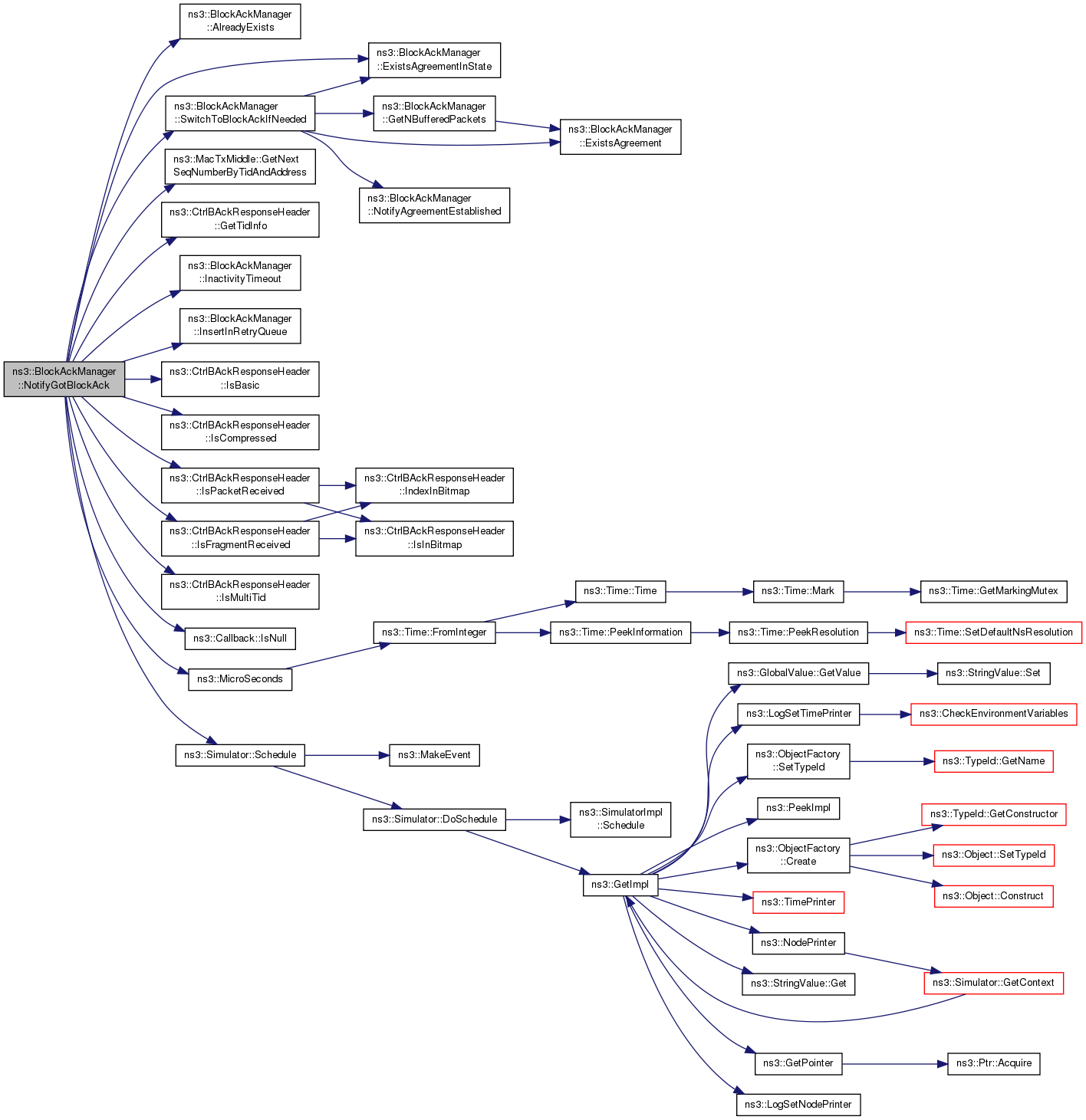

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BlockAckManager::CompleteAmpduExchange	(	Mac48Address	recipient,
		uint8_t	tid
	)

Parameters

recipient	Address of peer station involved in block ack mechanism.
tid	Traffic ID of transmitted packet.

This method to set the number of packets waitin for blockAck = 0 since the receiver will send the blockAck right away

Definition at line 240 of file block-ack-manager.cc.

References ns3::OriginatorBlockAckAgreement::CompleteExchange(), m_agreements, and NS_ASSERT.

Referenced by ns3::EdcaTxopN::CompleteAmpduTransfer().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BlockAckManager::CreateAgreement	(	const MgtAddBaRequestHeader *	reqHdr,
		Mac48Address	recipient
	)

Parameters

reqHdr	Relative Add block ack request (action frame).
recipient	Address of peer station involved in block ack mechanism.

Creates a new block ack agreement in pending state. When a ADDBA response with a successful status code is received, the relative agreement becomes established.

Definition at line 113 of file block-ack-manager.cc.

References ns3::MgtAddBaRequestHeader::GetStartingSequence(), ns3::MgtAddBaRequestHeader::GetTid(), ns3::MgtAddBaRequestHeader::GetTimeout(), ns3::MgtAddBaRequestHeader::IsAmsduSupported(), ns3::MgtAddBaRequestHeader::IsImmediateBlockAck(), m_agreements, m_blockPackets, m_stationManager, NS_LOG_FUNCTION, ns3::OriginatorBlockAckAgreement::PENDING, and ns3::BlockAckAgreement::SetStartingSequence().

Referenced by ns3::EdcaTxopN::SendAddBaRequest().

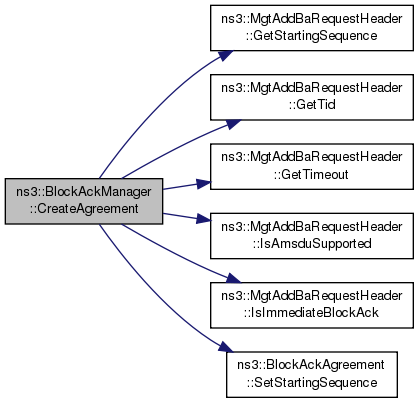

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BlockAckManager::DestroyAgreement	(	Mac48Address	recipient,
		uint8_t	tid
	)

Parameters

recipient	Address of peer station involved in block ack mechanism.
tid	Tid Traffic id of transmitted packet.

Invoked when a recipient reject a block ack agreement or when a Delba frame is Received/Transmitted.

Definition at line 142 of file block-ack-manager.cc.

References m_agreements, m_bars, m_retryPackets, and NS_LOG_FUNCTION.

Referenced by TearDownBlockAck().

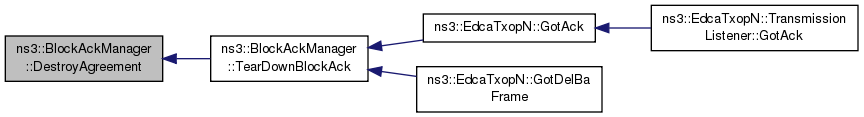

Here is the caller graph for this function:

bool ns3::BlockAckManager::ExistsAgreement	(	Mac48Address	recipient,
		uint8_t	tid
	)		const

Parameters

recipient	Address of peer station involved in block ack mechanism.
tid	Traffic ID.

Returns: true if a block ack agreement exists, false otherwise

Checks if a block ack agreement exists with station addressed by recipient for tid tid.

Definition at line 80 of file block-ack-manager.cc.

References m_agreements, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::GetBaAgreementExists(), GetNBufferedPackets(), GetNRetryNeededPackets(), ns3::EdcaTxopN::NotifyAccessGranted(), and SwitchToBlockAckIfNeeded().

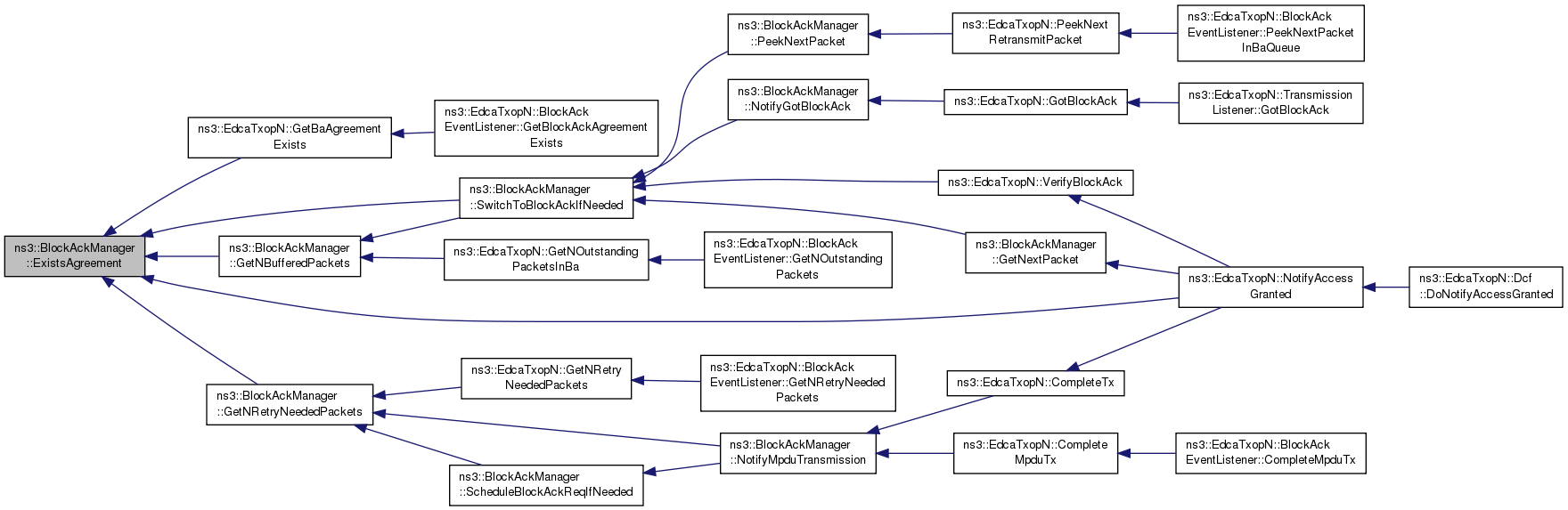

Here is the caller graph for this function:

bool ns3::BlockAckManager::ExistsAgreementInState	(	Mac48Address	recipient,
		uint8_t	tid,
		enum OriginatorBlockAckAgreement::State	state
	)		const

Parameters

recipient	Address of peer station involved in block ack mechanism.
tid	Traffic ID.
state	The state for block ack agreement

Returns: true if a block ack agreement exists, false otherwise

Checks if a block ack agreement with a state equals to state exists with station addressed by recipient for tid tid.

Definition at line 87 of file block-ack-manager.cc.

References ns3::OriginatorBlockAckAgreement::ESTABLISHED, ns3::OriginatorBlockAckAgreement::INACTIVE, m_agreements, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::OriginatorBlockAckAgreement::PENDING, and ns3::OriginatorBlockAckAgreement::UNSUCCESSFUL.

Referenced by GetNextPacket(), ns3::EdcaTxopN::GotAddBaResponse(), NotifyGotBlockAck(), PeekNextPacket(), SwitchToBlockAckIfNeeded(), and ns3::EdcaTxopN::VerifyBlockAck().

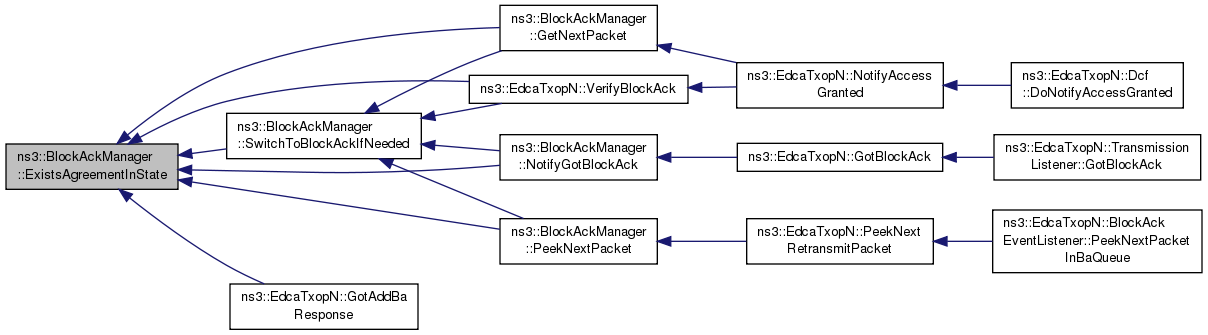

Here is the caller graph for this function:

uint32_t ns3::BlockAckManager::GetNBufferedPackets	(	Mac48Address	recipient,
		uint8_t	tid
	)		const

Parameters

recipient	Address of peer station involved in block ack mechanism.
tid	Traffic ID.

Returns: the number of packets buffered for a specified agreement

Returns number of packets buffered for a specified agreement. This methods doesn't return number of buffered MPDUs but number of buffered MSDUs.

Definition at line 419 of file block-ack-manager.cc.

References ExistsAgreement(), m_agreements, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::GetNOutstandingPacketsInBa(), and SwitchToBlockAckIfNeeded().

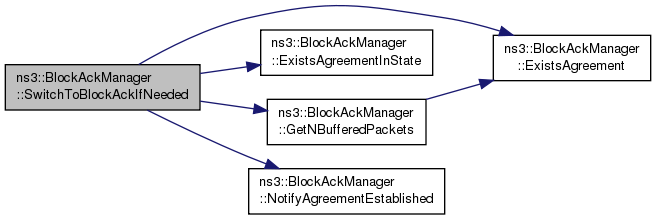

Here is the call graph for this function:

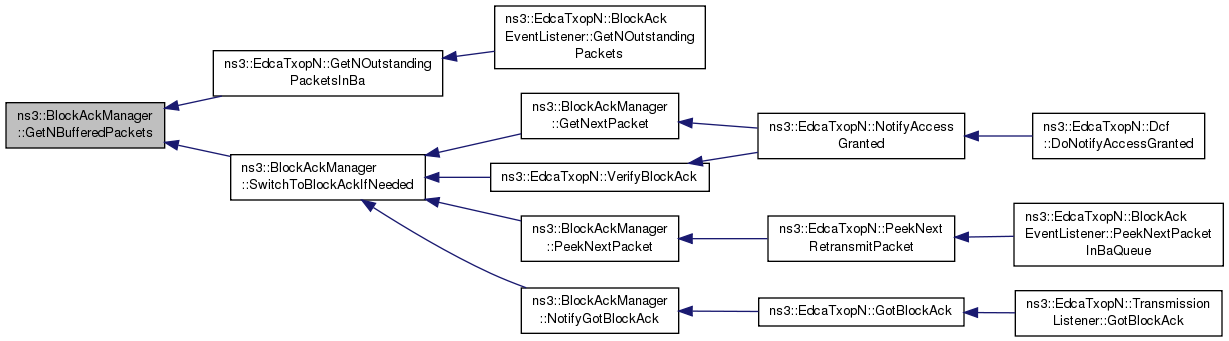

Here is the caller graph for this function:

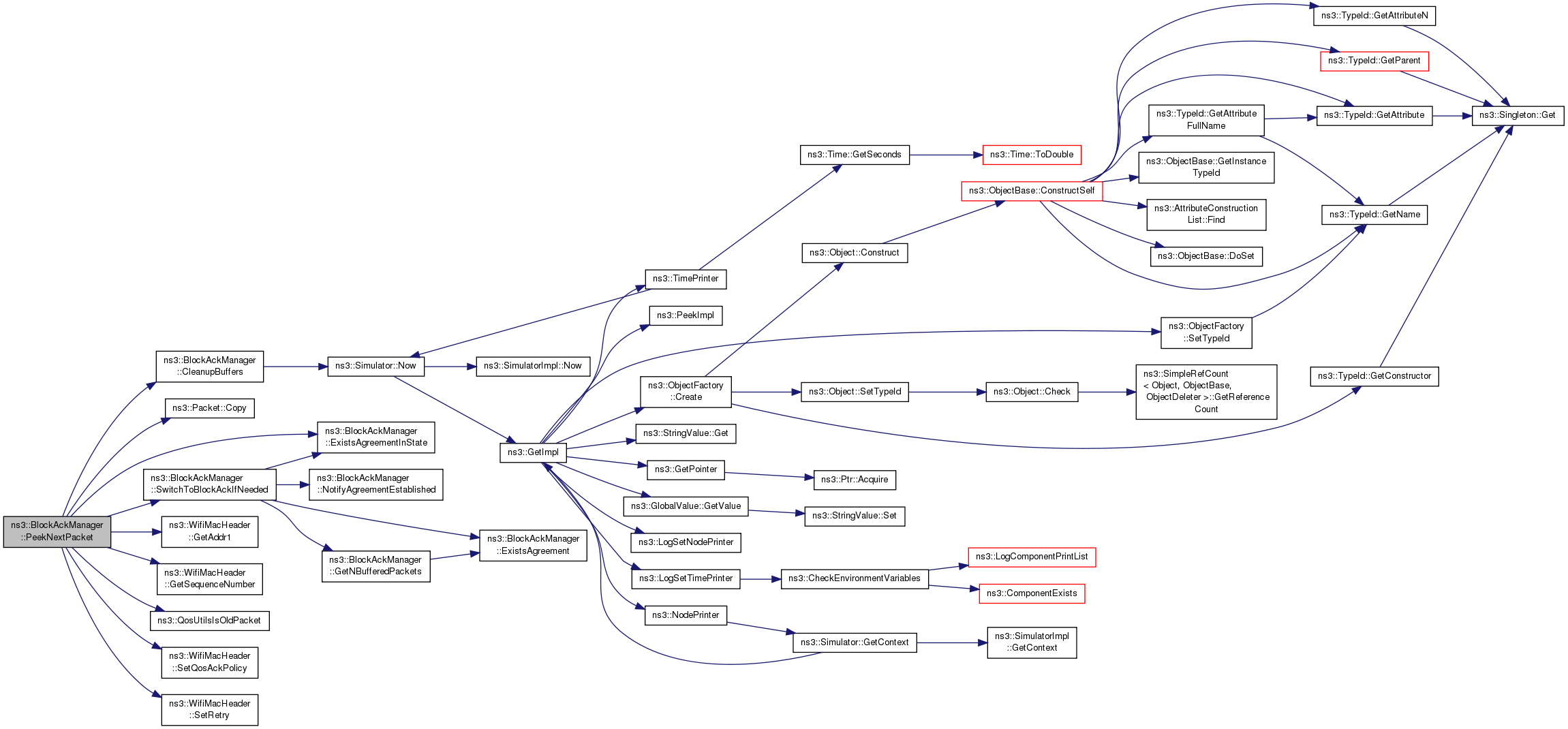

Ptr< const Packet > ns3::BlockAckManager::GetNextPacket ( WifiMacHeader & hdr )

Parameters

hdr	802.11 header of returned packet (if exists).

Returns: the packet

This methods returns a packet (if exists) indicated as not received in corresponding block ack bitmap.

Definition at line 249 of file block-ack-manager.cc.

References ns3::WifiMacHeader::BLOCK_ACK, CleanupBuffers(), ns3::Packet::Copy(), ns3::OriginatorBlockAckAgreement::ESTABLISHED, ExistsAgreementInState(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::GetSequenceNumber(), ns3::WifiMacHeader::IsQosData(), m_agreements, m_retryPackets, ns3::WifiMacHeader::NORMAL_ACK, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::QosUtilsIsOldPacket(), ns3::WifiMacHeader::SetQosAckPolicy(), ns3::WifiMacHeader::SetRetry(), and SwitchToBlockAckIfNeeded().

Referenced by ns3::EdcaTxopN::NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::BlockAckManager::GetNextPacketSize ( void ) const

Returns: the size of the next packet that needs retransmission

Returns size of the next packet that needs retransmission.

Definition at line 765 of file block-ack-manager.cc.

References ns3::Packet::GetSize(), m_retryPackets, NS_LOG_FUNCTION, and ns3::BlockAckManager::Item::packet.

Here is the call graph for this function:

uint32_t ns3::BlockAckManager::GetNRetryNeededPackets	(	Mac48Address	recipient,
		uint8_t	tid
	)		const

Parameters

recipient	Address of peer station involved in block ack mechanism.
tid	Traffic ID.

Returns: the number of packets for a specific agreement that need retransmission

Returns number of packets for a specific agreement that need retransmission. This method doesn't return number of MPDUs that need retransmission but number of MSDUs.

Definition at line 444 of file block-ack-manager.cc.

References ExistsAgreement(), m_retryPackets, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::GetNRetryNeededPackets(), NotifyMpduTransmission(), and ScheduleBlockAckReqIfNeeded().

Here is the call graph for this function:

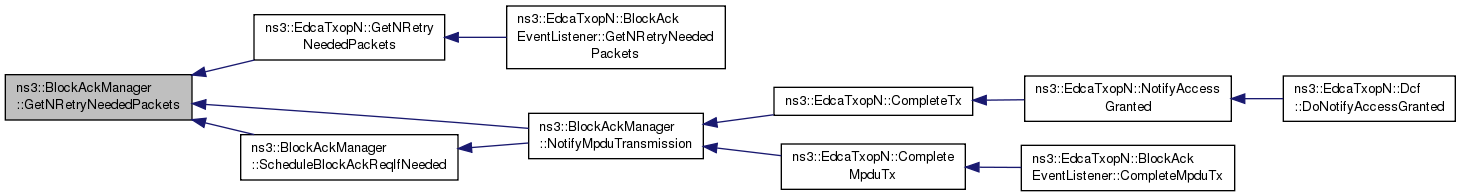

Here is the caller graph for this function:

uint16_t ns3::BlockAckManager::GetSeqNumOfNextRetryPacket	(	Mac48Address	recipient,
		uint8_t	tid
	)		const

Parameters

recipient
tid

Returns: the sequence number of the next retry packet for a specific agreement

Returns the sequence number of the next retry packet for a specific agreement. If there are no packets that need retransmission for the specified agreement or the agreement doesn't exist the function returns 4096;

Definition at line 867 of file block-ack-manager.cc.

References m_retryPackets, and NS_LOG_FUNCTION.

Referenced by NotifyMpduTransmission().

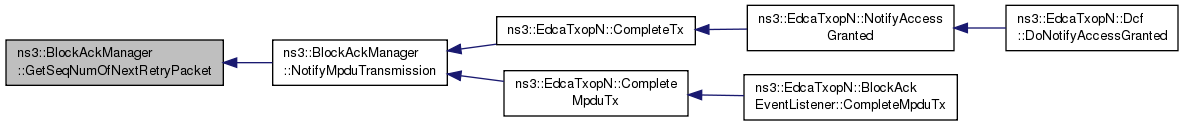

Here is the caller graph for this function:

bool ns3::BlockAckManager::HasBar ( struct Bar & bar )

Definition at line 399 of file block-ack-manager.cc.

References m_bars, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted().

Here is the caller graph for this function:

bool ns3::BlockAckManager::HasOtherFragments ( uint16_t sequenceNumber ) const

Parameters

sequenceNumber Sequence number of the packet which fragment is part of.

Returns: true if another fragment with the given sequence number is scheduled for retransmission.

Returns true if another fragment with sequence number sequenceNumber is scheduled for retransmission.

Definition at line 749 of file block-ack-manager.cc.

References ns3::WifiMacHeader::GetSequenceNumber(), ns3::BlockAckManager::Item::hdr, m_retryPackets, and NS_LOG_FUNCTION.

Here is the call graph for this function:

bool ns3::BlockAckManager::HasPackets ( void ) const

Returns true if there are packets that need of retransmission or at least a BAR is scheduled.

Returns false otherwise.

Returns: true if there are packets that need of retransmission or at least a BAR is scheduled, false otherwise

Definition at line 412 of file block-ack-manager.cc.

References m_bars, m_retryPackets, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::NeedsAccess(), ns3::EdcaTxopN::NotifyAccessGranted(), ns3::EdcaTxopN::RestartAccessIfNeeded(), and ns3::EdcaTxopN::StartAccessIfNeeded().

Here is the caller graph for this function:

void ns3::BlockAckManager::InactivityTimeout	(	Mac48Address	recipient,
		uint8_t	tid
	)

private

Definition at line 658 of file block-ack-manager.cc.

References m_blockAckInactivityTimeout, and NS_LOG_FUNCTION.

Referenced by NotifyGotBlockAck(), and UpdateAgreement().

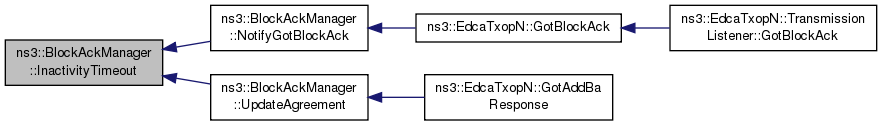

Here is the caller graph for this function:

void ns3::BlockAckManager::InsertInRetryQueue ( PacketQueueI item )

private

Parameters

item	Insert item in retransmission queue. This method ensures packets are retransmitted in the correct order.

Definition at line 895 of file block-ack-manager.cc.

References m_retryPackets, and NS_LOG_INFO.

Referenced by NotifyGotBlockAck().

Here is the caller graph for this function:

bool ns3::BlockAckManager::NeedBarRetransmission	(	uint8_t	tid,
		uint16_t	seqNumber,
		Mac48Address	recipient
	)

This function returns true if the lifetime of the packets a BAR refers to didn't expire yet else it returns false.

If it return false then the BAR will be discarded (i.e. will not be re-transmitted)

Definition at line 777 of file block-ack-manager.cc.

References CleanupBuffers(), m_agreements, and NS_ASSERT.

Referenced by ns3::EdcaTxopN::NeedBarRetransmission().

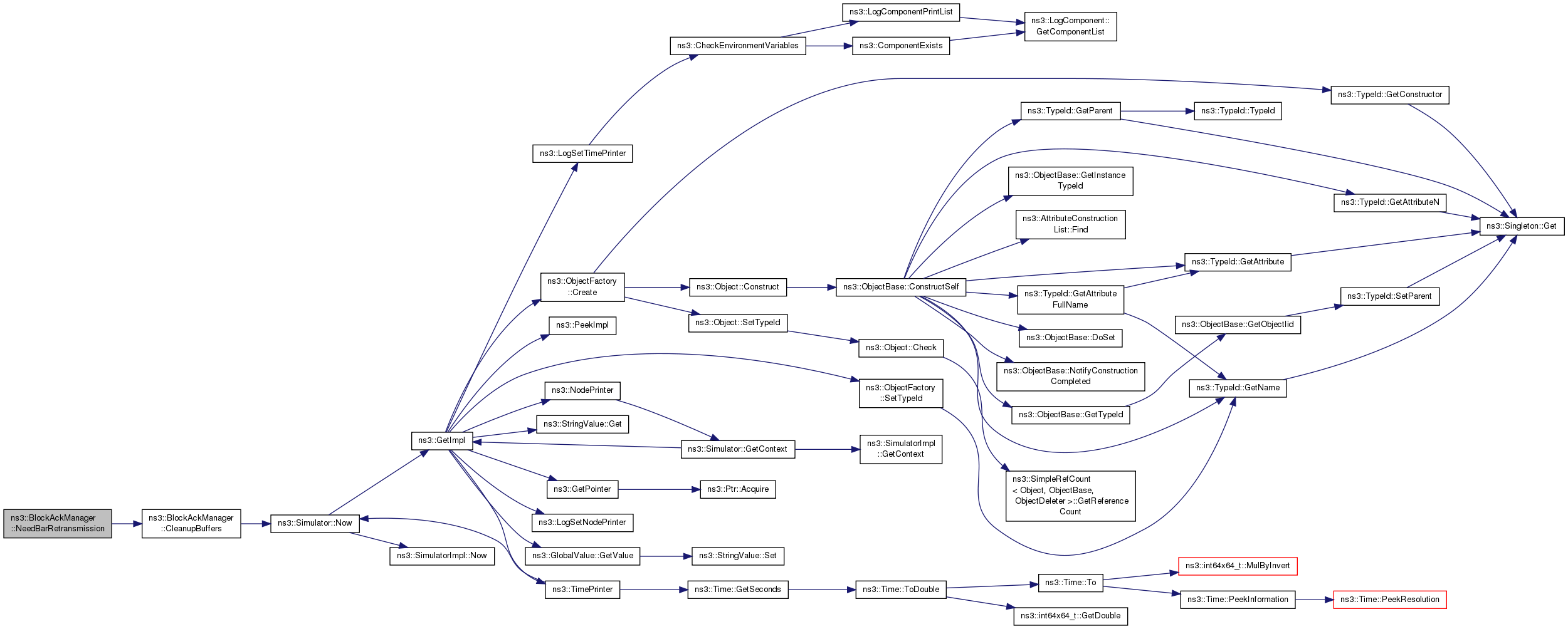

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BlockAckManager::NotifyAgreementEstablished	(	Mac48Address	recipient,
		uint8_t	tid,
		uint16_t	startingSeq
	)

Parameters

recipient	Address of peer station involved in block ack mechanism.
tid	Traffic ID of transmitted packet.
startingSeq	starting sequence field

Puts corresponding agreement in established state and updates number of packets and starting sequence field. Invoked typically after a block ack refresh.

Definition at line 665 of file block-ack-manager.cc.

References ns3::OriginatorBlockAckAgreement::ESTABLISHED, m_agreements, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by SwitchToBlockAckIfNeeded().

Here is the caller graph for this function:

void ns3::BlockAckManager::NotifyAgreementUnsuccessful	(	Mac48Address	recipient,
		uint8_t	tid
	)

Parameters

recipient	Address of peer station involved in block ack mechanism.
tid	Traffic ID of transmitted packet.

Marks an agreement as unsuccessful. This happens if recipient station reject block ack setup by an ADDBA Response frame with a failure status code. For now we assume that every QoS station accepts a block ack setup.

Definition at line 676 of file block-ack-manager.cc.

References m_agreements, NS_ASSERT, NS_LOG_FUNCTION, and ns3::OriginatorBlockAckAgreement::UNSUCCESSFUL.

Referenced by ns3::EdcaTxopN::GotAddBaResponse().

Here is the caller graph for this function:

void ns3::BlockAckManager::NotifyGotBlockAck	(	const CtrlBAckResponseHeader *	blockAck,
		Mac48Address	recipient,
		WifiMode	txMode
	)

Parameters

blockAck	The received block ack frame.
recipient	Sender of block ack frame.
txMode	mode of block ack frame.

Invoked upon receipt of a block ack frame. Typically, this function, is called by ns3::EdcaTxopN object. Performs a check on which MPDUs, previously sent with ack policy set to Block Ack, were correctly received by the recipient. An acknowledged MPDU is removed from the buffer, retransmitted otherwise.

Definition at line 503 of file block-ack-manager.cc.

References AlreadyExists(), ns3::OriginatorBlockAckAgreement::ESTABLISHED, ExistsAgreementInState(), ns3::MacTxMiddle::GetNextSeqNumberByTidAndAddress(), ns3::CtrlBAckResponseHeader::GetTidInfo(), InactivityTimeout(), InsertInRetryQueue(), ns3::CtrlBAckResponseHeader::IsBasic(), ns3::CtrlBAckResponseHeader::IsCompressed(), ns3::CtrlBAckResponseHeader::IsFragmentReceived(), ns3::CtrlBAckResponseHeader::IsMultiTid(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), ns3::CtrlBAckResponseHeader::IsPacketReceived(), m_agreements, m_stationManager, m_txFailedCallback, m_txMiddle, m_txOkCallback, ns3::MicroSeconds(), NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), SwitchToBlockAckIfNeeded(), and timeout.

Referenced by ns3::EdcaTxopN::GotBlockAck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BlockAckManager::NotifyMpduTransmission	(	Mac48Address	recipient,
		uint8_t	tid,
		uint16_t	nextSeqNumber,
		WifiMacHeader::QosAckPolicy	policy
	)

Parameters

recipient	Address of peer station involved in block ack mechanism.
tid	Traffic ID of transmitted packet.
nextSeqNumber	Sequence number of the next packet that would be trasmitted by EdcaTxopN.
policy	ack policy of the transmitted packet.

This method is typically invoked by ns3::EdcaTxopN object every time that a MPDU with ack policy subfield in Qos Control field set to Block Ack is transmitted. The nextSeqNumber parameter is used to block transmission of packets that are out of bitmap.

Definition at line 688 of file block-ack-manager.cc.

References ns3::WifiMacHeader::BLOCK_ACK, GetNRetryNeededPackets(), GetSeqNumOfNextRetryPacket(), m_agreements, m_bars, NS_ASSERT, NS_LOG_FUNCTION, and ScheduleBlockAckReqIfNeeded().

Referenced by ns3::EdcaTxopN::CompleteMpduTx(), and ns3::EdcaTxopN::CompleteTx().

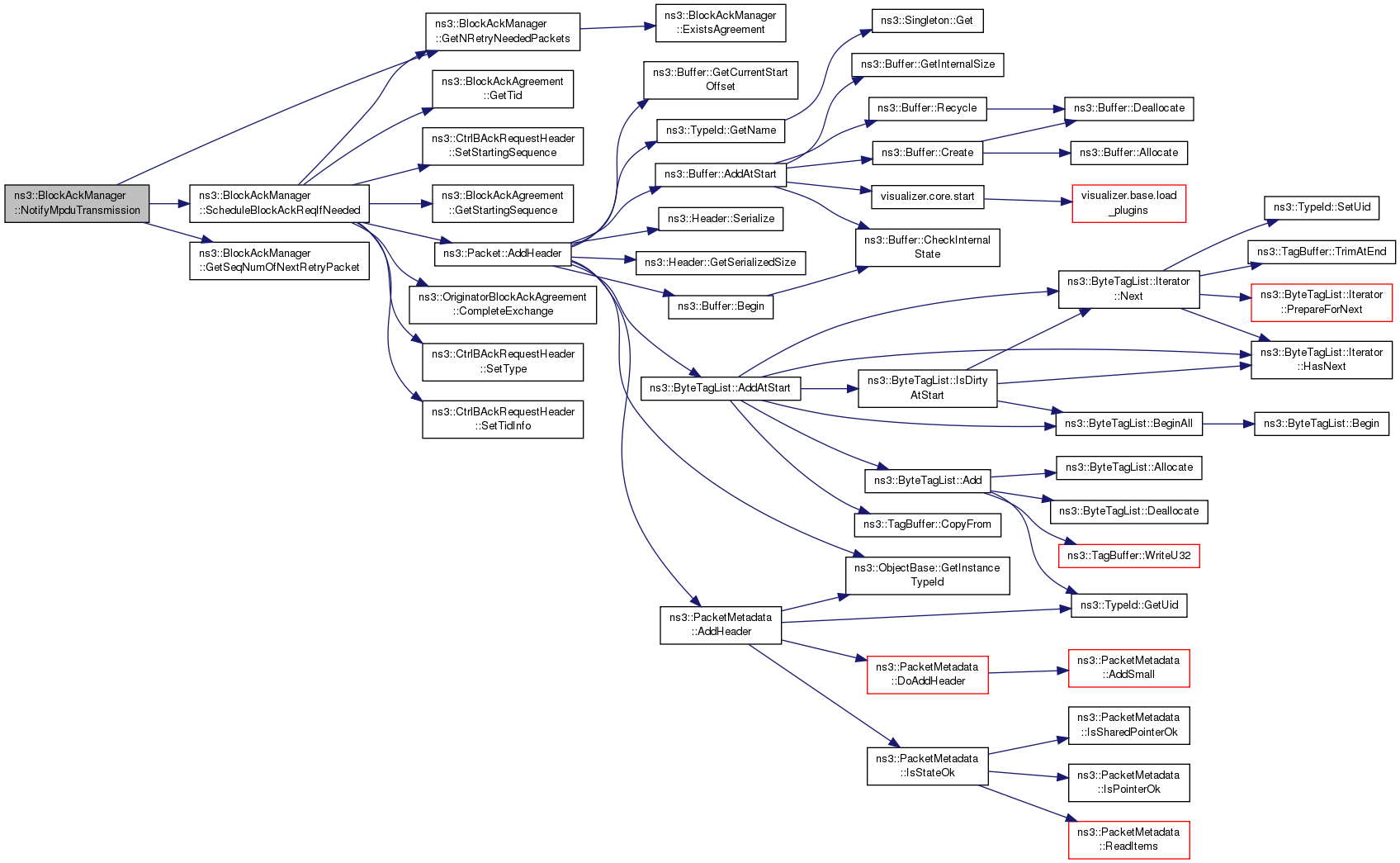

Here is the call graph for this function:

Here is the caller graph for this function:

BlockAckManager& ns3::BlockAckManager::operator= ( const BlockAckManager & )

private

Ptr< const Packet > ns3::BlockAckManager::PeekNextPacket	(	WifiMacHeader &	hdr,
		Mac48Address	recipient,
		uint8_t	tid,
		Time *	timestamp
	)

Definition at line 319 of file block-ack-manager.cc.

References ns3::WifiMacHeader::BLOCK_ACK, CleanupBuffers(), ns3::Packet::Copy(), ns3::OriginatorBlockAckAgreement::ESTABLISHED, ExistsAgreementInState(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetSequenceNumber(), m_agreements, m_retryPackets, ns3::WifiMacHeader::NORMAL_ACK, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::QosUtilsIsOldPacket(), ns3::WifiMacHeader::SetQosAckPolicy(), ns3::WifiMacHeader::SetRetry(), and SwitchToBlockAckIfNeeded().

Referenced by ns3::EdcaTxopN::PeekNextRetransmitPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::BlockAckManager::RemovePacket	(	uint8_t	tid,
		Mac48Address	recipient,
		uint16_t	seqnumber
	)

Remove a packet after you peek in the queue and get it.

Definition at line 375 of file block-ack-manager.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::GetSequenceNumber(), m_agreements, m_retryPackets, and NS_LOG_DEBUG.

Referenced by ns3::EdcaTxopN::RemoveRetransmitPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Packet > ns3::BlockAckManager::ScheduleBlockAckReqIfNeeded	(	Mac48Address	recipient,
		uint8_t	tid
	)

private

Parameters

recipient
tid

Returns: a packet

Checks if all packets, for which a block ack agreement was established or refreshed, have been transmitted. If yes, adds a pair in m_bAckReqs to indicate that at next channel access a block ack request (for established agreement recipient,tid) is needed.

Definition at line 617 of file block-ack-manager.cc.

References ns3::Packet::AddHeader(), ns3::WifiMacHeader::ADDR1, ns3::BASIC_BLOCK_ACK, ns3::OriginatorBlockAckAgreement::CompleteExchange(), ns3::COMPRESSED_BLOCK_ACK, GetNRetryNeededPackets(), ns3::BlockAckAgreement::GetStartingSequence(), ns3::BlockAckAgreement::GetTid(), m_agreements, m_blockAckType, m_queue, ns3::MULTI_TID_BLOCK_ACK, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::CtrlBAckRequestHeader::SetStartingSequence(), ns3::CtrlBAckRequestHeader::SetTidInfo(), and ns3::CtrlBAckRequestHeader::SetType().

Referenced by NotifyMpduTransmission().

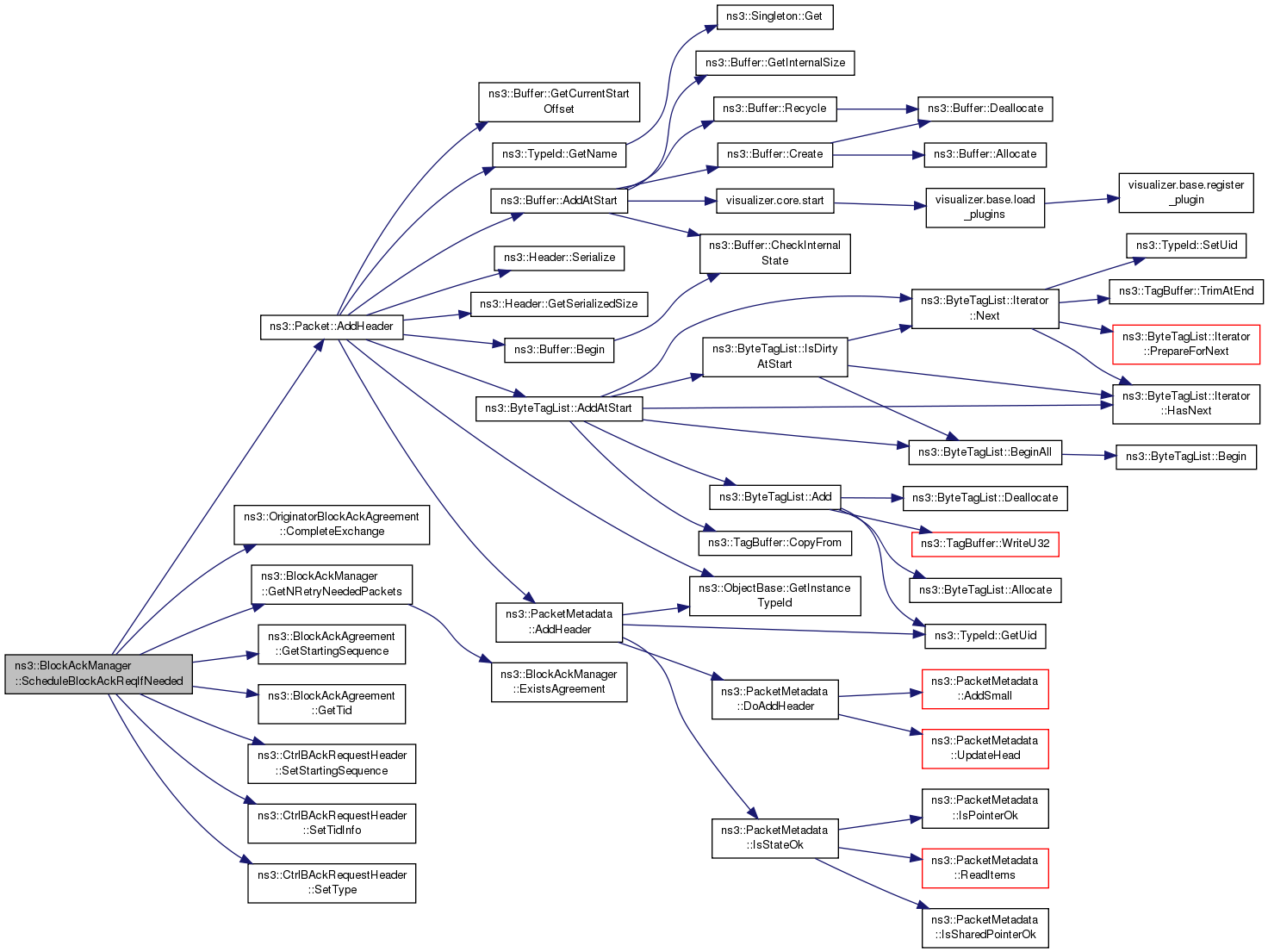

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BlockAckManager::SetBlockAckInactivityCallback ( Callback< void, Mac48Address, uint8_t, bool > callback )

Definition at line 839 of file block-ack-manager.cc.

References m_blockAckInactivityTimeout, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::CompleteConfig().

Here is the caller graph for this function:

void ns3::BlockAckManager::SetBlockAckThreshold ( uint8_t nPackets )

Parameters

nPackets Minimum number of packets for use of block ack.

Upon receipt of a block ack frame, if total number of packets (packets in WifiMacQueue and buffered packets) is greater of nPackets, they are transmitted using block ack mechanism.

Definition at line 475 of file block-ack-manager.cc.

References m_blockAckThreshold, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::SetBlockAckThreshold().

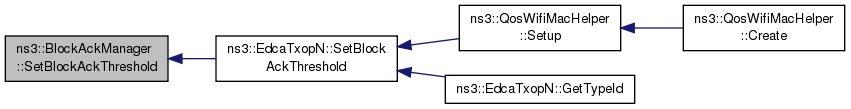

Here is the caller graph for this function:

void ns3::BlockAckManager::SetBlockAckType ( enum BlockAckType bAckType )

Parameters

bAckType Type of block ack

See ctrl-headers.h for more details.

Definition at line 610 of file block-ack-manager.cc.

References m_blockAckType, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::EdcaTxopN().

Here is the caller graph for this function:

void ns3::BlockAckManager::SetBlockDestinationCallback ( Callback< void, Mac48Address, uint8_t > callback )

Definition at line 846 of file block-ack-manager.cc.

References m_blockPackets, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::EdcaTxopN().

Here is the caller graph for this function:

void ns3::BlockAckManager::SetMaxPacketDelay ( Time maxDelay )

Parameters

maxDelay Max delay for a buffered packet.

This method is always called by ns3::WifiMacQueue object and sets max delay equals to ns3:WifiMacQueue delay value.

Definition at line 832 of file block-ack-manager.cc.

References m_maxDelay, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::EdcaTxopN().

Here is the caller graph for this function:

void ns3::BlockAckManager::SetQueue ( Ptr< WifiMacQueue > queue )

Parameters

queue The WifiMacQueue object.

Definition at line 717 of file block-ack-manager.cc.

References m_queue, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::EdcaTxopN().

Here is the caller graph for this function:

void ns3::BlockAckManager::SetTxFailedCallback ( TxFailed callback )

Parameters

callback the callback to invoke when a packet transmission was completed unsuccessfully.

Definition at line 889 of file block-ack-manager.cc.

References m_txFailedCallback.

Referenced by ns3::EdcaTxopN::EdcaTxopN().

Here is the caller graph for this function:

void ns3::BlockAckManager::SetTxMiddle ( MacTxMiddle * txMiddle )

Definition at line 860 of file block-ack-manager.cc.

References m_txMiddle, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::CompleteConfig().

Here is the caller graph for this function:

void ns3::BlockAckManager::SetTxOkCallback ( TxOk callback )

Parameters

callback the callback to invoke when a packet transmission was completed successfully.

Definition at line 883 of file block-ack-manager.cc.

References m_txOkCallback.

Referenced by ns3::EdcaTxopN::EdcaTxopN().

Here is the caller graph for this function:

void ns3::BlockAckManager::SetUnblockDestinationCallback ( Callback< void, Mac48Address, uint8_t > callback )

Definition at line 853 of file block-ack-manager.cc.

References m_unblockPackets, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::EdcaTxopN().

Here is the caller graph for this function:

void ns3::BlockAckManager::SetWifiRemoteStationManager ( Ptr< WifiRemoteStationManager > manager )

Set up WifiRemoteStationManager associated with this BlockAckManager.

Parameters

manager WifiRemoteStationManager associated with this BlockAckManager

Definition at line 482 of file block-ack-manager.cc.

References m_stationManager, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::SetWifiRemoteStationManager().

Here is the caller graph for this function:

void ns3::BlockAckManager::StorePacket	(	Ptr< const Packet >	packet,
		const WifiMacHeader &	hdr,
		Time	tStamp
	)

Parameters

packet	Packet to store.
hdr	802.11 header for packet.
tStamp	time stamp for packet

Stores packet for a possible future retransmission. Retransmission occurs if the packet, in a block ack frame, is indicated by recipient as not received.

Definition at line 209 of file block-ack-manager.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::GetSequenceNumber(), ns3::WifiMacHeader::IsQosData(), m_agreements, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::CompleteMpduTx(), and ns3::EdcaTxopN::CompleteTx().

Here is the call graph for this function:

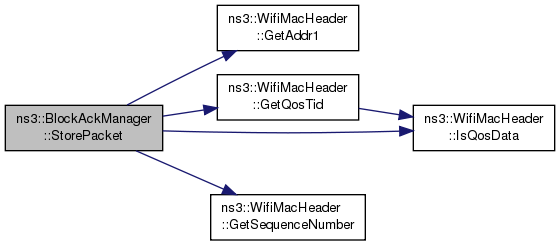

Here is the caller graph for this function:

bool ns3::BlockAckManager::SwitchToBlockAckIfNeeded	(	Mac48Address	recipient,
		uint8_t	tid,
		uint16_t	startingSeq
	)

Parameters

recipient
tid
startingSeq

Returns: true if there are packets in the queue that could be sent under block ACK, false otherwise

Checks if there are in the queue other packets that could be send under block ack. If yes adds these packets in current block ack exchange. However, number of packets exchanged in the current block ack, will not exceed the value of BufferSize in the corresponding OriginatorBlockAckAgreement object.

Definition at line 724 of file block-ack-manager.cc.

References ns3::WifiMacHeader::ADDR1, ExistsAgreement(), ExistsAgreementInState(), GetNBufferedPackets(), m_blockAckThreshold, m_queue, NotifyAgreementEstablished(), NS_ASSERT, NS_LOG_FUNCTION, ns3::OriginatorBlockAckAgreement::PENDING, and ns3::OriginatorBlockAckAgreement::UNSUCCESSFUL.

Referenced by GetNextPacket(), NotifyGotBlockAck(), PeekNextPacket(), and ns3::EdcaTxopN::VerifyBlockAck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BlockAckManager::TearDownBlockAck	(	Mac48Address	recipient,
		uint8_t	tid
	)

Parameters

recipient	Address of station involved in block ack mechanism.
tid	Traffic ID.

This method is invoked by EdcaTxopN object upon receipt of a DELBA frame from recipient. The relative block ack agreement is destroyed.

Definition at line 742 of file block-ack-manager.cc.

References DestroyAgreement(), and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::GotAck(), and ns3::EdcaTxopN::GotDelBaFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BlockAckManager::UpdateAgreement	(	const MgtAddBaResponseHeader *	respHdr,
		Mac48Address	recipient
	)

Parameters

respHdr	Relative Add block ack response (action frame).
recipient	Address of peer station involved in block ack mechanism.

Invoked upon receipt of a ADDBA response frame from recipient.

Definition at line 176 of file block-ack-manager.cc.

References ns3::OriginatorBlockAckAgreement::ESTABLISHED, ns3::MgtAddBaResponseHeader::GetBufferSize(), ns3::MgtAddBaResponseHeader::GetTid(), ns3::BlockAckAgreement::GetTimeout(), ns3::MgtAddBaResponseHeader::GetTimeout(), InactivityTimeout(), ns3::MgtAddBaResponseHeader::IsAmsduSupported(), ns3::MgtAddBaResponseHeader::IsImmediateBlockAck(), m_agreements, ns3::BlockAckAgreement::m_inactivityEvent, m_unblockPackets, ns3::MicroSeconds(), NS_LOG_FUNCTION, ns3::Simulator::Schedule(), ns3::BlockAckAgreement::SetAmsduSupport(), ns3::BlockAckAgreement::SetBufferSize(), ns3::BlockAckAgreement::SetDelayedBlockAck(), ns3::BlockAckAgreement::SetImmediateBlockAck(), ns3::OriginatorBlockAckAgreement::SetState(), ns3::BlockAckAgreement::SetTimeout(), and timeout.

Referenced by ns3::EdcaTxopN::GotAddBaResponse().

Here is the call graph for this function:

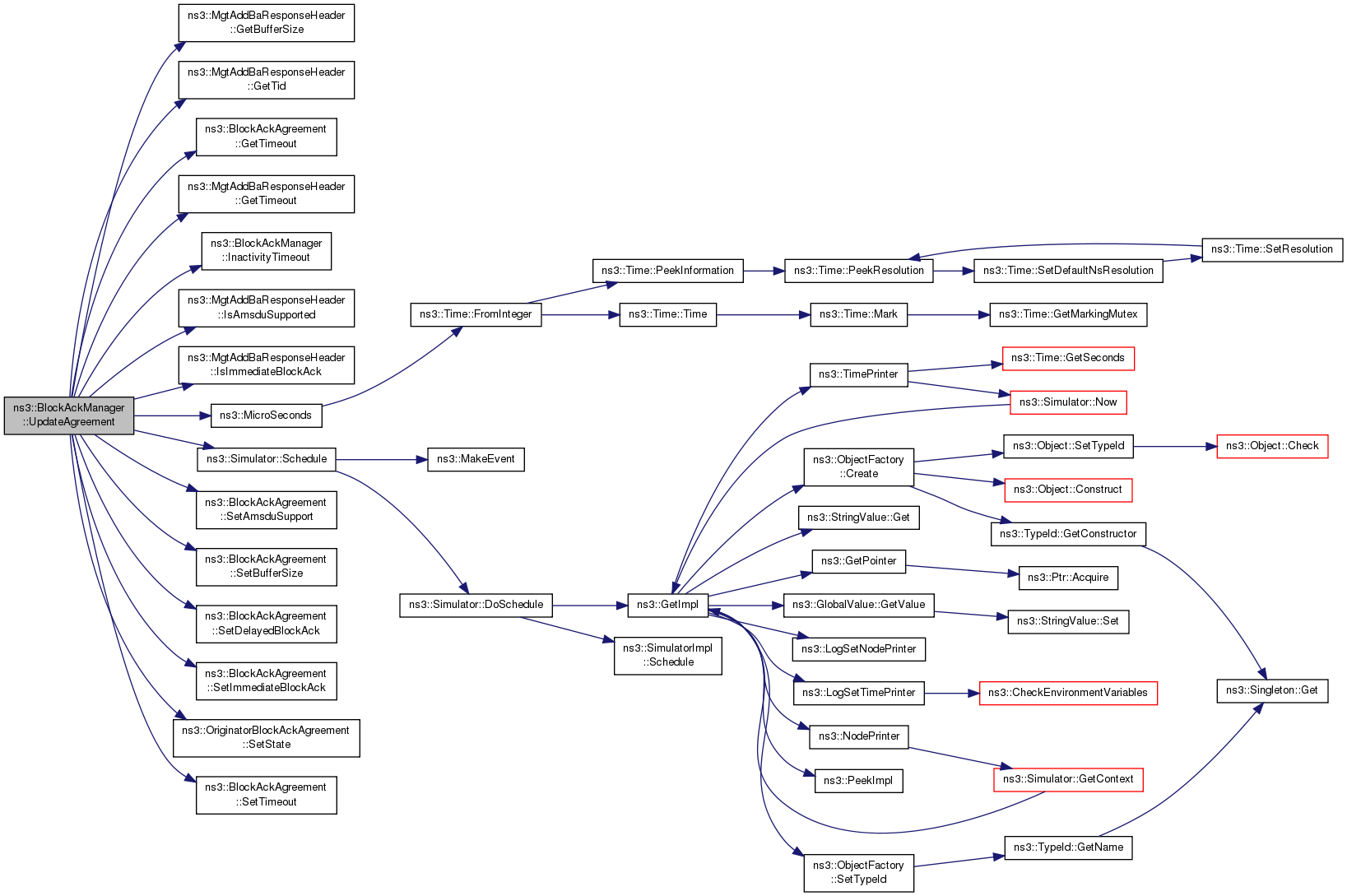

Here is the caller graph for this function:

Member Data Documentation

Mac48Address ns3::BlockAckManager::m_address

private

Definition at line 430 of file block-ack-manager.h.

Agreements ns3::BlockAckManager::m_agreements

private

This data structure contains, for each block ack agreement (recipient, tid), a set of packets for which an ack by block ack is requested.

Every packet or fragment indicated as correctly received in block ack frame is erased from this data structure. Pushed back in retransmission queue otherwise.

Definition at line 417 of file block-ack-manager.h.

Referenced by CleanupBuffers(), CompleteAmpduExchange(), CreateAgreement(), DestroyAgreement(), ExistsAgreement(), ExistsAgreementInState(), GetNBufferedPackets(), GetNextPacket(), NeedBarRetransmission(), NotifyAgreementEstablished(), NotifyAgreementUnsuccessful(), NotifyGotBlockAck(), NotifyMpduTransmission(), PeekNextPacket(), RemovePacket(), ScheduleBlockAckReqIfNeeded(), StorePacket(), UpdateAgreement(), and ~BlockAckManager().
